Ritchie Ridge Details

PropertyValue
Rupture Count5,429
Ruptures Above Sect Min Mag5,427
Ruptures w/ Nonzero Rates24
Magnitude Range[6.92, 8.51]
Length Range[19, 662] km
Total Rate1.12049065E-5 /yr
Multi-Fault Rate1.12049065E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults72

Table Of Contents

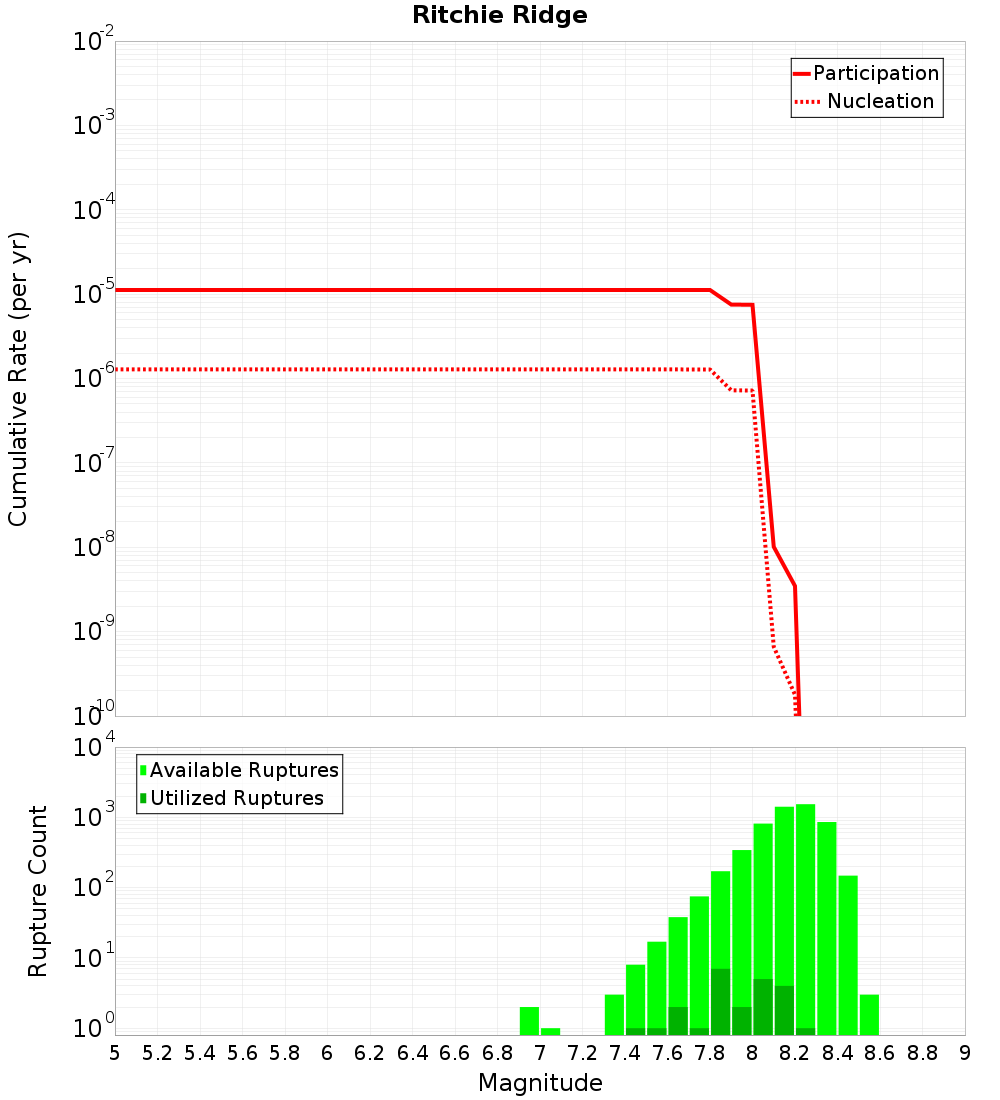

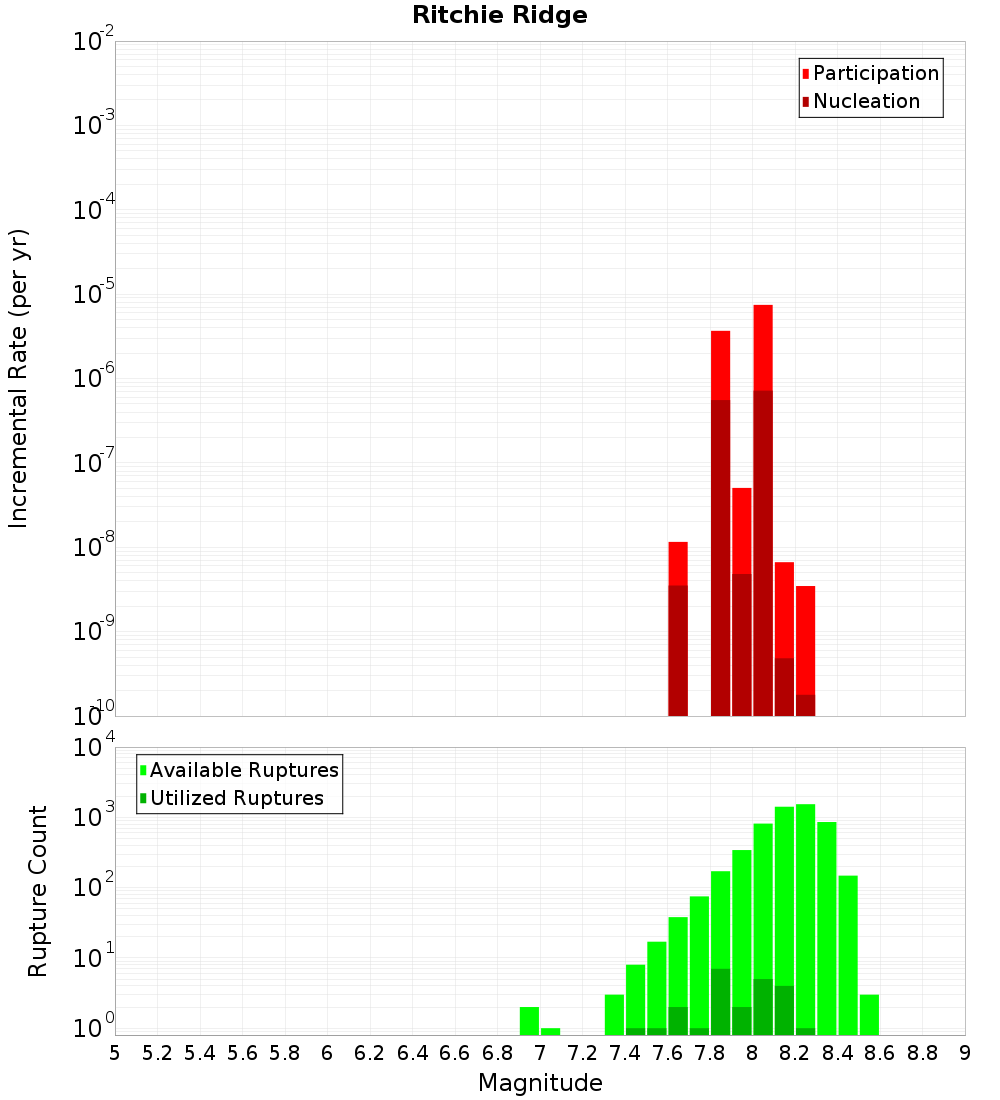

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

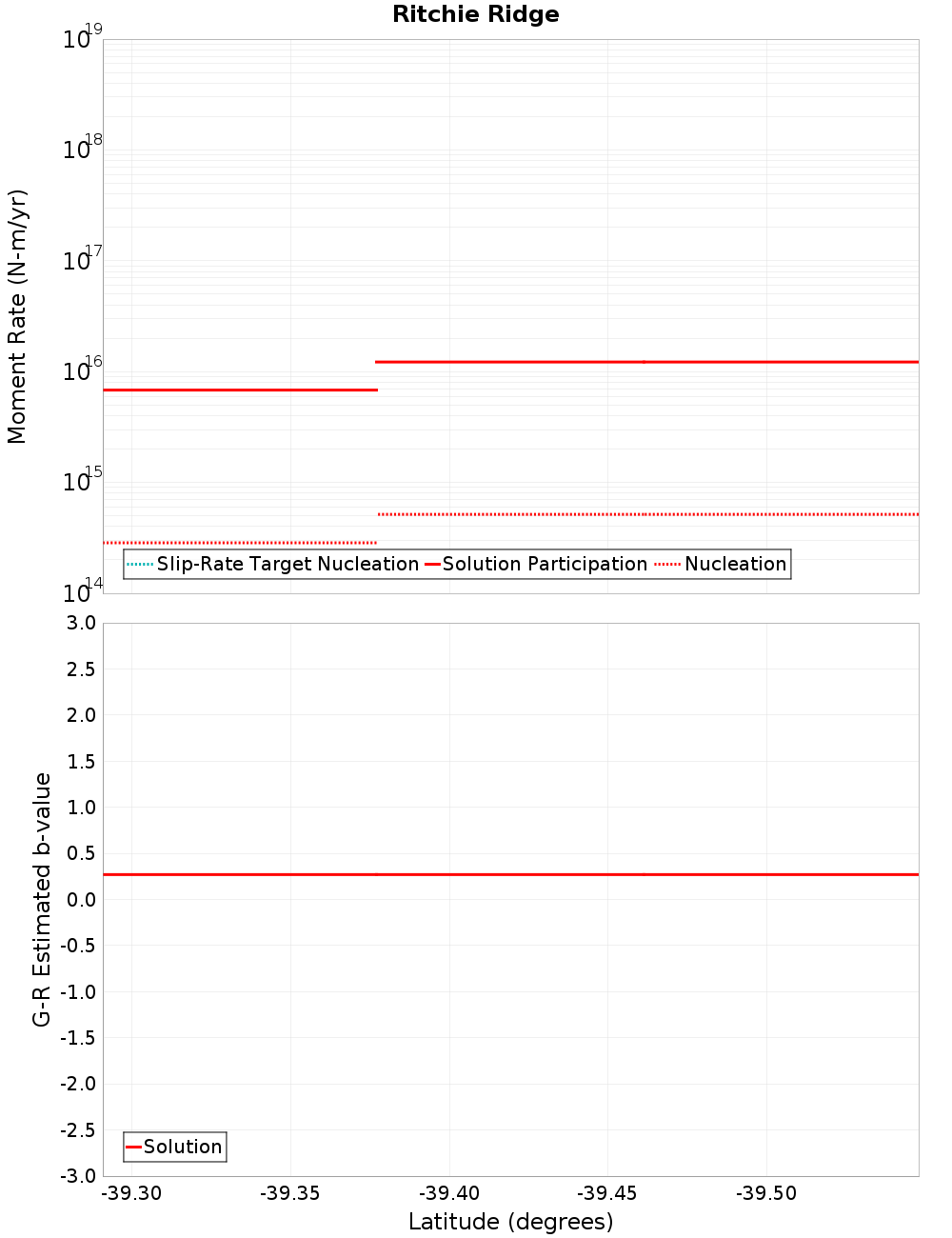

Moment-Rates and b-Values

(top)

Along-strike plot

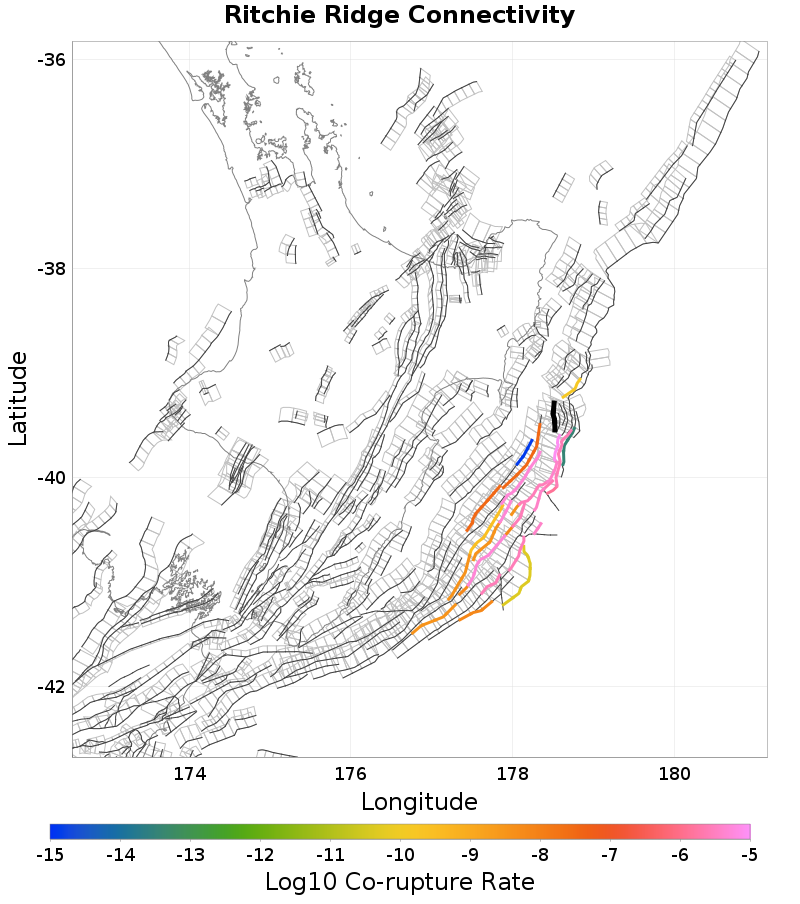

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Ritchie Ridge 1, 0.13 km away
Rock Garden - Ritchie East, 0.17 km away
Te Kapu Bank East, 0.96 km away
Rock Garden - Ritchie East 1, 3.74 km away
Te Kapu Bank, 5.51 km away
Whaiti Ridge, 6.26 km away
Pakupaku Ridge, 6.34 km away
Ritchie West 1, 7.15 km away
Pakupaku Ridge East, 10.28 km away
Riwha, 11.28 km away
Puke Knoll, 14.28 km away

Ritchie Ridge 1, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rock Garden - Ritchie East, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?true
Directly Connected?true
Co-rupture Count4,453
Co-rupture Rate8.621388E-6

Te Kapu Bank East, 0.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rock Garden - Ritchie East 1, 3.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?true
Directly Connected?true
Co-rupture Count742
Co-rupture Rate2.5506677E-6

Te Kapu Bank, 5.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate0.0

Whaiti Ridge, 6.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pakupaku Ridge, 6.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate3.470314E-14

Ritchie West 1, 7.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?true
Directly Connected?true
Co-rupture Count171
Co-rupture Rate3.2851066E-8

Pakupaku Ridge East, 10.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Riwha, 11.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?true
Directly Connected?true
Co-rupture Count1,665
Co-rupture Rate1.445089E-10

Puke Knoll, 14.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?true
Directly Connected?false
Co-rupture Count160
Co-rupture Rate0.0
