Whaiti Ridge Details

PropertyValue
Rupture Count11,759
Ruptures Above Sect Min Mag11,758
Ruptures w/ Nonzero Rates39
Magnitude Range[7.16, 8.62]
Length Range[26, 855] km
Total Rate1.52078255E-5 /yr
Multi-Fault Rate1.52078255E-5 /yr (100.00%)
Directly-Connected Faults9
All Co-Rupturing Faults68

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

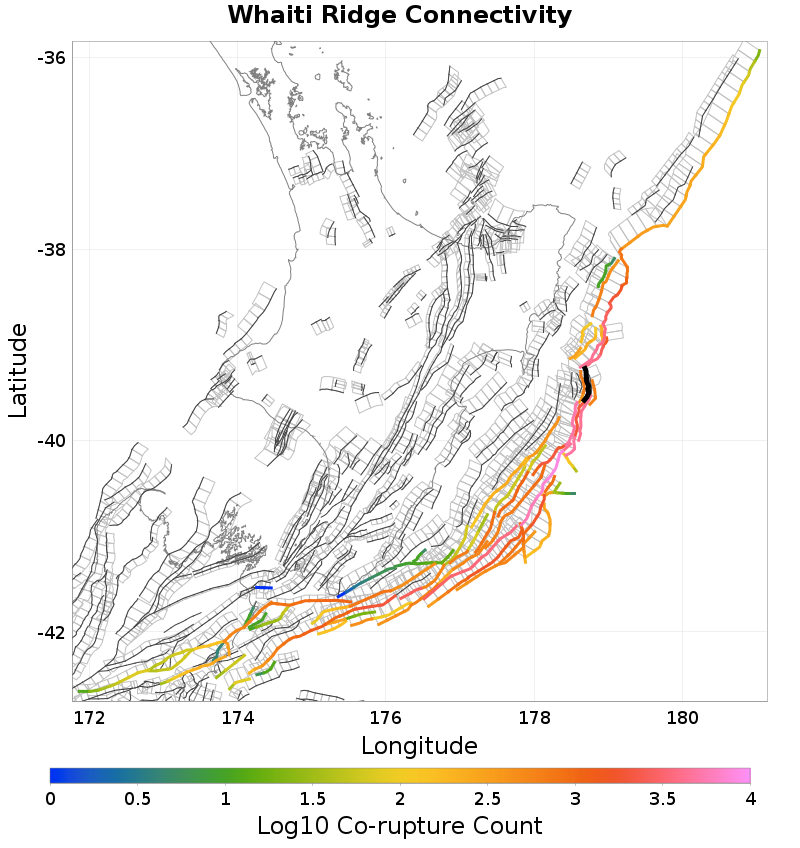

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Pakupaku Ridge, 0.02 km away
Te Kapu Bank, 0.08 km away
Puke Knoll, 0.09 km away
Rock Garden - Ritchie East 1, 0.62 km away
Te Kapu Bank East, 1.89 km away
Riwha, 2.35 km away
Pakupaku Ridge East, 3.58 km away
Ritchie Ridge 1, 5.59 km away
Rock Garden - Ritchie East, 5.87 km away
Ritchie Ridge, 6.26 km away
Paritu Ridge, 7.95 km away
Paritu West, 8.89 km away

Pakupaku Ridge, 0.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?true
Directly Connected?true
Co-rupture Count4,257
Co-rupture Rate6.986918E-6

Te Kapu Bank, 0.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Puke Knoll, 0.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?true
Directly Connected?true
Co-rupture Count3,841
Co-rupture Rate1.0122469E-5

Rock Garden - Ritchie East 1, 0.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?true
Directly Connected?true
Co-rupture Count5,004
Co-rupture Rate2.9723788E-7

Te Kapu Bank East, 1.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?true
Directly Connected?true
Co-rupture Count682
Co-rupture Rate1.949904E-7

Riwha, 2.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?true
Directly Connected?true
Co-rupture Count4,381
Co-rupture Rate6.6127477E-15

Pakupaku Ridge East, 3.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?true
Directly Connected?true
Co-rupture Count615
Co-rupture Rate2.3901403E-9

Ritchie Ridge 1, 5.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rock Garden - Ritchie East, 5.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?true
Directly Connected?true
Co-rupture Count5,870
Co-rupture Rate7.923953E-6

Ritchie Ridge, 6.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Paritu Ridge, 7.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?true
Directly Connected?true
Co-rupture Count272
Co-rupture Rate2.380575E-9

Paritu West, 8.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?true
Directly Connected?true
Co-rupture Count305
Co-rupture Rate2.9696528E-7
