White Creek Details

Property	Value
Rupture Count	36,130
Ruptures Above Sect Min Mag	36,124
Ruptures w/ Nonzero Rates	541
Magnitude Range	[7.01, 8.67]
Length Range	[23, 1,039] km
Total Rate	2.7889988E-4 /yr
Multi-Fault Rate	2.4462733E-4 /yr (87.71%)
Directly-Connected Faults	8
All Co-Rupturing Faults	94

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

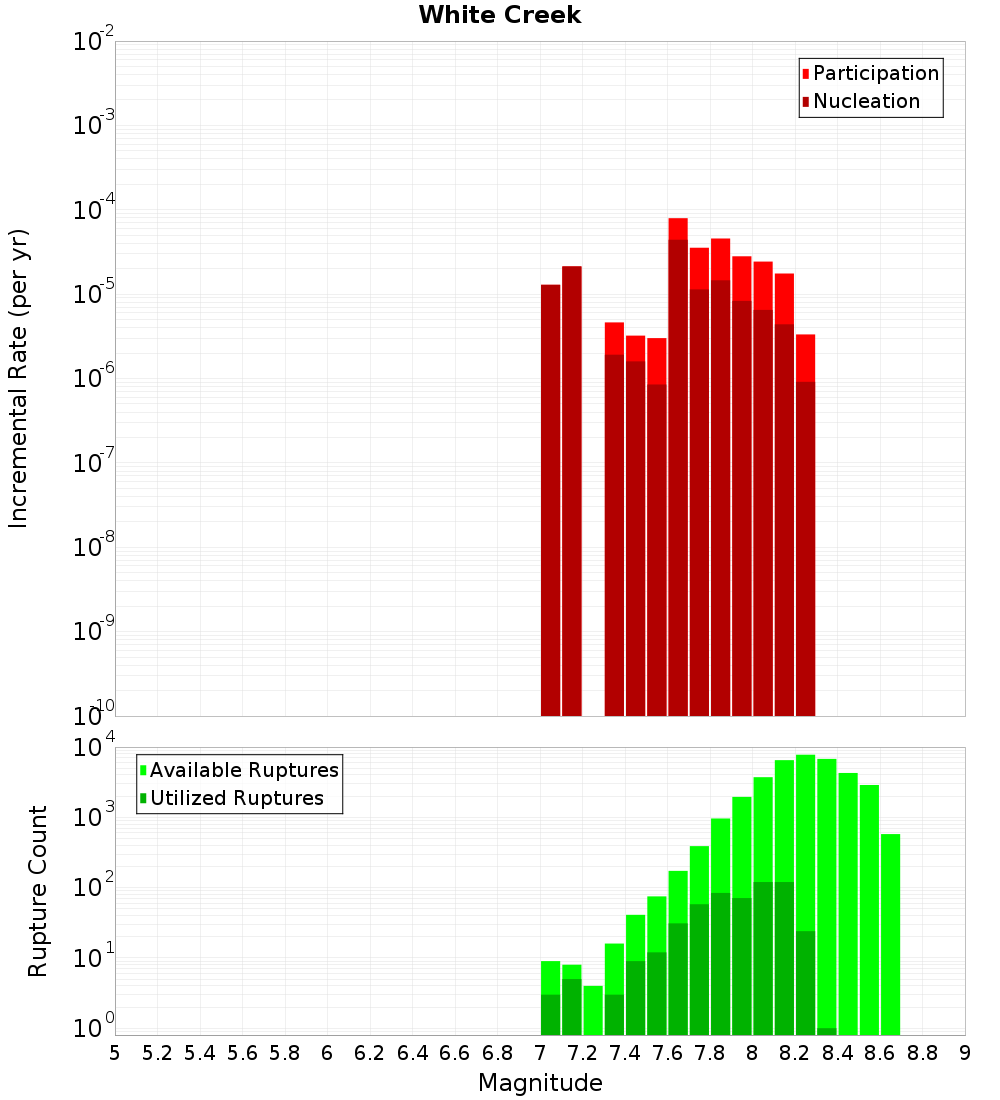

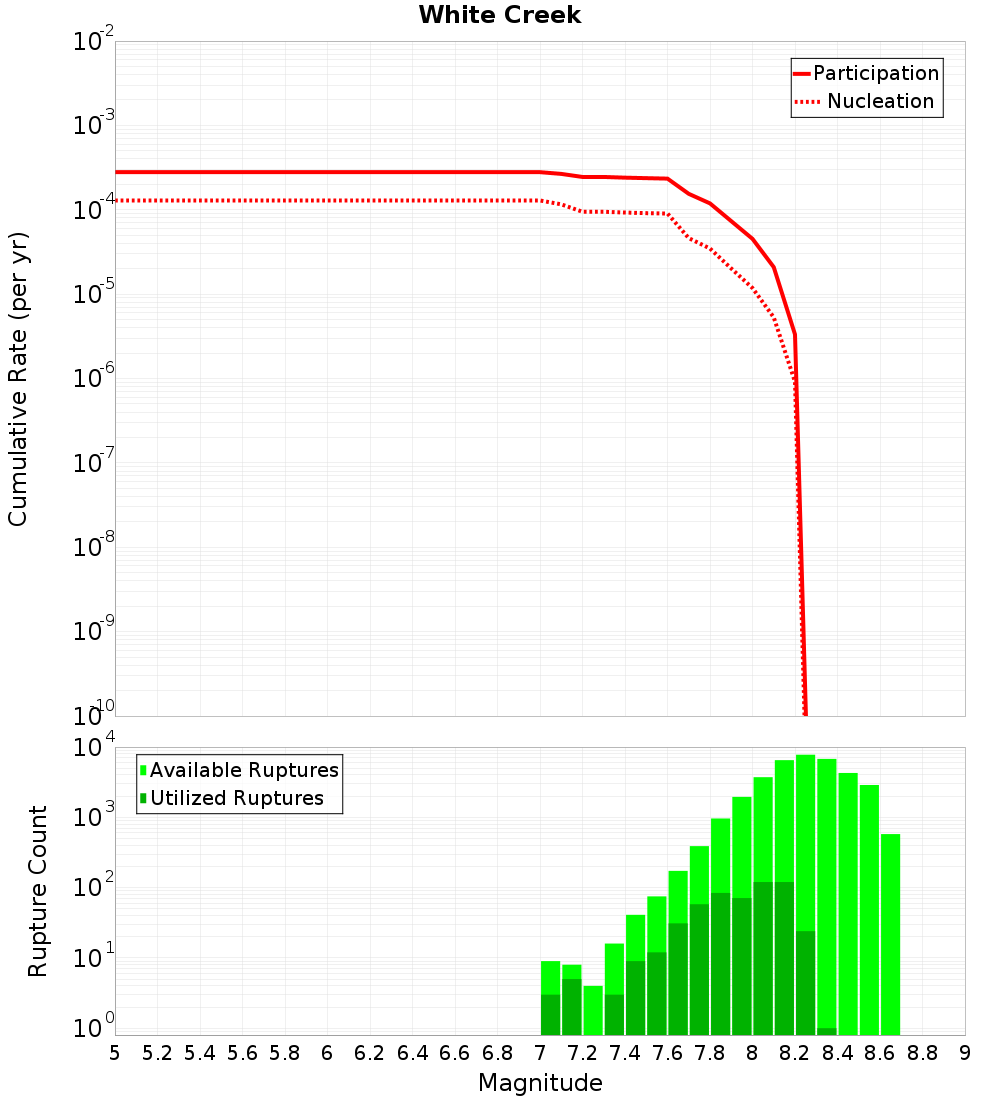

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Lyell, 0.08 km away
Matiri West, 0.2 km away
Kohaihai South, 0.56 km away
White Creek - buried, 0.99 km away
Kohaihai, 2.19 km away
Glasgow, 2.98 km away
Lyell South, 6.37 km away
Karamea South, 10.55 km away
Kongahau, 11.77 km away
Inangahua, 13.07 km away

Lyell, 0.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?	true
Directly Connected?	true
Co-rupture Count	6,142
Co-rupture Rate	8.514418E-5

Matiri West, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?	true
Directly Connected?	true
Co-rupture Count	4,314
Co-rupture Rate	1.9989808E-5

Kohaihai South, 0.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?	true
Directly Connected?	true
Co-rupture Count	1,839
Co-rupture Rate	2.7148519E-5

White Creek - buried, 0.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?	true
Directly Connected?	true
Co-rupture Count	33,293
Co-rupture Rate	1.4178415E-5

Kohaihai, 2.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?	true
Directly Connected?	true
Co-rupture Count	17,737
Co-rupture Rate	1.1627713E-4

Glasgow, 2.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?	true
Directly Connected?	true
Co-rupture Count	349
Co-rupture Rate	6.916937E-6

Lyell South, 6.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?	true
Directly Connected?	true
Co-rupture Count	6,521
Co-rupture Rate	9.888103E-5

Karamea South, 10.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?	true
Directly Connected?	false
Co-rupture Count	693
Co-rupture Rate	1.6804057E-5

Kongahau, 11.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?	true
Directly Connected?	false
Co-rupture Count	15,724
Co-rupture Rate	2.9408562E-5

Inangahua, 13.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?	true
Directly Connected?	true
Co-rupture Count	4,099
Co-rupture Rate	4.2008203E-5
