North Mernoo E2-1 Details

Property	Value
Rupture Count	325
Ruptures Above Sect Min Mag	307
Ruptures w/ Nonzero Rates	4
Magnitude Range	[6.61, 7.72]
Length Range	[15, 193] km
Total Rate	3.1249414E-4 /yr
Multi-Fault Rate	3.1249414E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	10

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

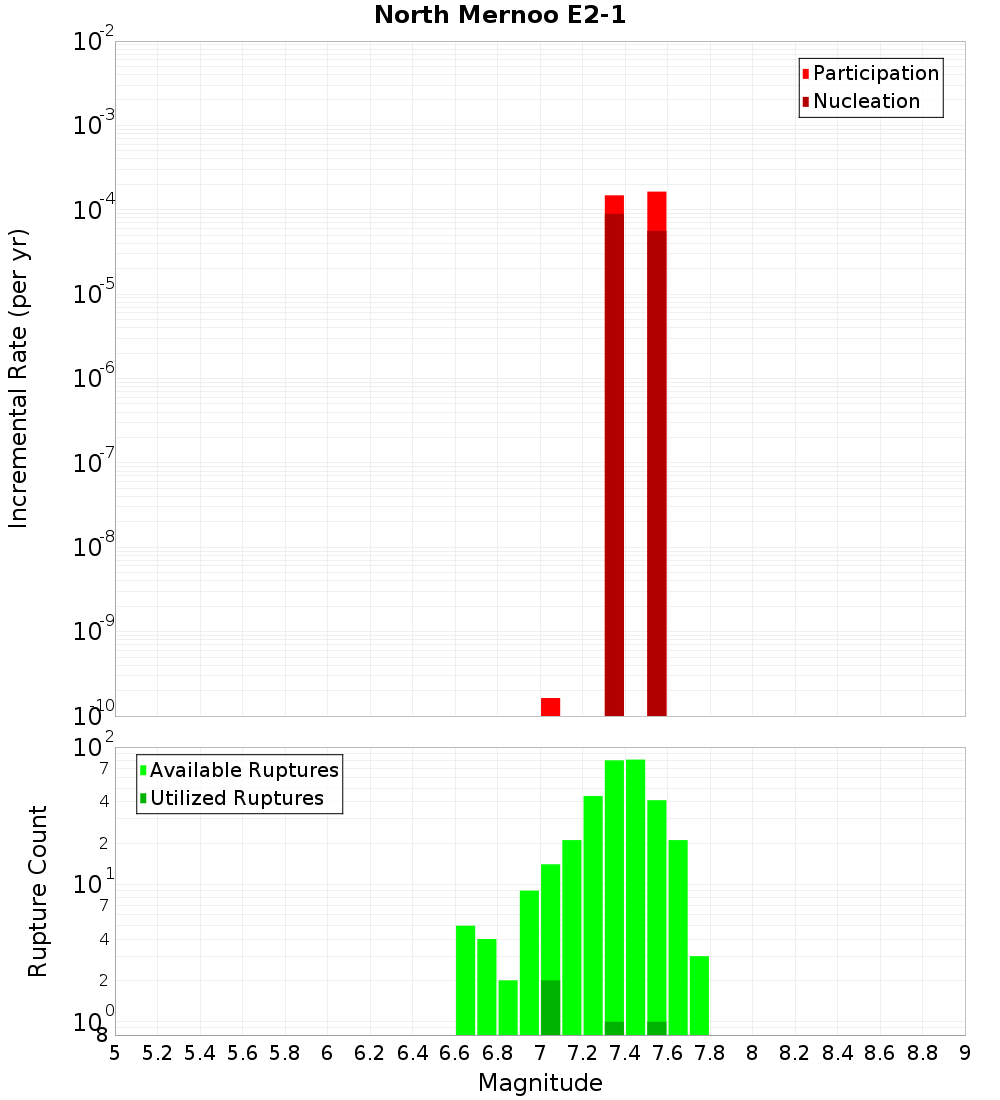

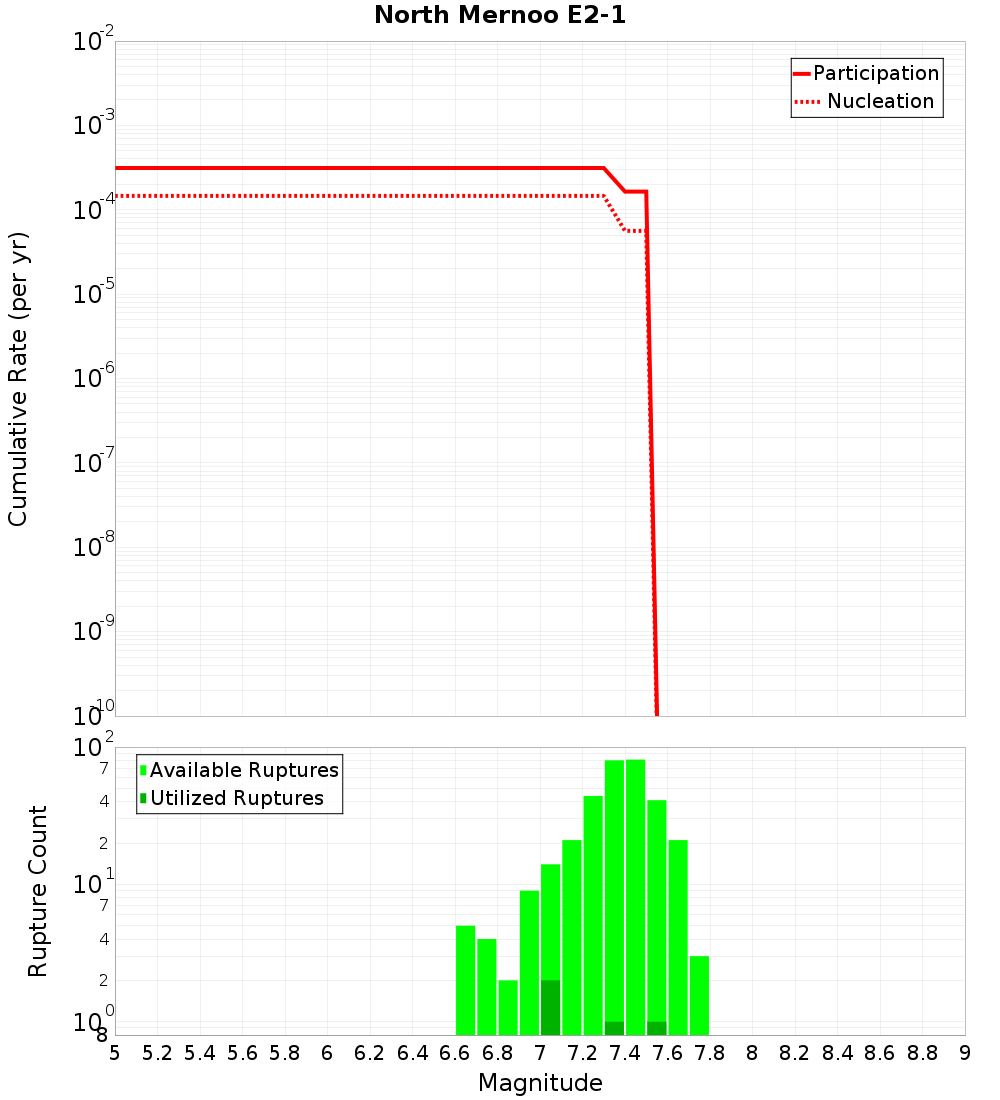

Magnitude-Frequency Distribution

Incremental	Cumulative

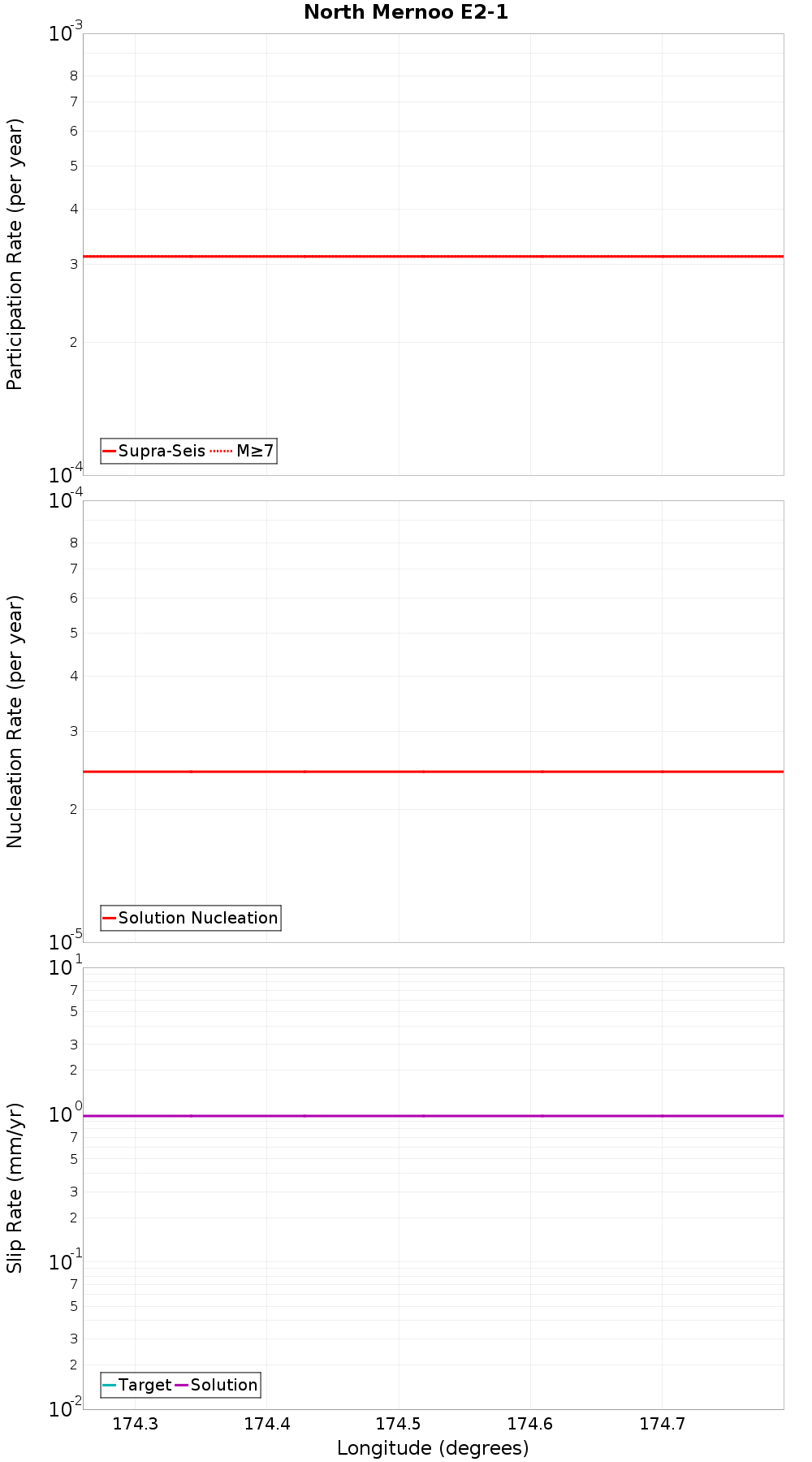

Along-Strike Values

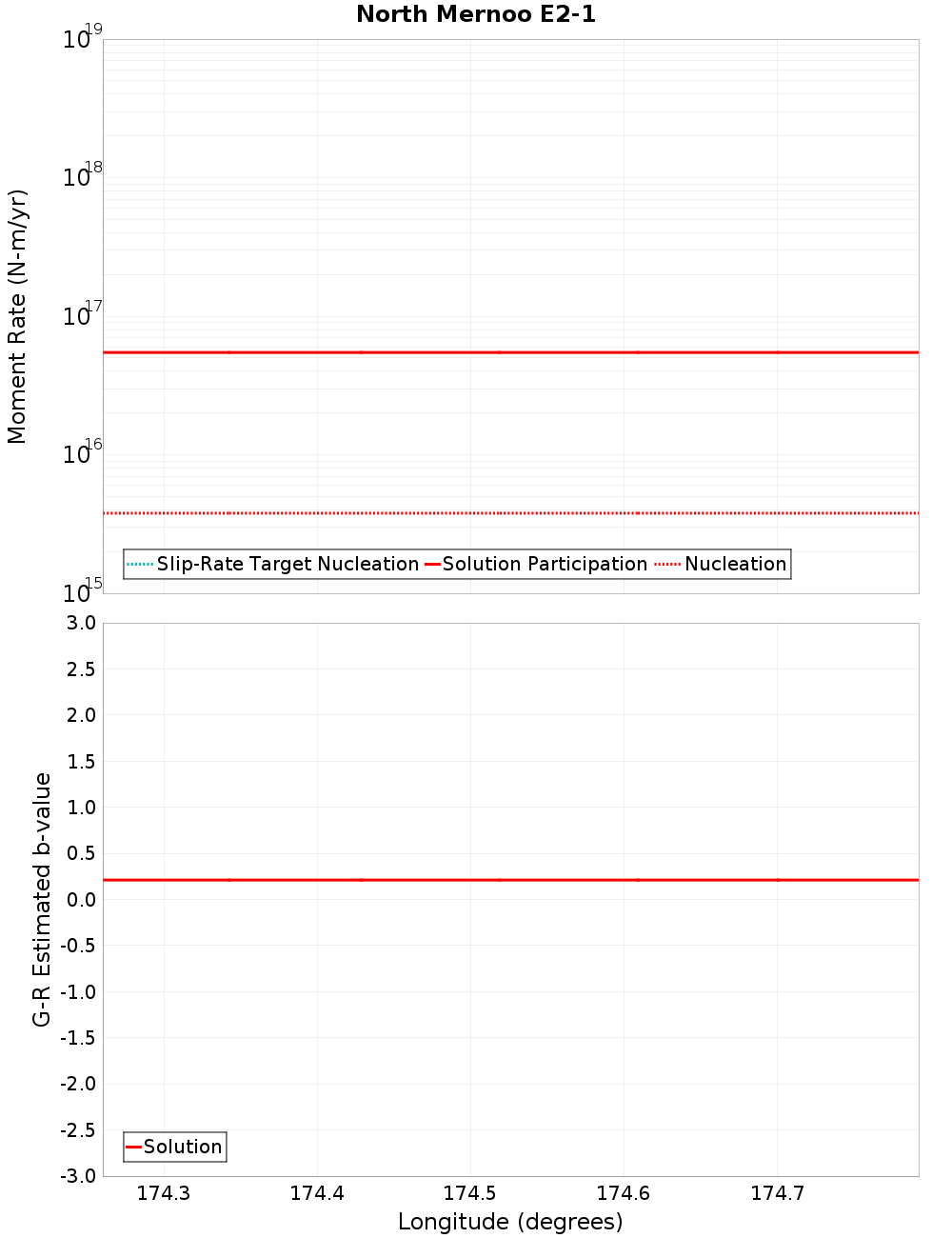

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
North Mernoo E2-2, 1.89 km away
North Mernoo F1, 2.78 km away
North Mernoo Fa-2, 3.22 km away
North Mernoo Fa-1, 7.2 km away
North Mernoo G, 9.36 km away
North Mernoo H, 11.95 km away
North Mernoo I, 13.83 km away
North Mernoo 15, 14.95 km away

North Mernoo E2-2, 1.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMGR1dzZT
Connected?	true
Directly Connected?	true
Co-rupture Count	77
Co-rupture Rate	1.6415106E-4

North Mernoo F1, 2.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMGR1dzZT
Connected?	true
Directly Connected?	true
Co-rupture Count	124
Co-rupture Rate	1.6415097E-4

North Mernoo Fa-2, 3.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMGR1dzZT
Connected?	true
Directly Connected?	true
Co-rupture Count	40
Co-rupture Rate	1.4834301E-4

North Mernoo Fa-1, 7.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMGR1dzZT
Connected?	true
Directly Connected?	true
Co-rupture Count	85
Co-rupture Rate	7.5940254E-11

North Mernoo G, 9.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMGR1dzZT
Connected?	true
Directly Connected?	true
Co-rupture Count	150
Co-rupture Rate	1.6415097E-4

North Mernoo H, 11.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMGR1dzZT
Connected?	true
Directly Connected?	true
Co-rupture Count	168
Co-rupture Rate	1.4834301E-4

North Mernoo I, 13.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMGR1dzZT
Connected?	true
Directly Connected?	false
Co-rupture Count	148
Co-rupture Rate	1.6415097E-4

North Mernoo 15, 14.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMGR1dzZT
Connected?	true
Directly Connected?	true
Co-rupture Count	12
Co-rupture Rate	8.7390525E-11
