Chamberlain Details

PropertyValue
Rupture Count1,656
Ruptures Above Sect Min Mag1,655
Ruptures w/ Nonzero Rates62
Magnitude Range[7.00, 8.27]
Length Range[22, 356] km
Total Rate6.018374E-5 /yr
Multi-Fault Rate6.0084345E-5 /yr (99.83%)
Directly-Connected Faults5
All Co-Rupturing Faults31

Table Of Contents

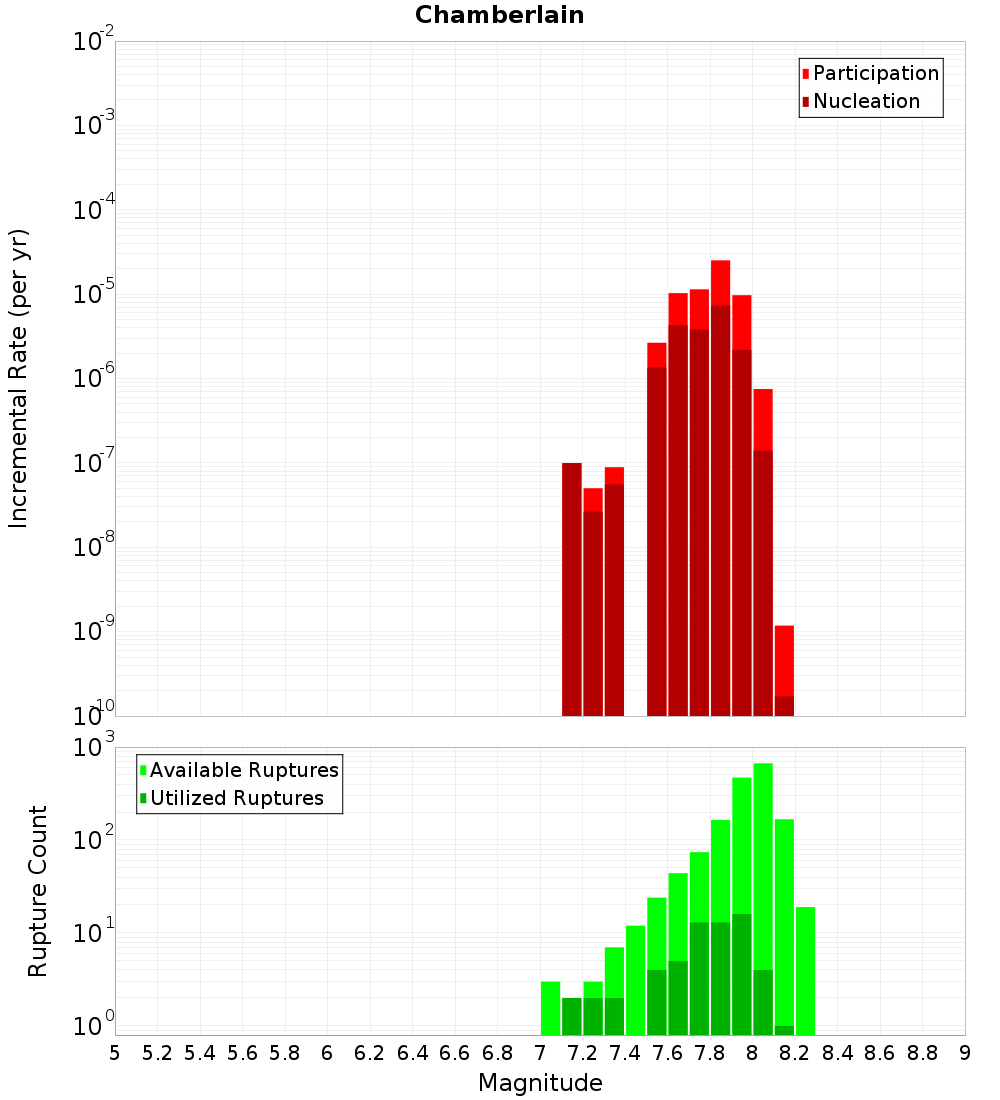

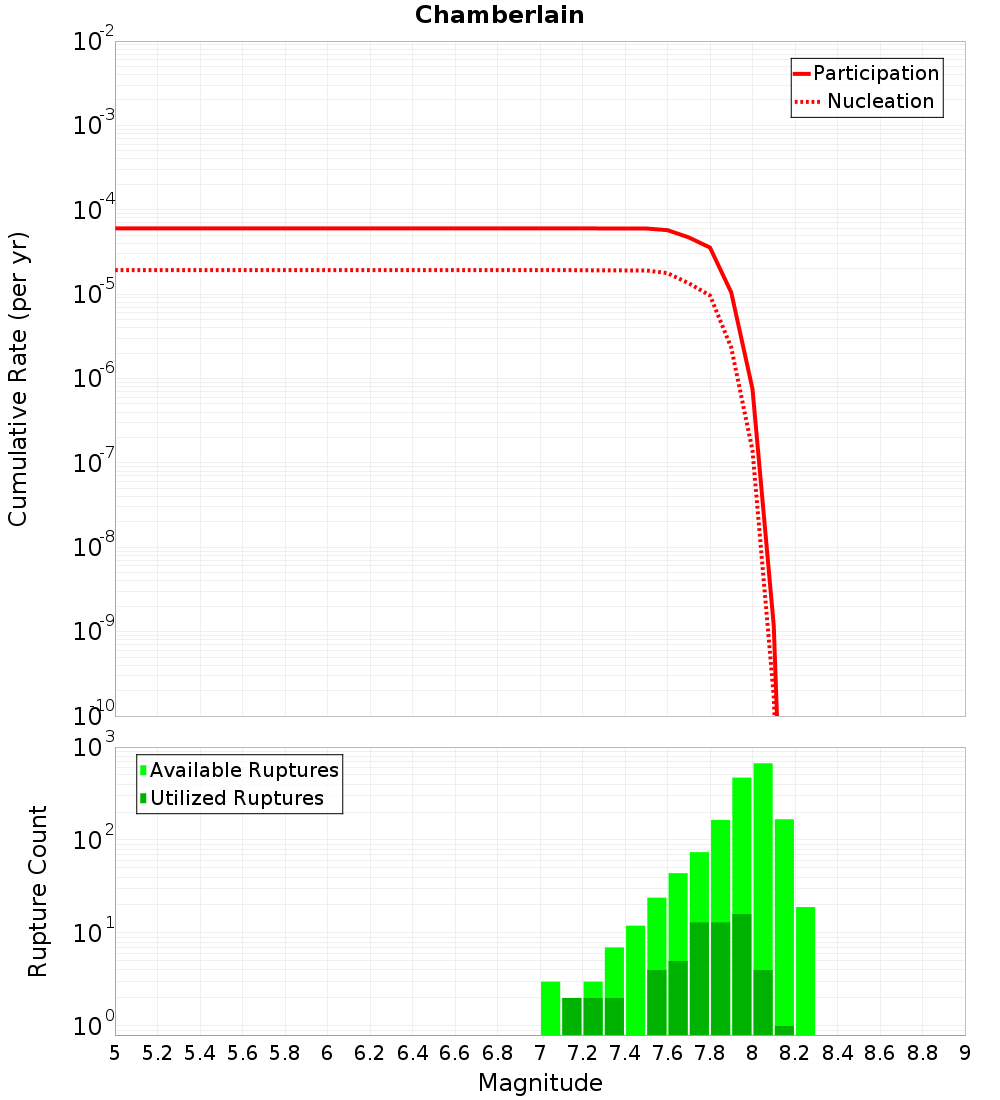

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

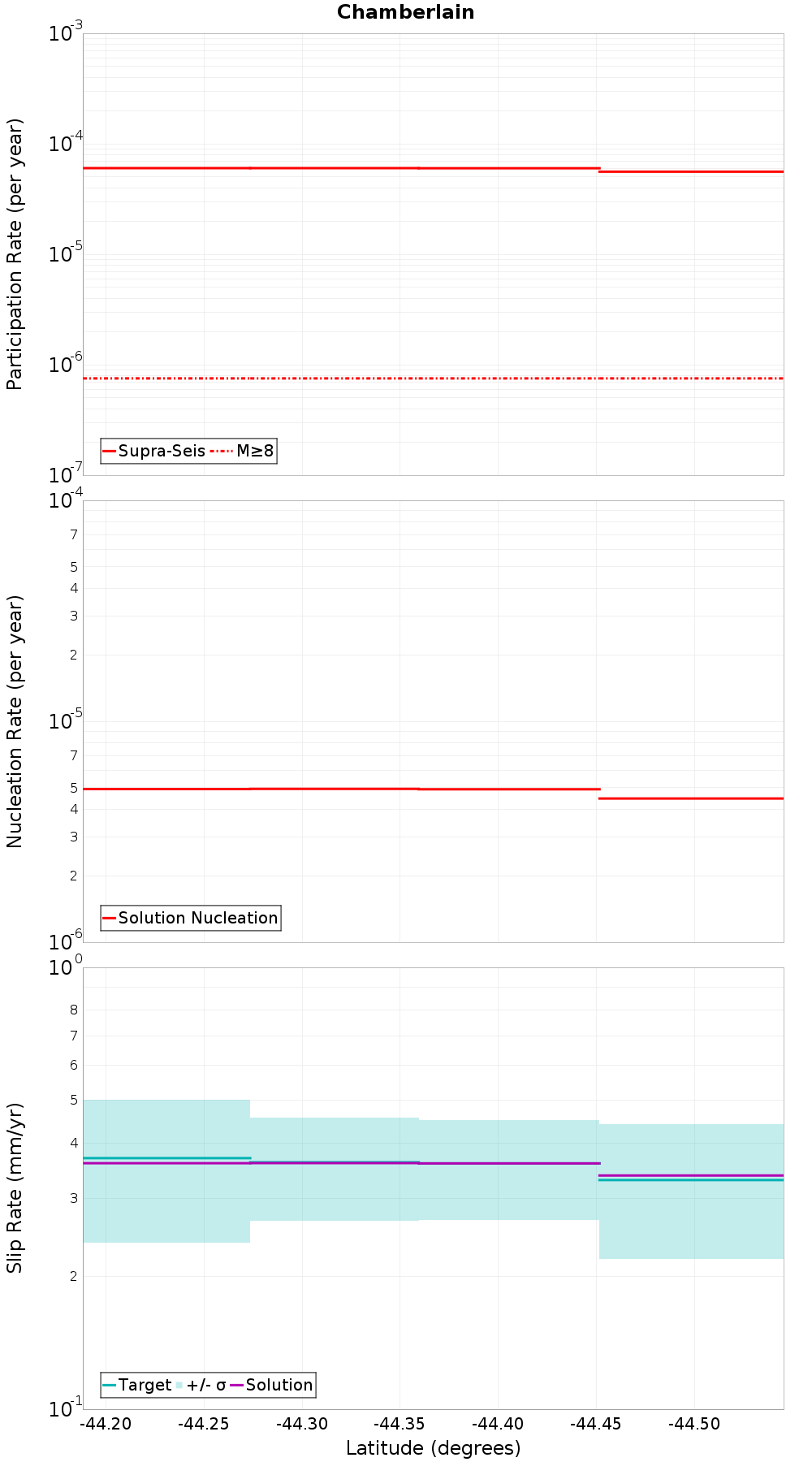

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

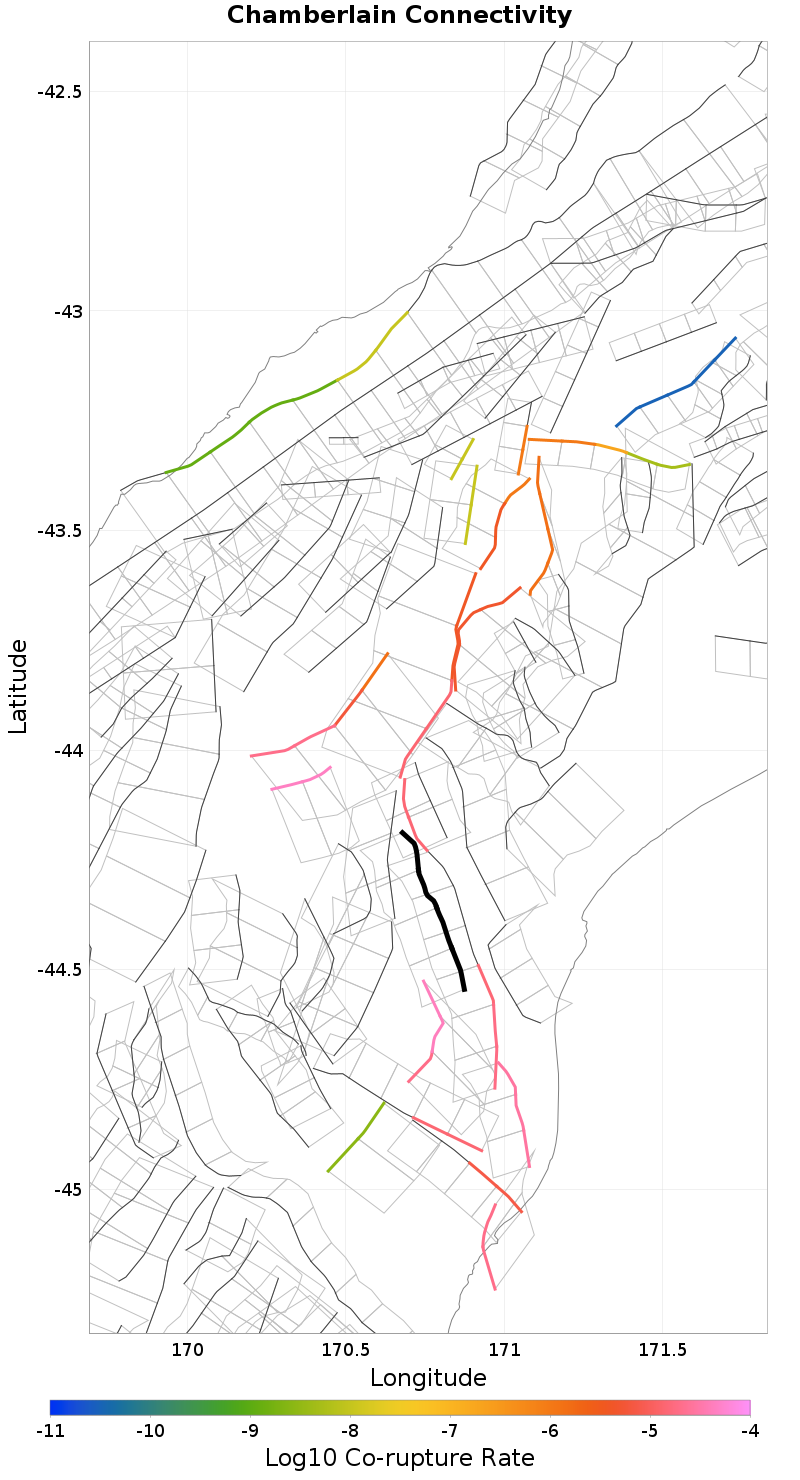

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Opawa, 1.37 km away
Campbell Hills, 1.74 km away
The Wolds, 2.09 km away
Hunters, 2.51 km away
Dalgety, 2.65 km away
Albury, 7.07 km away
Maungati, 8.42 km away
Kirkliston, 9.41 km away
Irishman Creek, 10.73 km away
Grampian, 11.51 km away
Brothers, 12.7 km away
Fox Peak, 14.1 km away

Opawa, 1.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?true
Directly Connected?true
Co-rupture Count1,066
Co-rupture Rate1.4355741E-5

Campbell Hills, 1.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?true
Directly Connected?true
Co-rupture Count1,027
Co-rupture Rate4.2228316E-5

The Wolds, 2.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?true
Directly Connected?true
Co-rupture Count76
Co-rupture Rate4.5720928E-5

Hunters, 2.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?true
Directly Connected?true
Co-rupture Count669
Co-rupture Rate1.810132E-5

Dalgety, 2.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?true
Directly Connected?true
Co-rupture Count454
Co-rupture Rate0.0

Albury, 7.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maungati, 8.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kirkliston, 9.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Irishman Creek, 10.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?true
Directly Connected?false
Co-rupture Count274
Co-rupture Rate1.9860585E-5

Grampian, 11.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Brothers, 12.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Fox Peak, 14.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?true
Directly Connected?false
Co-rupture Count1,665
Co-rupture Rate1.3735943E-5
