Galloway Shanty Details

Property	Value
Rupture Count	2,069
Ruptures Above Sect Min Mag	2,069
Ruptures w/ Nonzero Rates	114
Magnitude Range	[7.01, 8.37]
Length Range	[17, 425] km
Total Rate	1.5998834E-4 /yr
Multi-Fault Rate	9.2701805E-5 /yr (57.94%)
Directly-Connected Faults	5
All Co-Rupturing Faults	61

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

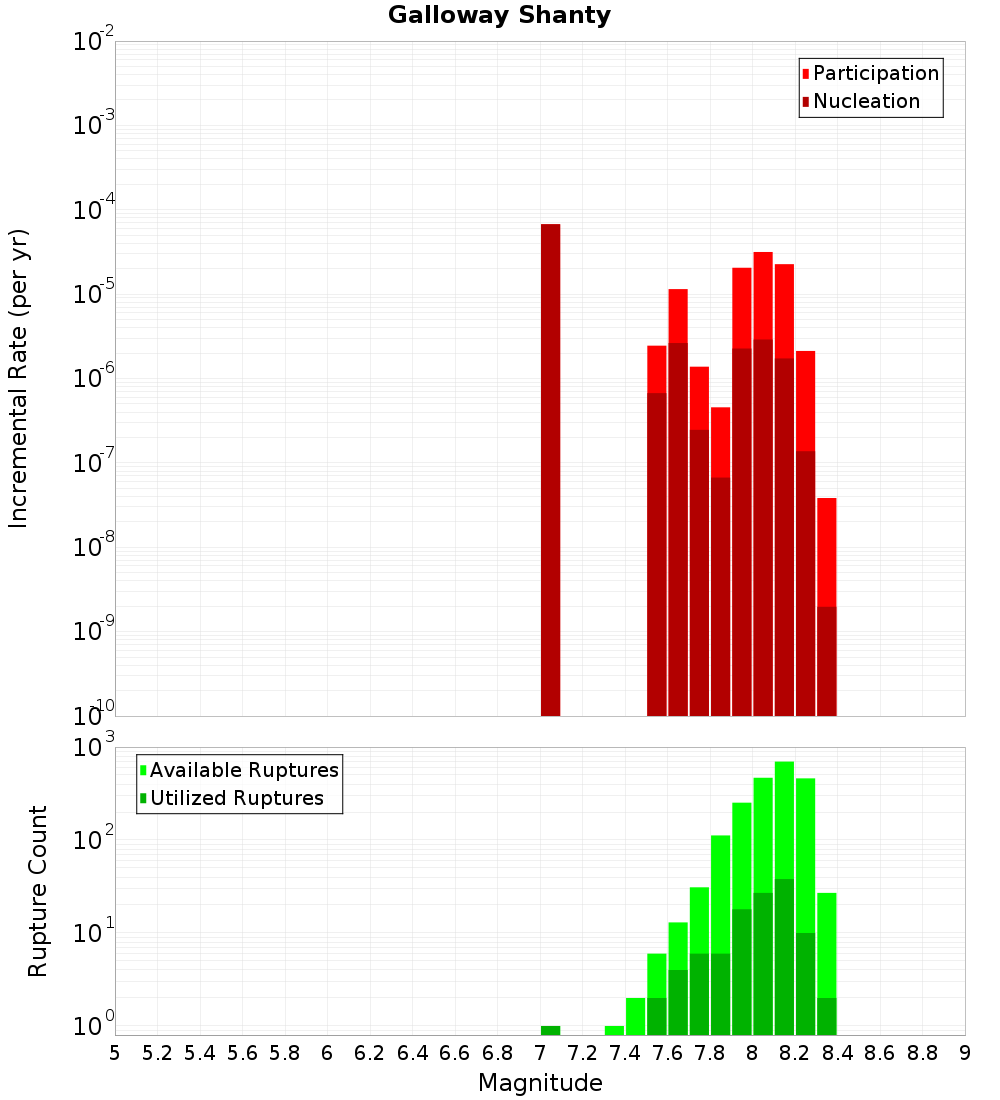

Magnitude-Frequency Distribution

Incremental	Cumulative

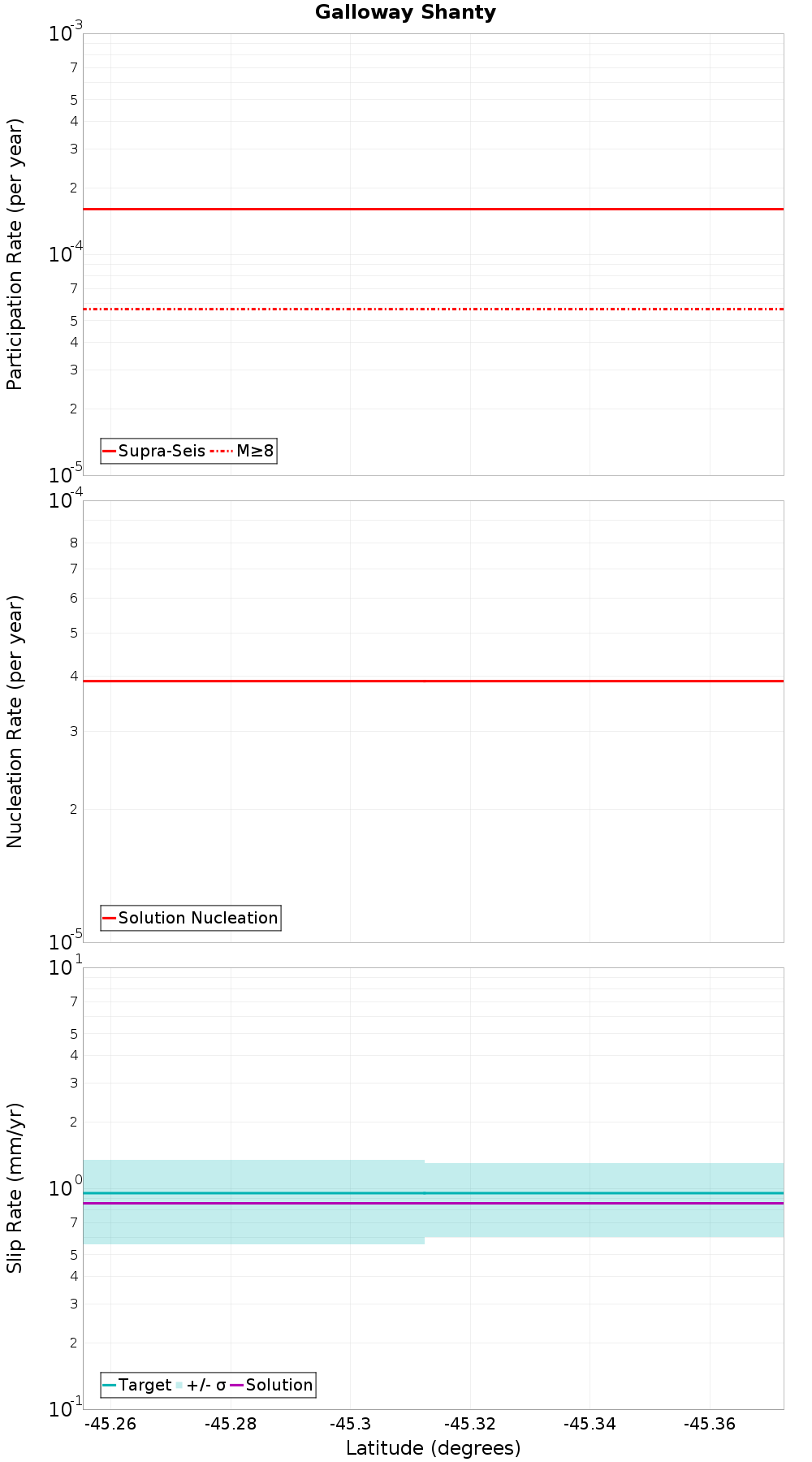

Along-Strike Values

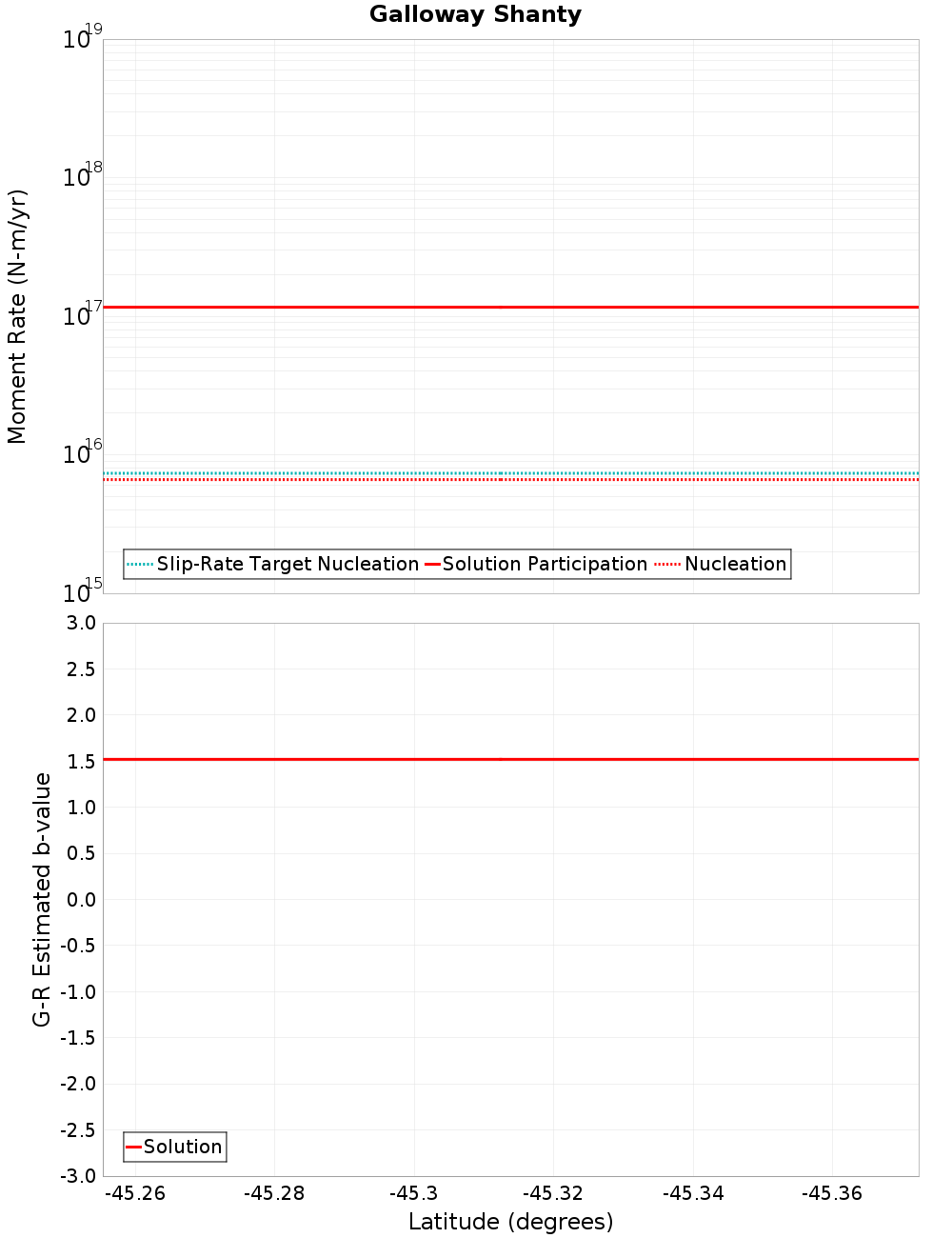

Moment-Rates and b-Values

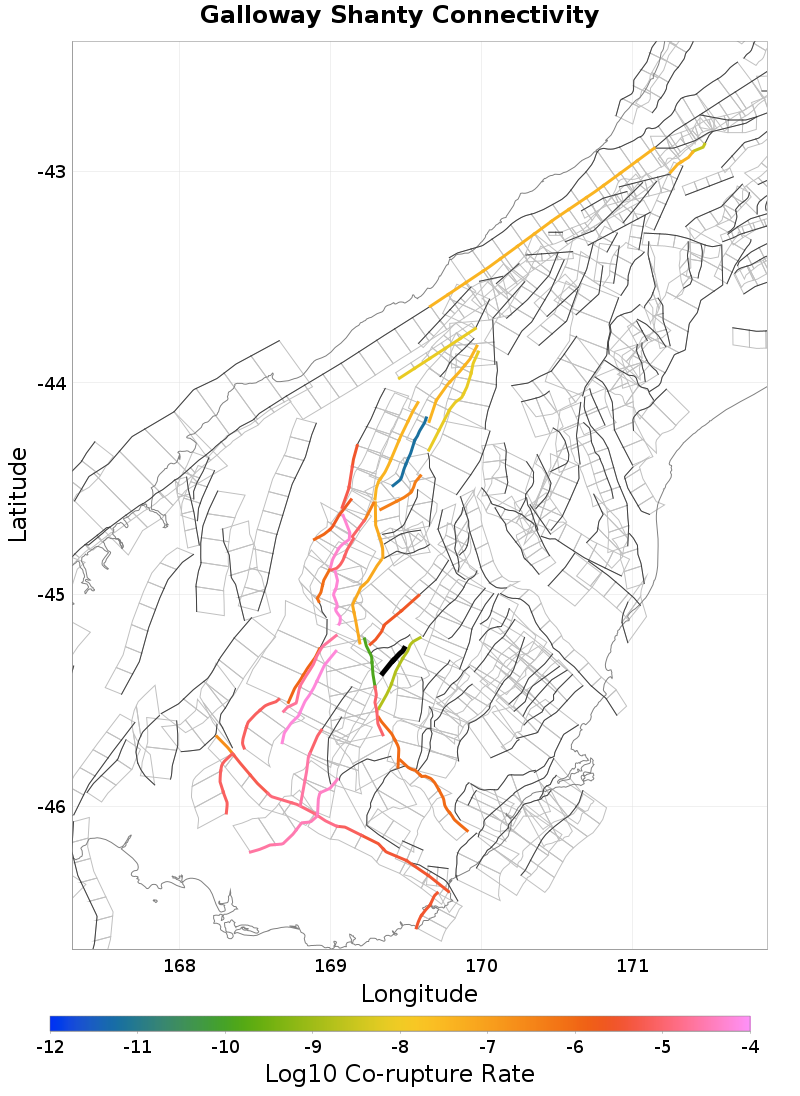

Connectivity

Nearby Sections

Fault Section
Galloway, 0.07 km away
Roaring Lion, 0.37 km away
Little Valley, 2.19 km away
Garvie, 3.61 km away
Old Man, 4.11 km away
Roaring Meg, 5.23 km away
Dunstan, 10.05 km away
Raggedy - Blackstone, 11.19 km away
Pisa, 13.28 km away
Waikaia, 14.6 km away

Galloway, 0.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Roaring Lion, 0.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	true
Directly Connected?	true
Co-rupture Count	239
Co-rupture Rate	2.1779695E-5

Little Valley, 2.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	true
Directly Connected?	true
Co-rupture Count	6
Co-rupture Rate	1.6696007E-9

Garvie, 3.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	true
Directly Connected?	true
Co-rupture Count	1,434
Co-rupture Rate	5.9276146E-5

Old Man, 4.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	true
Directly Connected?	true
Co-rupture Count	311
Co-rupture Rate	9.498643E-6

Roaring Meg, 5.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	true
Directly Connected?	true
Co-rupture Count	1,679
Co-rupture Rate	5.764792E-5

Dunstan, 10.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	true
Directly Connected?	false
Co-rupture Count	145
Co-rupture Rate	2.450399E-6

Raggedy - Blackstone, 11.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pisa, 13.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	true
Directly Connected?	false
Co-rupture Count	382
Co-rupture Rate	6.218023E-8

Waikaia, 14.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	true
Directly Connected?	false
Co-rupture Count	604
Co-rupture Rate	2.519821E-5
