Maunga Details

PropertyValue
Rupture Count731
Ruptures Above Sect Min Mag729
Ruptures w/ Nonzero Rates24
Magnitude Range[6.85, 8.23]
Length Range[17, 365] km
Total Rate9.680186E-5 /yr
Multi-Fault Rate4.7834084E-5 /yr (49.41%)
Directly-Connected Faults2
All Co-Rupturing Faults22

Table Of Contents

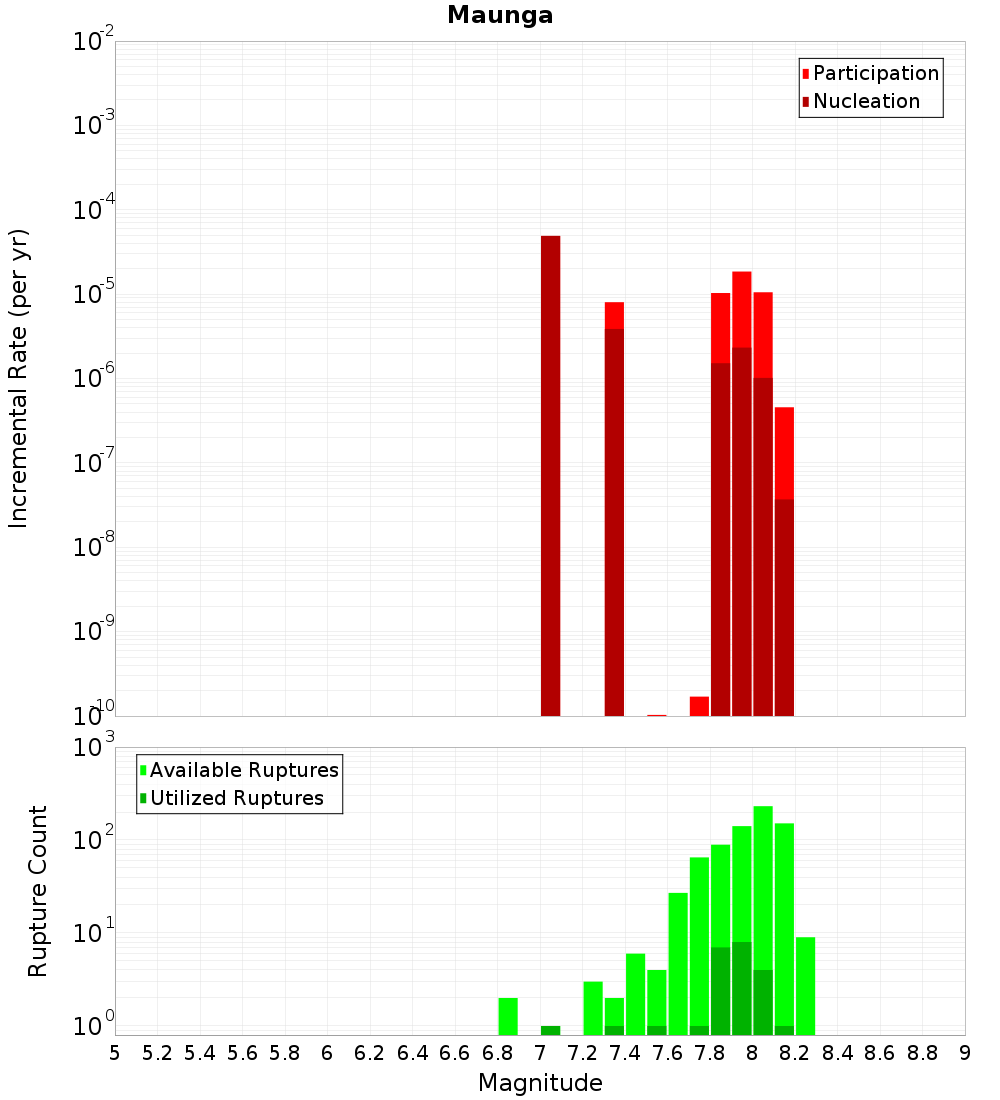

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

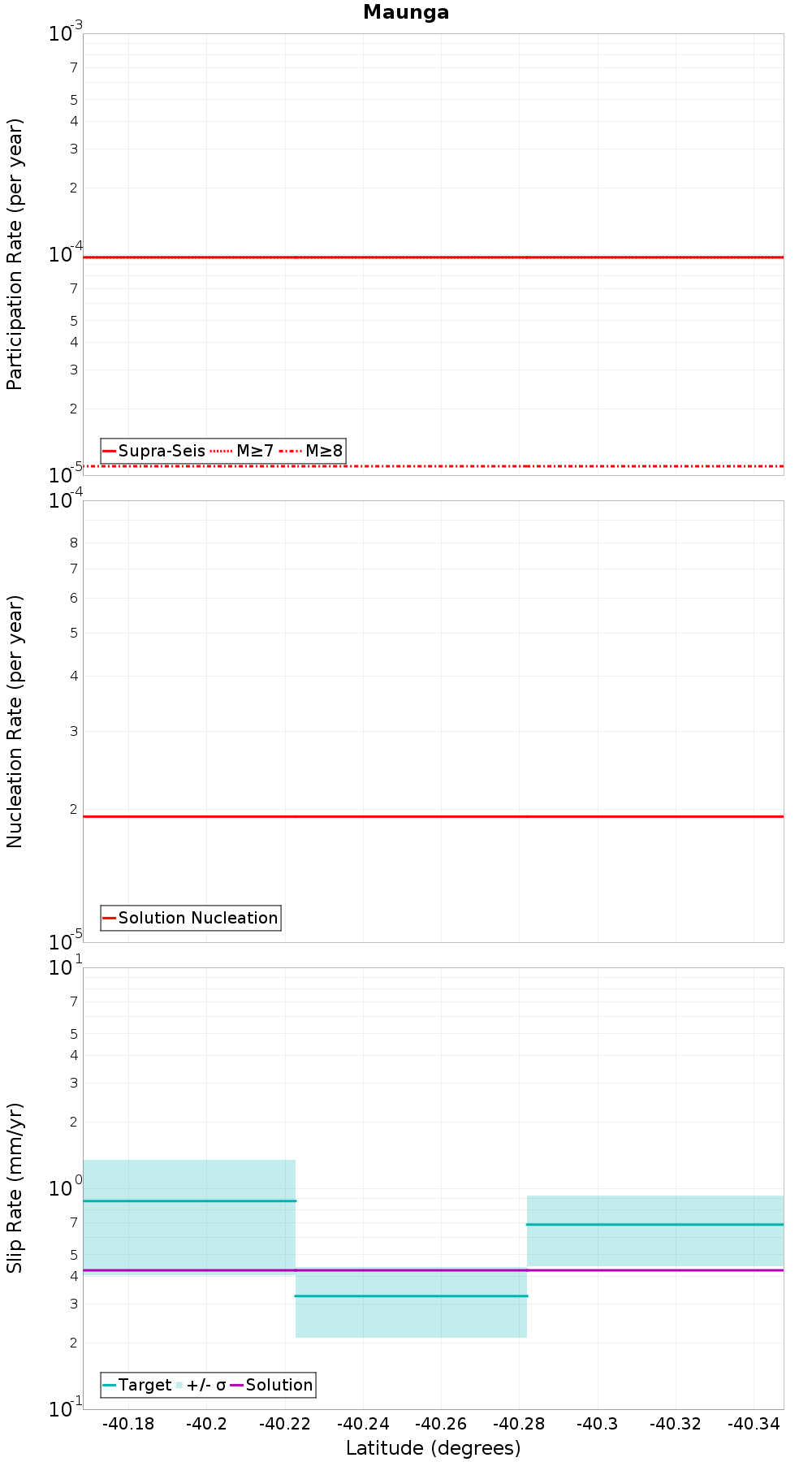

Along-Strike Values

(top)

Along-strike plot

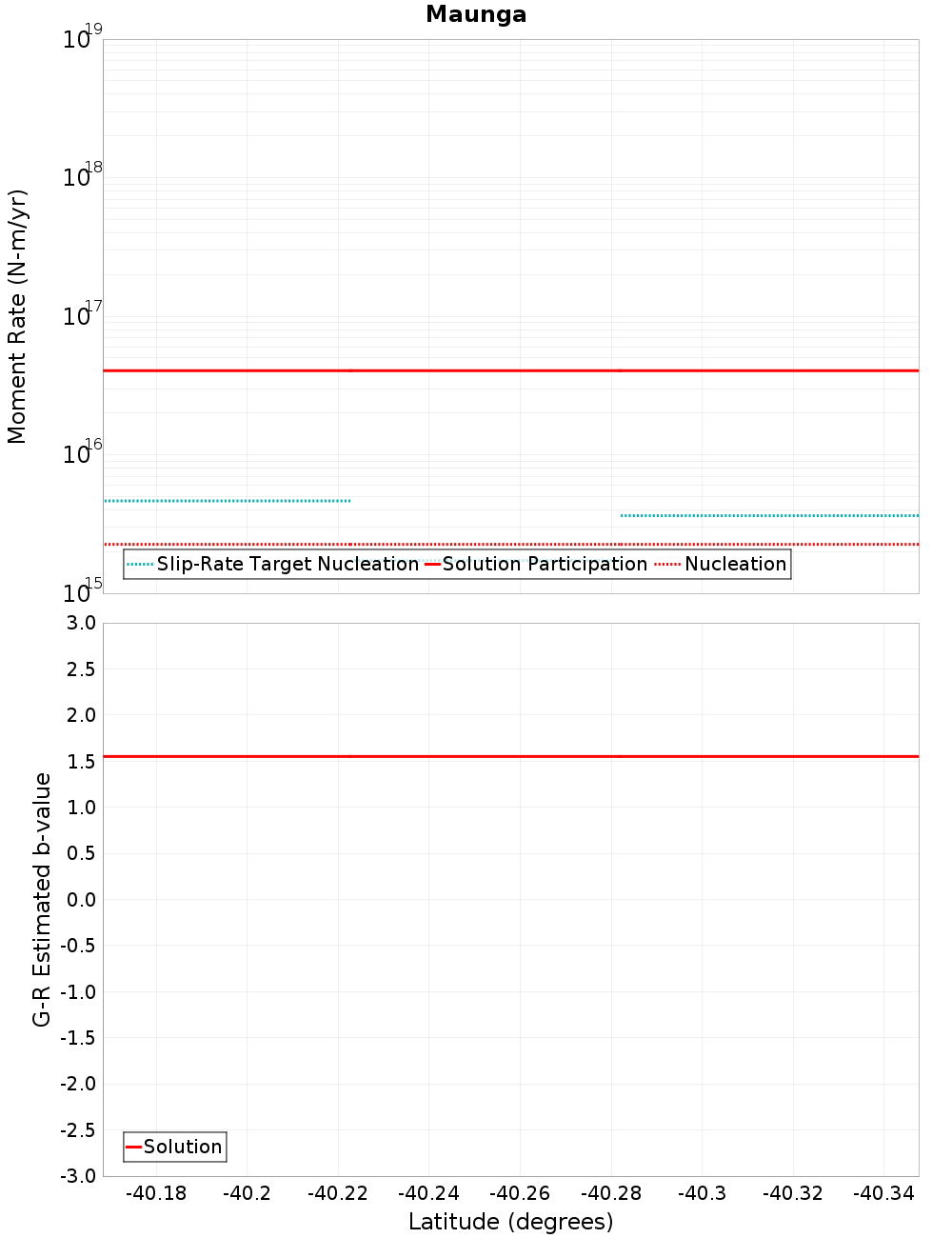

Moment-Rates and b-Values

(top)

Along-strike plot

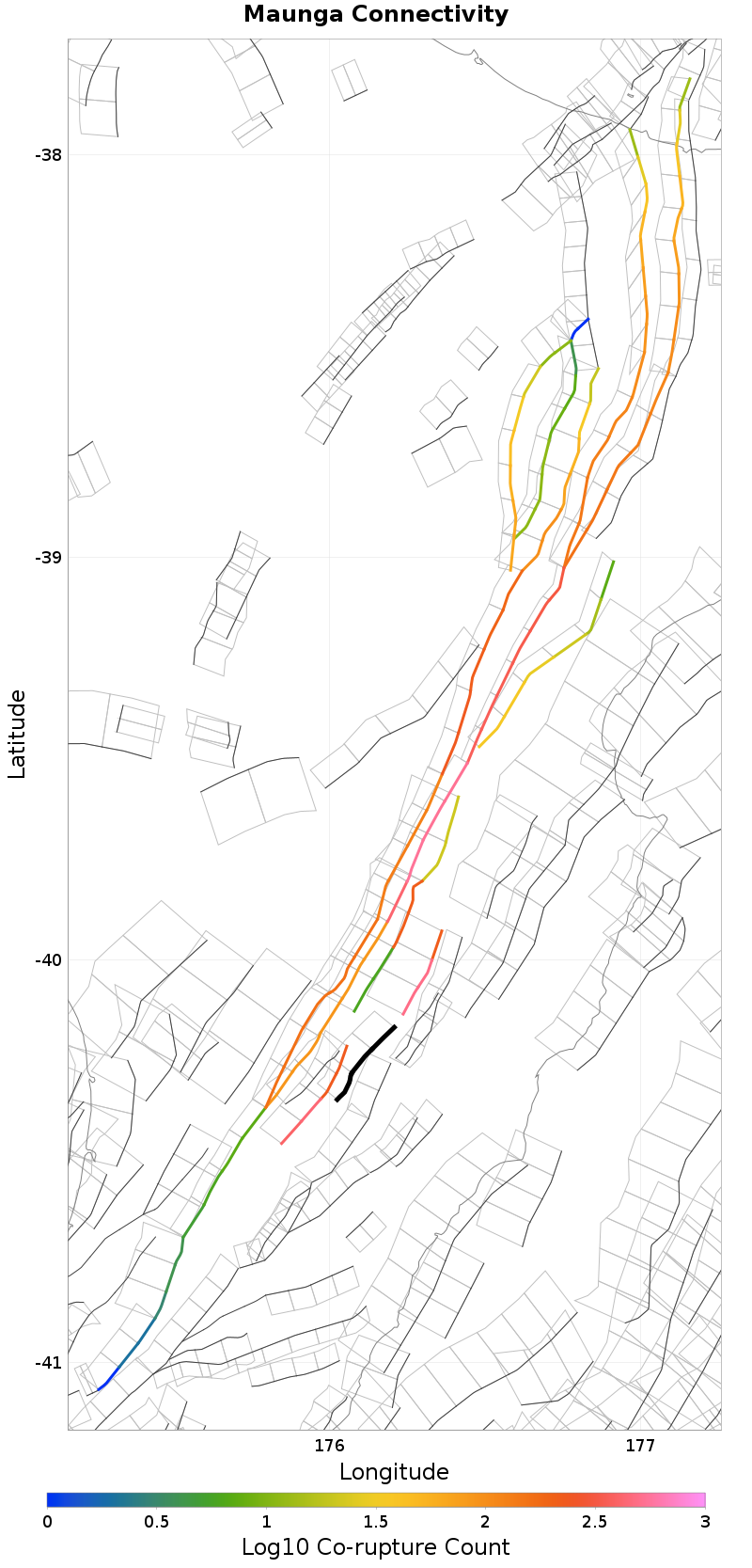

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Pahiatua, 3.34 km away
Ruataniwha, 3.9 km away
Clear Hills - Waikopiro, 5.16 km away
Woodville, 5.92 km away
Waewaepa, 6.07 km away
Oruawharo - Mangatoro, 8.12 km away
Mohaka: South, 9.06 km away
Makuri - Waewaepa, 9.19 km away
Rangefront, 10.16 km away
Ruahine: South, 13.35 km away

Pahiatua, 3.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?true
Directly Connected?true
Co-rupture Count479
Co-rupture Rate7.626868E-7

Ruataniwha, 3.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?true
Directly Connected?true
Co-rupture Count490
Co-rupture Rate4.7071397E-5

Clear Hills - Waikopiro, 5.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Woodville, 5.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waewaepa, 6.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Oruawharo - Mangatoro, 8.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mohaka: South, 9.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?true
Directly Connected?false
Co-rupture Count591
Co-rupture Rate1.9826102E-5

Makuri - Waewaepa, 9.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangefront, 10.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?true
Directly Connected?false
Co-rupture Count218
Co-rupture Rate2.7655566E-5

Ruahine: South, 13.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?true
Directly Connected?false
Co-rupture Count159
Co-rupture Rate7.626868E-7
