Oruawharo - Mangatoro Details

Property	Value
Rupture Count	1,866
Ruptures Above Sect Min Mag	1,859
Ruptures w/ Nonzero Rates	75
Magnitude Range	[6.76, 8.33]
Length Range	[16, 500] km
Total Rate	1.9478645E-4 /yr
Multi-Fault Rate	1.9478523E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	52

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

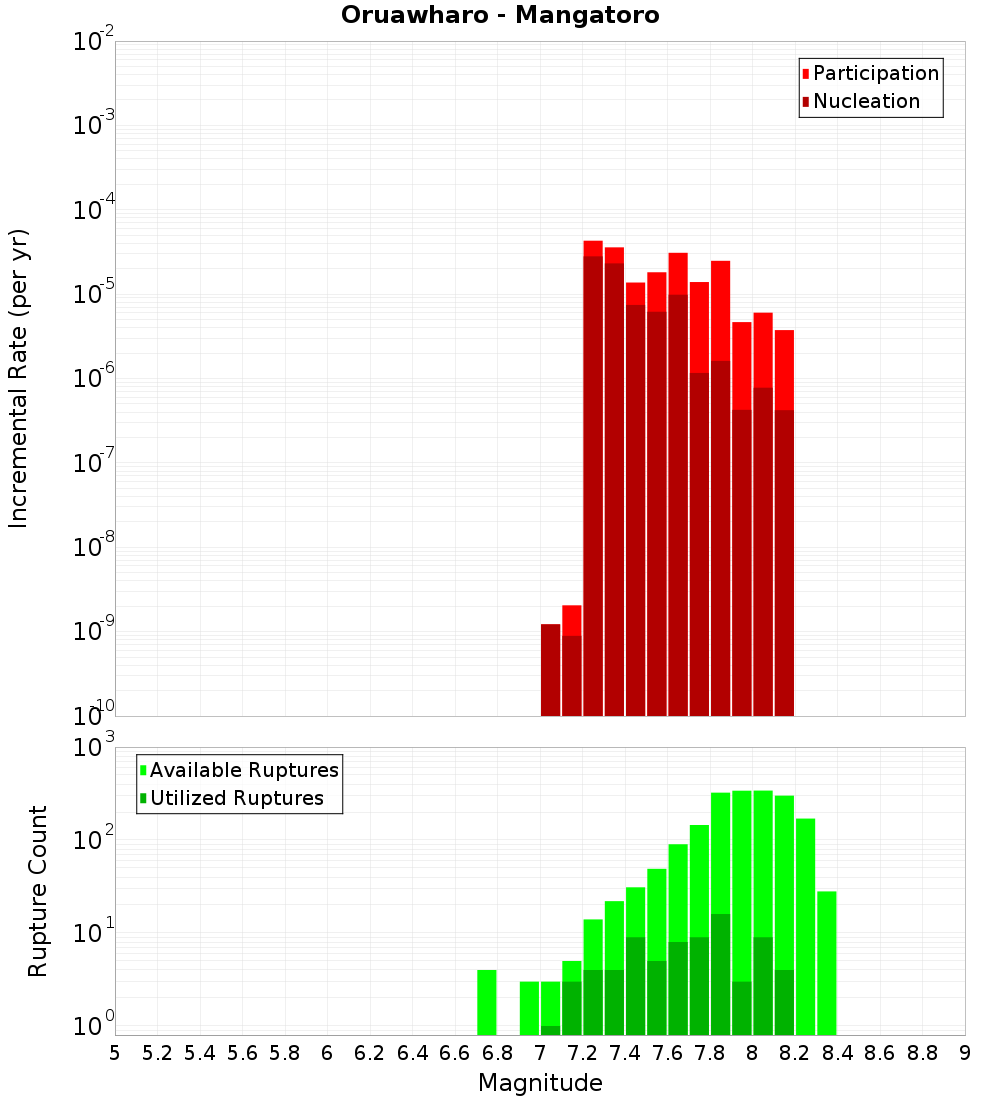

Magnitude-Frequency Distribution

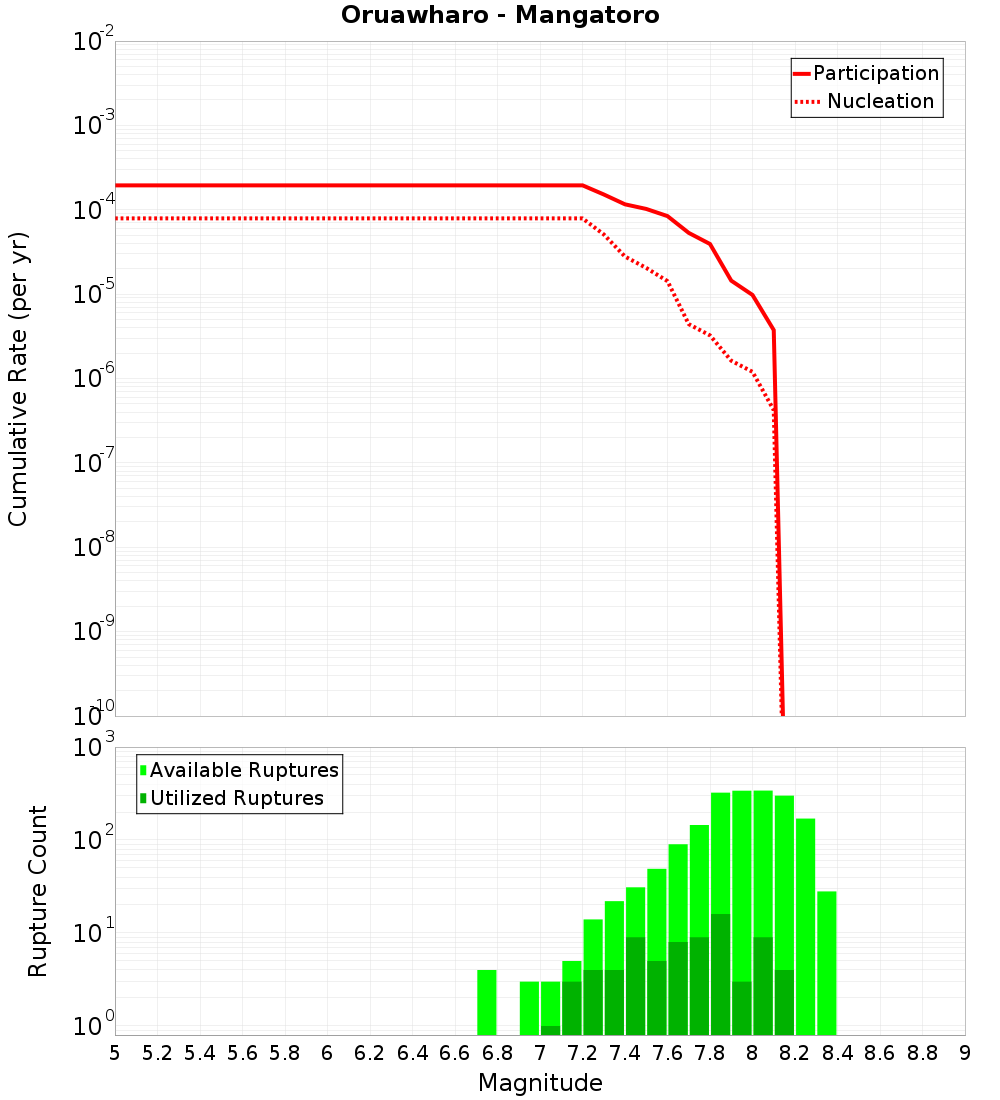

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Clear Hills - Waikopiro, 0.12 km away
Waipukurau - Poukawa, 3.21 km away
Waewaepa, 3.75 km away
Ruataniwha, 5.67 km away
Te Heka, 8.08 km away
Maunga, 8.12 km away
Tukituki Thrust, 9.23 km away
Waipukaka, 12.67 km away
Pongaroa - Weber, 14.68 km away

Clear Hills - Waikopiro, 0.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	true
Directly Connected?	true
Co-rupture Count	202
Co-rupture Rate	9.418935E-6

Waipukurau - Poukawa, 3.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	true
Directly Connected?	true
Co-rupture Count	265
Co-rupture Rate	1.9676687E-5

Waewaepa, 3.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	true
Directly Connected?	true
Co-rupture Count	1,120
Co-rupture Rate	1.0289969E-4

Ruataniwha, 5.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	true
Directly Connected?	false
Co-rupture Count	39
Co-rupture Rate	2.3962227E-6

Te Heka, 8.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	true
Directly Connected?	true
Co-rupture Count	243
Co-rupture Rate	5.6644712E-5

Maunga, 8.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Tukituki Thrust, 9.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	true
Directly Connected?	false
Co-rupture Count	29
Co-rupture Rate	9.223082E-6

Waipukaka, 12.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	true
Directly Connected?	true
Co-rupture Count	594
Co-rupture Rate	1.0569548E-4

Pongaroa - Weber, 14.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
