Ruahine: North Details

Property	Value
Rupture Count	33,199
Ruptures Above Sect Min Mag	33,196
Ruptures w/ Nonzero Rates	363
Magnitude Range	[7.07, 8.64]
Length Range	[24, 940] km
Total Rate	6.162636E-4 /yr
Multi-Fault Rate	5.684009E-4 /yr (92.23%)
Directly-Connected Faults	6
All Co-Rupturing Faults	126

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

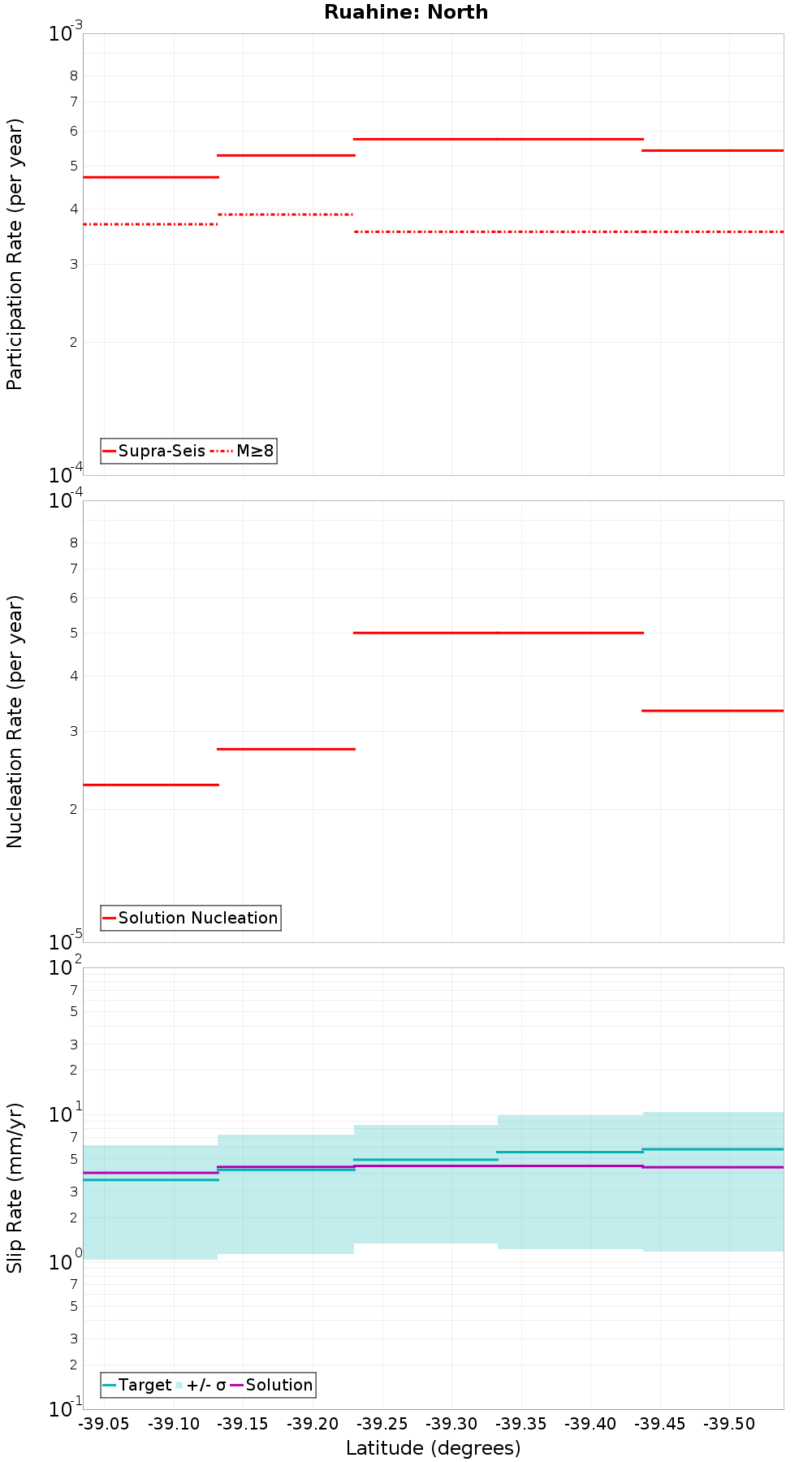

Along-Strike Values

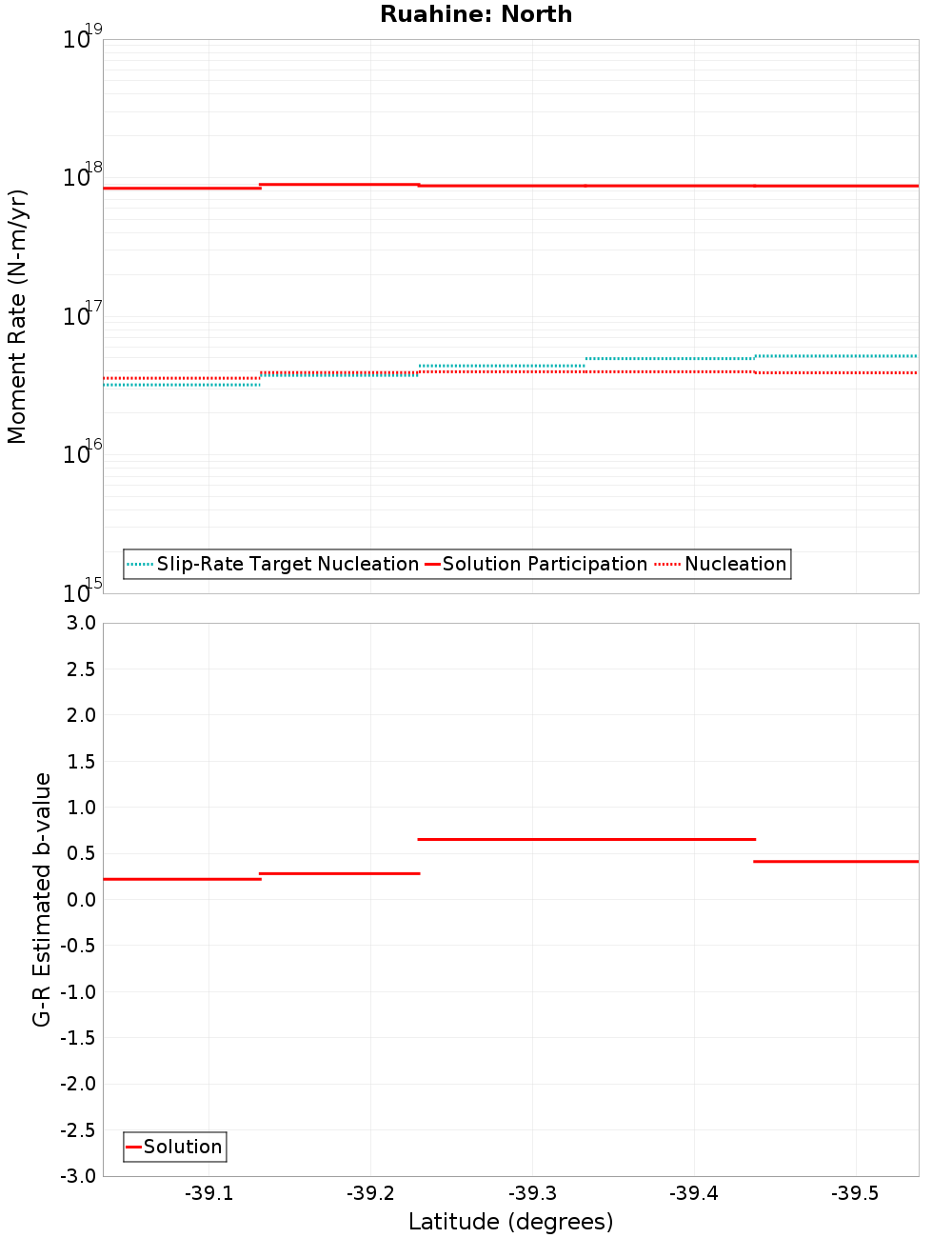

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Waiohau: South, 0 km away
Ruahine: Central, 0 km away
Kaweka, 1.83 km away
Wheao: South, 2.72 km away
Wakarara, 3.77 km away
Mohaka: South, 4.35 km away
Mohaka: North, 5.2 km away
Patoka - Rangiora, 6.53 km away
Te Whaiti South, 9.12 km away
Whakatane: South, 11.52 km away
Waimana: South, 11.54 km away

Waiohau: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	true
Directly Connected?	true
Co-rupture Count	15,350
Co-rupture Rate	2.9940836E-4

Ruahine: Central, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	true
Directly Connected?	true
Co-rupture Count	20,523
Co-rupture Rate	4.4876442E-4

Kaweka, 1.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	true
Directly Connected?	true
Co-rupture Count	187
Co-rupture Rate	4.0237166E-5

Wheao: South, 2.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	true
Directly Connected?	true
Co-rupture Count	12,476
Co-rupture Rate	1.5618841E-4

Wakarara, 3.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	true
Directly Connected?	true
Co-rupture Count	1,310
Co-rupture Rate	2.4844245E-5

Mohaka: South, 4.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	true
Directly Connected?	true
Co-rupture Count	18,477
Co-rupture Rate	2.2602233E-4

Mohaka: North, 5.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	true
Directly Connected?	false
Co-rupture Count	157
Co-rupture Rate	3.6342005E-6

Patoka - Rangiora, 6.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	true
Directly Connected?	false
Co-rupture Count	94
Co-rupture Rate	4.370837E-5

Te Whaiti South, 9.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	true
Directly Connected?	false
Co-rupture Count	7,167
Co-rupture Rate	1.7459916E-4

Whakatane: South, 11.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	true
Directly Connected?	false
Co-rupture Count	2,292
Co-rupture Rate	3.6341917E-6

Waimana: South, 11.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	true
Directly Connected?	false
Co-rupture Count	296
Co-rupture Rate	0.0
