Springbank Details

Property	Value
Rupture Count	3,255
Ruptures Above Sect Min Mag	3,255
Ruptures w/ Nonzero Rates	91
Magnitude Range	[7.06, 8.32]
Length Range	[21, 477] km
Total Rate	9.445501E-5 /yr
Multi-Fault Rate	9.445501E-5 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	78

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

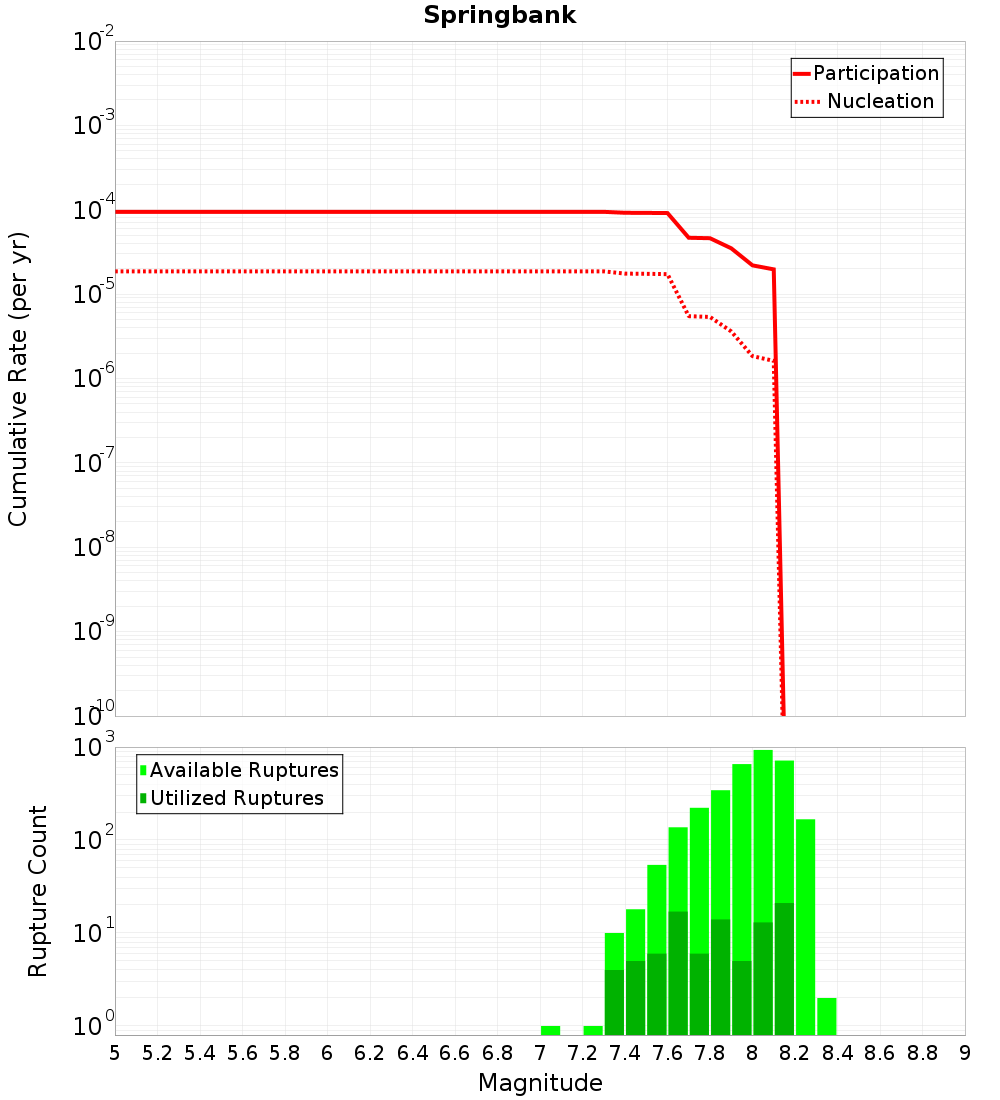

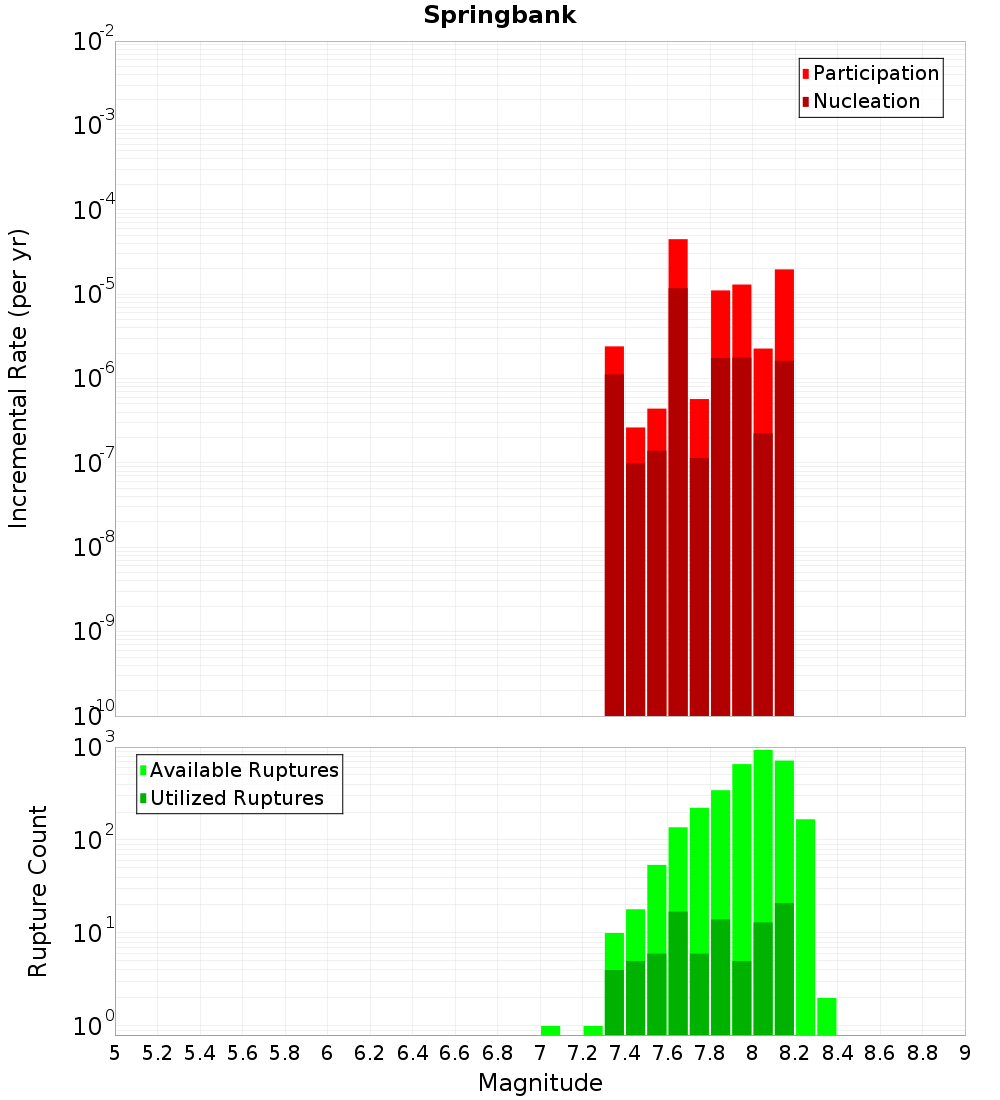

Magnitude-Frequency Distribution

Incremental	Cumulative

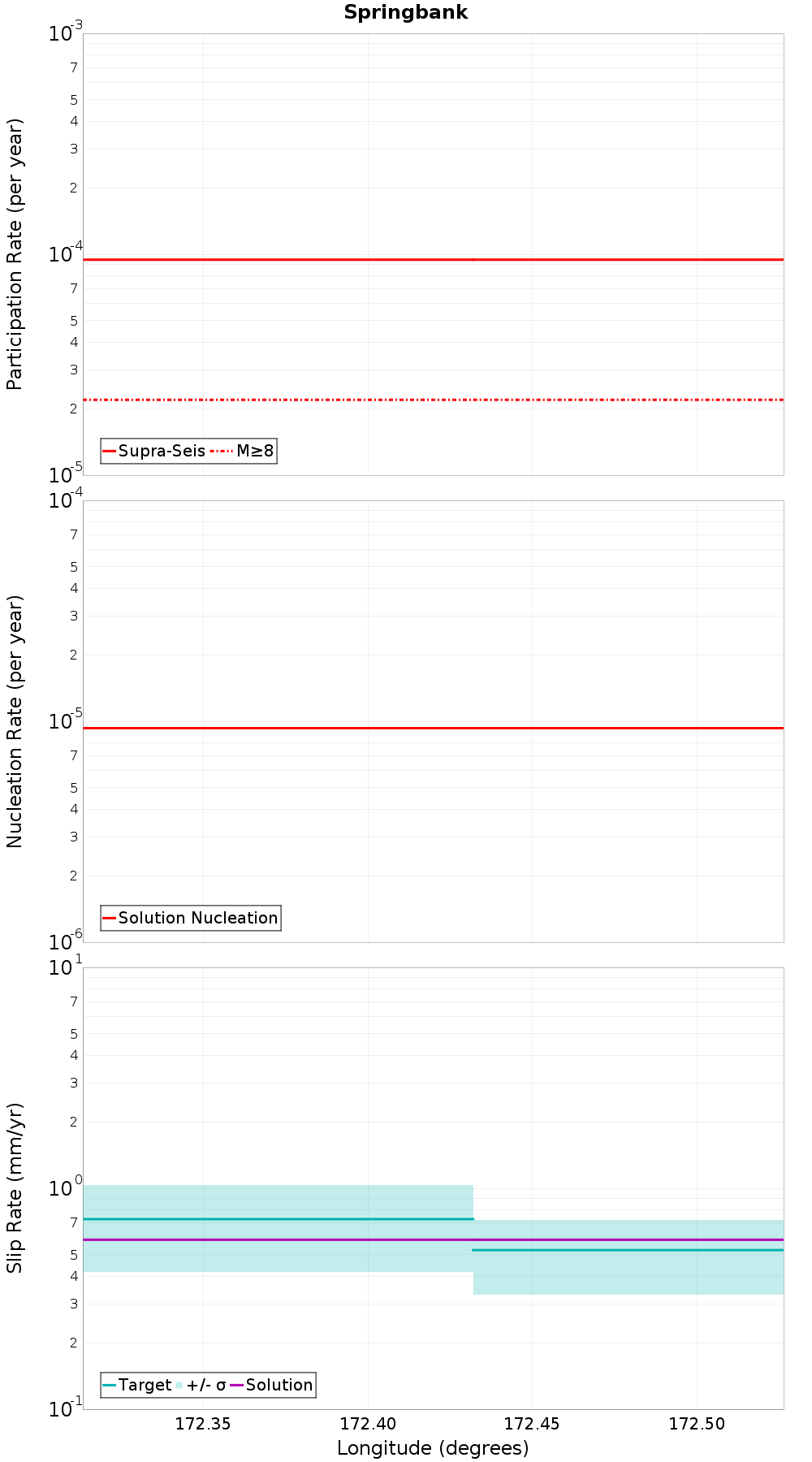

Along-Strike Values

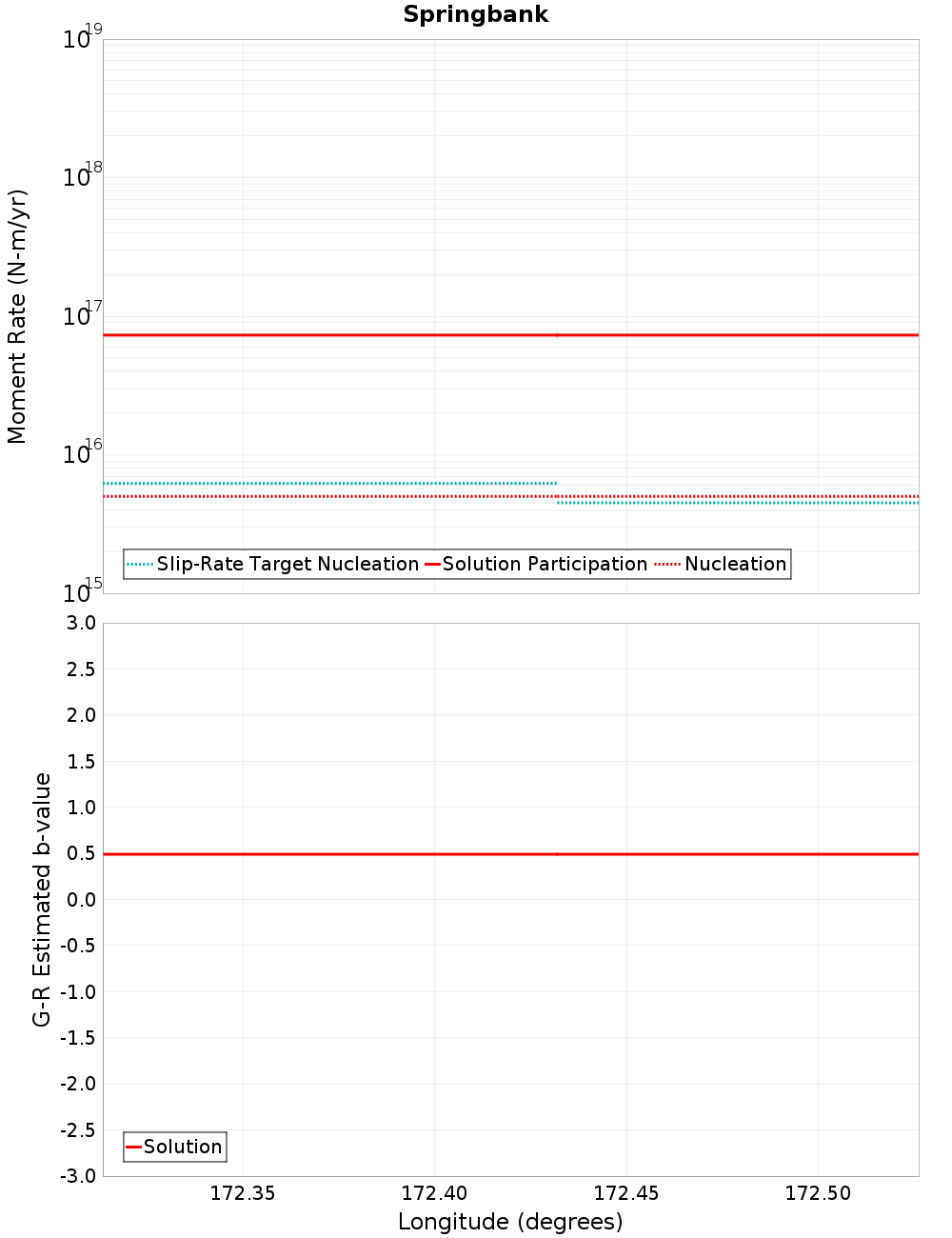

Moment-Rates and b-Values

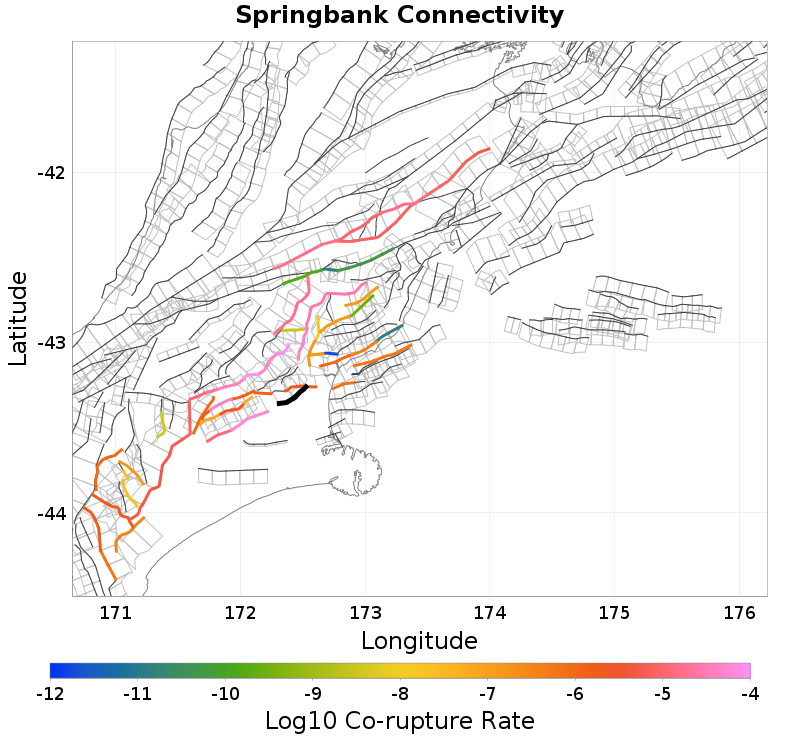

Connectivity

Nearby Sections

Fault Section
Starvation - Ashley, 0.14 km away
Lees Valley, 0.24 km away
Pancake, 0.32 km away
Mt Lawry, 0.46 km away
Esk South, 5.54 km away
Knowles Top, 8 km away
Hororata, 8.03 km away
Boby Stream, 9.36 km away
Kowai - View Hill, 10.45 km away
Mt Arden, 11.73 km away
Doctors, 12.15 km away
High Peak - Sheffield, 13.42 km away
Virginia, 14.15 km away

Starvation - Ashley, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	true
Directly Connected?	true
Co-rupture Count	655
Co-rupture Rate	3.2923663E-6

Lees Valley, 0.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	true
Directly Connected?	true
Co-rupture Count	4,573
Co-rupture Rate	1.3991685E-4

Pancake, 0.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Mt Lawry, 0.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Esk South, 5.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Knowles Top, 8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hororata, 8.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	true
Directly Connected?	false
Co-rupture Count	394
Co-rupture Rate	5.7370355E-5

Boby Stream, 9.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	true
Directly Connected?	false
Co-rupture Count	493
Co-rupture Rate	1.4400163E-7

Kowai - View Hill, 10.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	true
Directly Connected?	false
Co-rupture Count	17
Co-rupture Rate	4.3519158E-5

Mt Arden, 11.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	true
Directly Connected?	false
Co-rupture Count	2,499
Co-rupture Rate	4.516248E-5

Doctors, 12.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	true
Directly Connected?	false
Co-rupture Count	402
Co-rupture Rate	1.4399971E-7

High Peak - Sheffield, 13.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	true
Directly Connected?	false
Co-rupture Count	93
Co-rupture Rate	2.6729217E-6

Virginia, 14.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NDAuMDREUHdU
Connected?	true
Directly Connected?	false
Co-rupture Count	461
Co-rupture Rate	2.9651044E-9
