Caswell High 1 Details

PropertyValue
Rupture Count814
Ruptures Above Sect Min Mag797
Ruptures w/ Nonzero Rates13
Magnitude Range[6.71, 8.50]
Length Range[15, 711] km
Total Rate9.250754E-4 /yr
Multi-Fault Rate7.2605937E-4 /yr (78.49%)
Directly-Connected Faults4
All Co-Rupturing Faults28

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

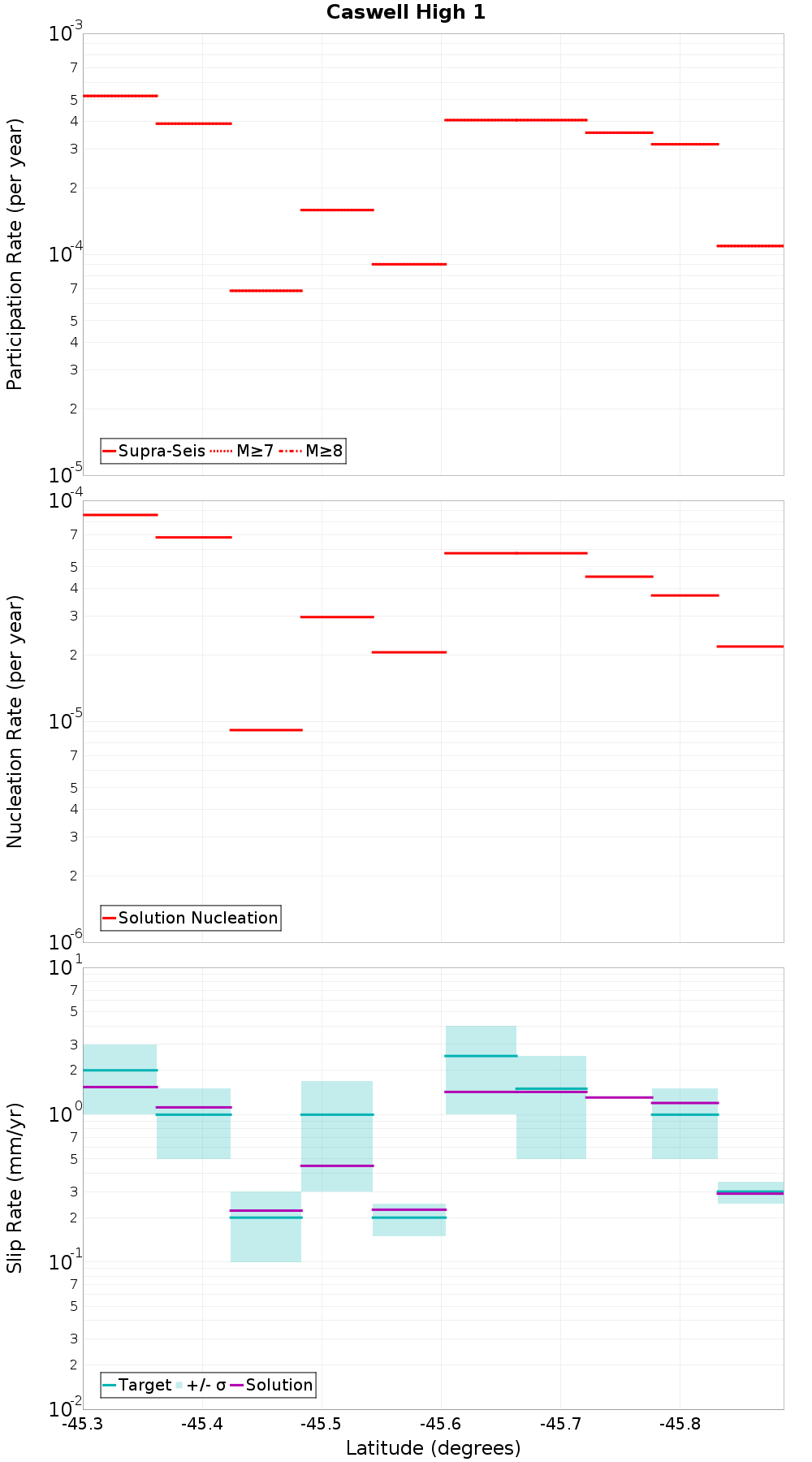

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Caswell High 4, 2.01 km away
Caswell High 3, 4.37 km away
Caswell 211, 4.72 km away
Alpine: Resolution - Five Fingers, 11.71 km away
South Wedge 5, 13.13 km away

Caswell High 4, 2.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?true
Directly Connected?true
Co-rupture Count158
Co-rupture Rate1.9218876E-4

Caswell High 3, 4.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?true
Directly Connected?true
Co-rupture Count85
Co-rupture Rate3.2817622E-4

Caswell 211, 4.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?true
Directly Connected?true
Co-rupture Count30
Co-rupture Rate1.3038825E-4

Alpine: Resolution - Five Fingers, 11.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?true
Directly Connected?true
Co-rupture Count573
Co-rupture Rate2.0569436E-4

South Wedge 5, 13.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
