Clarence: Southwest Details

Property	Value
Rupture Count	54,236
Ruptures Above Sect Min Mag	54,232
Ruptures w/ Nonzero Rates	304
Magnitude Range	[7.05, 8.65]
Length Range	[23, 973] km
Total Rate	8.047172E-4 /yr
Multi-Fault Rate	8.047172E-4 /yr (100.00%)
Directly-Connected Faults	10
All Co-Rupturing Faults	272

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

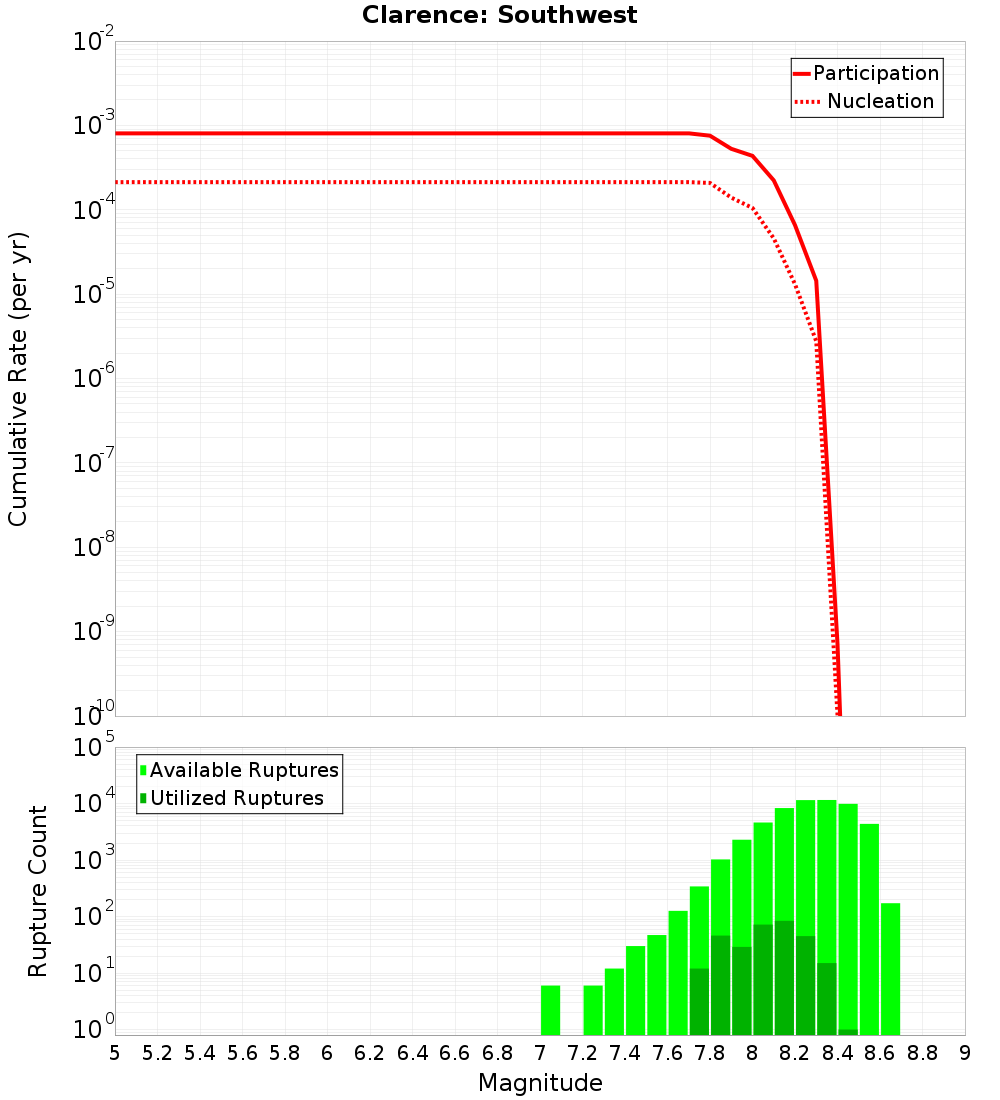

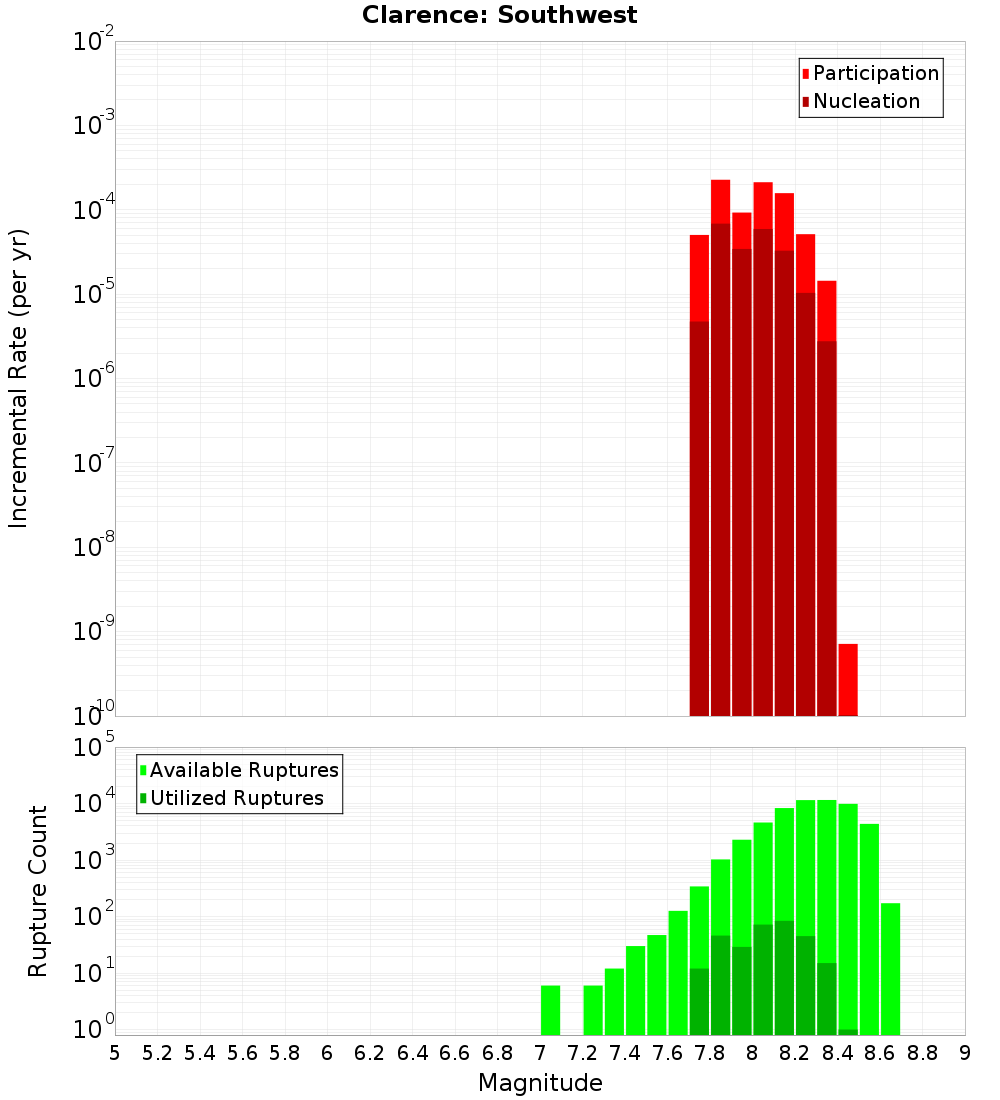

Magnitude-Frequency Distribution

Incremental	Cumulative

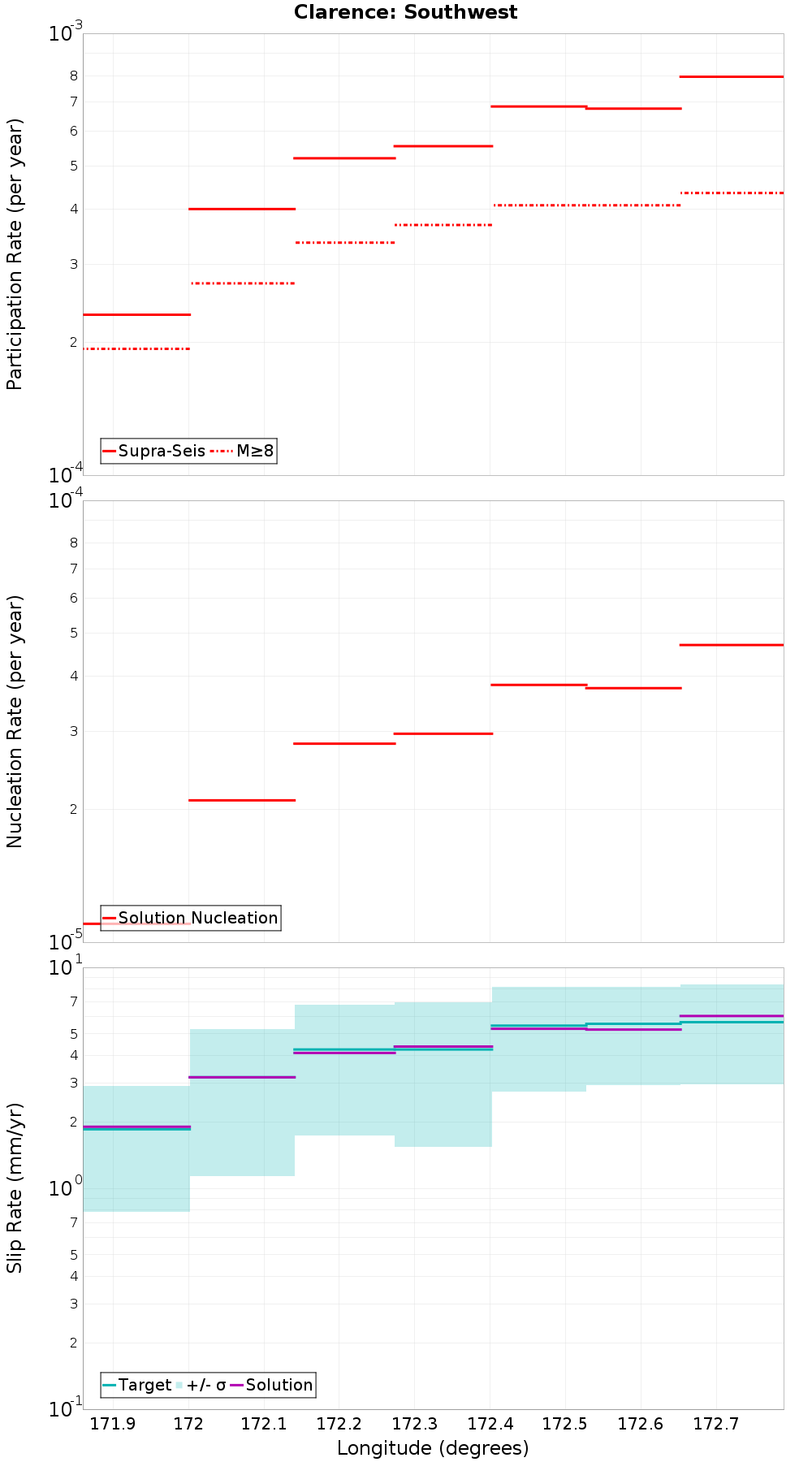

Along-Strike Values

Moment-Rates and b-Values

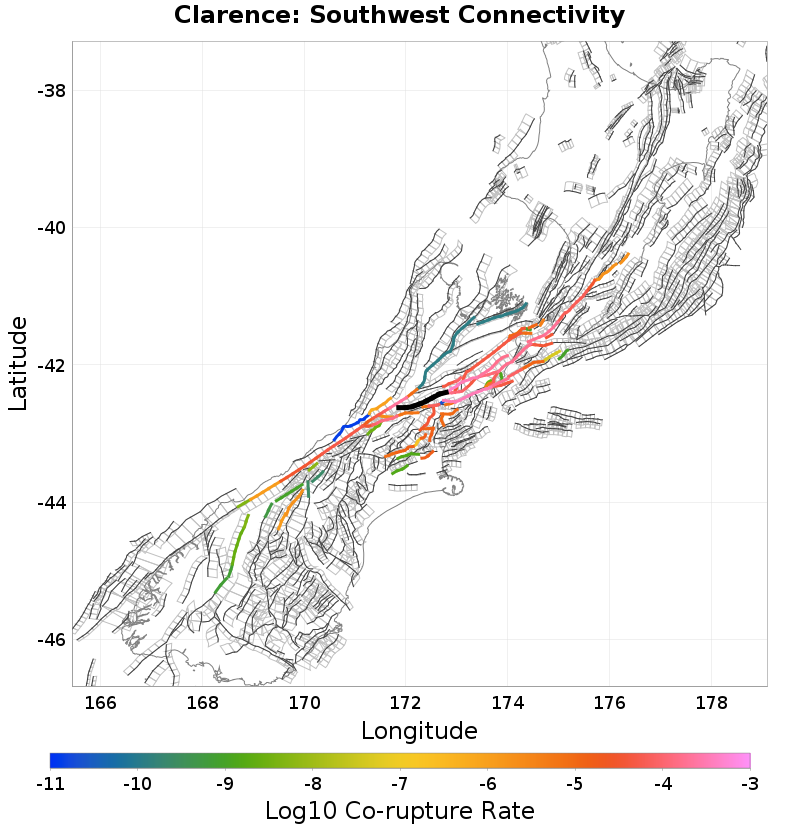

Connectivity

Nearby Sections

Fault Section	Fault Section
Clarence: Central, 0 km away	Esk North, 8.47 km away
Alpine: Kaniere to Springs Junction, 0.21 km away	Kakapo, 8.64 km away
Elliott, 0.33 km away	Hanmer, 11.45 km away
Fowlers, 2.09 km away	Hope: Kakapo-2-Hamner, 12.23 km away
Hohonu North, 2.62 km away	Hope: Hanmer NW, 12.23 km away
Alpine: Springs Junction to Tophouse, 5.45 km away	Kelly, 13.14 km away
Hope: Hope River, 5.56 km away	Acheron, 13.66 km away
White Creek - buried, 5.99 km away	Hope: Taramakau, 13.86 km away
Hope: Hurunui, 8.29 km away	Hope: Hamner SW, 14.55 km away

Clarence: Central, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?	true
Directly Connected?	true
Co-rupture Count	33,298
Co-rupture Rate	4.5284219E-4

Alpine: Kaniere to Springs Junction, 0.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?	true
Directly Connected?	true
Co-rupture Count	6,935
Co-rupture Rate	2.2344578E-4

Elliott, 0.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?	true
Directly Connected?	true
Co-rupture Count	11,825
Co-rupture Rate	1.4320272E-4

Fowlers, 2.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?	true
Directly Connected?	true
Co-rupture Count	2,428
Co-rupture Rate	8.776729E-5

Hohonu North, 2.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?	true
Directly Connected?	true
Co-rupture Count	19,318
Co-rupture Rate	9.619897E-7

Alpine: Springs Junction to Tophouse, 5.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?	true
Directly Connected?	true
Co-rupture Count	1,099
Co-rupture Rate	1.2082069E-10

Hope: Hope River, 5.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?	true
Directly Connected?	true
Co-rupture Count	9,098
Co-rupture Rate	7.2598086E-5

White Creek - buried, 5.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?	true
Directly Connected?	false
Co-rupture Count	468
Co-rupture Rate	0.0

Hope: Hurunui, 8.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?	true
Directly Connected?	false
Co-rupture Count	10,149
Co-rupture Rate	6.329557E-6

Esk North, 8.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?	true
Directly Connected?	true
Co-rupture Count	2,363
Co-rupture Rate	3.729701E-5

Kakapo, 8.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?	true
Directly Connected?	true
Co-rupture Count	2,127
Co-rupture Rate	6.329557E-6

Hanmer, 11.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?	true
Directly Connected?	true
Co-rupture Count	4,418
Co-rupture Rate	3.247326E-4

Hope: Kakapo-2-Hamner, 12.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?	true
Directly Connected?	false
Co-rupture Count	206
Co-rupture Rate	6.596409E-5

Hope: Hanmer NW, 12.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	2.0635608E-11

Kelly, 13.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?	true
Directly Connected?	false
Co-rupture Count	12,093
Co-rupture Rate	1.3943015E-4

Acheron, 13.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?	true
Directly Connected?	false
Co-rupture Count	817
Co-rupture Rate	3.463548E-5

Hope: Taramakau, 13.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?	true
Directly Connected?	false
Co-rupture Count	796
Co-rupture Rate	2.0883367E-6

Hope: Hamner SW, 14.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
