Harper Details

PropertyValue
Rupture Count1,481
Ruptures Above Sect Min Mag1,472
Ruptures w/ Nonzero Rates34
Magnitude Range[6.70, 8.11]
Length Range[15, 286] km
Total Rate1.5816248E-4 /yr
Multi-Fault Rate1.5816248E-4 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults48

Table Of Contents

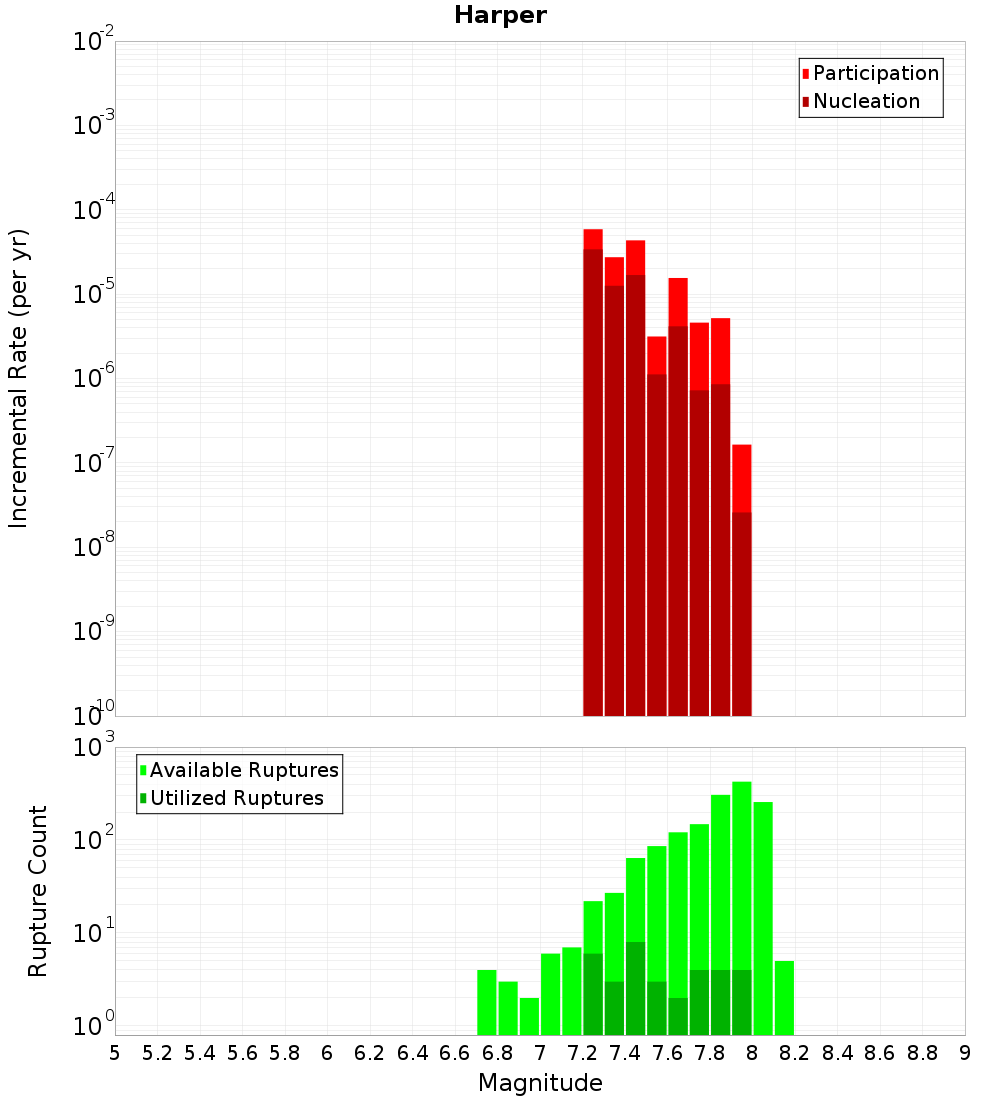

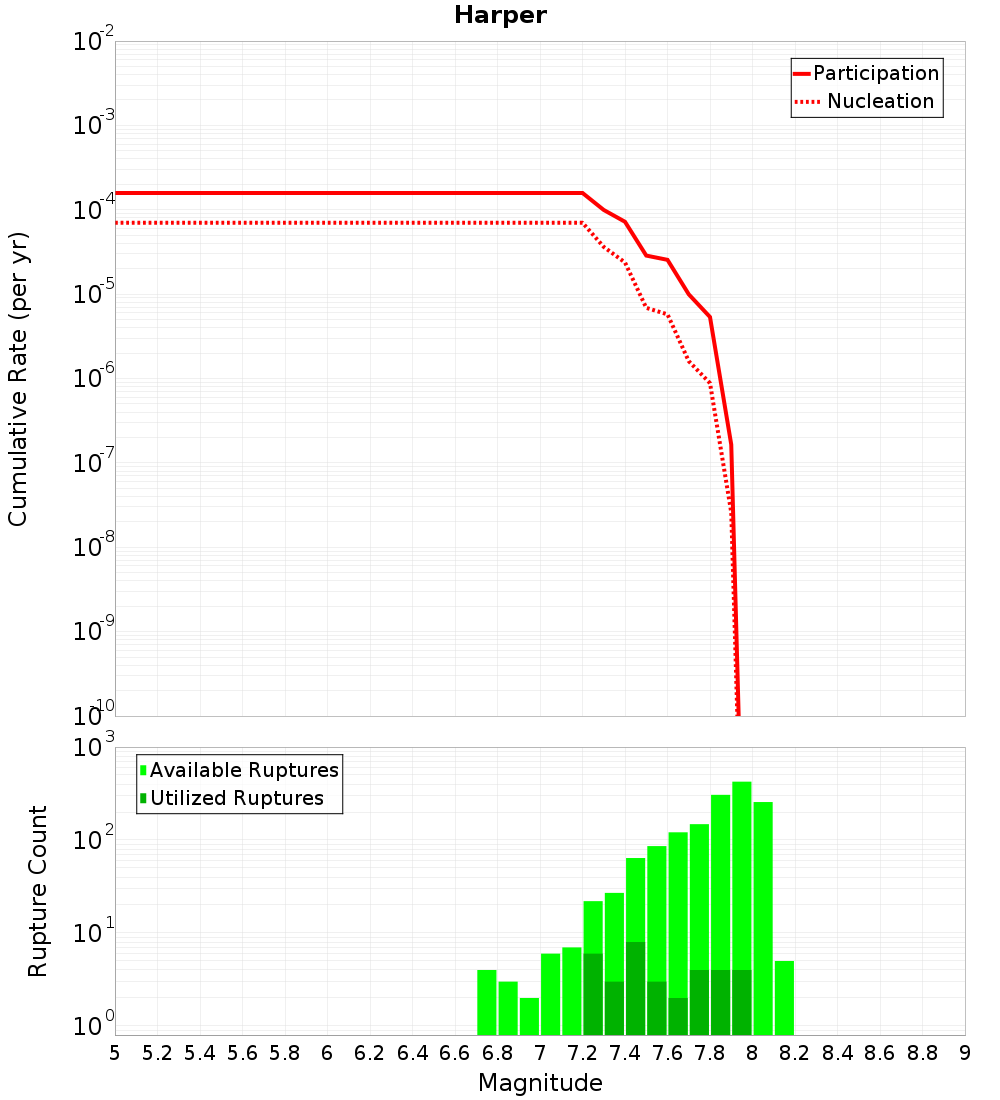

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

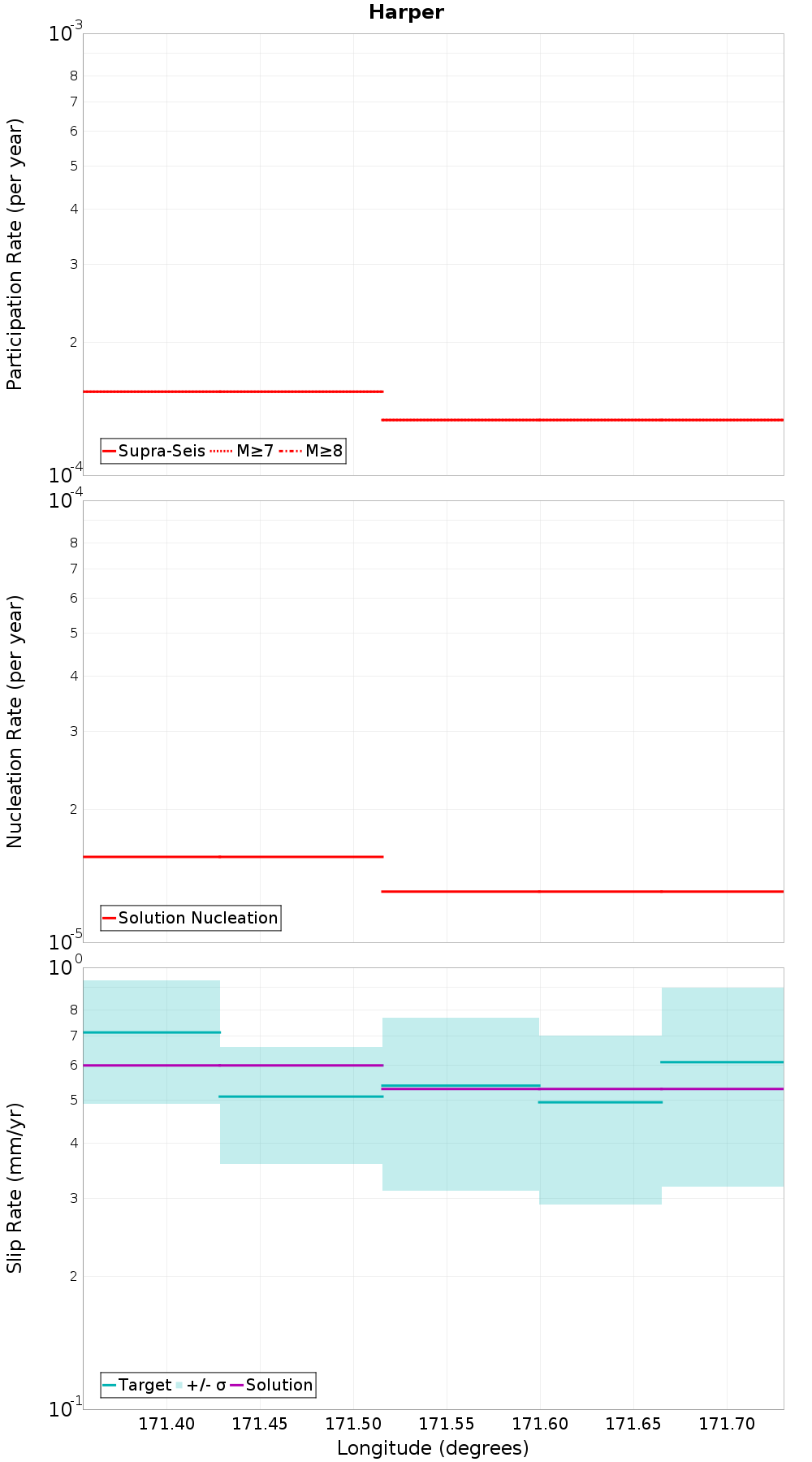

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Cheeseman, 0.16 km away
Sailor, 0.17 km away
Hutt Peel, 0.48 km away
Redcliffe, 2.34 km away
Double Hill, 5.39 km away
Porters Pass, 5.55 km away
Bruce, 6.21 km away
Mt White, 6.24 km away
North Branch, 6.8 km away
Big Ben, 8.03 km away
Torlesse, 10.94 km away
Poulter, 14 km away
Esk South, 14.2 km away
Mistake - Rolleston, 14.63 km away

Cheeseman, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?true
Directly Connected?true
Co-rupture Count268
Co-rupture Rate2.4887642E-5

Sailor, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?true
Directly Connected?true
Co-rupture Count419
Co-rupture Rate1.2734084E-5

Hutt Peel, 0.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?true
Directly Connected?true
Co-rupture Count698
Co-rupture Rate2.1795484E-5

Redcliffe, 2.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?true
Directly Connected?true
Co-rupture Count268
Co-rupture Rate4.265246E-5

Double Hill, 5.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?true
Directly Connected?true
Co-rupture Count472
Co-rupture Rate4.416737E-5

Porters Pass, 5.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?true
Directly Connected?true
Co-rupture Count63
Co-rupture Rate0.0

Bruce, 6.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?true
Directly Connected?true
Co-rupture Count94
Co-rupture Rate3.8247344E-6

Mt White, 6.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?true
Directly Connected?false
Co-rupture Count408
Co-rupture Rate0.0

North Branch, 6.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?true
Directly Connected?true
Co-rupture Count232
Co-rupture Rate6.7650195E-5

Big Ben, 8.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Torlesse, 10.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Poulter, 14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?true
Directly Connected?false
Co-rupture Count30
Co-rupture Rate3.6924491E-6

Esk South, 14.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mistake - Rolleston, 14.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
