Inangahua Details
| Property | Value |
|---|---|
| Rupture Count | 12,867 |
| Ruptures Above Sect Min Mag | 12,867 |
| Ruptures w/ Nonzero Rates | 114 |
| Magnitude Range | [6.97, 8.67] |
| Length Range | [20, 1,039] km |
| Total Rate | 1.3498022E-4 /yr |
| Multi-Fault Rate | 1.3498022E-4 /yr (100.00%) |
| Directly-Connected Faults | 6 |
| All Co-Rupturing Faults | 67 |
Table Of Contents

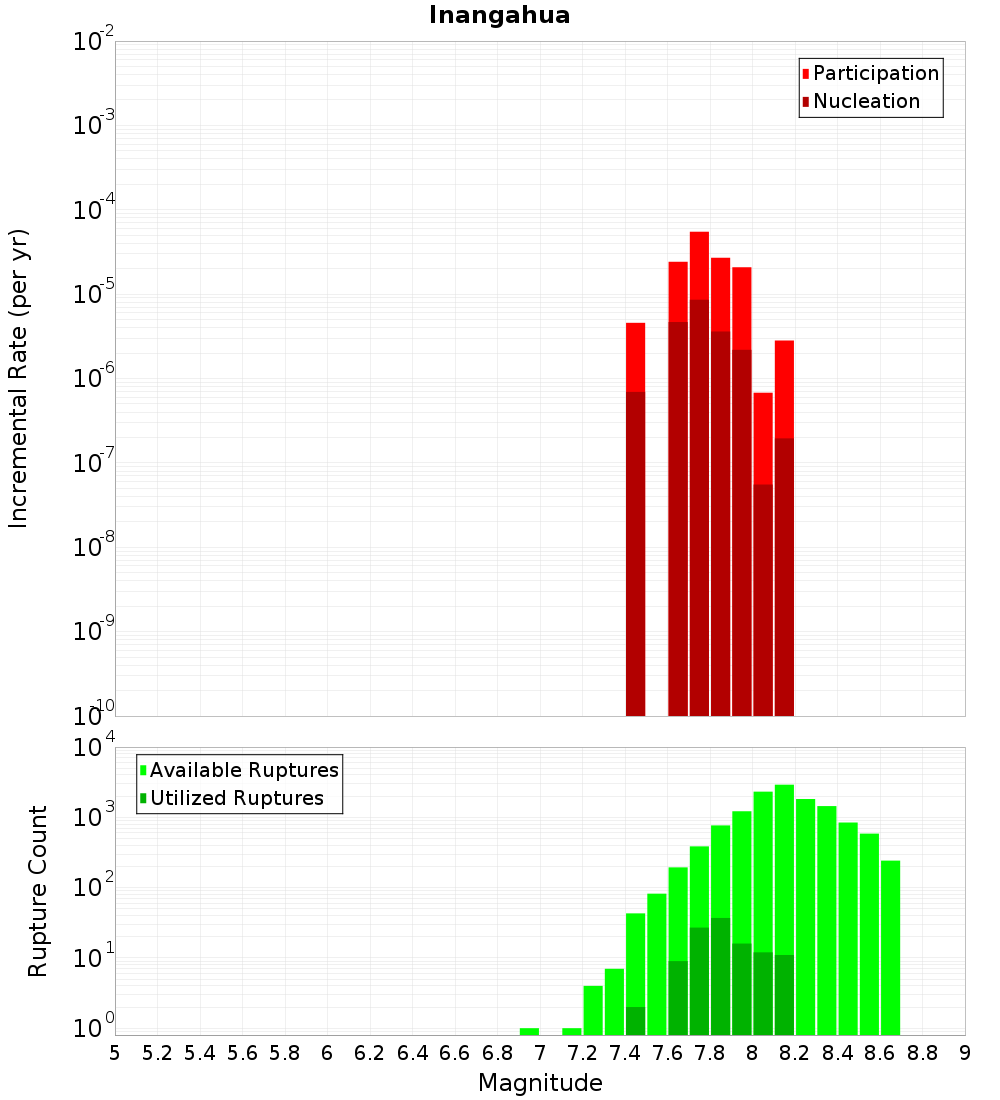

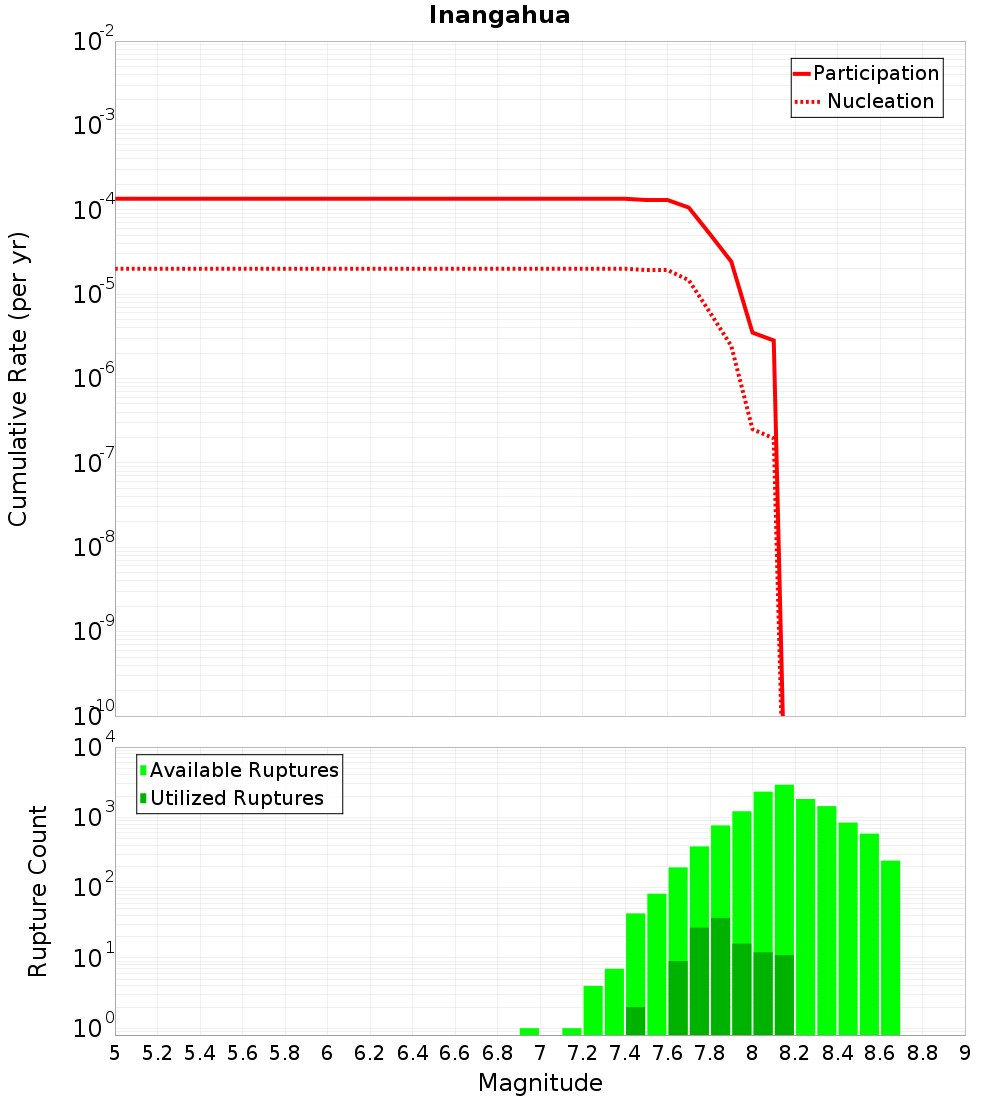

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

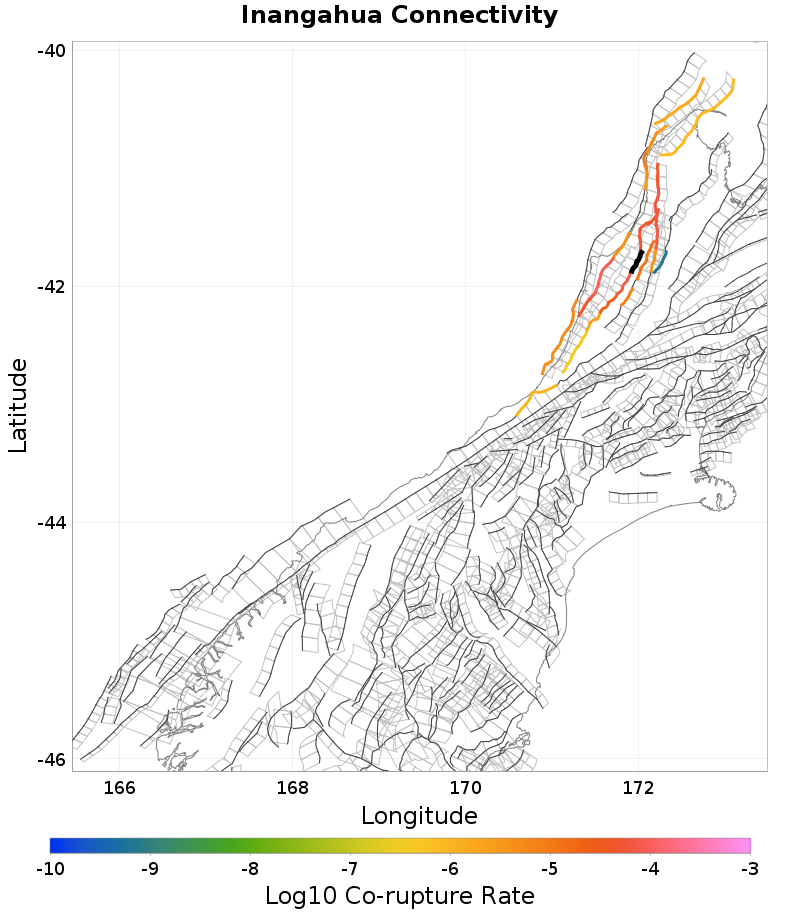

Connectivity
 |  |
|---|
Nearby Sections
Maimai: North, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 9,621 |
| Co-rupture Rate | 7.783842E-5 |
Glasgow, 0.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,050 |
| Co-rupture Rate | 4.6248573E-5 |
Kongahau, 0.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 10,816 |
| Co-rupture Rate | 1.3630211E-5 |
Paparoa West: North, 0.89 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 367 |
| Co-rupture Rate | 3.6541967E-6 |
Paparoa West, 1.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4,541 |
| Co-rupture Rate | 1.1370206E-4 |
Lyell, 5.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 669 |
| Co-rupture Rate | 1.1957416E-5 |
Lyell South, 9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 866 |
| Co-rupture Rate | 7.061763E-6 |
White Creek, 13.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4,099 |
| Co-rupture Rate | 7.312003E-5 |
