Jollie Range Details

PropertyValue
Rupture Count9,712
Ruptures Above Sect Min Mag9,711
Ruptures w/ Nonzero Rates90
Magnitude Range[6.62, 8.48]
Length Range[11, 621] km
Total Rate7.722182E-5 /yr
Multi-Fault Rate7.722182E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults190

Table Of Contents

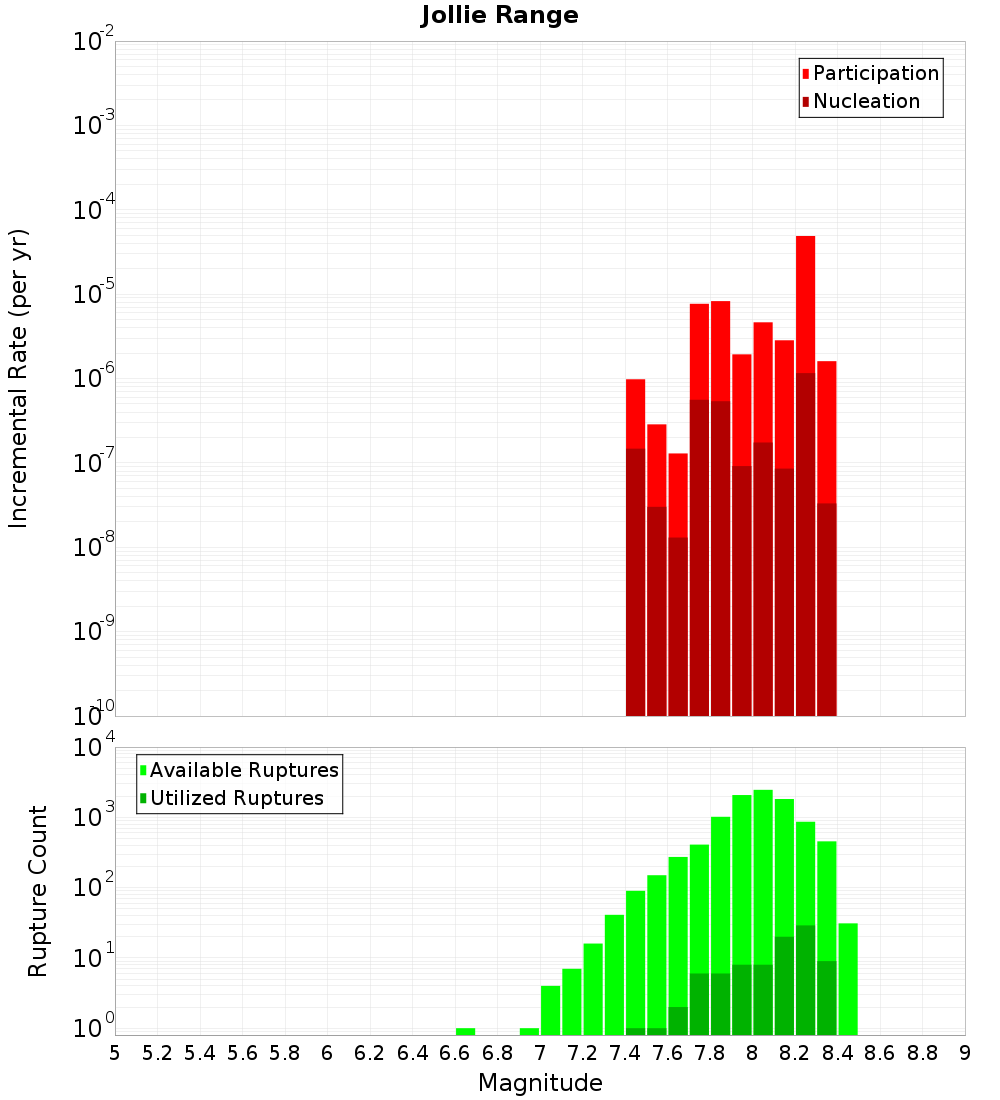

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

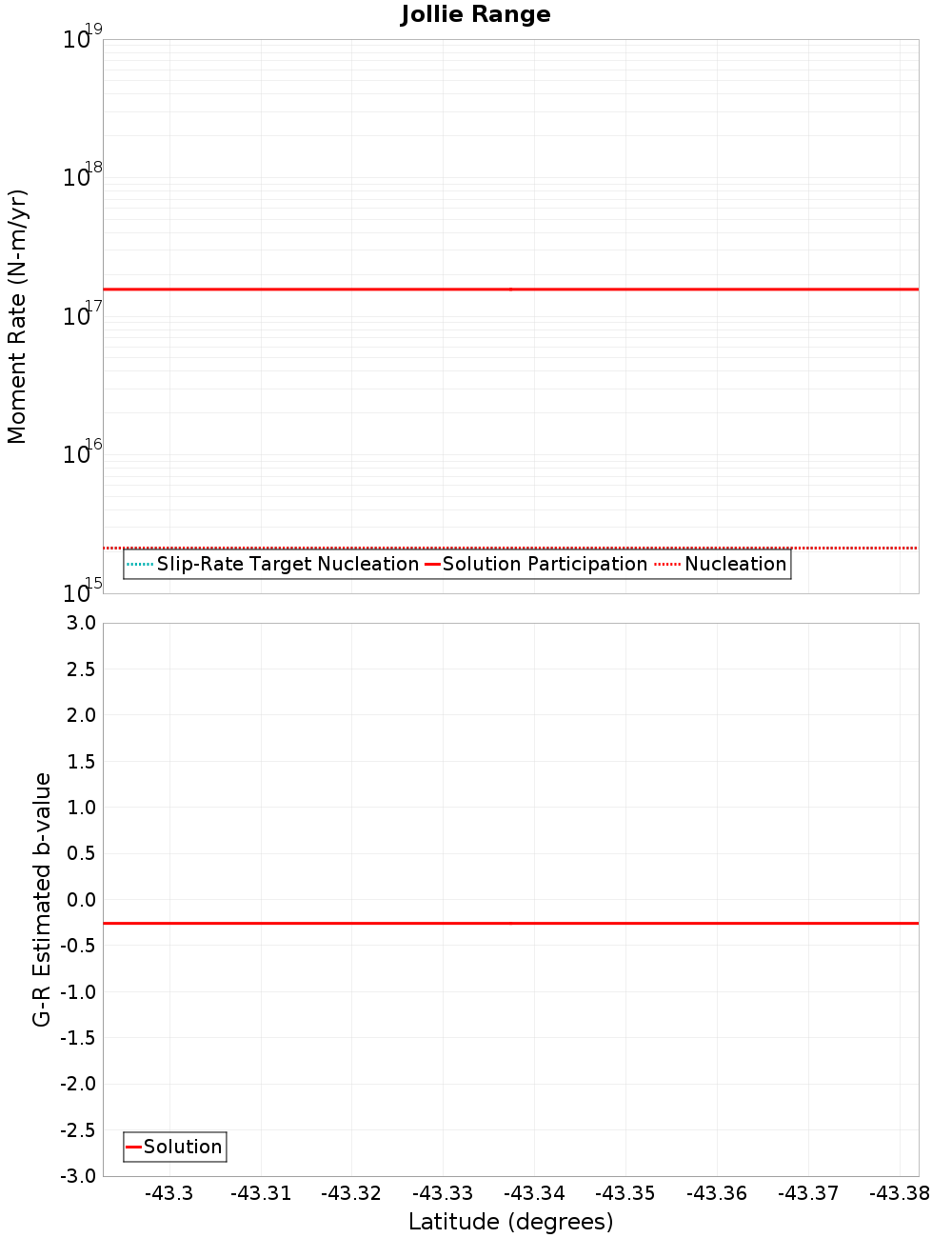

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Observation, 1.53 km away
Potts Range, 2.7 km away
Alpine: Jacksons to Kaniere, 3.19 km away
Mathias, 6.2 km away
Two Thumb Stream, 6.87 km away
Hohonu South, 7.2 km away
Veil Stream, 7.58 km away
Lord Range, 7.91 km away
Waitaha, 8.98 km away
Potts River, 11.55 km away
Jagged, 12.18 km away
Gunn Glacier, 12.87 km away
Double Hill, 14.32 km away

Observation, 1.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?true
Directly Connected?true
Co-rupture Count6,942
Co-rupture Rate1.1703022E-5

Potts Range, 2.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?true
Directly Connected?true
Co-rupture Count6,127
Co-rupture Rate3.4520173E-5

Alpine: Jacksons to Kaniere, 3.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?true
Directly Connected?true
Co-rupture Count3,736
Co-rupture Rate7.3119816E-5

Mathias, 6.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?true
Directly Connected?false
Co-rupture Count2,561
Co-rupture Rate9.795323E-7

Two Thumb Stream, 6.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Hohonu South, 7.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?true
Directly Connected?true
Co-rupture Count2,921
Co-rupture Rate3.1222833E-6

Veil Stream, 7.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

Lord Range, 7.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?true
Directly Connected?false
Co-rupture Count326
Co-rupture Rate2.851318E-5

Waitaha, 8.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Potts River, 11.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?true
Directly Connected?false
Co-rupture Count30
Co-rupture Rate2.0805817E-6

Jagged, 12.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Gunn Glacier, 12.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Double Hill, 14.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
