Waikaka Details

Property	Value
Rupture Count	4,263
Ruptures Above Sect Min Mag	4,263
Ruptures w/ Nonzero Rates	47
Magnitude Range	[7.18, 8.66]
Length Range	[23, 856] km
Total Rate	5.0085266E-5 /yr
Multi-Fault Rate	5.0085266E-5 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	78

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

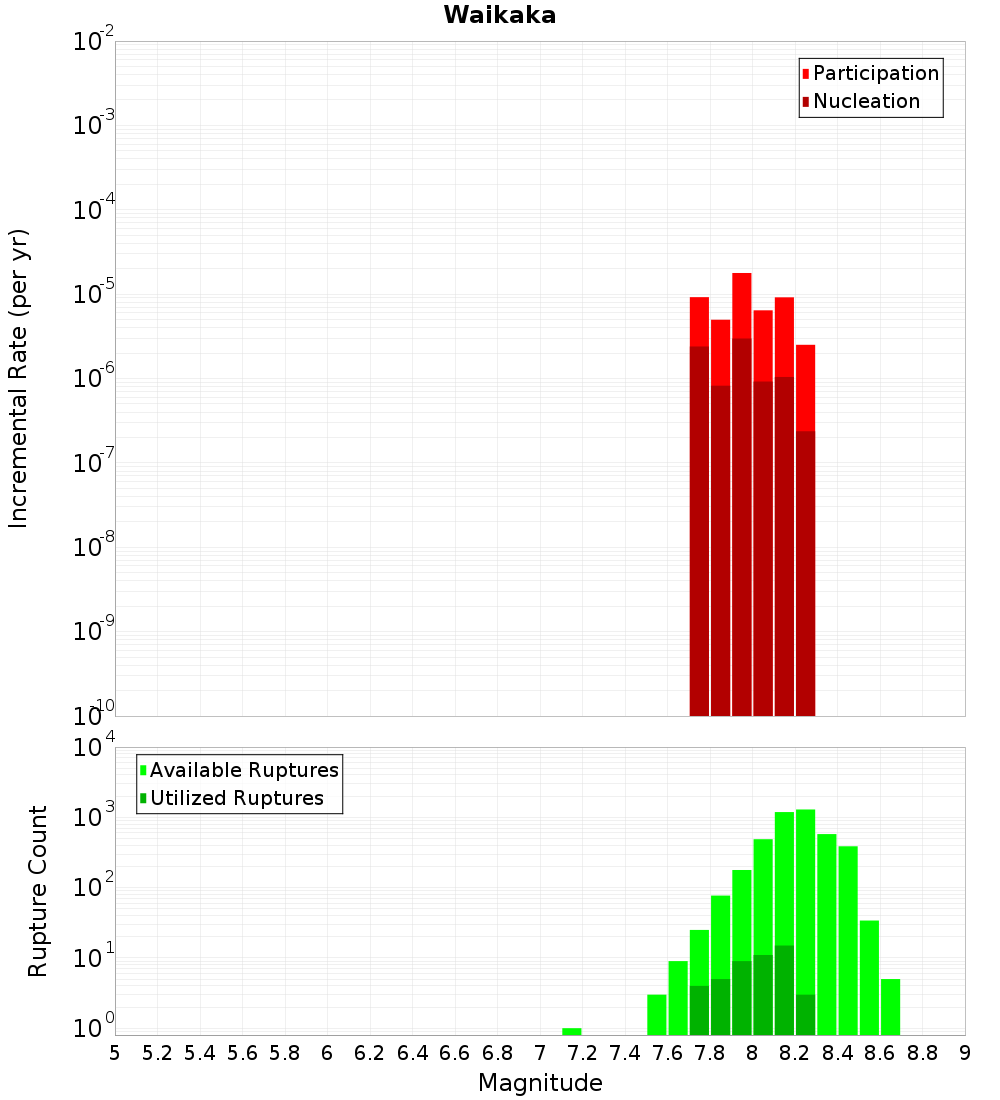

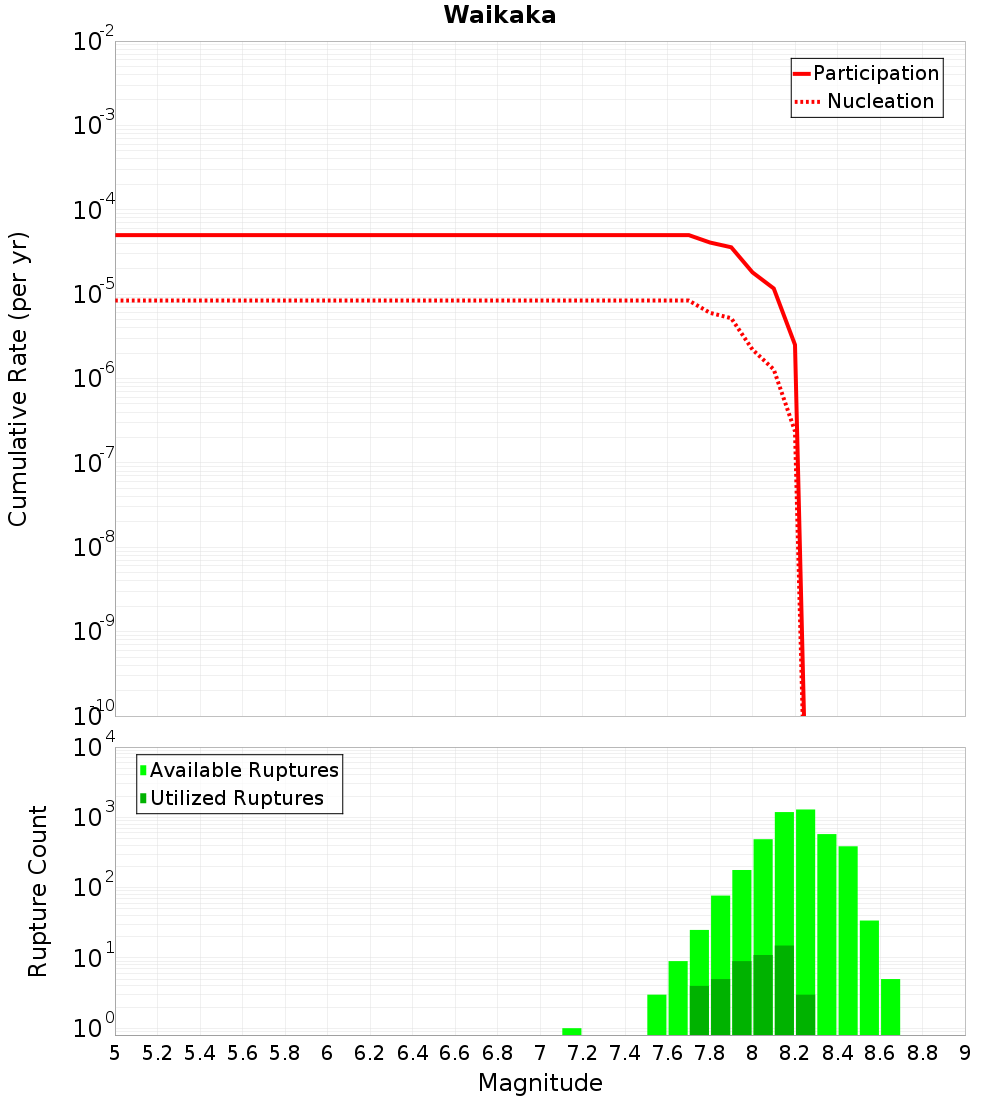

Magnitude-Frequency Distribution

Incremental	Cumulative

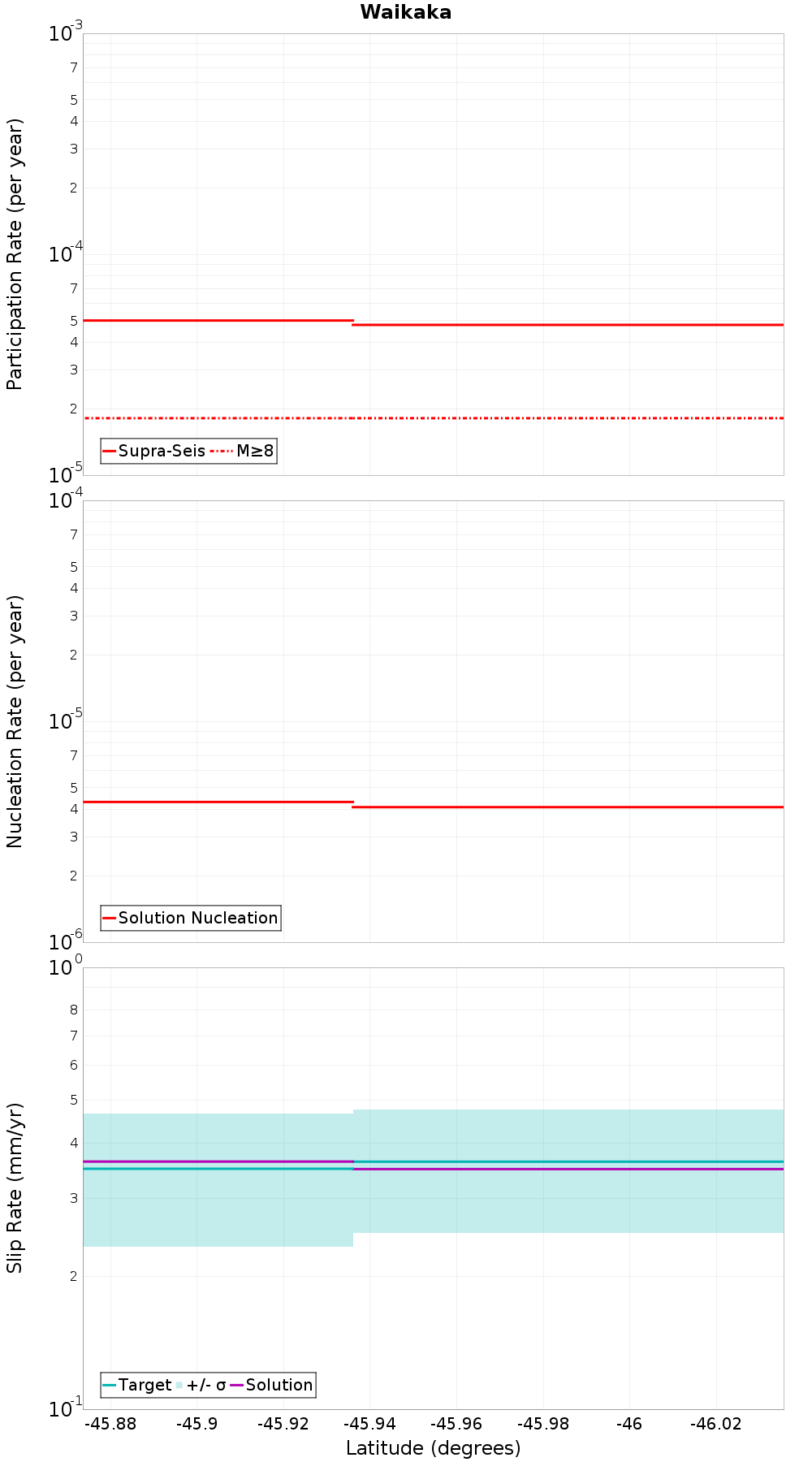

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Waikaia, 0.07 km away
Wendon Valley, 0.21 km away
Hedgehope, 0.41 km away
Hillfoot, 0.9 km away
Spylaw, 1.11 km away
Hokonui, 1.34 km away
Garvie, 2.18 km away
Mid Dome, 12.75 km away
Old Man, 14.99 km away

Waikaia, 0.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?	true
Directly Connected?	true
Co-rupture Count	2,375
Co-rupture Rate	7.0619114E-7

Wendon Valley, 0.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?	true
Directly Connected?	true
Co-rupture Count	835
Co-rupture Rate	1.70885E-5

Hedgehope, 0.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?	true
Directly Connected?	true
Co-rupture Count	1,609
Co-rupture Rate	2.5235033E-5

Hillfoot, 0.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?	true
Directly Connected?	true
Co-rupture Count	2,052
Co-rupture Rate	1.3701649E-5

Spylaw, 1.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?	true
Directly Connected?	false
Co-rupture Count	20
Co-rupture Rate	0.0

Hokonui, 1.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?	true
Directly Connected?	false
Co-rupture Count	102
Co-rupture Rate	1.1802759E-5

Garvie, 2.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?	true
Directly Connected?	true
Co-rupture Count	1,325
Co-rupture Rate	3.3964254E-5

Mid Dome, 12.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Old Man, 14.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NTEuMHd6aG1E
Connected?	true
Directly Connected?	false
Co-rupture Count	2,913
Co-rupture Rate	0.0
