Hope: Conway Details

Property	Value
Rupture Count	176,959
Ruptures Above Sect Min Mag	176,936
Ruptures w/ Nonzero Rates	1,210
Magnitude Range	[6.64, 8.57]
Length Range	[16, 1,083] km
Total Rate	0.0013773394 /yr
Multi-Fault Rate	0.0013773394 /yr (100.00%)
Directly-Connected Faults	13
All Co-Rupturing Faults	291

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

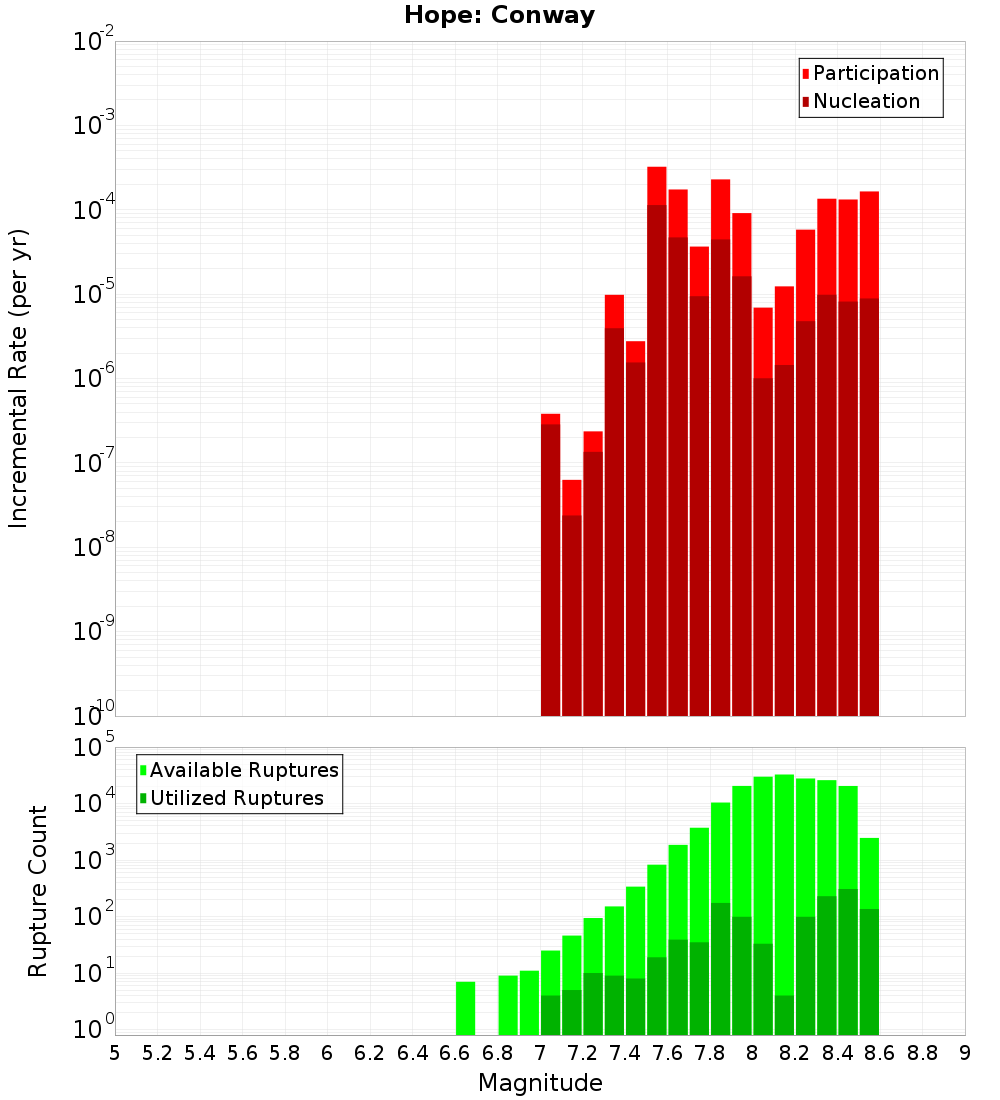

Magnitude-Frequency Distribution

Incremental	Cumulative

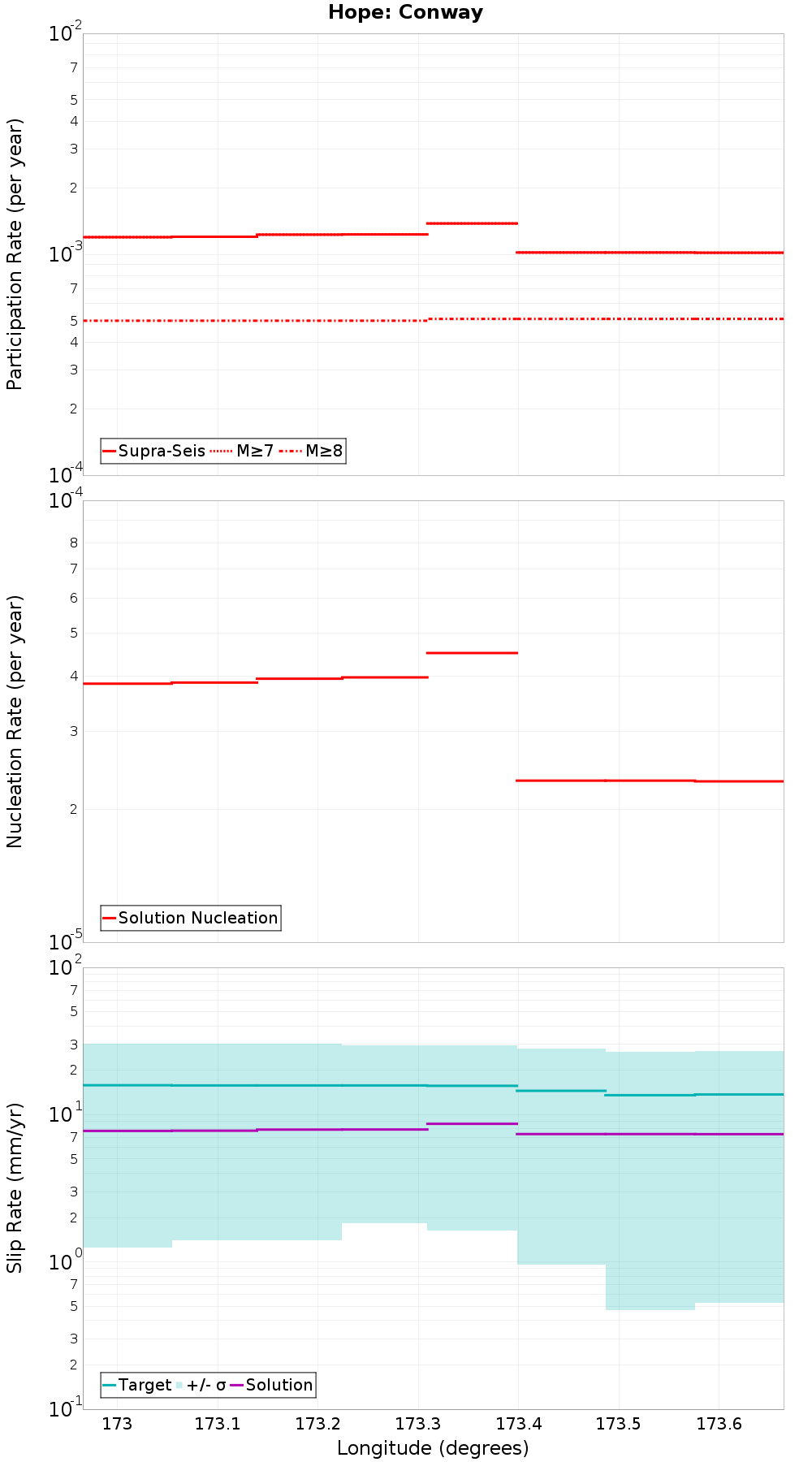

Along-Strike Values

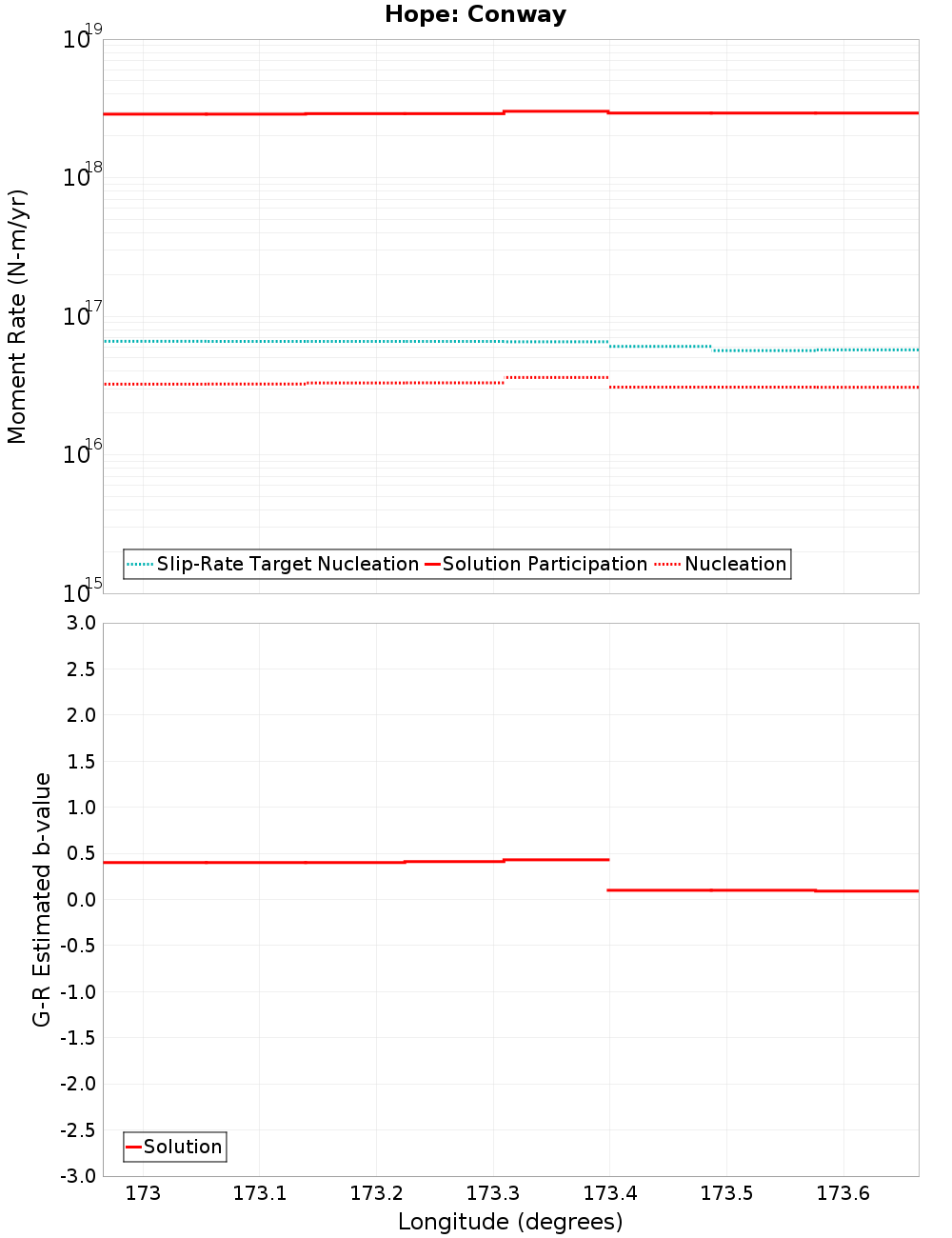

Moment-Rates and b-Values

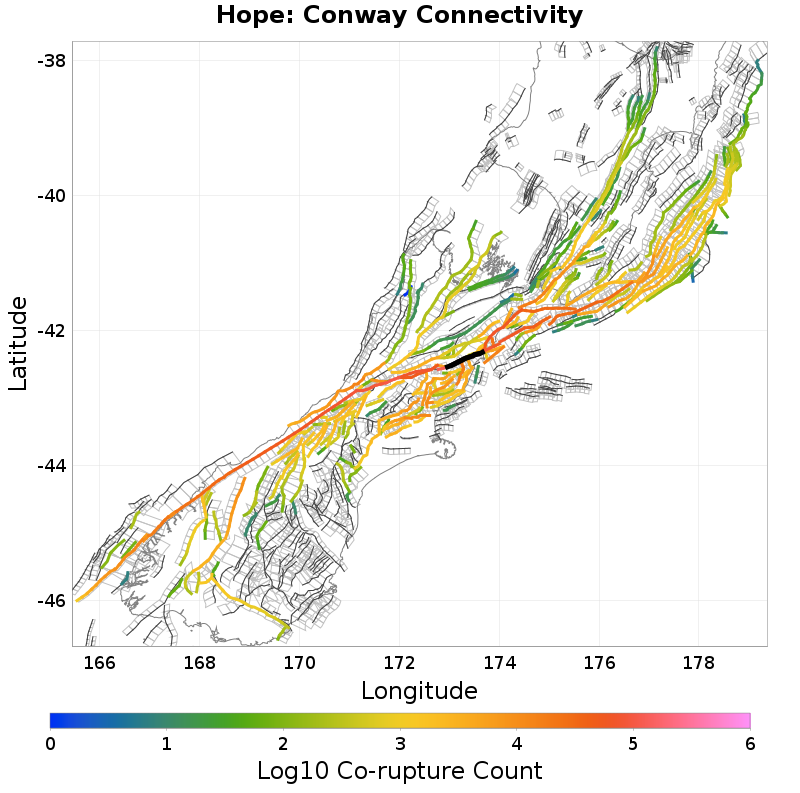

Connectivity

Nearby Sections

Fault Section	Fault Section
Jordan, 0 km away	Leader: Central, 4.85 km away
Hope: Seaward, 0 km away	Kaiwara North, 6.34 km away
Hope: Hamner SE, 0 km away	Leader: South, 6.39 km away
Hanmer, 0 km away	Hundalee, 7.09 km away
Upper Kowhai - Manakau, 0.14 km away	Dillon, 8.76 km away
Offshore Splay Thrust, 0.19 km away	Papatea, 10.19 km away
Leader: North, 0.2 km away	The Humps, 10.44 km away
StoneJug, 0.26 km away	Elliott, 11.08 km away
Kowhai, 0.31 km away	Acheron, 11.85 km away
Kaikoura - Mangamaunu, 3.18 km away	Mt Culverden, 12.62 km away
Kaikoura 2, 4.74 km away	Hope: Hanmer NW, 12.84 km away

Jordan, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?	true
Directly Connected?	true
Co-rupture Count	50,244
Co-rupture Rate	4.4442553E-4

Hope: Seaward, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?	true
Directly Connected?	true
Co-rupture Count	85,073
Co-rupture Rate	3.7326373E-4

Hope: Hamner SE, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?	true
Directly Connected?	true
Co-rupture Count	128,955
Co-rupture Rate	0.0010783342

Hanmer, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?	true
Directly Connected?	true
Co-rupture Count	5,650
Co-rupture Rate	8.635767E-5

Upper Kowhai - Manakau, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?	true
Directly Connected?	true
Co-rupture Count	1,491
Co-rupture Rate	2.2653216E-5

Offshore Splay Thrust, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?	true
Directly Connected?	true
Co-rupture Count	15,131
Co-rupture Rate	4.8000015E-7

Leader: North, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?	true
Directly Connected?	true
Co-rupture Count	12,141
Co-rupture Rate	8.891807E-5

StoneJug, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?	true
Directly Connected?	true
Co-rupture Count	4,237
Co-rupture Rate	6.172971E-5

Kowhai, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?	true
Directly Connected?	true
Co-rupture Count	1,913
Co-rupture Rate	2.1481272E-5

Kaikoura - Mangamaunu, 3.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?	true
Directly Connected?	true
Co-rupture Count	6,031
Co-rupture Rate	1.6785714E-4

Kaikoura 2, 4.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?	true
Directly Connected?	false
Co-rupture Count	720
Co-rupture Rate	1.9592211E-5

Leader: Central, 4.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?	true
Directly Connected?	true
Co-rupture Count	19,572
Co-rupture Rate	8.064662E-5

Kaiwara North, 6.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?	true
Directly Connected?	false
Co-rupture Count	16,250
Co-rupture Rate	5.3386575E-5

Leader: South, 6.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?	true
Directly Connected?	false
Co-rupture Count	138
Co-rupture Rate	1.204071E-5

Hundalee, 7.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?	true
Directly Connected?	false
Co-rupture Count	2,110
Co-rupture Rate	1.5219332E-5

Dillon, 8.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?	true
Directly Connected?	true
Co-rupture Count	168
Co-rupture Rate	2.4515648E-5

Papatea, 10.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?	true
Directly Connected?	false
Co-rupture Count	23,046
Co-rupture Rate	2.8310436E-5

The Humps, 10.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?	true
Directly Connected?	false
Co-rupture Count	1,239
Co-rupture Rate	0.0

Elliott, 11.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?	true
Directly Connected?	true
Co-rupture Count	786
Co-rupture Rate	1.01100095E-5

Acheron, 11.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?	true
Directly Connected?	false
Co-rupture Count	98
Co-rupture Rate	3.2689204E-5

Mt Culverden, 12.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?	true
Directly Connected?	false
Co-rupture Count	5,379
Co-rupture Rate	1.1549051E-6

Hope: Hanmer NW, 12.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?	true
Directly Connected?	false
Co-rupture Count	54,536
Co-rupture Rate	3.7769452E-4
