Ruby Bay - Moutere Details
| Property | Value |
|---|---|
| Rupture Count | 11,492 |
| Ruptures Above Sect Min Mag | 11,490 |
| Ruptures w/ Nonzero Rates | 74 |
| Magnitude Range | [7.02, 8.60] |
| Length Range | [24, 982] km |
| Total Rate | 6.3302505E-5 /yr |
| Multi-Fault Rate | 6.3302505E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 84 |
Table Of Contents

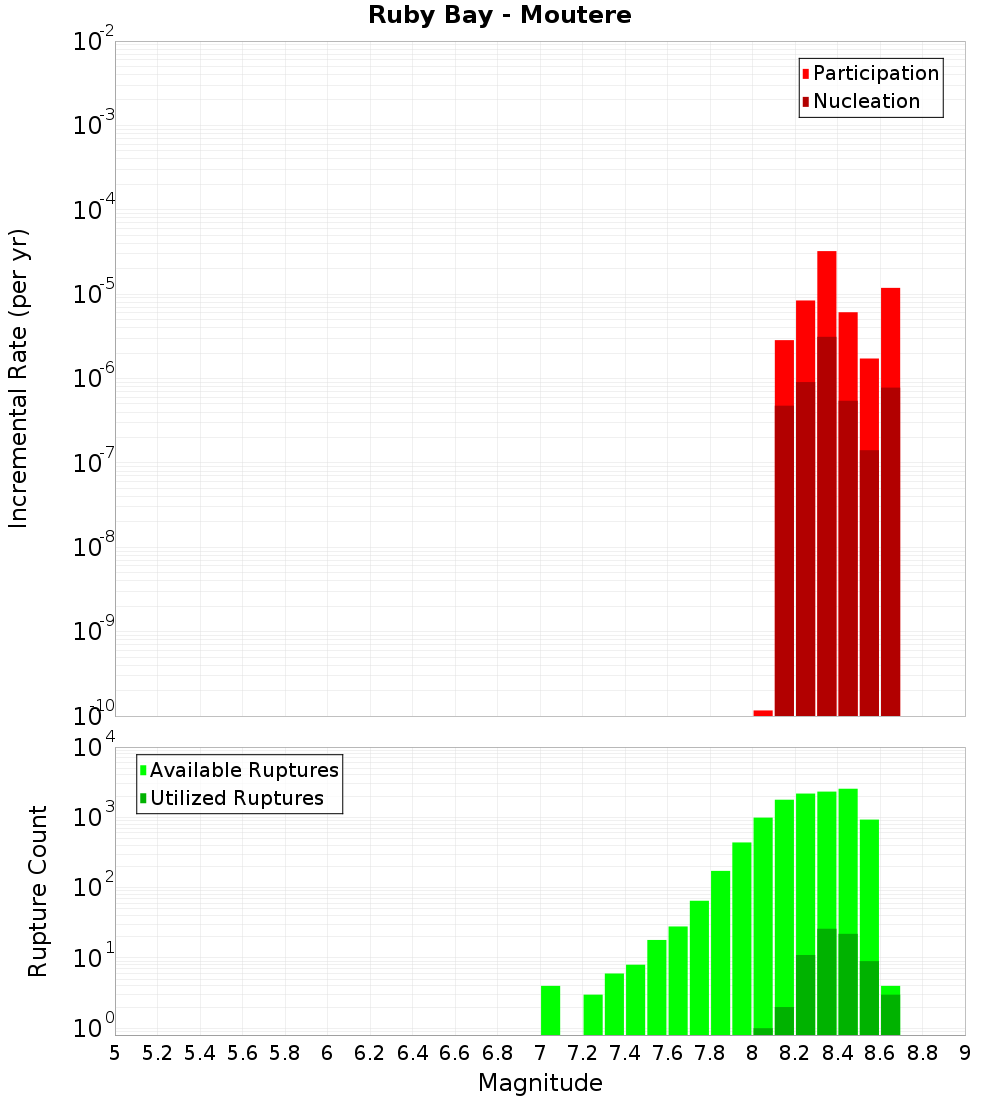

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

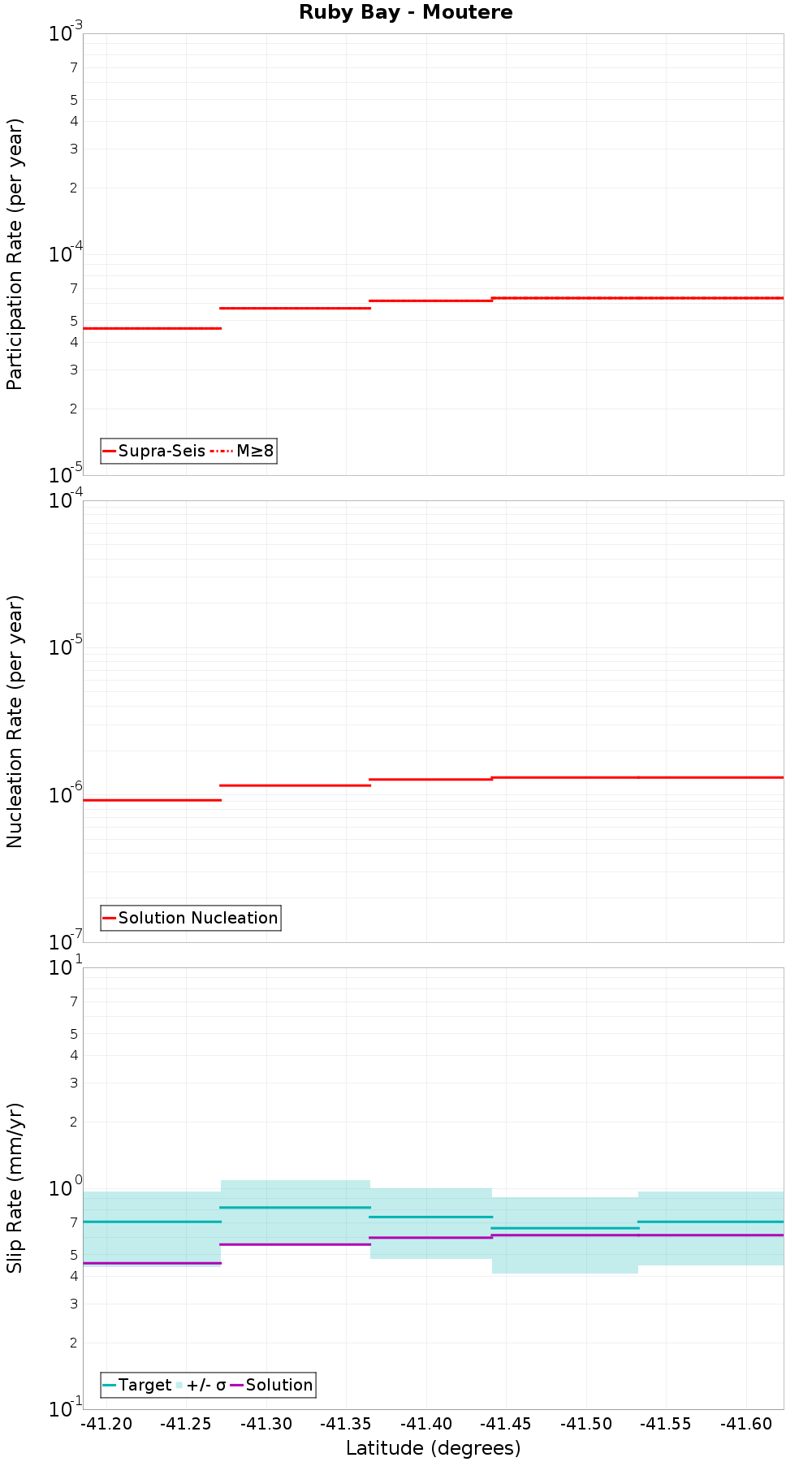

Along-Strike Values
Moment-Rates and b-Values

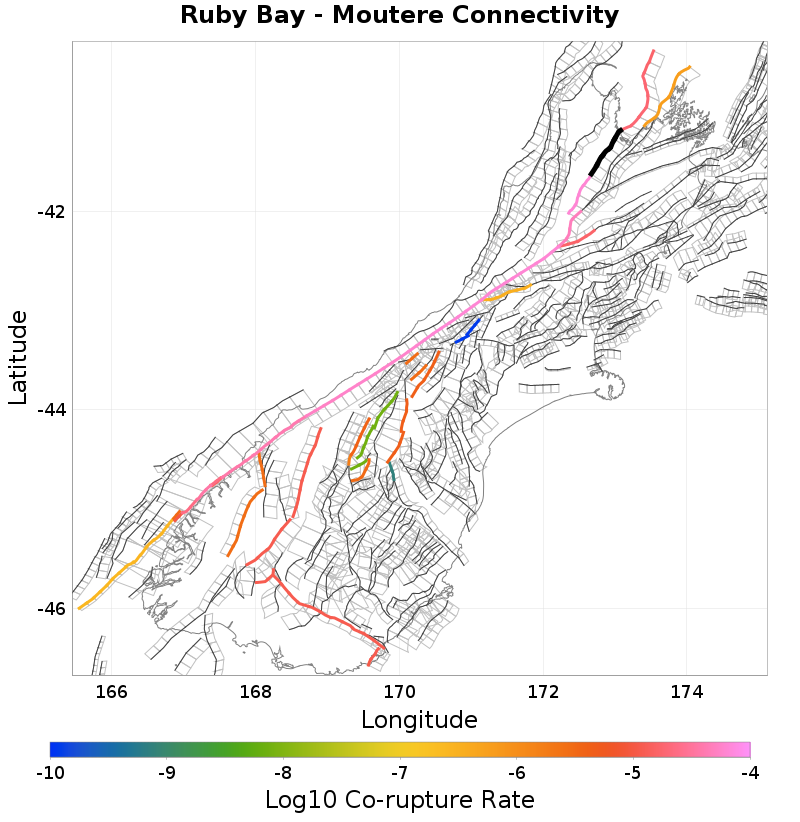

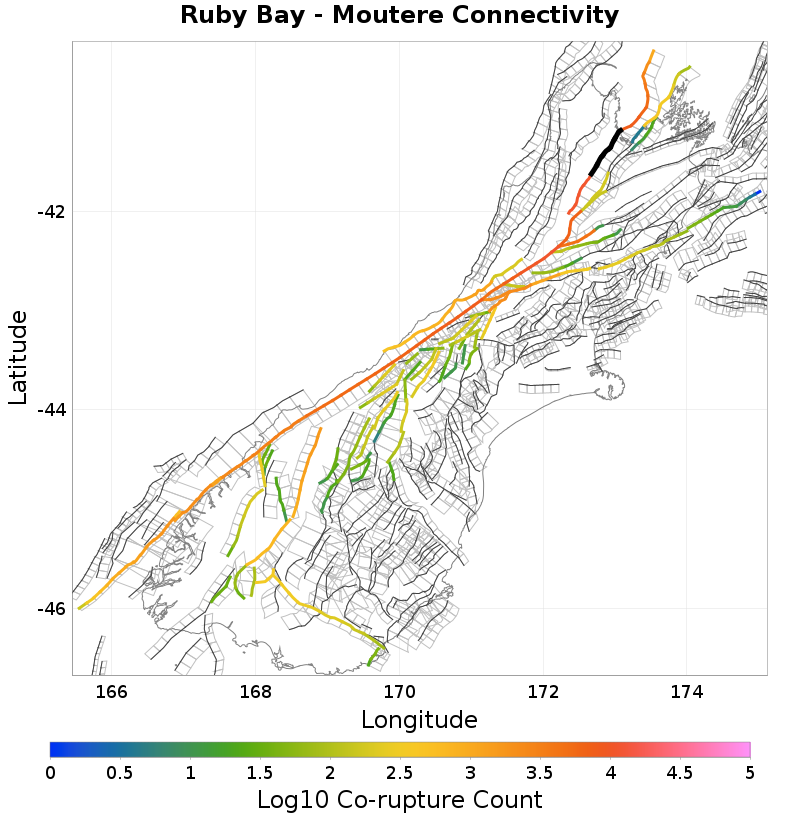

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Surville, 0.05 km away |
| Tutaki, 3.45 km away |
| Flaxmore - Waimea - Tahunanui, 9.4 km away |
| Totara Saddle, 9.52 km away |
| Wairau, 14.97 km away |
Surville, 0.05 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7,549 |
| Co-rupture Rate | 1.869372E-5 |
Tutaki, 3.45 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 11,243 |
| Co-rupture Rate | 6.3302505E-5 |
Flaxmore - Waimea - Tahunanui, 9.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 179 |
| Co-rupture Rate | 0.0 |
Totara Saddle, 9.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wairau, 14.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
