Te Heka Details

Property	Value
Rupture Count	329
Ruptures Above Sect Min Mag	327
Ruptures w/ Nonzero Rates	33
Magnitude Range	[6.91, 8.10]
Length Range	[22, 354] km
Total Rate	8.206529E-5 /yr
Multi-Fault Rate	8.206529E-5 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	21

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

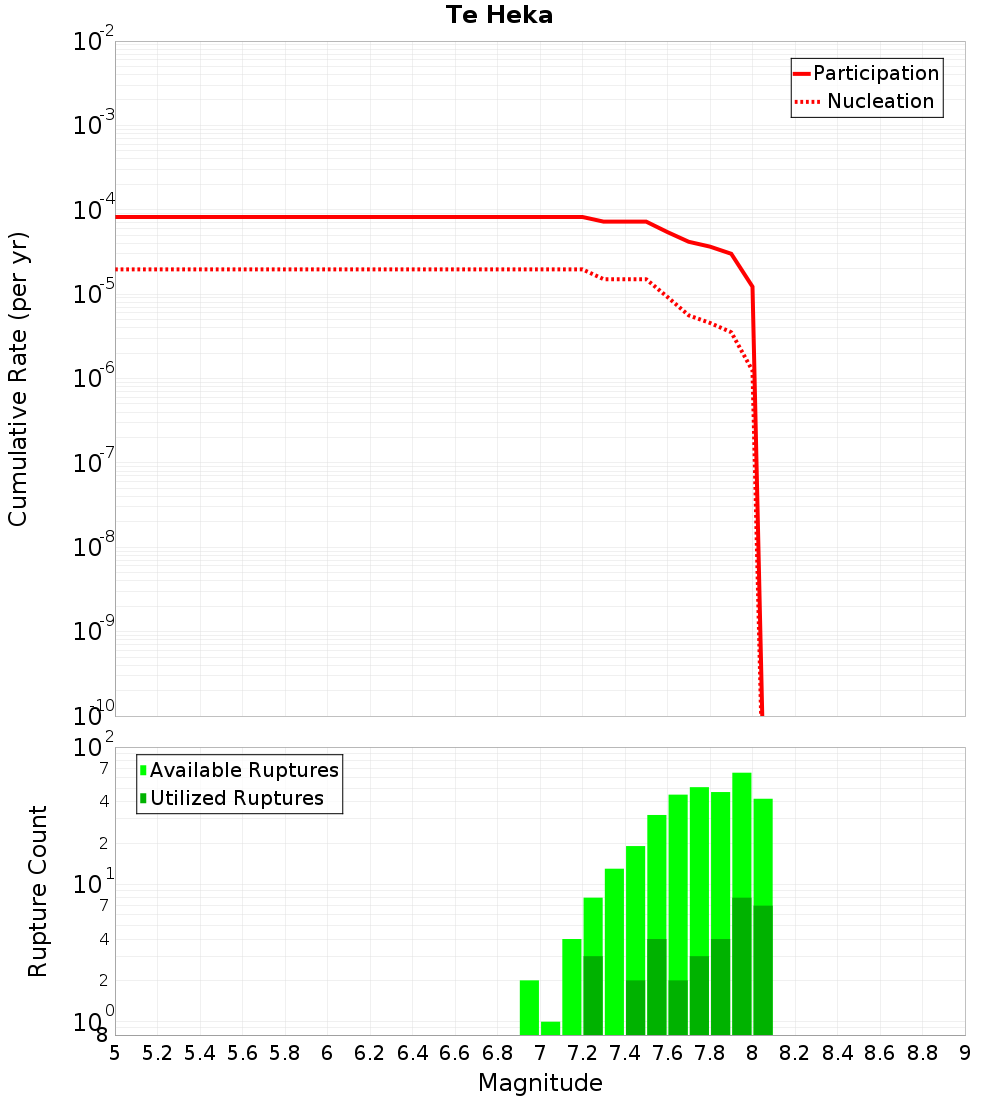

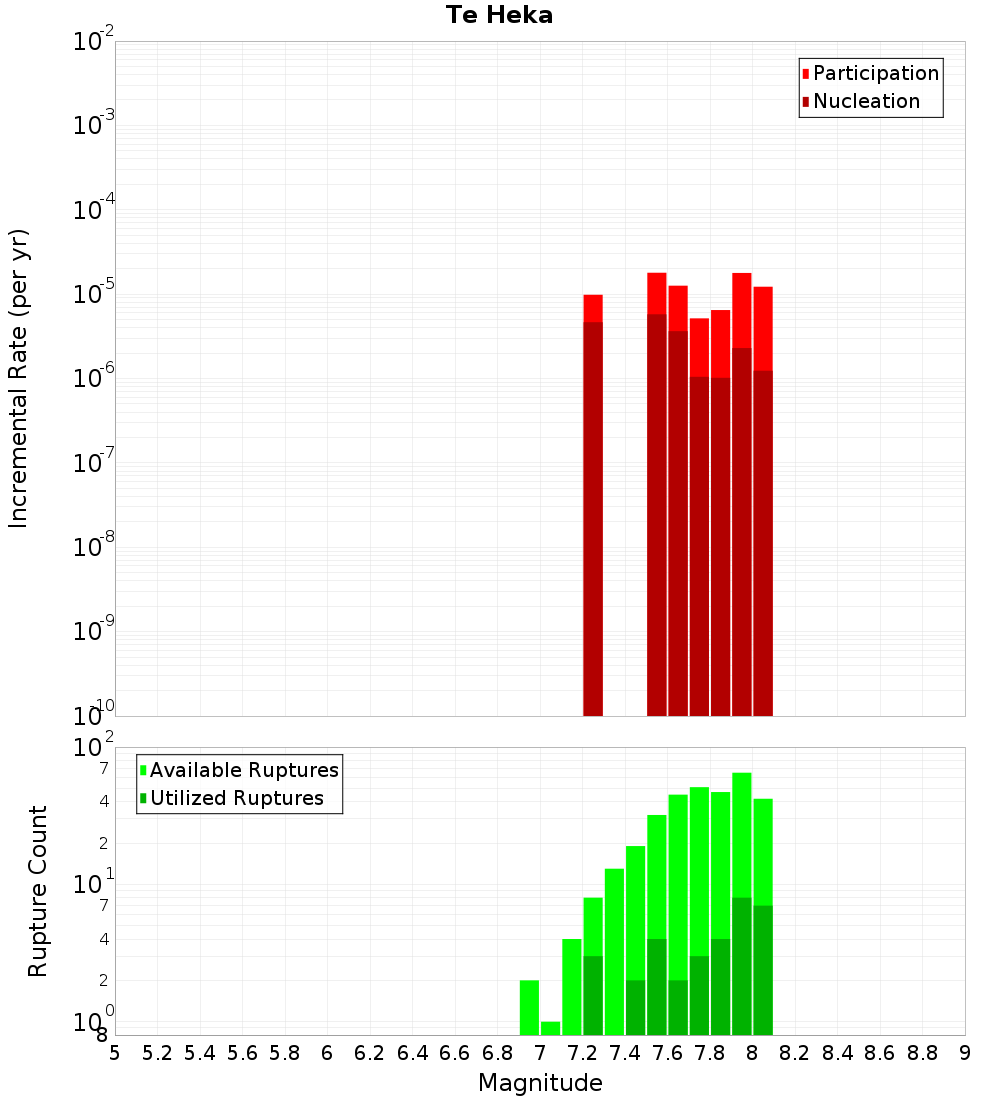

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

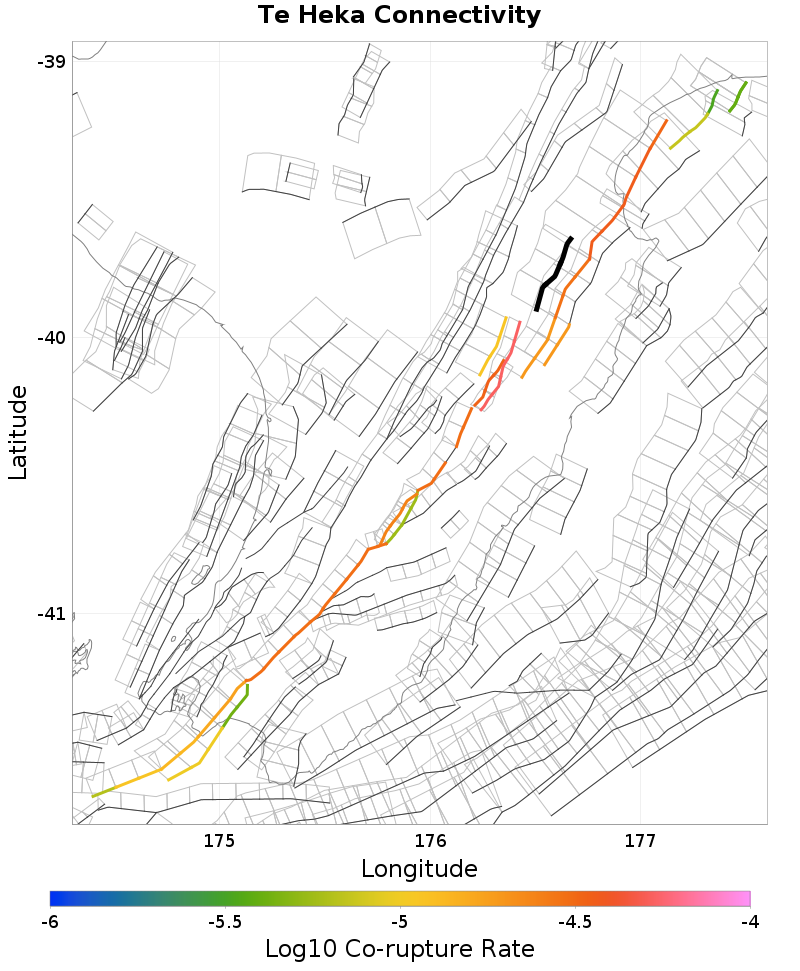

Connectivity

Nearby Sections

Fault Section
Awanui, 0.14 km away
Waipukurau - Poukawa, 5.65 km away
Oruawharo - Mangatoro, 8.08 km away
Tukituki Thrust, 11.15 km away
Ruataniwha, 12.06 km away
Mohaka: North, 14.25 km away
Wakarara, 14.91 km away
Mohaka: South, 14.96 km away

Awanui, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?	true
Directly Connected?	true
Co-rupture Count	213
Co-rupture Rate	3.6195517E-5

Waipukurau - Poukawa, 5.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?	true
Directly Connected?	true
Co-rupture Count	16
Co-rupture Rate	2.8987442E-5

Oruawharo - Mangatoro, 8.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?	true
Directly Connected?	true
Co-rupture Count	243
Co-rupture Rate	5.307785E-5

Tukituki Thrust, 11.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?	true
Directly Connected?	true
Co-rupture Count	52
Co-rupture Rate	1.9160801E-5

Ruataniwha, 12.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	1.1340805E-5

Mohaka: North, 14.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wakarara, 14.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mohaka: South, 14.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
