Waipiata Details

PropertyValue
Rupture Count497
Ruptures Above Sect Min Mag496
Ruptures w/ Nonzero Rates40
Magnitude Range[7.03, 8.25]
Length Range[23, 361] km
Total Rate7.9156154E-5 /yr
Multi-Fault Rate7.9155725E-5 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults37

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

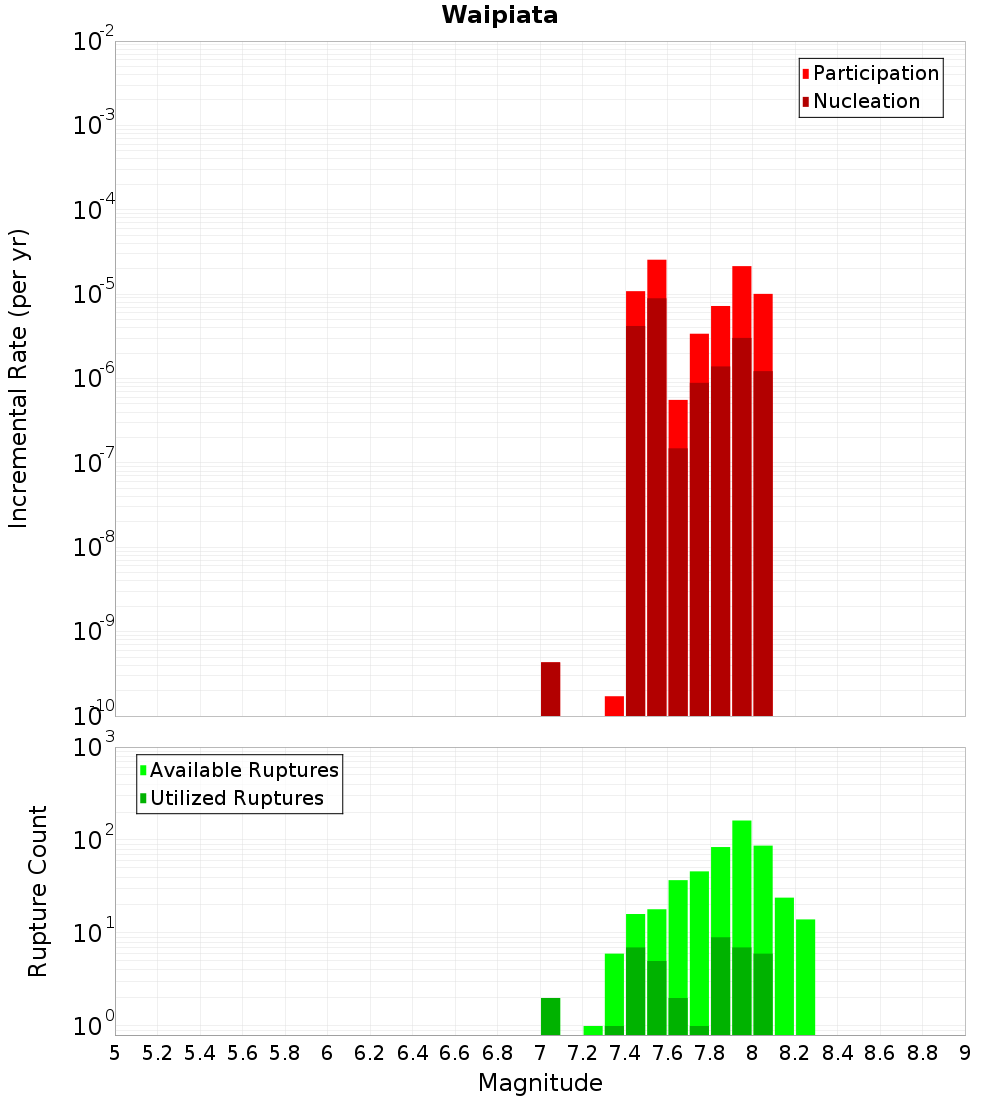

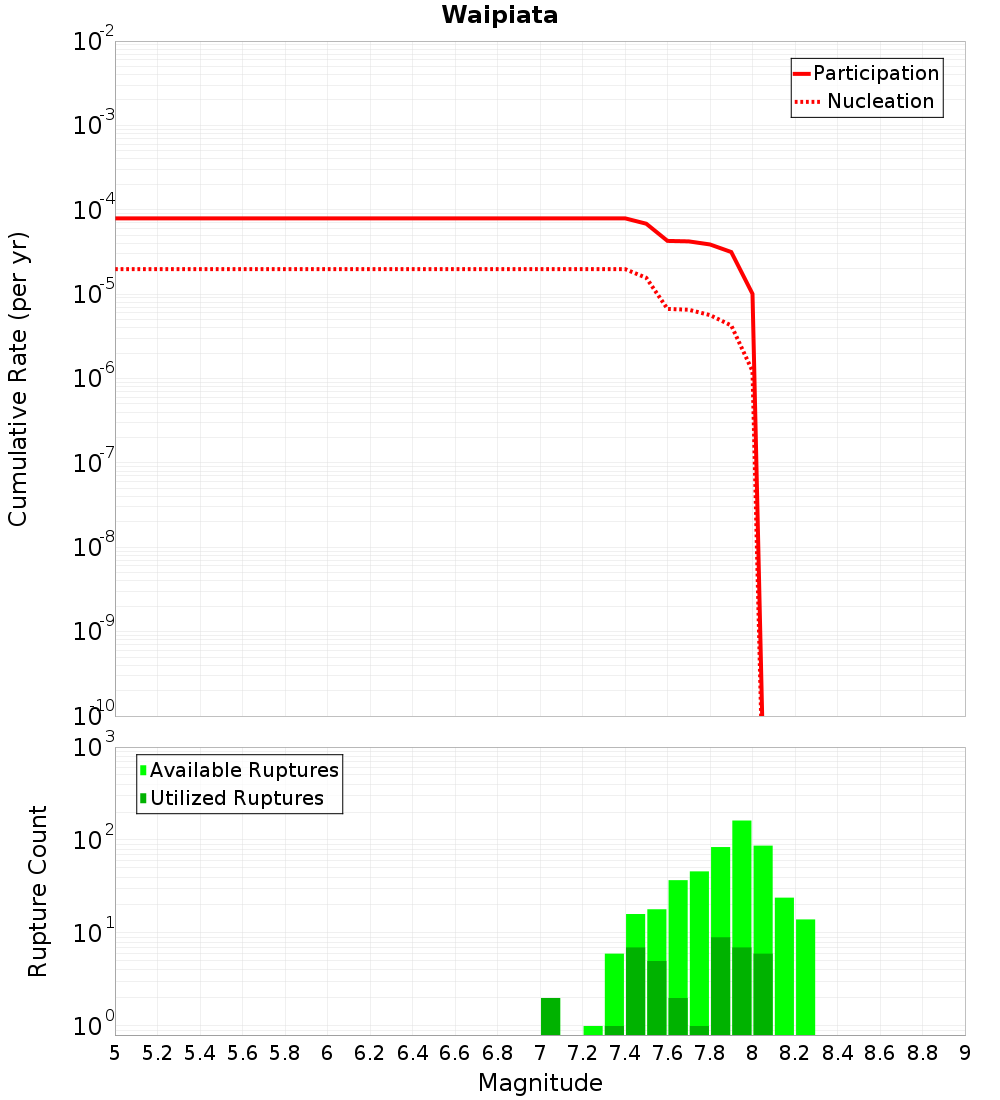

Incremental PlotCumulative Plot

Along-Strike Values

(top)

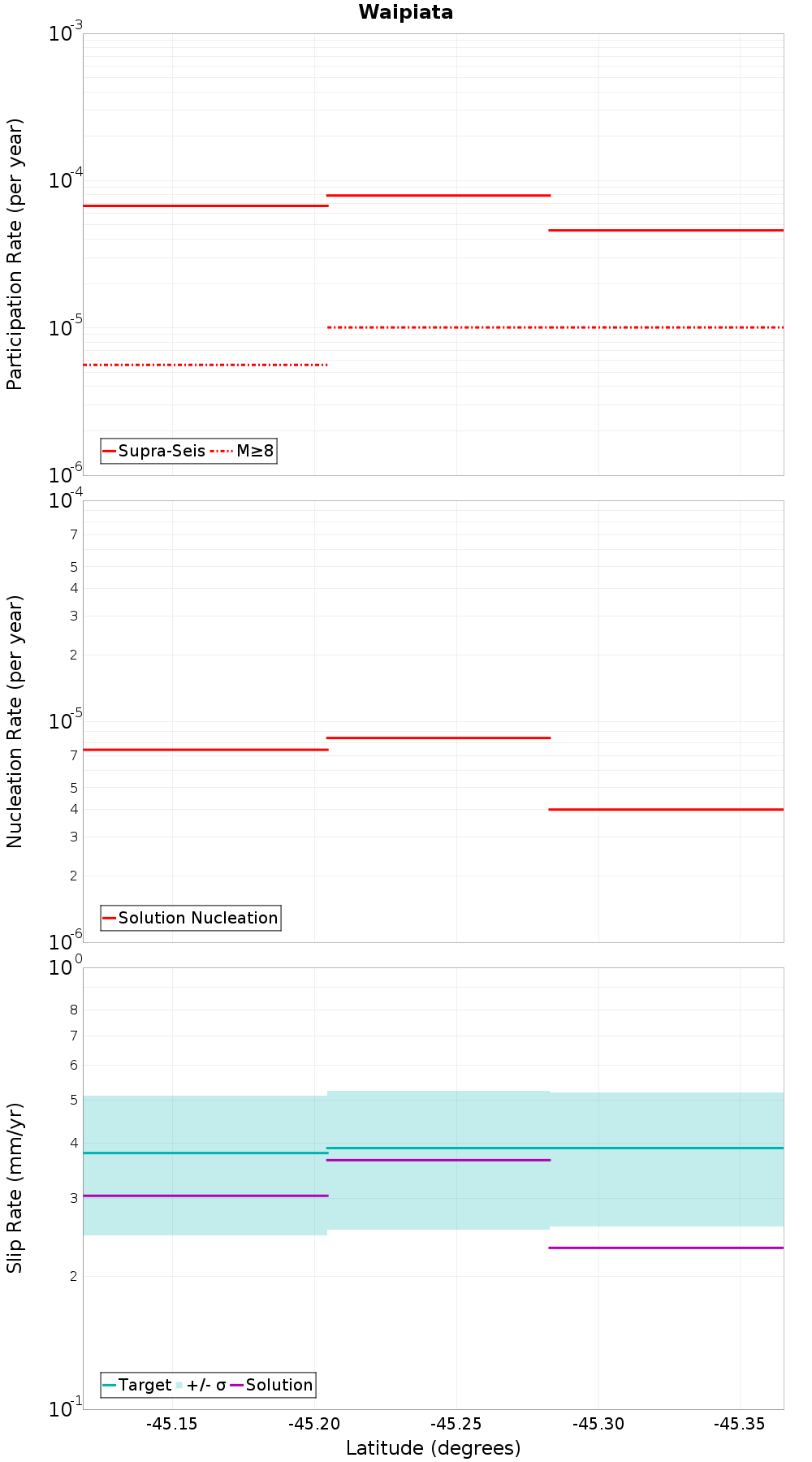

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

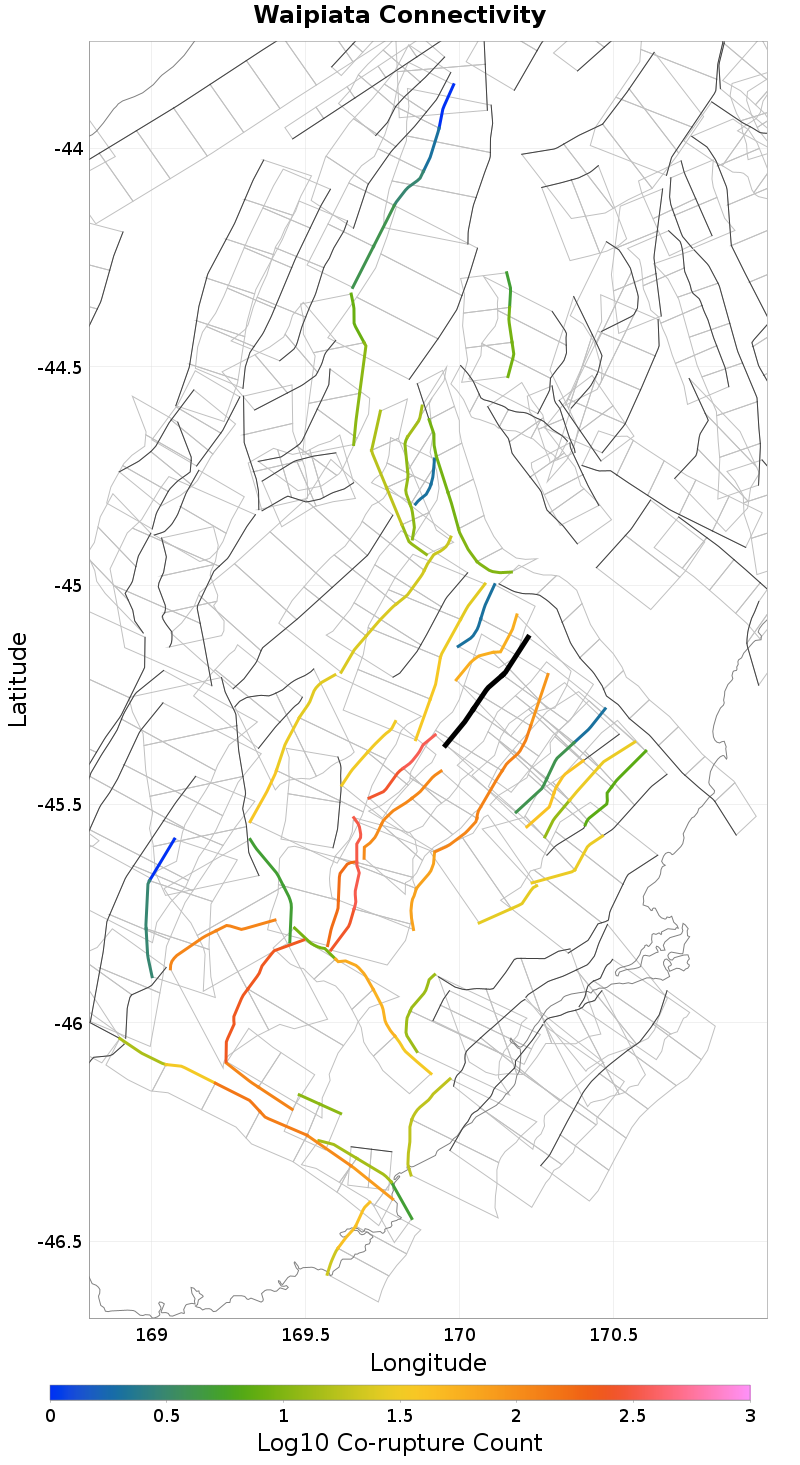

MapMap

Nearby Sections

(top)

Fault Section
Murphys Creek, 0.19 km away
Billys Ridge, 0.2 km away
Horse Flat, 0.28 km away
Hyde North, 0.31 km away
Dunback Hill, 0.35 km away
Ranfurly, 2.8 km away
Pylap, 3.22 km away
Flat Stream - Glenpark, 5.65 km away
Logan Burn, 6.26 km away
Gimmerburn, 7.59 km away
Waihemo, 7.71 km away
Nichols Rock, 8.37 km away
Cross Eden, 10.37 km away
Long Valley, 12.31 km away
Sliver Stream - Merton, 14.52 km away

Murphys Creek, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?true
Directly Connected?true
Co-rupture Count29
Co-rupture Rate2.4270705E-5

Billys Ridge, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?true
Directly Connected?true
Co-rupture Count41
Co-rupture Rate0.0

Horse Flat, 0.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate7.7897685E-6

Hyde North, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?true
Directly Connected?true
Co-rupture Count122
Co-rupture Rate3.0025356E-5

Dunback Hill, 0.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?true
Directly Connected?true
Co-rupture Count7
Co-rupture Rate1.06709795E-5

Ranfurly, 2.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?true
Directly Connected?true
Co-rupture Count58
Co-rupture Rate9.535905E-6

Pylap, 3.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?true
Directly Connected?true
Co-rupture Count352
Co-rupture Rate3.171825E-5

Flat Stream - Glenpark, 5.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?true
Directly Connected?true
Co-rupture Count29
Co-rupture Rate1.3762928E-5

Logan Burn, 6.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?true
Directly Connected?false
Co-rupture Count111
Co-rupture Rate1.6942926E-5

Gimmerburn, 7.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?true
Directly Connected?false
Co-rupture Count36
Co-rupture Rate3.3065612E-6

Waihemo, 7.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Nichols Rock, 8.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?true
Directly Connected?false
Co-rupture Count27
Co-rupture Rate1.0875604E-5

Cross Eden, 10.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Long Valley, 12.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?true
Directly Connected?false
Co-rupture Count32
Co-rupture Rate3.3065612E-6

Sliver Stream - Merton, 14.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
