Wakamarama Offshore Details
| Property | Value |
|---|---|
| Rupture Count | 4,948 |
| Ruptures Above Sect Min Mag | 4,939 |
| Ruptures w/ Nonzero Rates | 80 |
| Magnitude Range | [6.75, 8.54] |
| Length Range | [17, 970] km |
| Total Rate | 8.636212E-5 /yr |
| Multi-Fault Rate | 8.636208E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 72 |
Table Of Contents

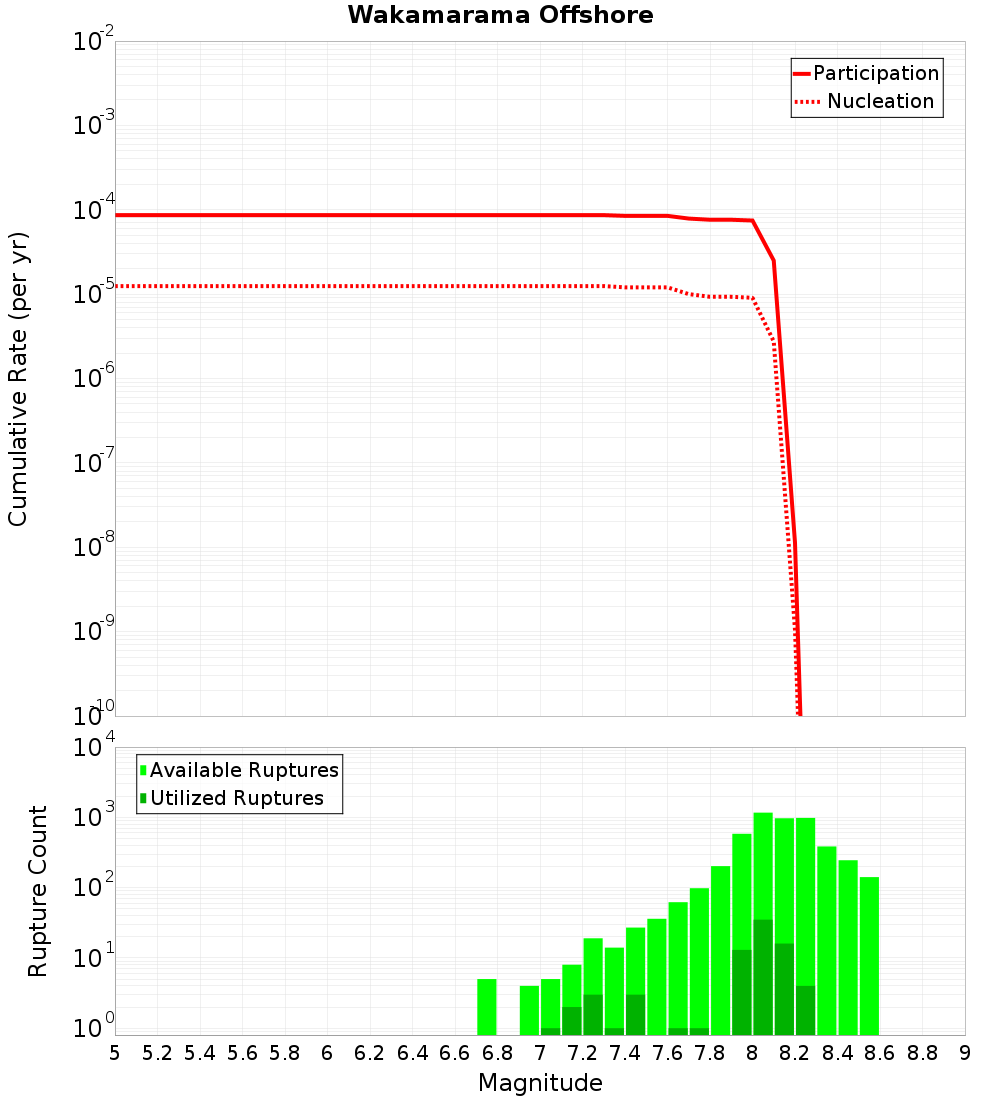

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

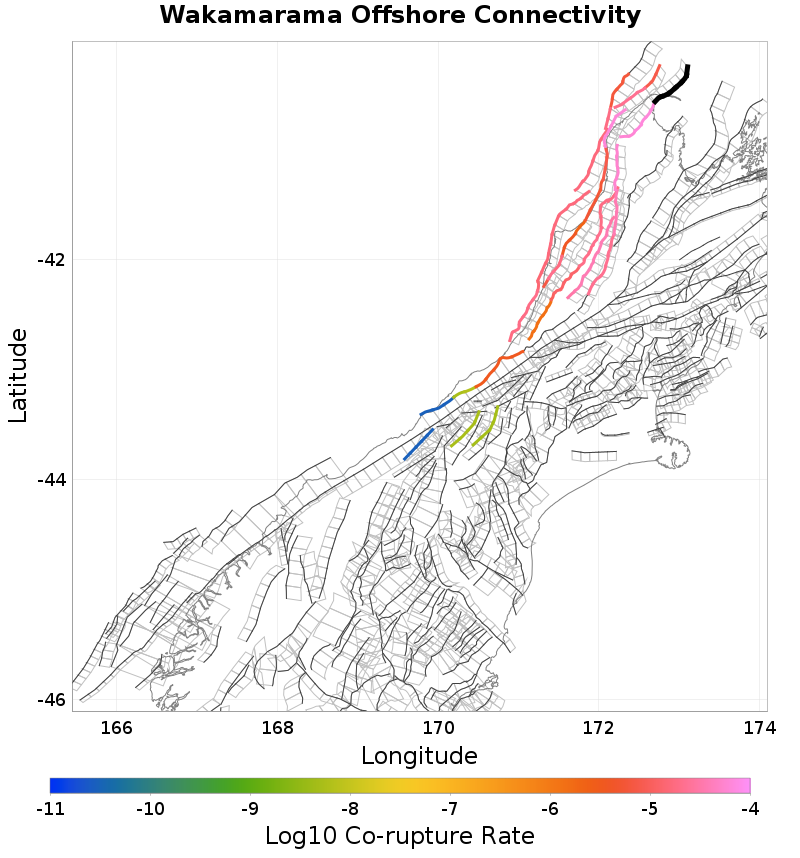

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Farewell, 0.22 km away |
| Wakamarama, 1.32 km away |
Farewell, 0.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,015 |
| Co-rupture Rate | 2.1924992E-5 |
Wakamarama, 1.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMENnRDU5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,918 |
| Co-rupture Rate | 6.443709E-5 |
