BKSmt-West Details

Property	Value
Rupture Count	13,803
Ruptures Above Sect Min Mag	13,783
Ruptures w/ Nonzero Rates	128
Magnitude Range	[6.46, 8.50]
Length Range	[13, 727] km
Total Rate	1.4795498E-4 /yr
Multi-Fault Rate	1.4795498E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	63

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values

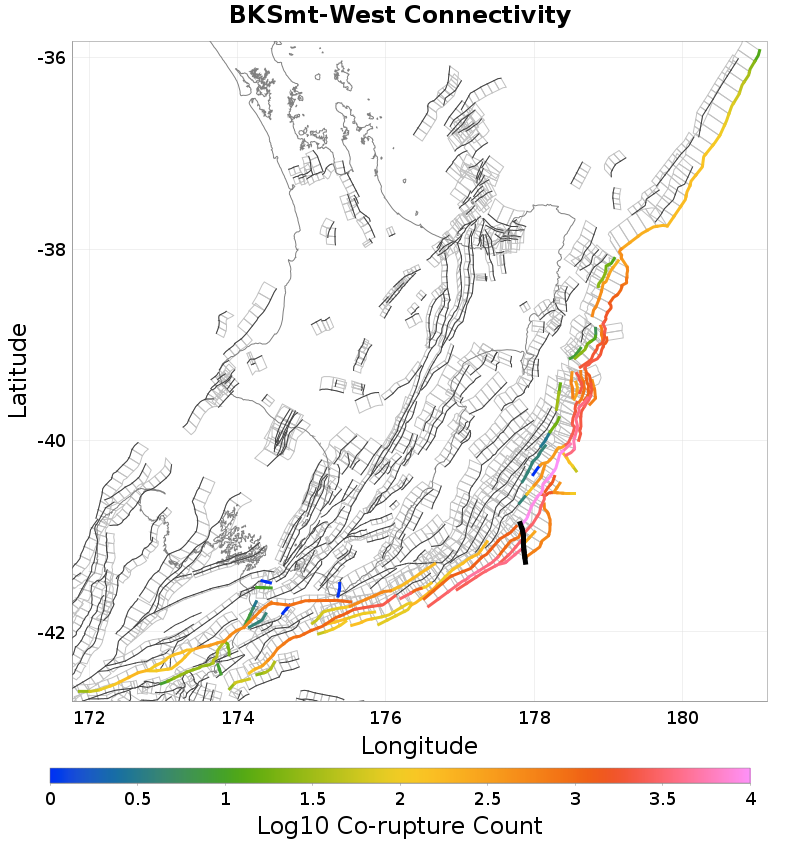

Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

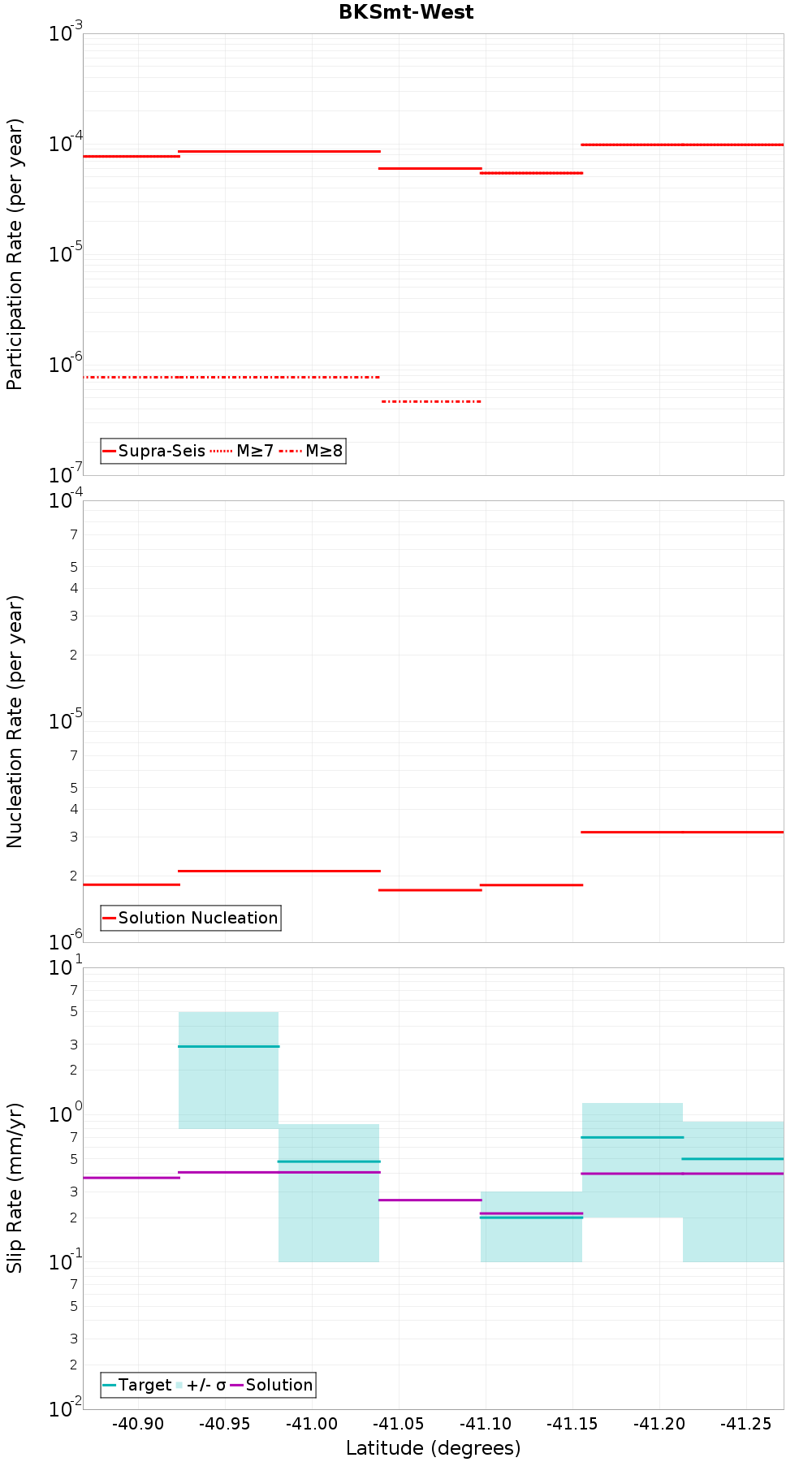

Along-Strike Values

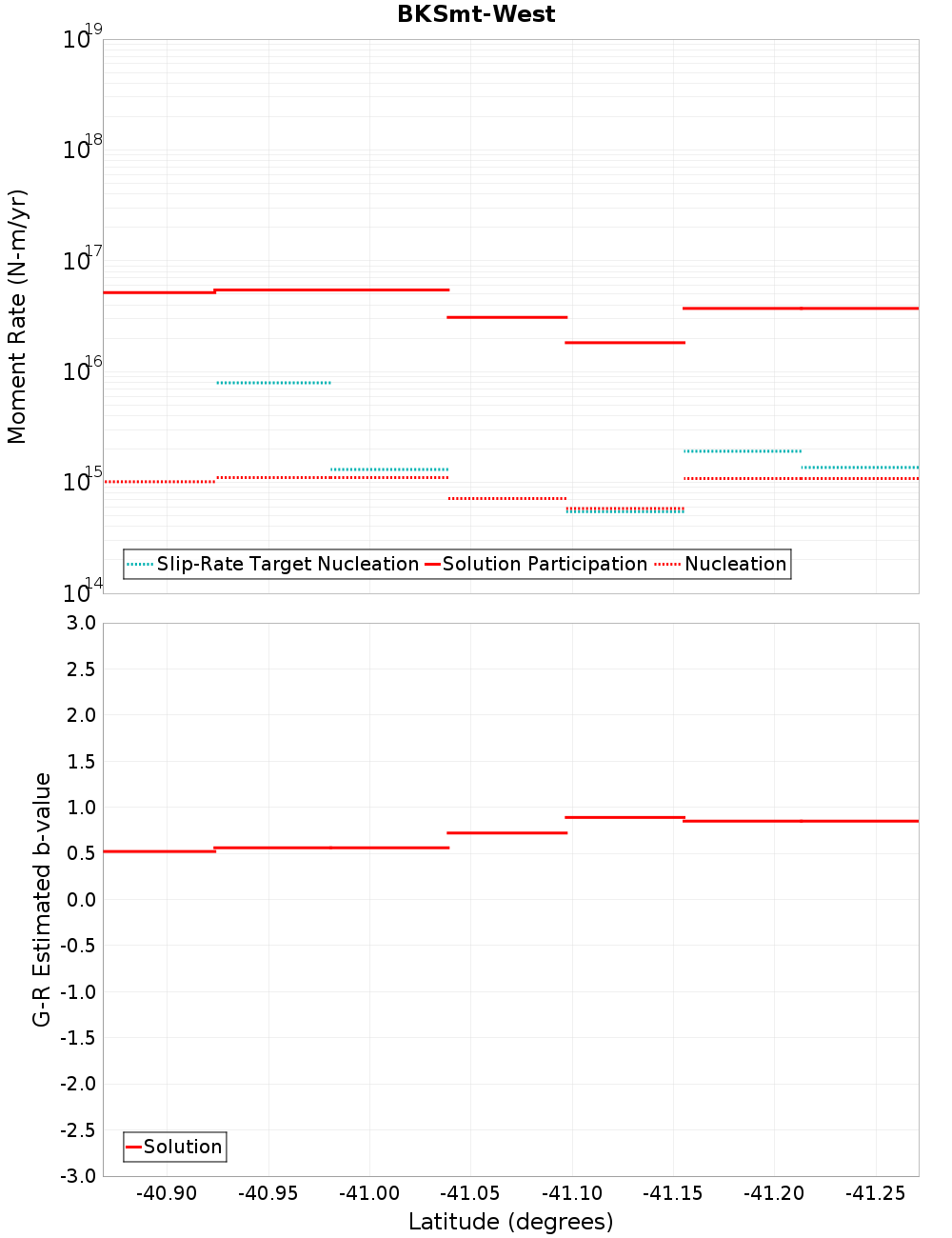

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
F17 - Central, 0.12 km away
F16 - Central, 0.19 km away
Bennett Knoll, 0.21 km away
F17 - South, 0.41 km away
Akitio Ridge, 0.5 km away
Aorangi Ridge, 0.57 km away
F16 - South, 0.87 km away
Aorangi Trough, 5.26 km away

F17 - Central, 0.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMFRjdGtI
Connected?	true
Directly Connected?	true
Co-rupture Count	267
Co-rupture Rate	2.345723E-8

F16 - Central, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMFRjdGtI
Connected?	true
Directly Connected?	true
Co-rupture Count	3,044
Co-rupture Rate	2.2843908E-5

Bennett Knoll, 0.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMFRjdGtI
Connected?	true
Directly Connected?	true
Co-rupture Count	713
Co-rupture Rate	8.511275E-5

F17 - South, 0.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMFRjdGtI
Connected?	true
Directly Connected?	true
Co-rupture Count	4,158
Co-rupture Rate	1.4692849E-5

Akitio Ridge, 0.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMFRjdGtI
Connected?	true
Directly Connected?	true
Co-rupture Count	12,668
Co-rupture Rate	7.948405E-5

Aorangi Ridge, 0.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMFRjdGtI
Connected?	true
Directly Connected?	true
Co-rupture Count	5,120
Co-rupture Rate	3.745842E-5

F16 - South, 0.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMFRjdGtI
Connected?	true
Directly Connected?	true
Co-rupture Count	3,131
Co-rupture Rate	3.533016E-5

Aorangi Trough, 5.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMFRjdGtI
Connected?	true
Directly Connected?	false
Co-rupture Count	1,247
Co-rupture Rate	9.082346E-6
