Logan Burn Details

PropertyValue
Rupture Count1,867
Ruptures Above Sect Min Mag1,866
Ruptures w/ Nonzero Rates38
Magnitude Range[6.96, 8.14]
Length Range[21, 288] km
Total Rate1.0017933E-4 /yr
Multi-Fault Rate1.0017933E-4 /yr (100.00%)
Directly-Connected Faults9
All Co-Rupturing Faults48

Table Of Contents

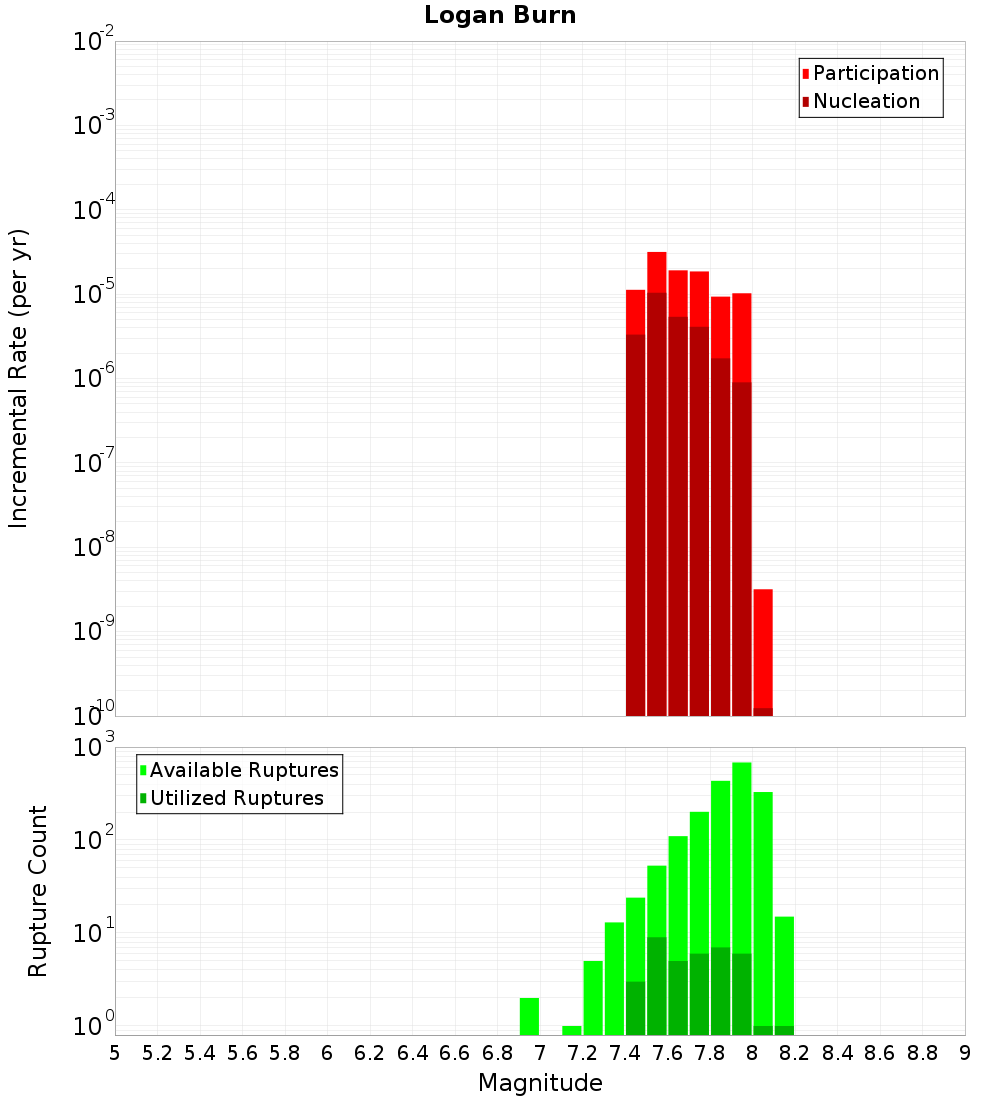

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hyde South - The Twins, 0.15 km away
Beaumont River, 0.16 km away
Hyde North, 0.2 km away
Nichols Rock, 1.4 km away
Backbone, 2.62 km away
Dunback Hill, 3.76 km away
Horse Flat, 4.1 km away
Billys Ridge, 4.28 km away
Pylap, 4.71 km away
Murphys Creek, 5 km away
Waipiata, 6.26 km away
Flat Stream - Glenpark, 6.41 km away
Lake Onslow, 7.67 km away
Gimmerburn, 10.21 km away
Long Valley, 12 km away

Hyde South - The Twins, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMFRjdGtI
Connected?true
Directly Connected?true
Co-rupture Count419
Co-rupture Rate4.291253E-5

Beaumont River, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMFRjdGtI
Connected?true
Directly Connected?true
Co-rupture Count399
Co-rupture Rate4.799477E-13

Hyde North, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMFRjdGtI
Connected?true
Directly Connected?true
Co-rupture Count498
Co-rupture Rate1.3873853E-5

Nichols Rock, 1.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMFRjdGtI
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Backbone, 2.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMFRjdGtI
Connected?true
Directly Connected?true
Co-rupture Count1,084
Co-rupture Rate1.0925306E-5

Dunback Hill, 3.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMFRjdGtI
Connected?true
Directly Connected?true
Co-rupture Count52
Co-rupture Rate1.0881369E-9

Horse Flat, 4.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMFRjdGtI
Connected?true
Directly Connected?true
Co-rupture Count140
Co-rupture Rate2.2433602E-5

Billys Ridge, 4.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMFRjdGtI
Connected?true
Directly Connected?true
Co-rupture Count183
Co-rupture Rate2.3927512E-5

Pylap, 4.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMFRjdGtI
Connected?true
Directly Connected?true
Co-rupture Count460
Co-rupture Rate1.9231312E-9

Murphys Creek, 5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMFRjdGtI
Connected?true
Directly Connected?true
Co-rupture Count129
Co-rupture Rate3.398586E-5

Waipiata, 6.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMFRjdGtI
Connected?true
Directly Connected?false
Co-rupture Count111
Co-rupture Rate3.4584074E-5

Flat Stream - Glenpark, 6.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMFRjdGtI
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lake Onslow, 7.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMFRjdGtI
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Gimmerburn, 10.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMFRjdGtI
Connected?true
Directly Connected?false
Co-rupture Count645
Co-rupture Rate5.9585036E-6

Long Valley, 12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjAuMFRjdGtI
Connected?true
Directly Connected?false
Co-rupture Count277
Co-rupture Rate5.958503E-6
