F17 - Central Details

PropertyValue
Rupture Count4,925
Ruptures Above Sect Min Mag4,922
Ruptures w/ Nonzero Rates32
Magnitude Range[6.81, 8.29]
Length Range[18, 552] km
Total Rate5.2427476E-5 /yr
Multi-Fault Rate5.2427476E-5 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults46

Table Of Contents

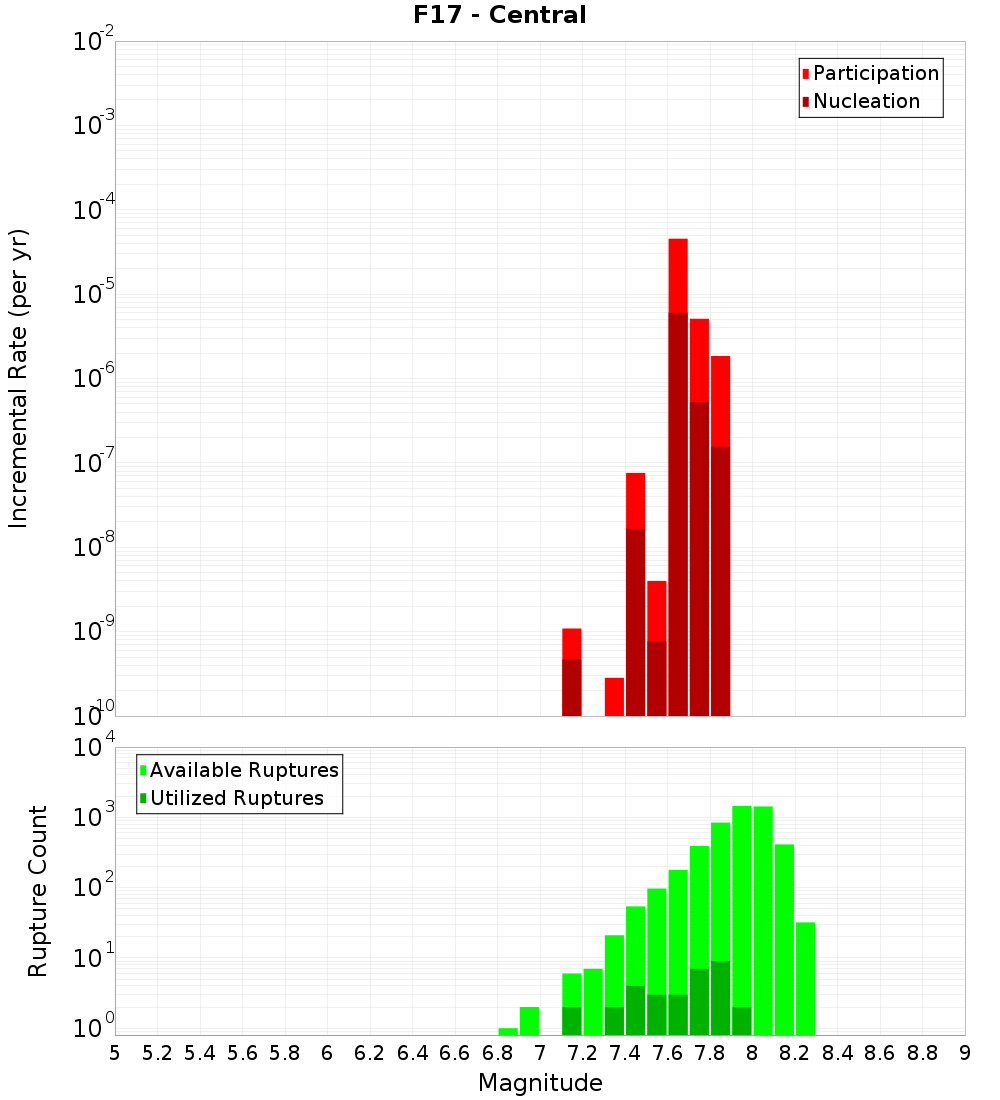

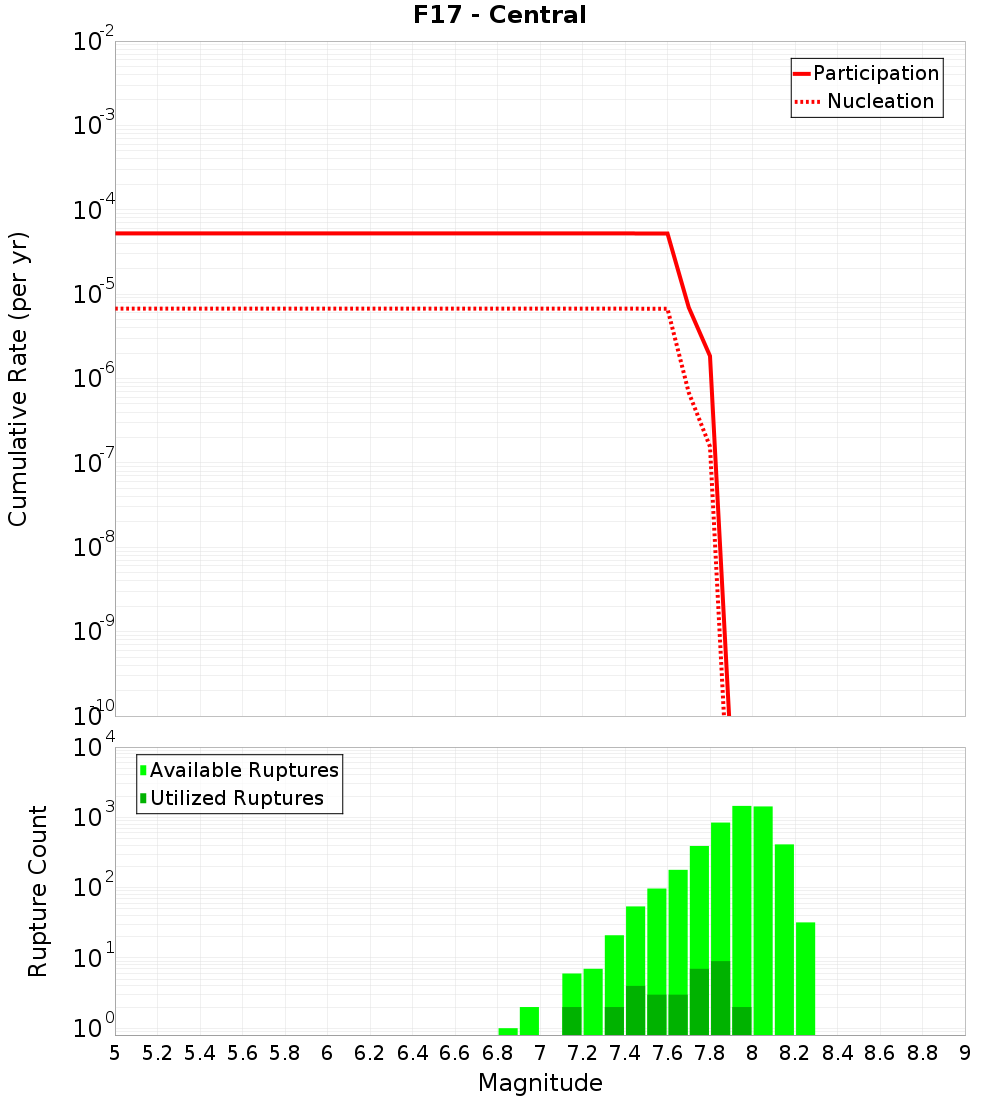

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

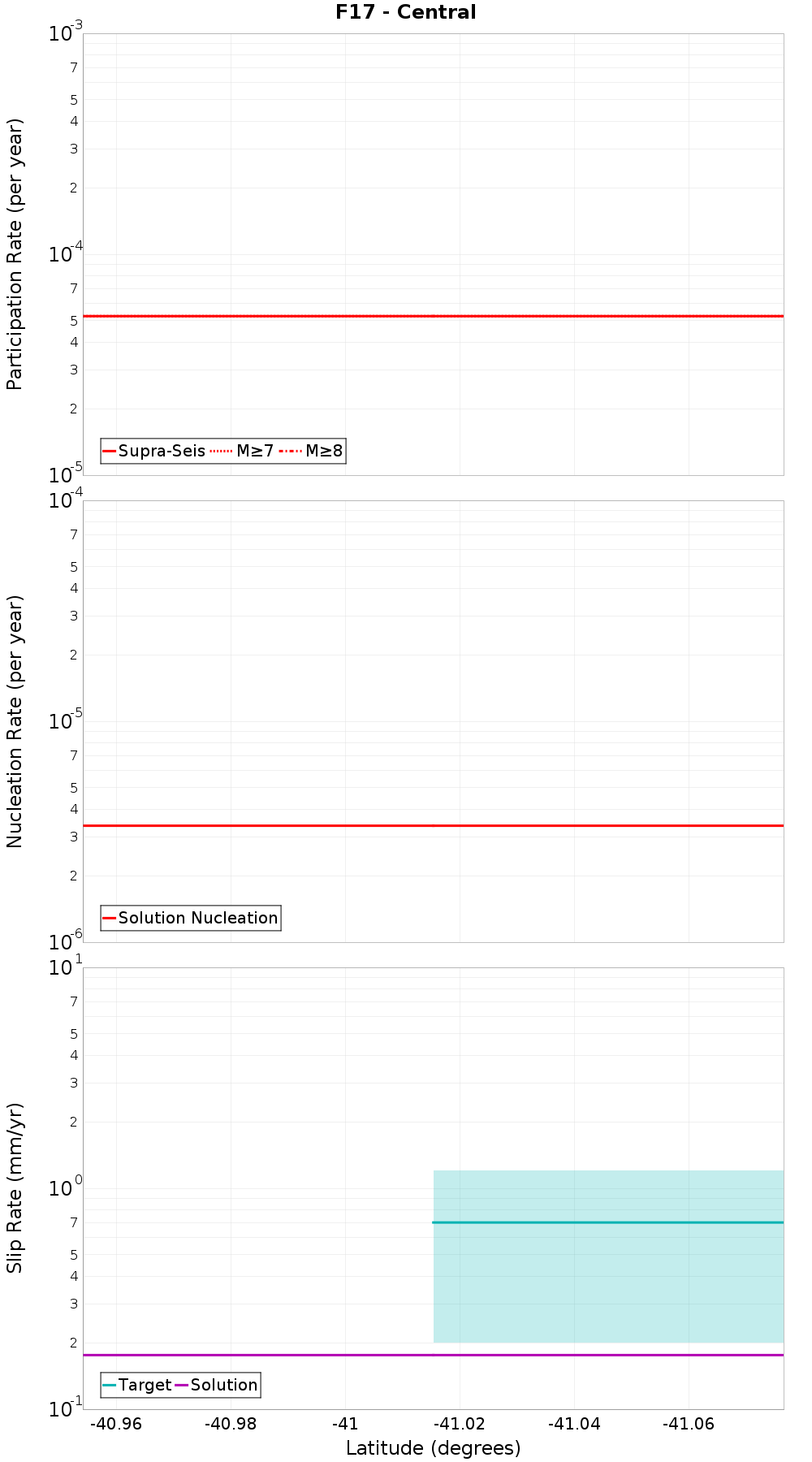

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

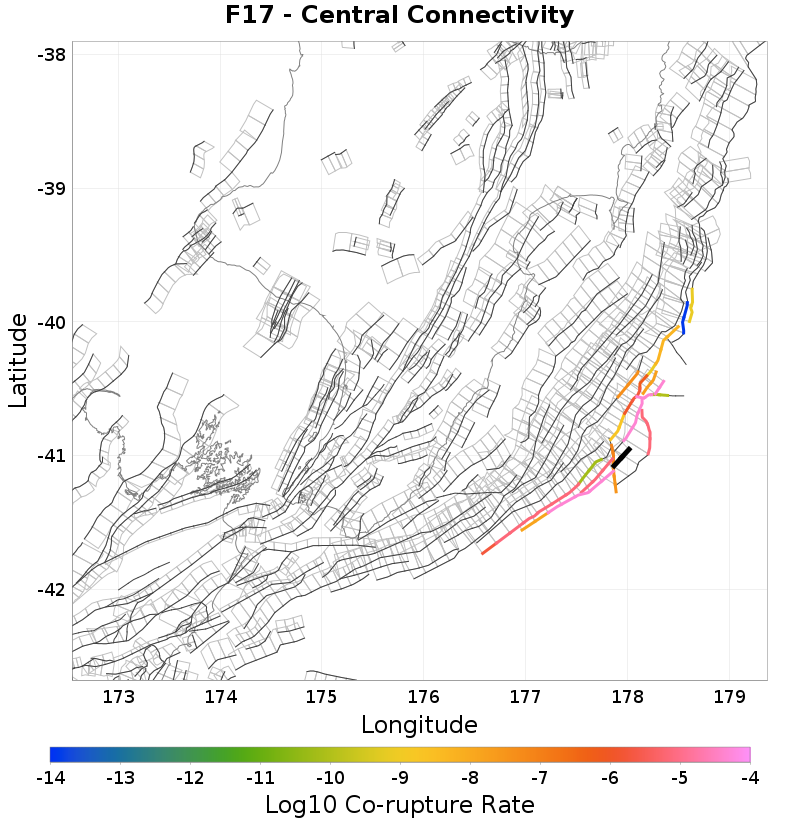

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
BKSmt-West, 0.12 km away
F17 - South, 1.64 km away
F16 - South, 2.38 km away
F16 - Central, 3.82 km away
Aorangi Ridge, 4.58 km away
Bennett Knoll, 6.66 km away
Akitio Ridge, 8.31 km away
Aorangi Trough, 9.87 km away

BKSmt-West, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?true
Co-rupture Count267
Co-rupture Rate8.178716E-8

F17 - South, 1.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?true
Co-rupture Count3,130
Co-rupture Rate4.5402037E-5

F16 - South, 2.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?true
Co-rupture Count1,323
Co-rupture Rate6.943649E-6

F16 - Central, 3.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?true
Co-rupture Count4,061
Co-rupture Rate4.540866E-5

Aorangi Ridge, 4.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?true
Co-rupture Count2,287
Co-rupture Rate6.9518774E-6

Bennett Knoll, 6.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?true
Co-rupture Count660
Co-rupture Rate7.017726E-6

Akitio Ridge, 8.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?false
Co-rupture Count3,923
Co-rupture Rate1.8432879E-6

Aorangi Trough, 9.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0
