Gibson Details

PropertyValue
Rupture Count159
Ruptures Above Sect Min Mag157
Ruptures w/ Nonzero Rates22
Magnitude Range[6.84, 8.03]
Length Range[19, 277] km
Total Rate1.2017756E-4 /yr
Multi-Fault Rate1.2011984E-4 /yr (99.95%)
Directly-Connected Faults5
All Co-Rupturing Faults36

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

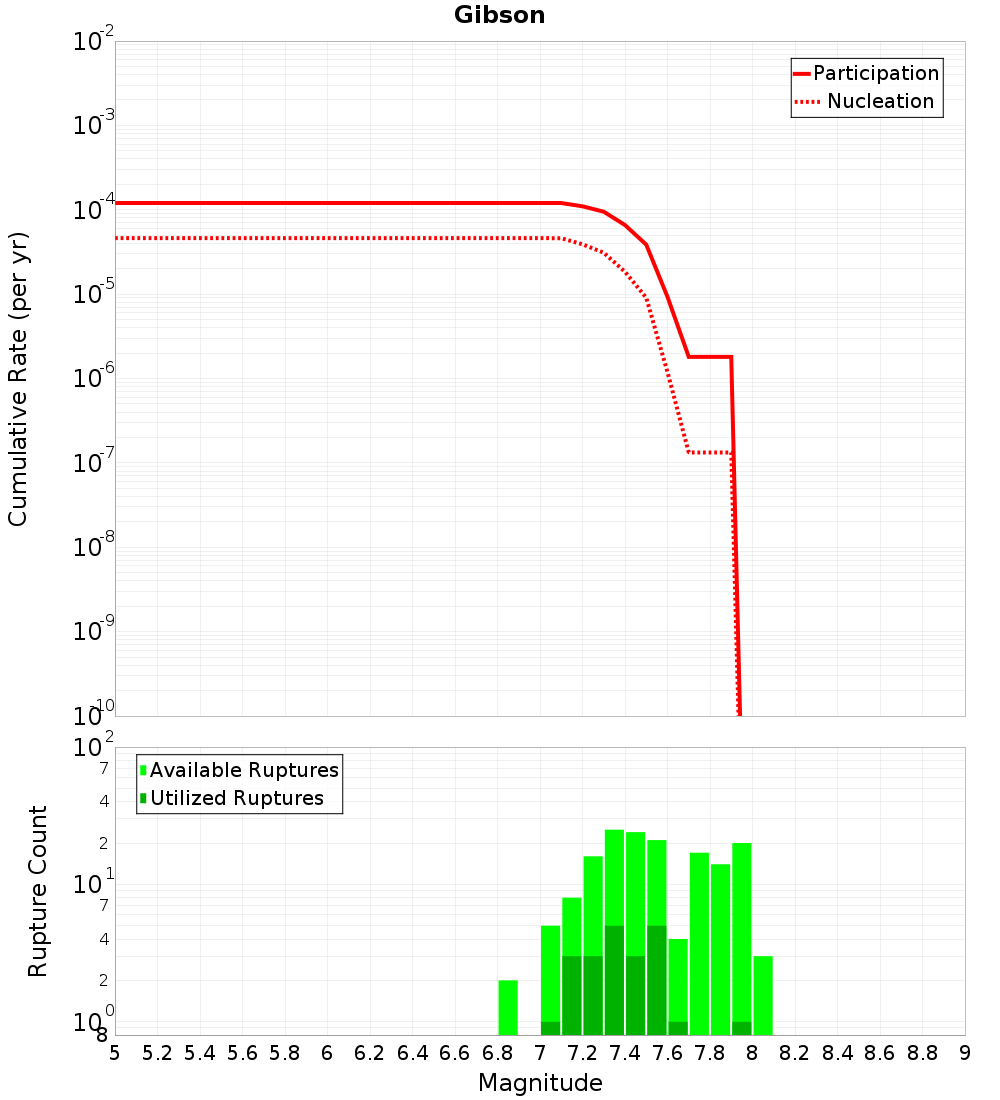

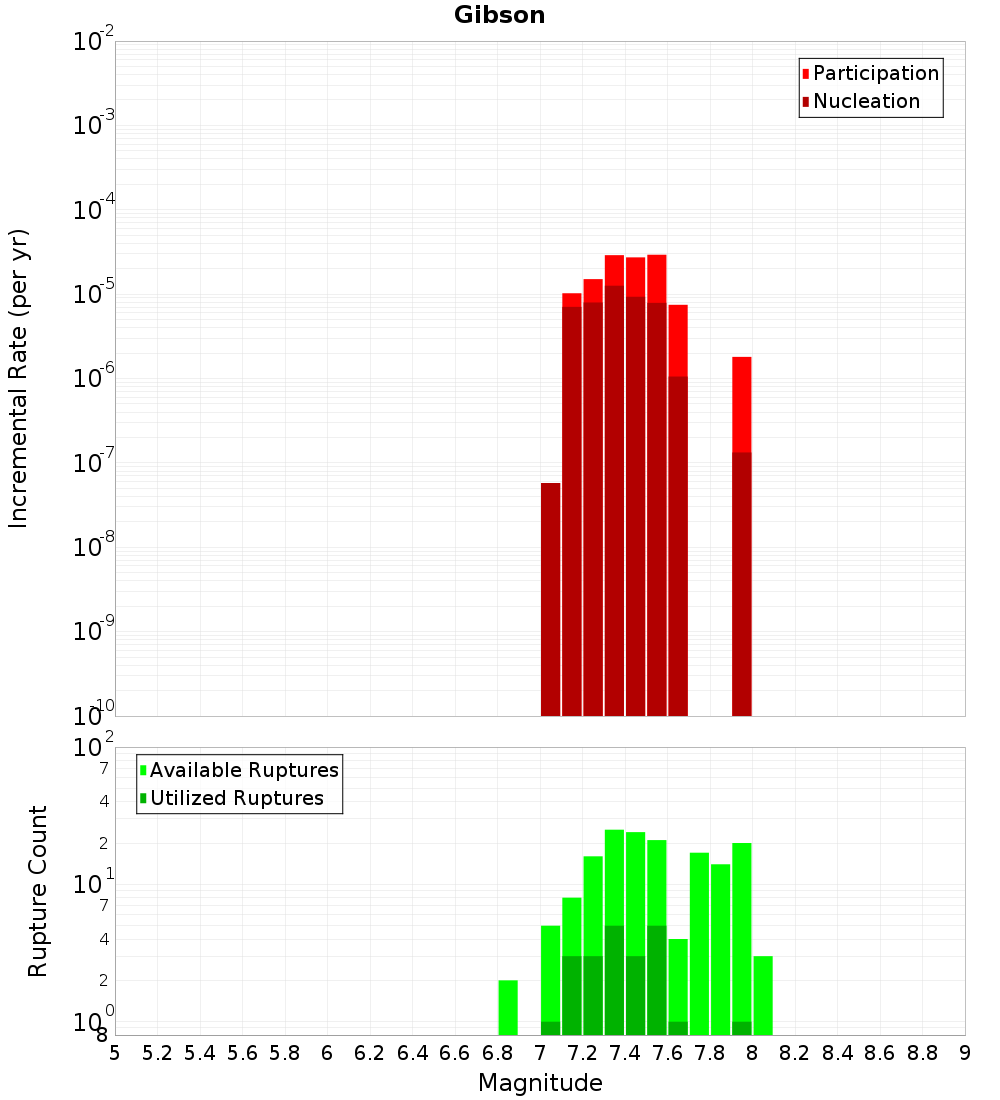

Incremental PlotCumulative Plot

Along-Strike Values

(top)

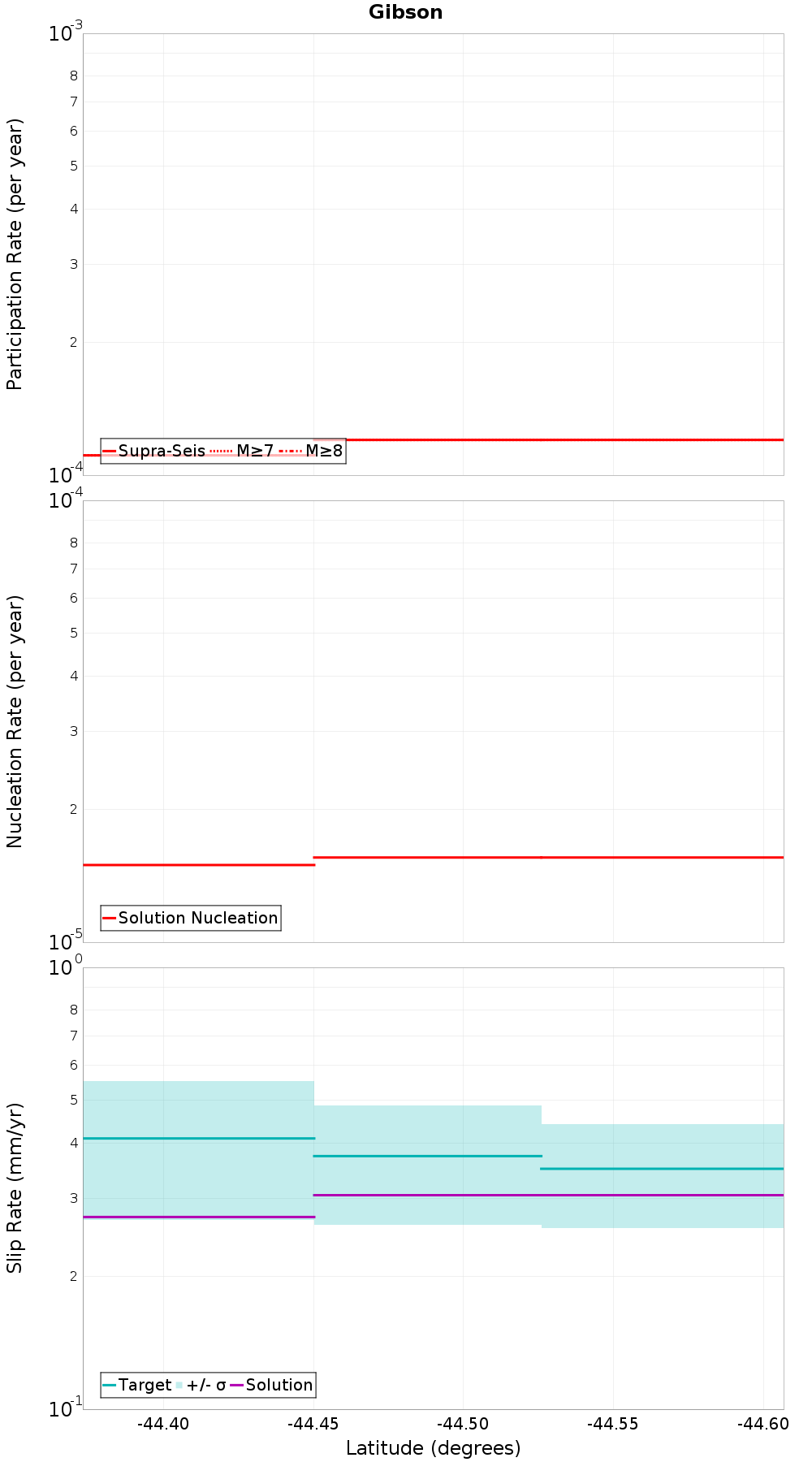

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

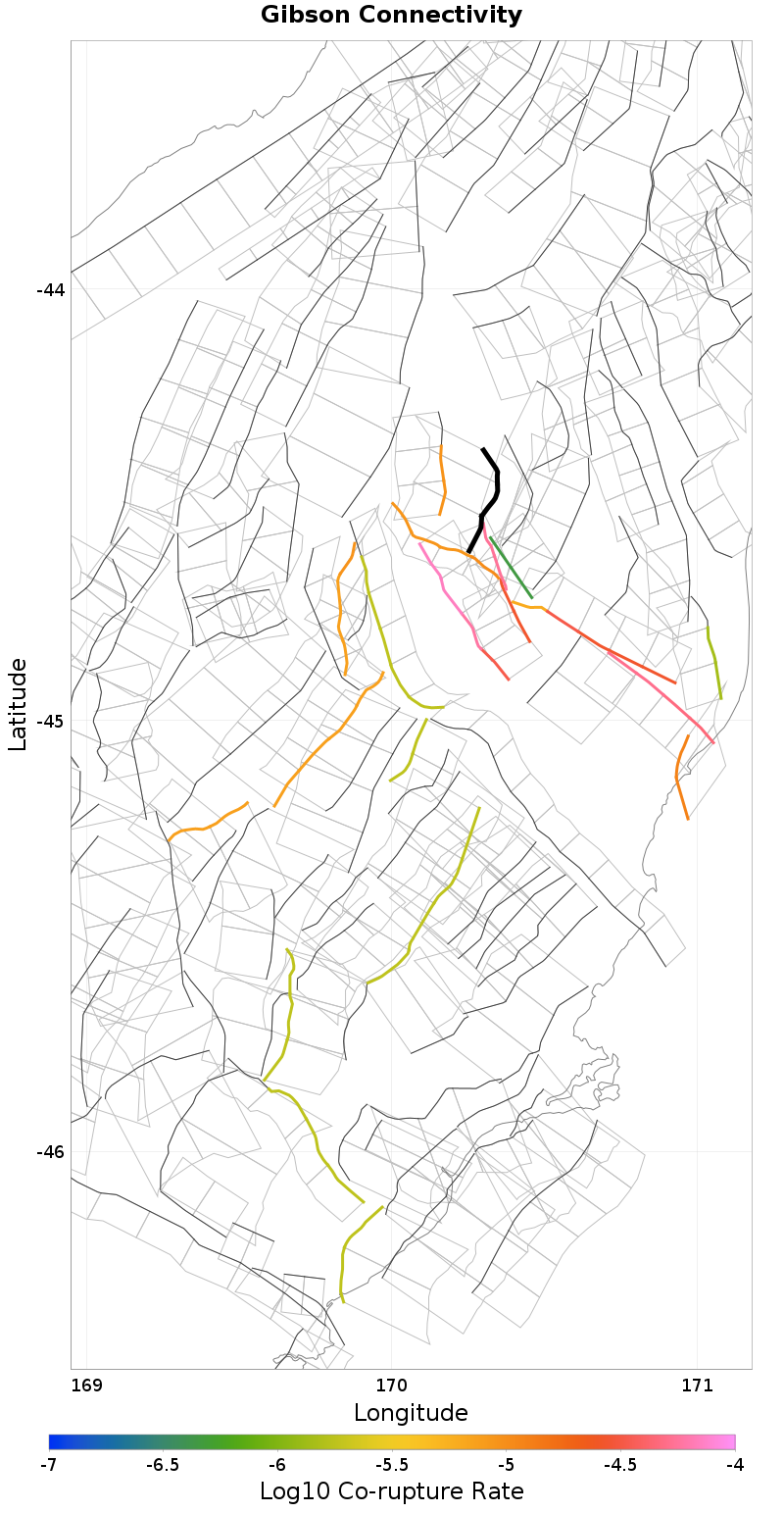

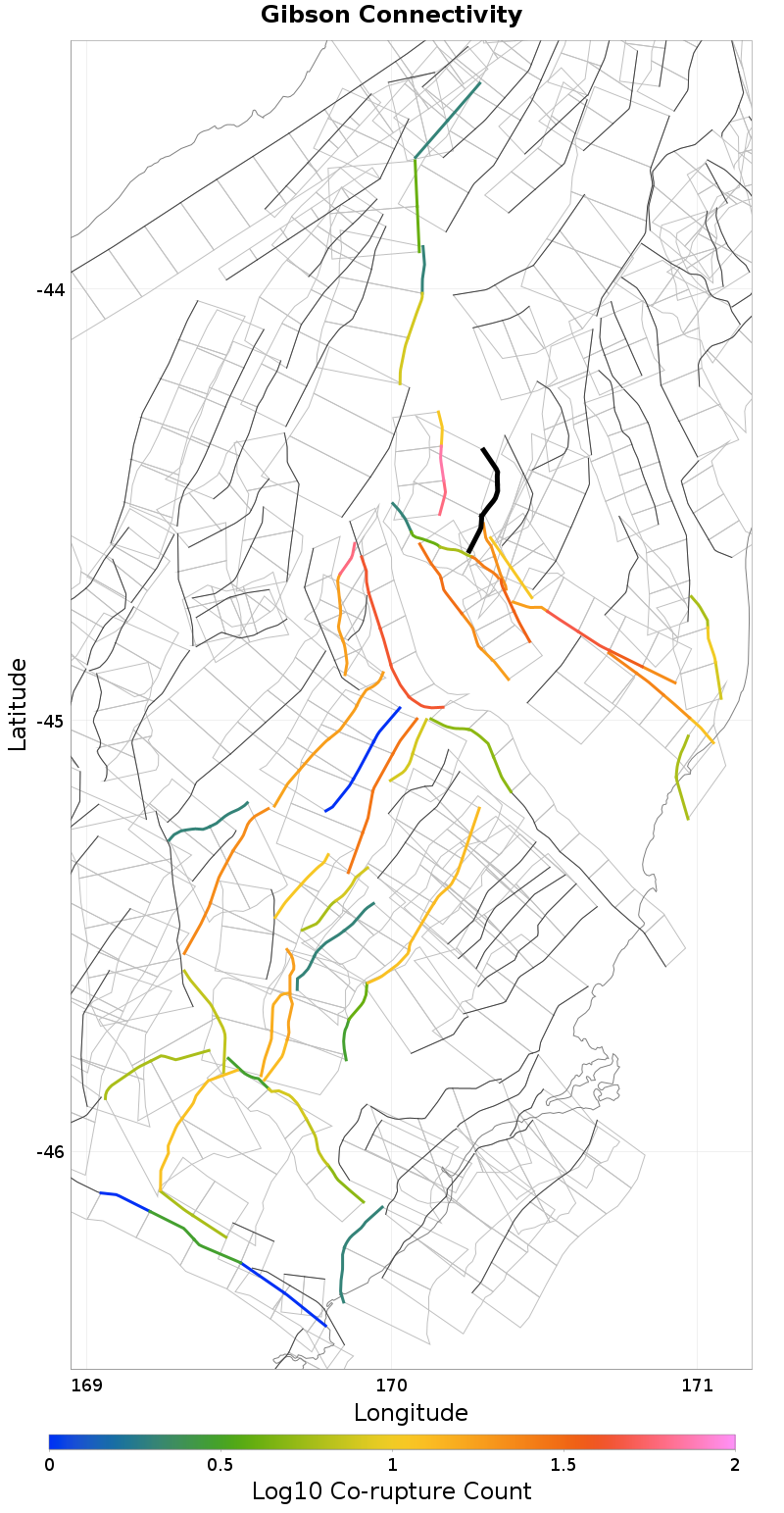

MapMap

Nearby Sections

(top)

Fault Section
Middle Range, 0.38 km away
Waitangi, 0.56 km away
Falstone, 0.95 km away
Fern Gully, 1.22 km away
Dryburgh, 3.37 km away
Mt Sutton, 4.51 km away
Hawkdun, 5.77 km away
Omarama Saddle, 6.24 km away
Grampian, 8.32 km away
Awahokomo, 10.93 km away
Kirkliston, 14.89 km away

Middle Range, 0.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?true
Co-rupture Count38
Co-rupture Rate8.412265E-5

Waitangi, 0.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?true
Co-rupture Count21
Co-rupture Rate5.4787935E-5

Falstone, 0.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?true
Co-rupture Count71
Co-rupture Rate9.277518E-6

Fern Gully, 1.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?true
Co-rupture Count26
Co-rupture Rate1.030644E-5

Dryburgh, 3.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?true
Co-rupture Count11
Co-rupture Rate4.4557848E-7

Mt Sutton, 4.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawkdun, 5.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?false
Co-rupture Count42
Co-rupture Rate1.8042555E-6

Omarama Saddle, 6.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?false
Co-rupture Count60
Co-rupture Rate9.277518E-6

Grampian, 8.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awahokomo, 10.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?false
Co-rupture Count34
Co-rupture Rate2.7030954E-5

Kirkliston, 14.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
