Houtunui Details
| Property | Value |
|---|---|
| Rupture Count | 37 |
| Ruptures Above Sect Min Mag | 23 |
| Ruptures w/ Nonzero Rates | 7 |
| Magnitude Range | [6.64, 7.39] |
| Length Range | [18, 99] km |
| Total Rate | 3.6589433E-6 /yr |
| Multi-Fault Rate | 6.4187043E-7 /yr (17.54%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 4 |
Table Of Contents

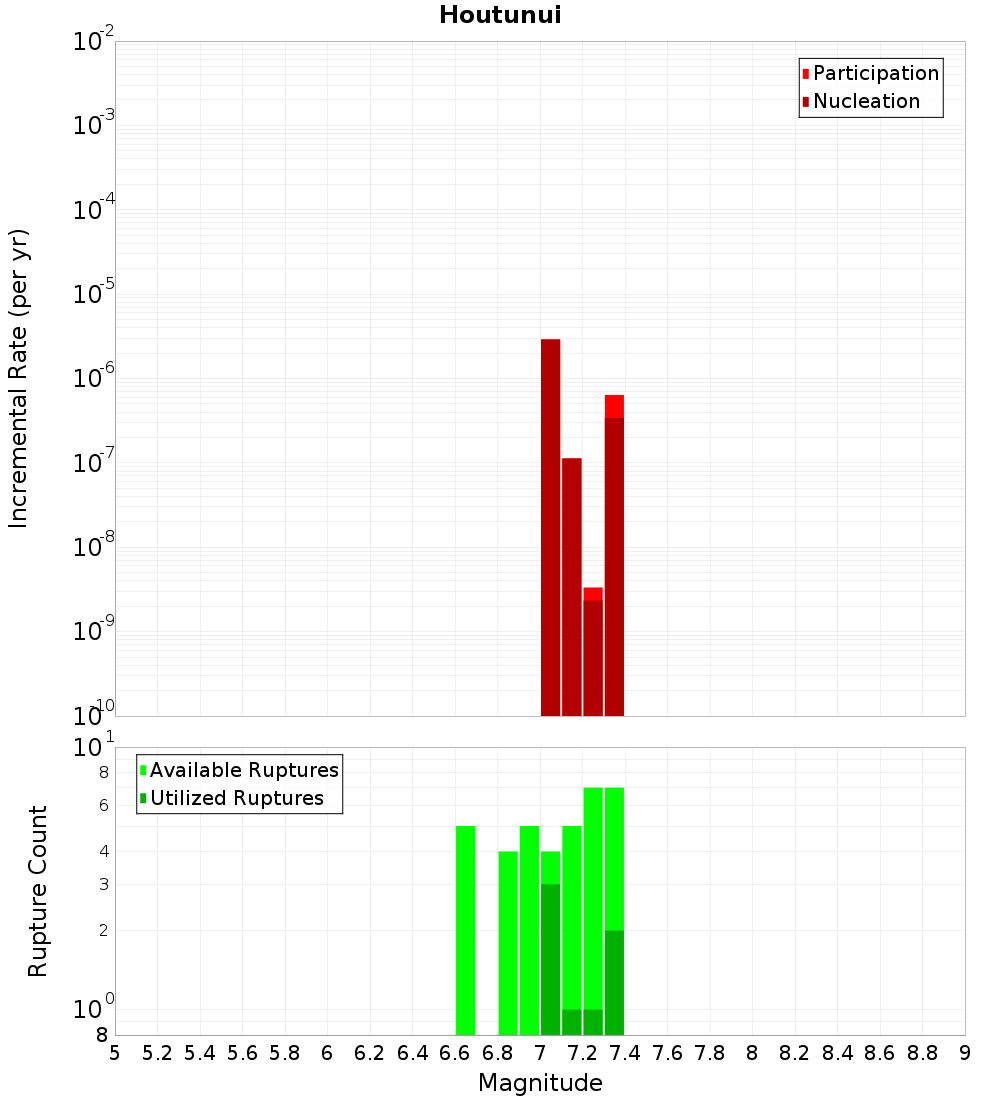

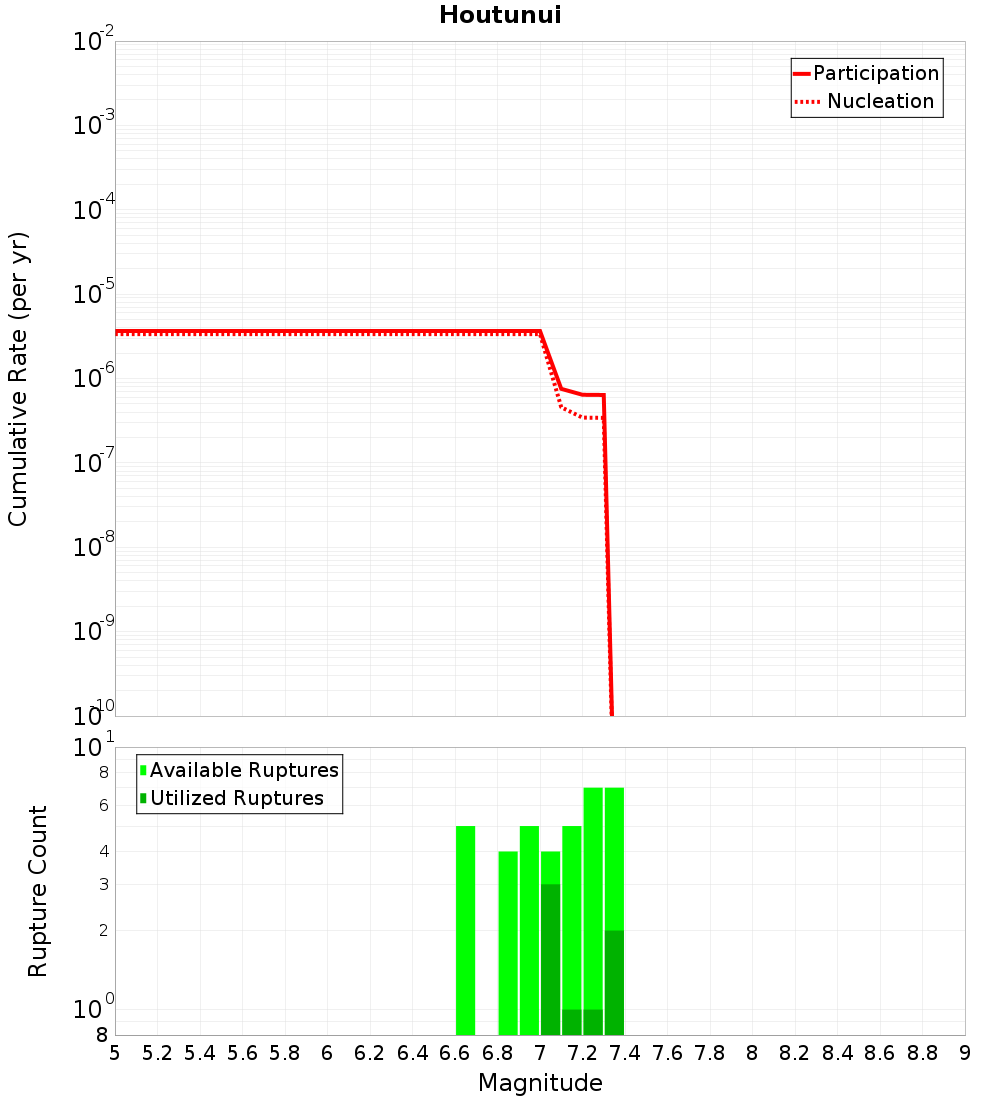

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

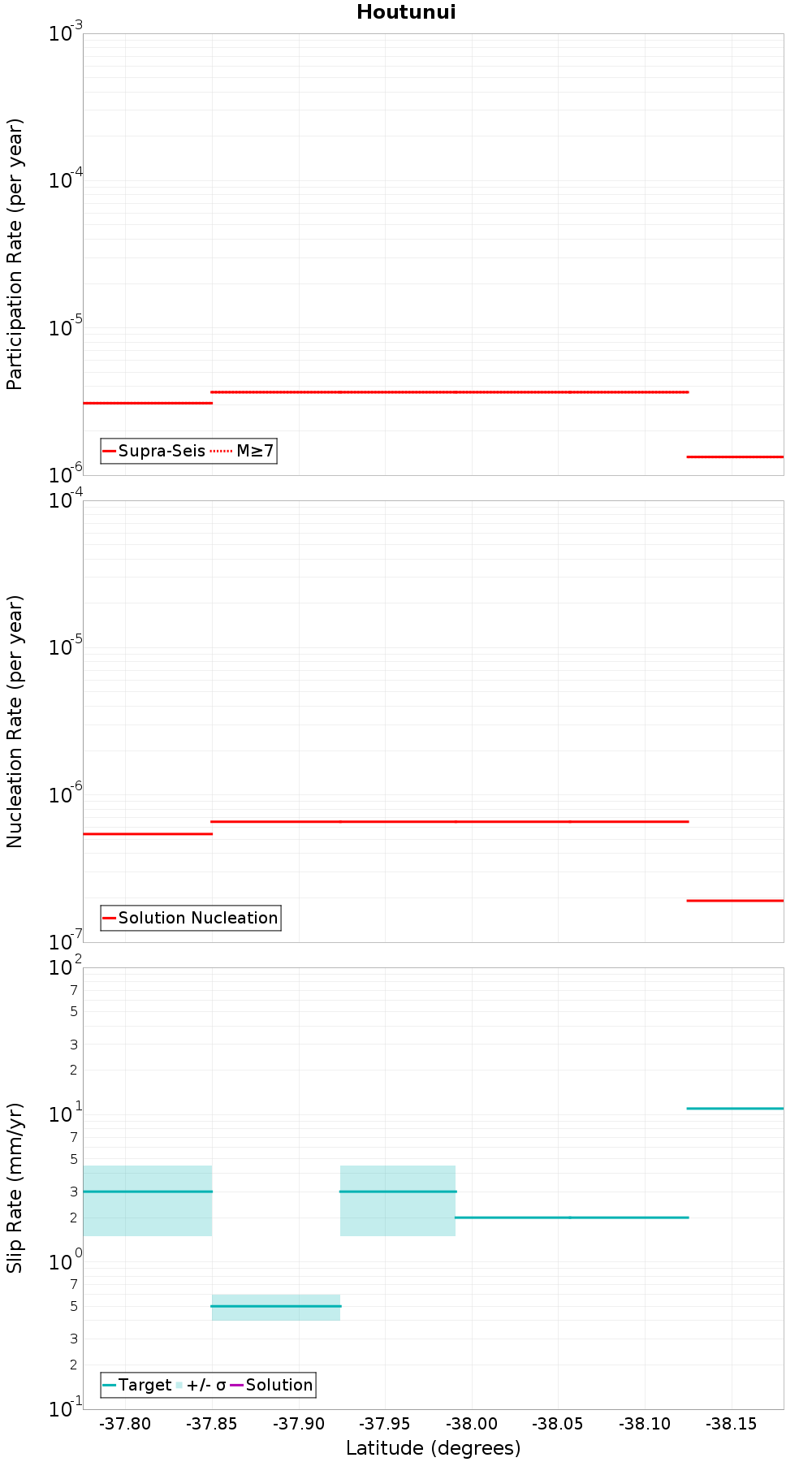

Along-Strike Values

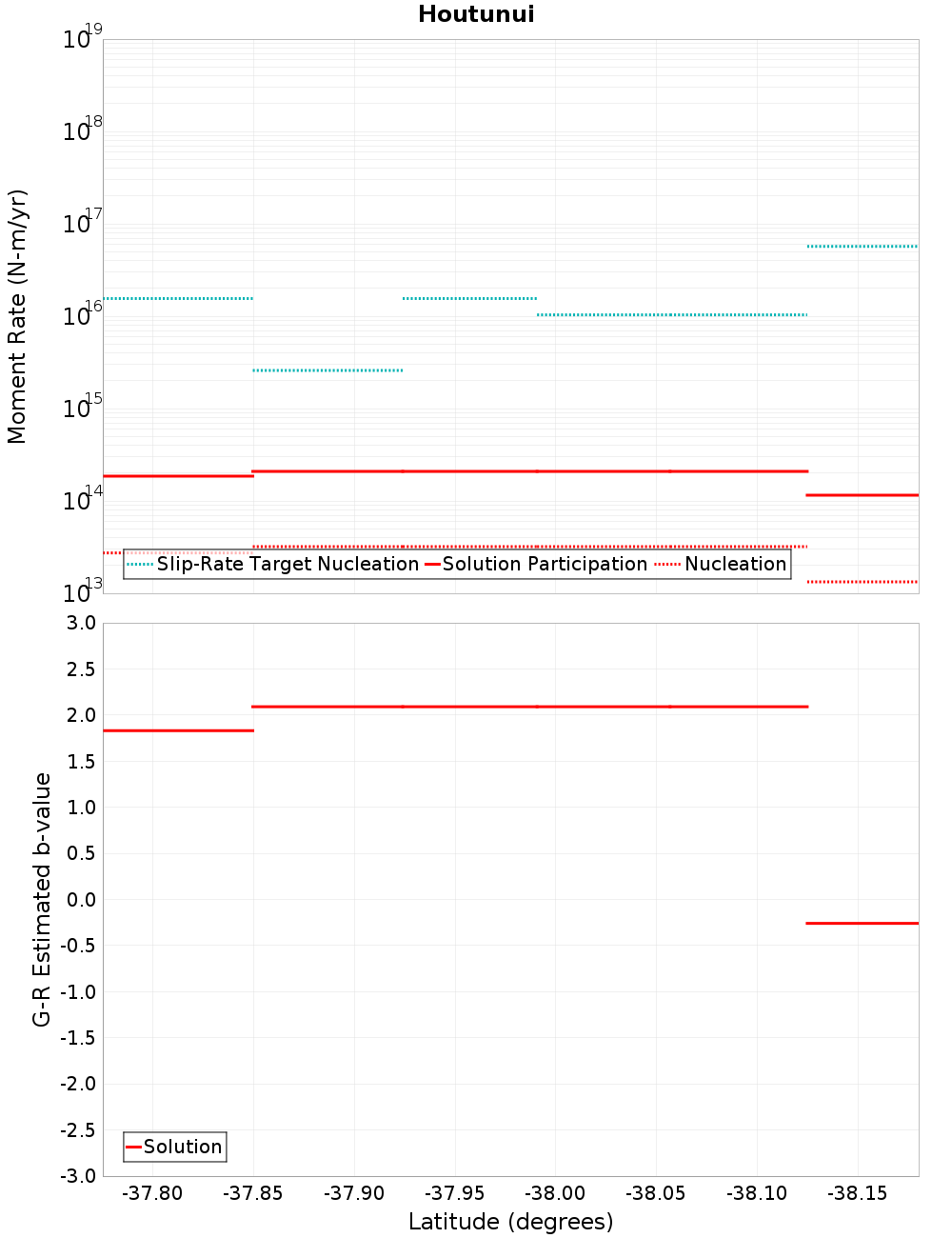

Moment-Rates and b-Values

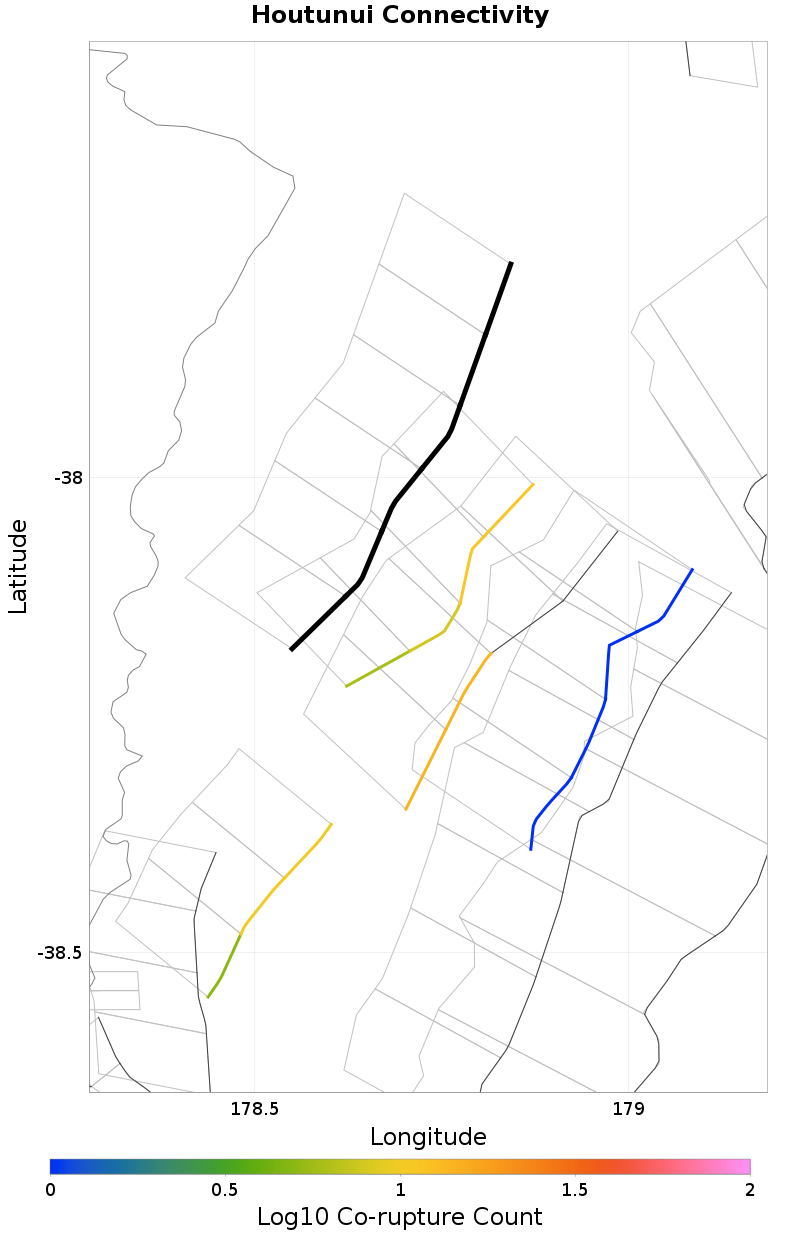

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Ruatoria South 4, 4.74 km away |
| Ruatoria South 3, 11.24 km away |
Ruatoria South 4, 4.74 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 11 |
| Co-rupture Rate | 6.5702843E-10 |
Ruatoria South 3, 11.24 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 14 |
| Co-rupture Rate | 6.412134E-7 |
