Hurunui Peak Details

PropertyValue
Rupture Count13,406
Ruptures Above Sect Min Mag13,406
Ruptures w/ Nonzero Rates130
Magnitude Range[6.99, 8.37]
Length Range[28, 836] km
Total Rate7.120121E-5 /yr
Multi-Fault Rate7.120121E-5 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults129

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

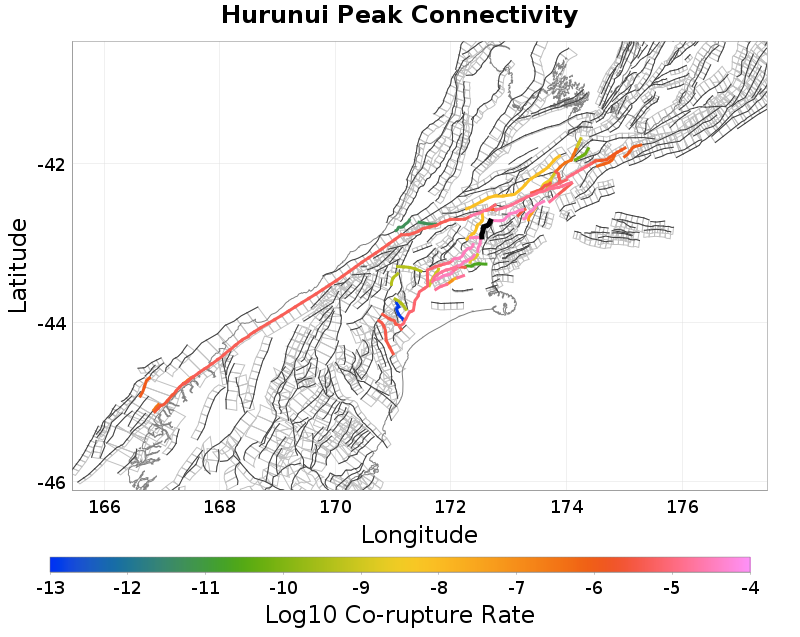

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Virginia, 0.28 km away
Mt Arden, 0.35 km away
Mt Culverden, 1.53 km away
Balmoral, 2.94 km away
Esk North, 3.73 km away
Kakapo, 5.03 km away
Doctors, 5.51 km away
Hope: Hamner SW, 7.69 km away
Lowry, 9.05 km away
Pancake, 9.84 km away
Hope: Hanmer NW, 10.29 km away
Hope: Hope River, 10.8 km away
Hope: Kakapo-2-Hamner, 12.03 km away
Kaiwara South, 12.73 km away
Hanmer, 14.35 km away

Virginia, 0.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?true
Co-rupture Count519
Co-rupture Rate3.1342413E-5

Mt Arden, 0.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?true
Co-rupture Count9,115
Co-rupture Rate3.20864E-5

Mt Culverden, 1.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?true
Co-rupture Count7,817
Co-rupture Rate3.7298094E-5

Balmoral, 2.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?false
Co-rupture Count27
Co-rupture Rate0.0

Esk North, 3.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?false
Co-rupture Count47
Co-rupture Rate7.943281E-9

Kakapo, 5.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?true
Co-rupture Count8,452
Co-rupture Rate2.1597027E-5

Doctors, 5.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?true
Co-rupture Count325
Co-rupture Rate0.0

Hope: Hamner SW, 7.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?false
Co-rupture Count78
Co-rupture Rate8.8711556E-7

Lowry, 9.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pancake, 9.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Hanmer NW, 10.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?false
Co-rupture Count2,916
Co-rupture Rate7.4462523E-6

Hope: Hope River, 10.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Kakapo-2-Hamner, 12.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?false
Co-rupture Count2,177
Co-rupture Rate8.72558E-6

Kaiwara South, 12.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hanmer, 14.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
