Lord Range Details

PropertyValue
Rupture Count44,316
Ruptures Above Sect Min Mag44,282
Ruptures w/ Nonzero Rates310
Magnitude Range[6.51, 8.34]
Length Range[15, 678] km
Total Rate4.3968562E-4 /yr
Multi-Fault Rate4.3968562E-4 /yr (100.00%)
Directly-Connected Faults9
All Co-Rupturing Faults222

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

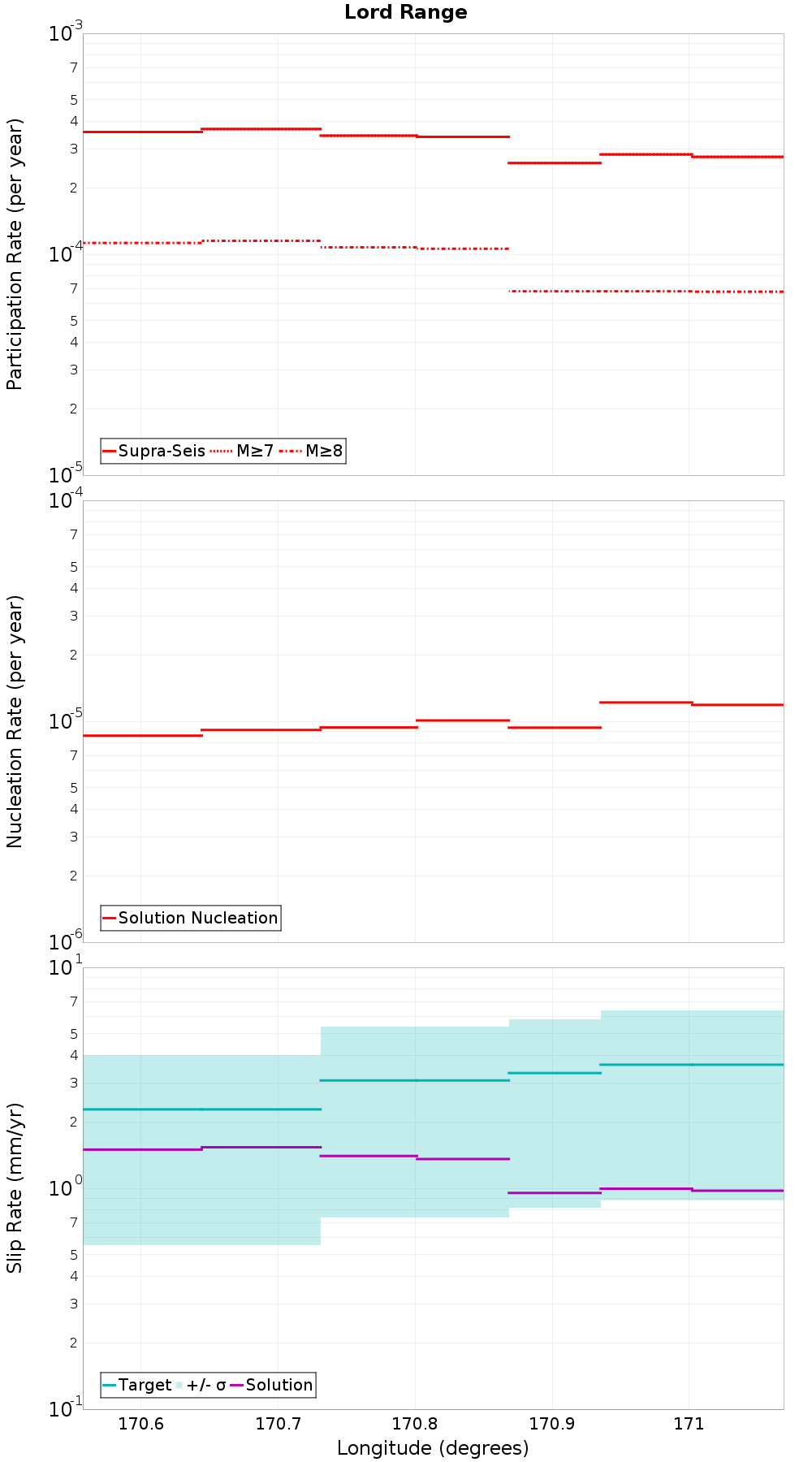

Along-Strike Values

(top)

Along-strike plot

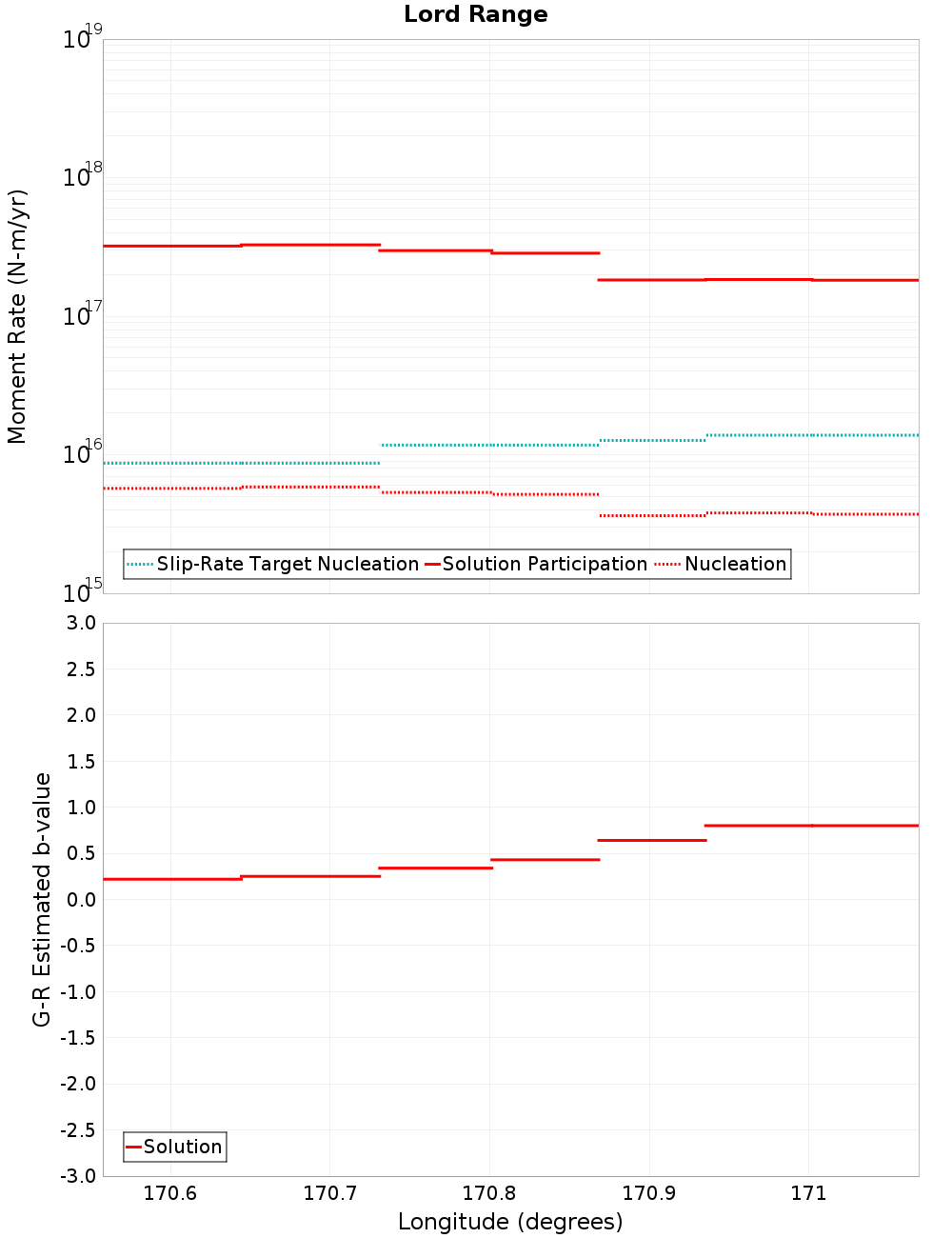

Moment-Rates and b-Values

(top)

Along-strike plot

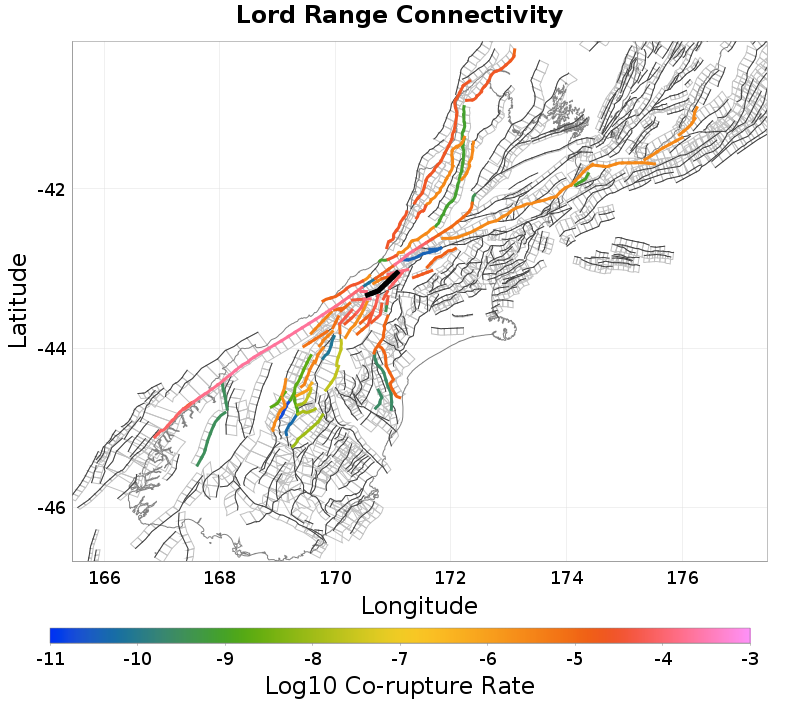

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Alpine: Jacksons to Kaniere, 0.08 km awayMurchison 1 - Ice Lake, 6.99 km away
Mungo, 0.15 km awayJollie Range, 7.91 km away
Hohonu South, 0.25 km awayLiebig North, 9.33 km away
Waitaha, 0.26 km awayJagged, 12.78 km away
Mt Adams, 0.29 km awayPotts Range, 13.25 km away
Mathias, 3.55 km awayTwo Thumb Stream, 13.9 km away
Observation, 3.6 km awayBrowning Pass, 14.67 km away
Veil Stream, 5.41 km awayMistake - Rolleston, 14.77 km away
Gunn Glacier, 5.49 km away

Alpine: Jacksons to Kaniere, 0.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?true
Co-rupture Count18,224
Co-rupture Rate3.817929E-4

Mungo, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?true
Co-rupture Count2,197
Co-rupture Rate1.4620114E-4

Hohonu South, 0.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?true
Co-rupture Count37,238
Co-rupture Rate5.968274E-5

Waitaha, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?true
Co-rupture Count546
Co-rupture Rate1.3492847E-5

Mt Adams, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?true
Co-rupture Count9,673
Co-rupture Rate1.2845473E-4

Mathias, 3.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?true
Co-rupture Count1,922
Co-rupture Rate8.262218E-5

Observation, 3.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?false
Co-rupture Count254
Co-rupture Rate0.0

Veil Stream, 5.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?true
Co-rupture Count3,259
Co-rupture Rate7.320905E-5

Gunn Glacier, 5.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?true
Co-rupture Count12,087
Co-rupture Rate1.2409867E-4

Murchison 1 - Ice Lake, 6.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?false
Co-rupture Count10,376
Co-rupture Rate8.775808E-5

Jollie Range, 7.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?false
Co-rupture Count326
Co-rupture Rate3.7897924E-5

Liebig North, 9.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?false
Co-rupture Count1,827
Co-rupture Rate2.2709687E-6

Jagged, 12.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?false
Co-rupture Count124
Co-rupture Rate0.0

Potts Range, 13.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?true
Co-rupture Count1,126
Co-rupture Rate3.789828E-5

Two Thumb Stream, 13.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?false
Co-rupture Count1,164
Co-rupture Rate4.5129564E-5

Browning Pass, 14.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?false
Co-rupture Count53
Co-rupture Rate0.0

Mistake - Rolleston, 14.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?false
Co-rupture Count239
Co-rupture Rate0.0
