Otaraia Details

Property	Value
Rupture Count	5,459
Ruptures Above Sect Min Mag	5,446
Ruptures w/ Nonzero Rates	130
Magnitude Range	[6.59, 8.37]
Length Range	[17, 864] km
Total Rate	2.2369367E-4 /yr
Multi-Fault Rate	2.2369367E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	157

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

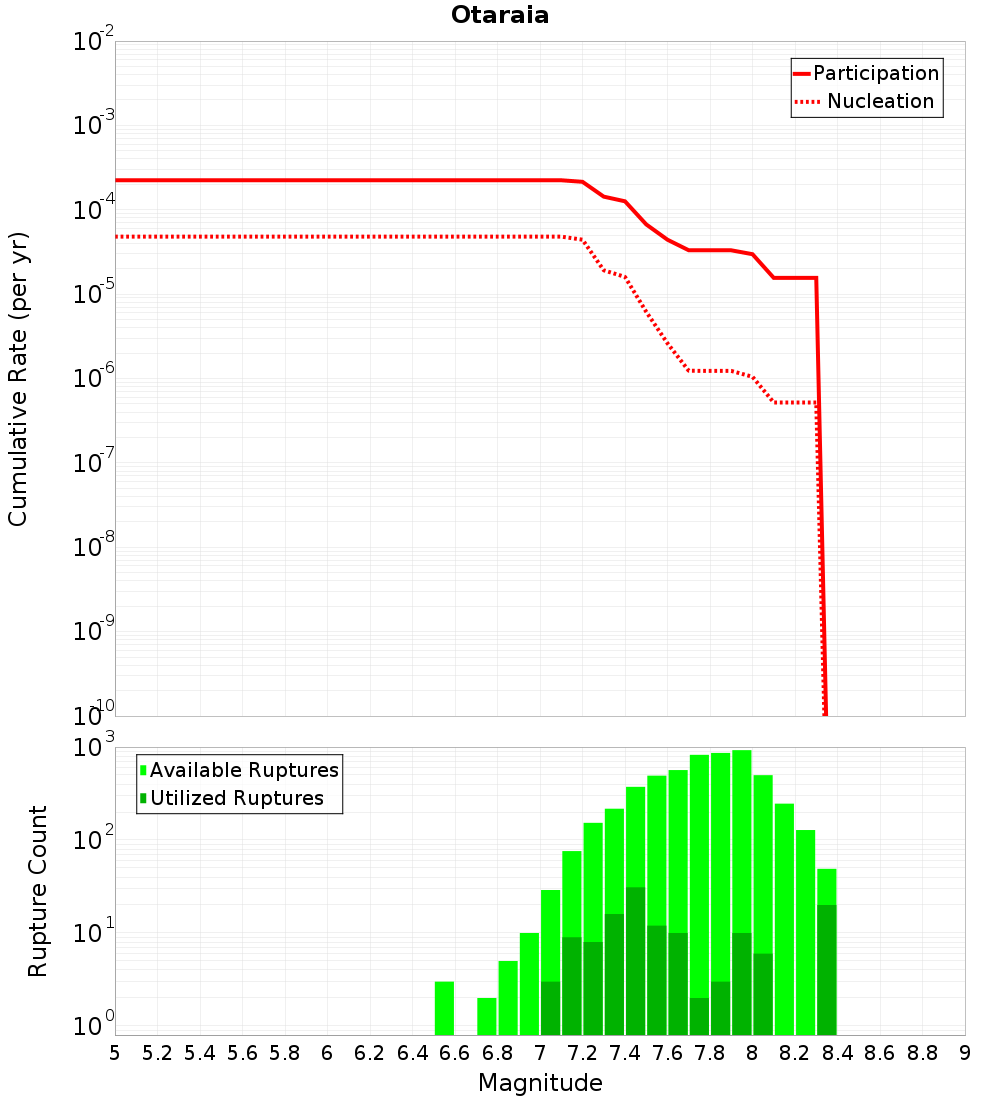

Magnitude-Frequency Distribution

Incremental	Cumulative

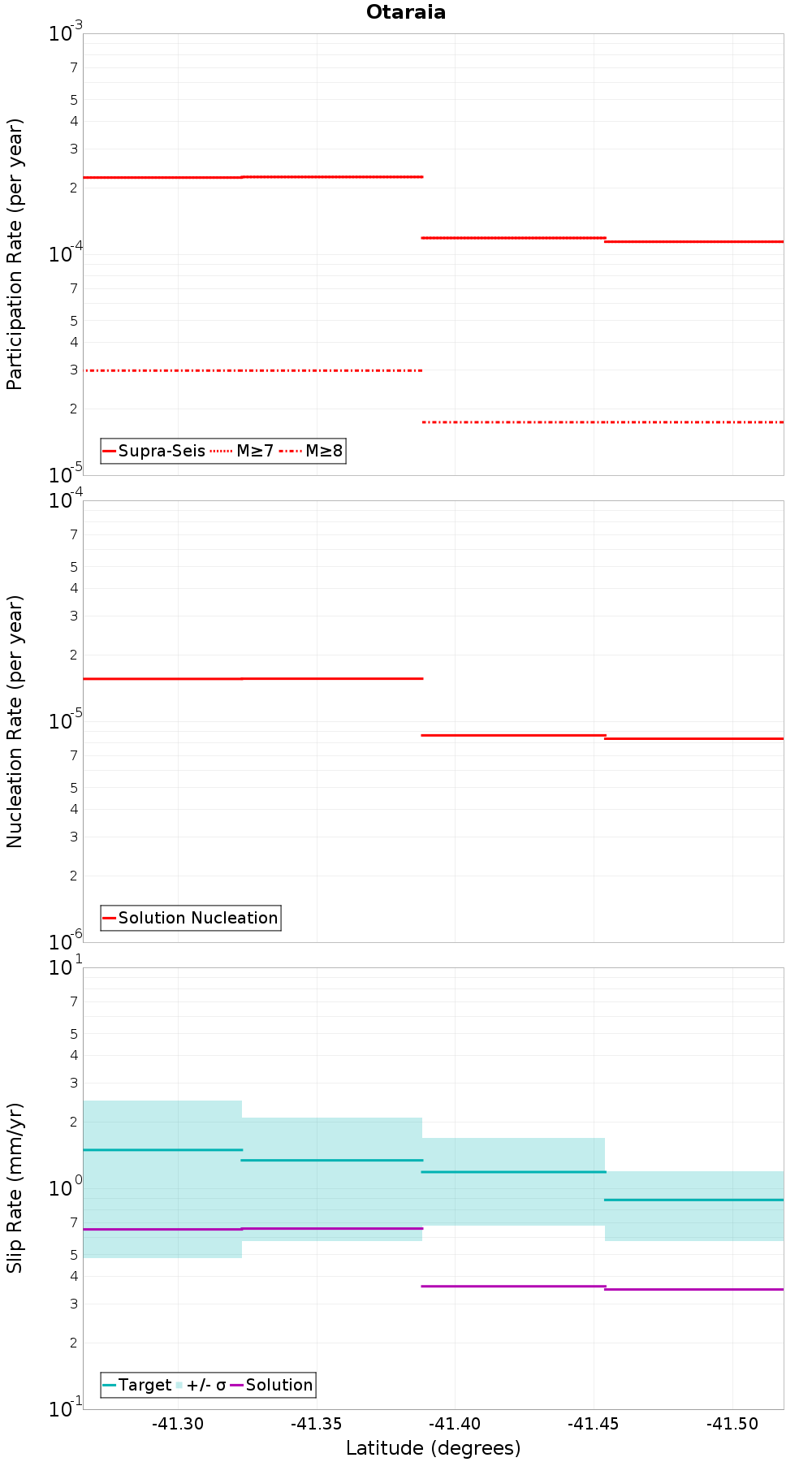

Along-Strike Values

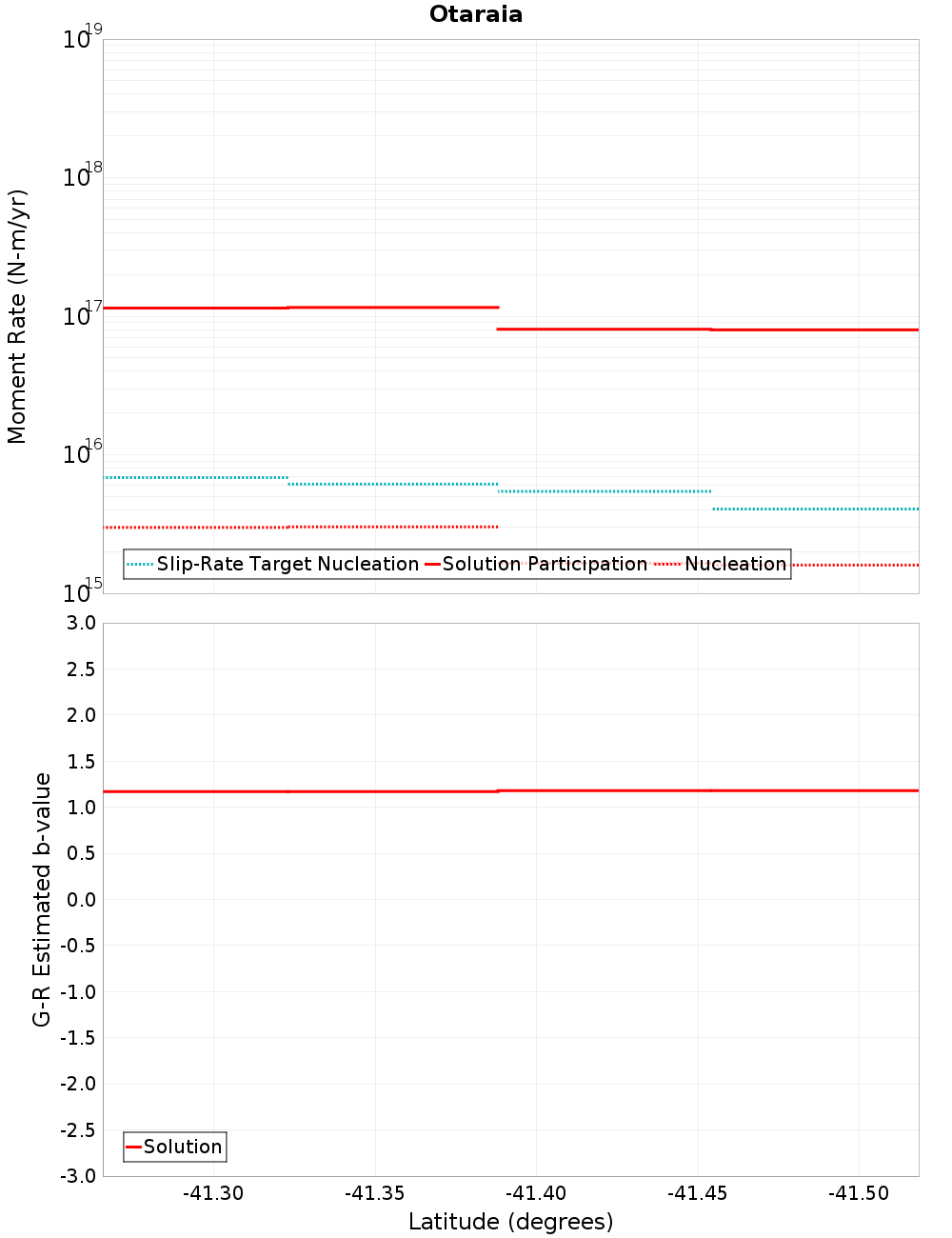

Moment-Rates and b-Values

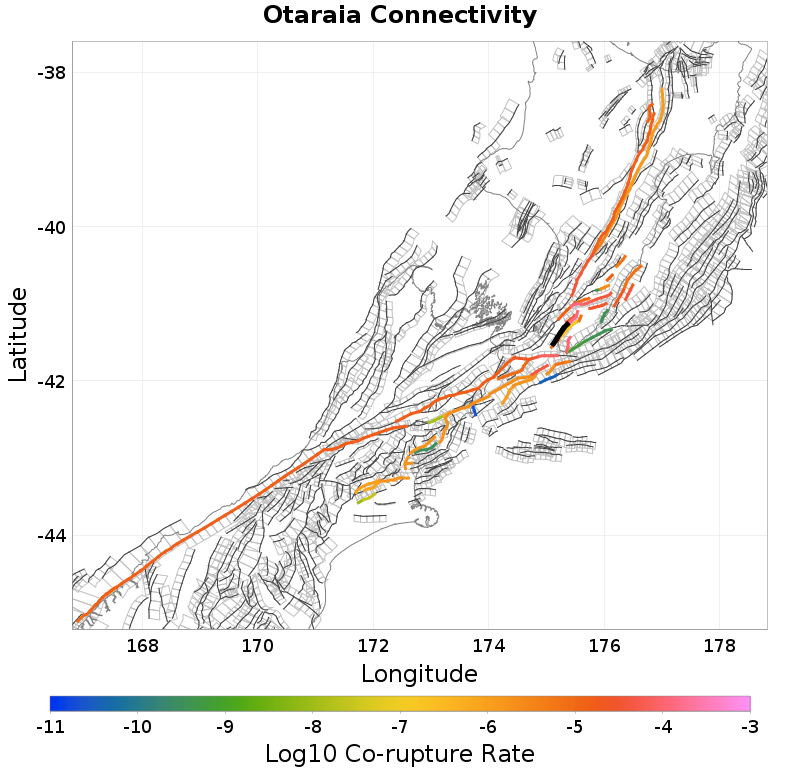

Connectivity

Nearby Sections

Fault Section
Ngapotiki, 0.19 km away
Dry River - Huangarua: 1, 0.38 km away
Palliser - Kaiwhata, 1.71 km away
Martinborough, 1.89 km away
Bidwill, 3.57 km away
BooBoo, 5.89 km away
Dry River - Huangarua: 2, 7.53 km away
Opouawe - Uruti, 7.92 km away
Wharekauhau, 12.78 km away
Dry River - Huangarua: 3, 13.51 km away
Wairarapa: 2, 13.88 km away

Ngapotiki, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?	true
Directly Connected?	true
Co-rupture Count	365
Co-rupture Rate	1.0539434E-4

Dry River - Huangarua: 1, 0.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?	true
Directly Connected?	true
Co-rupture Count	309
Co-rupture Rate	7.974339E-6

Palliser - Kaiwhata, 1.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?	true
Directly Connected?	true
Co-rupture Count	104
Co-rupture Rate	6.8314143E-10

Martinborough, 1.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?	true
Directly Connected?	true
Co-rupture Count	2,229
Co-rupture Rate	1.3640734E-4

Bidwill, 3.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?	true
Directly Connected?	true
Co-rupture Count	1,448
Co-rupture Rate	2.932522E-5

BooBoo, 5.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?	true
Directly Connected?	true
Co-rupture Count	2,416
Co-rupture Rate	7.366424E-5

Dry River - Huangarua: 2, 7.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?	true
Directly Connected?	false
Co-rupture Count	23
Co-rupture Rate	7.487438E-8

Opouawe - Uruti, 7.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?	true
Directly Connected?	true
Co-rupture Count	2,477
Co-rupture Rate	6.721677E-6

Wharekauhau, 12.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dry River - Huangarua: 3, 13.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?	true
Directly Connected?	false
Co-rupture Count	30
Co-rupture Rate	6.386975E-6

Wairarapa: 2, 13.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?	true
Directly Connected?	false
Co-rupture Count	197
Co-rupture Rate	1.5686492E-5
