Volkner 4 Details

PropertyValue
Rupture Count223
Ruptures Above Sect Min Mag223
Ruptures w/ Nonzero Rates81
Magnitude Range[7.03, 8.19]
Length Range[26, 517] km
Total Rate3.3934132E-4 /yr
Multi-Fault Rate3.3934132E-4 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults38

Table Of Contents

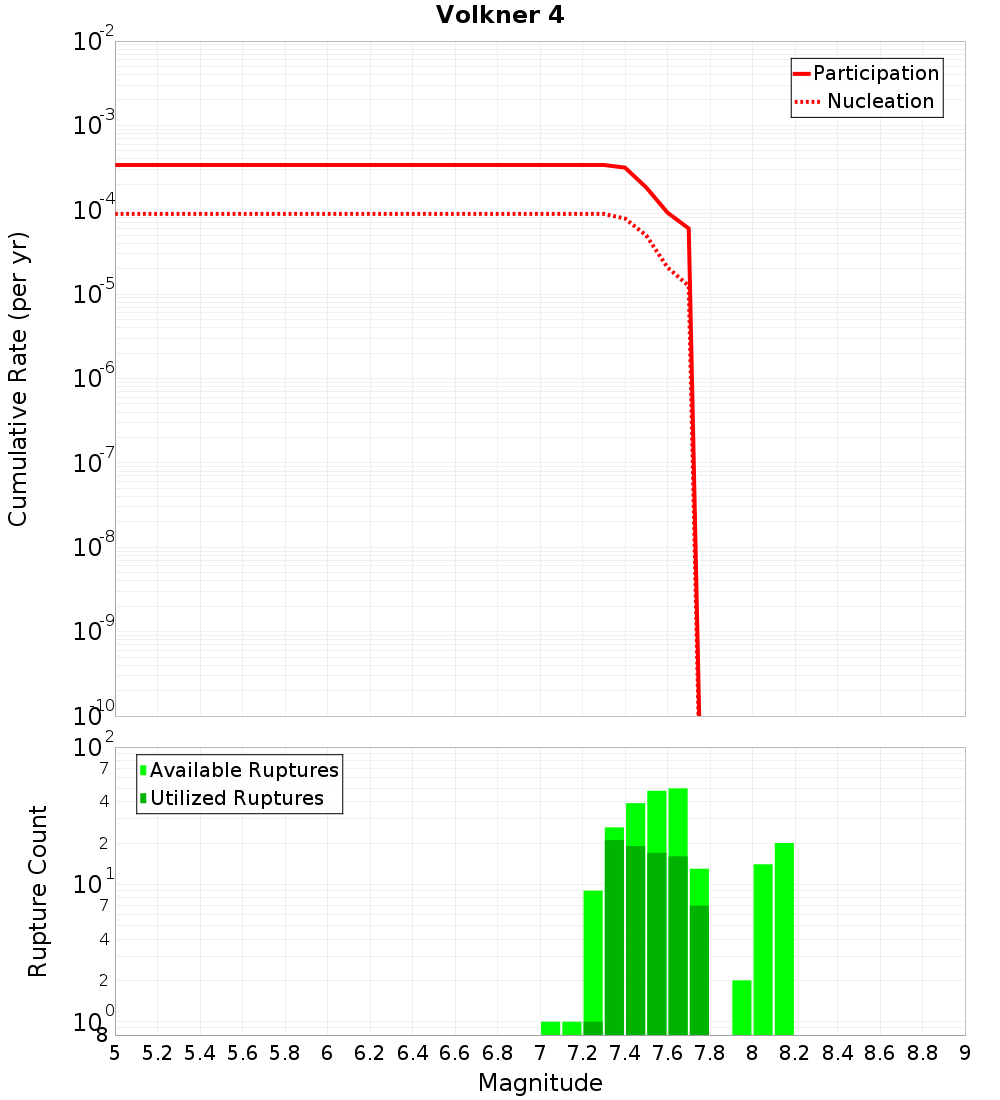

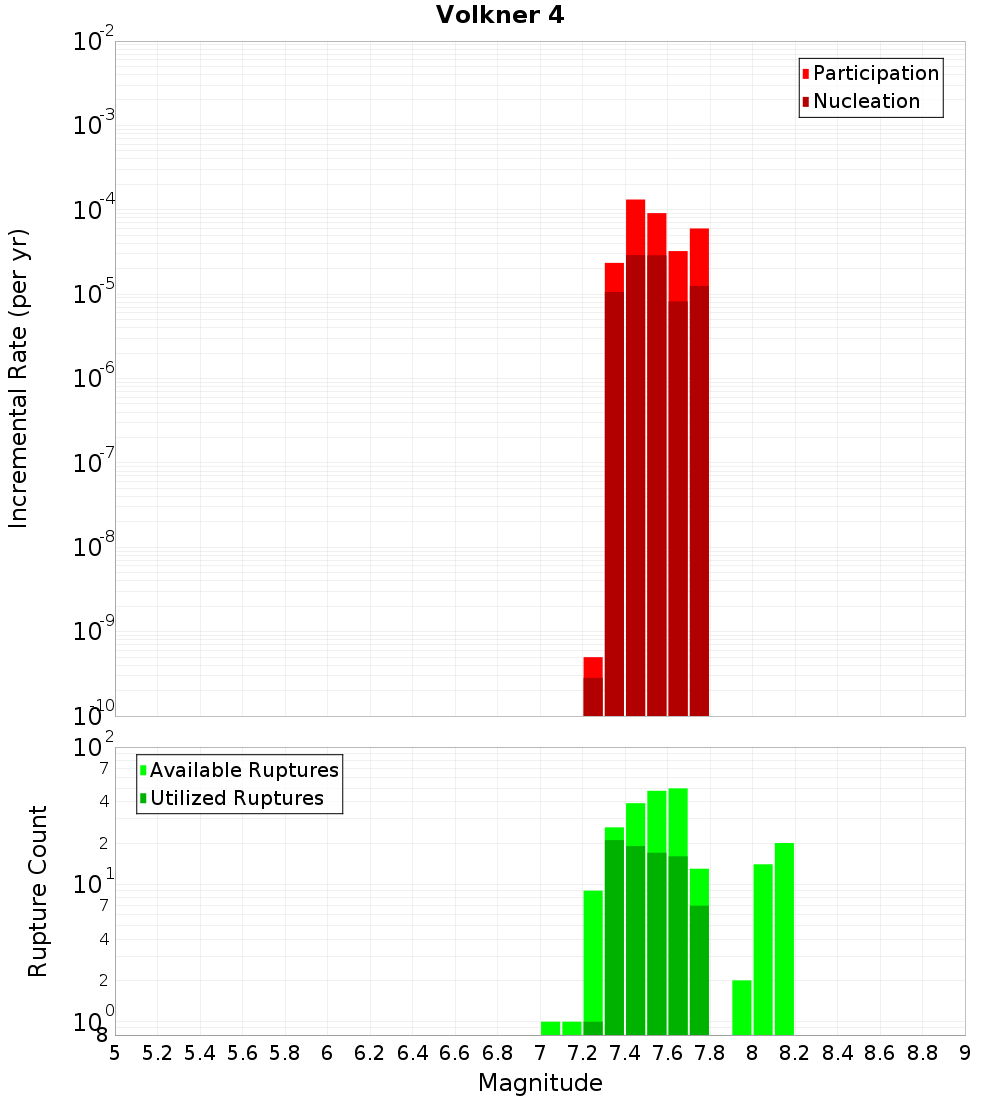

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

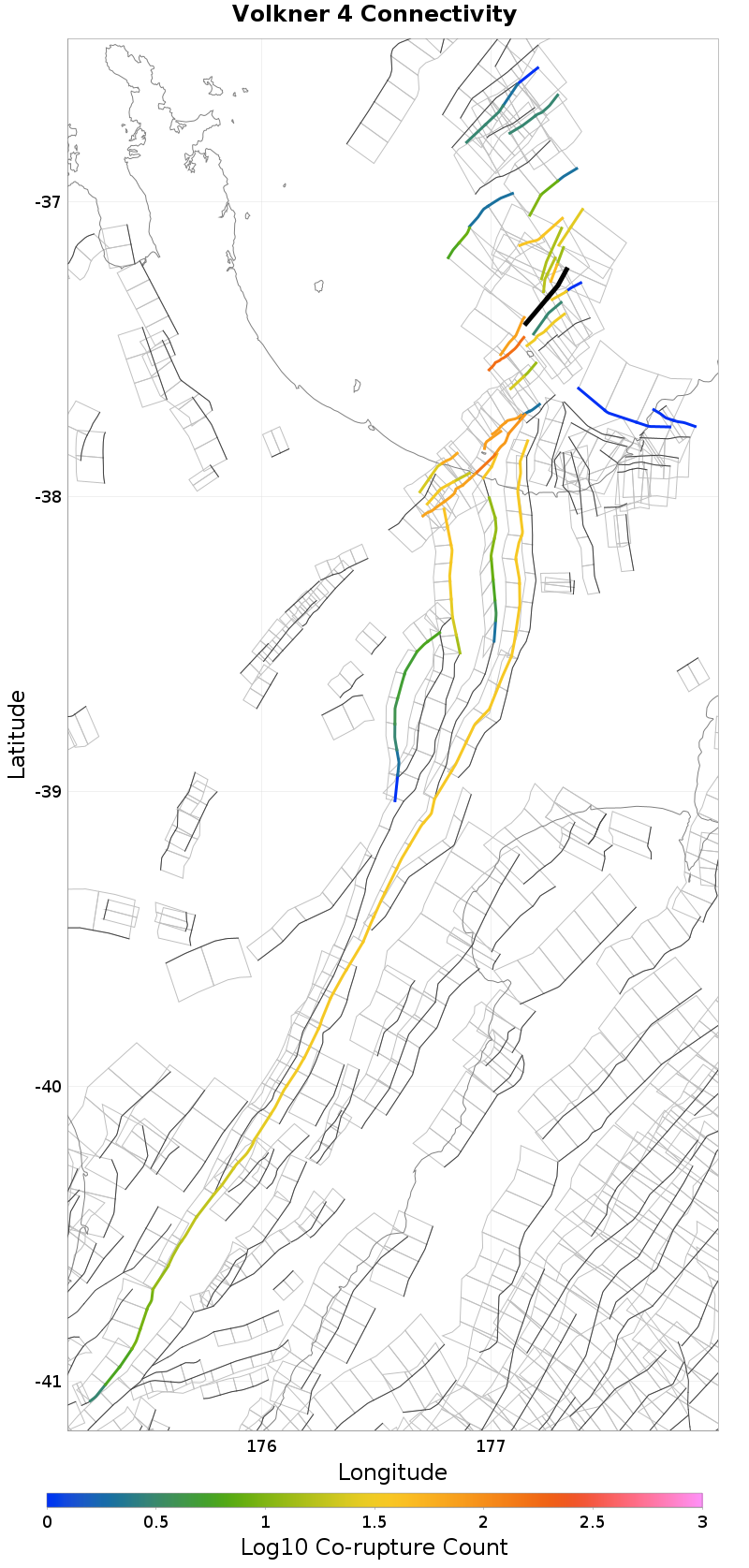

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Tuakana 7, 0.17 km away
Otara West 3, 0.2 km away
Otara East 1, 0.22 km away
Tuakana 6, 0.33 km away
Volkner 3, 1.38 km away
Otara West 1, 1.47 km away
Te Arawa 3, 1.79 km away
Te Arawa 2, 4.02 km away
Otara West 2, 4.45 km away
Whakaari 4, 5.31 km away
Otara East 2, 5.34 km away
Te Arawa 1, 6.45 km away
Tuatoru 2, 10.03 km away
Tuatoru 1, 11.02 km away
Calypso 2, 11.97 km away

Tuakana 7, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate1.3785886E-6

Otara West 3, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?true
Co-rupture Count39
Co-rupture Rate3.9151644E-5

Otara East 1, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?true
Co-rupture Count45
Co-rupture Rate1.4471049E-4

Tuakana 6, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?true
Co-rupture Count8
Co-rupture Rate5.2436176E-6

Volkner 3, 1.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?true
Co-rupture Count73
Co-rupture Rate2.5871958E-4

Otara West 1, 1.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate1.3722625E-4

Te Arawa 3, 1.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?false
Co-rupture Count32
Co-rupture Rate6.820073E-5

Te Arawa 2, 4.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate3.4820155E-6

Otara West 2, 4.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?true
Co-rupture Count15
Co-rupture Rate1.0198411E-5

Whakaari 4, 5.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?true
Co-rupture Count163
Co-rupture Rate1.05120576E-4

Otara East 2, 5.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?true
Co-rupture Count26
Co-rupture Rate1.0374658E-4

Te Arawa 1, 6.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?false
Co-rupture Count31
Co-rupture Rate6.202544E-5

Tuatoru 2, 10.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuatoru 1, 11.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Calypso 2, 11.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NjIuMHZOSnoy
Connected?true
Directly Connected?false
Co-rupture Count23
Co-rupture Rate2.0600522E-4
