Boby Stream Details

PropertyValue
Rupture Count19,074
Ruptures Above Sect Min Mag19,073
Ruptures w/ Nonzero Rates446
Magnitude Range[6.80, 8.28]
Length Range[18, 732] km
Total Rate2.4546735E-4 /yr
Multi-Fault Rate2.4546735E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults95

Table Of Contents

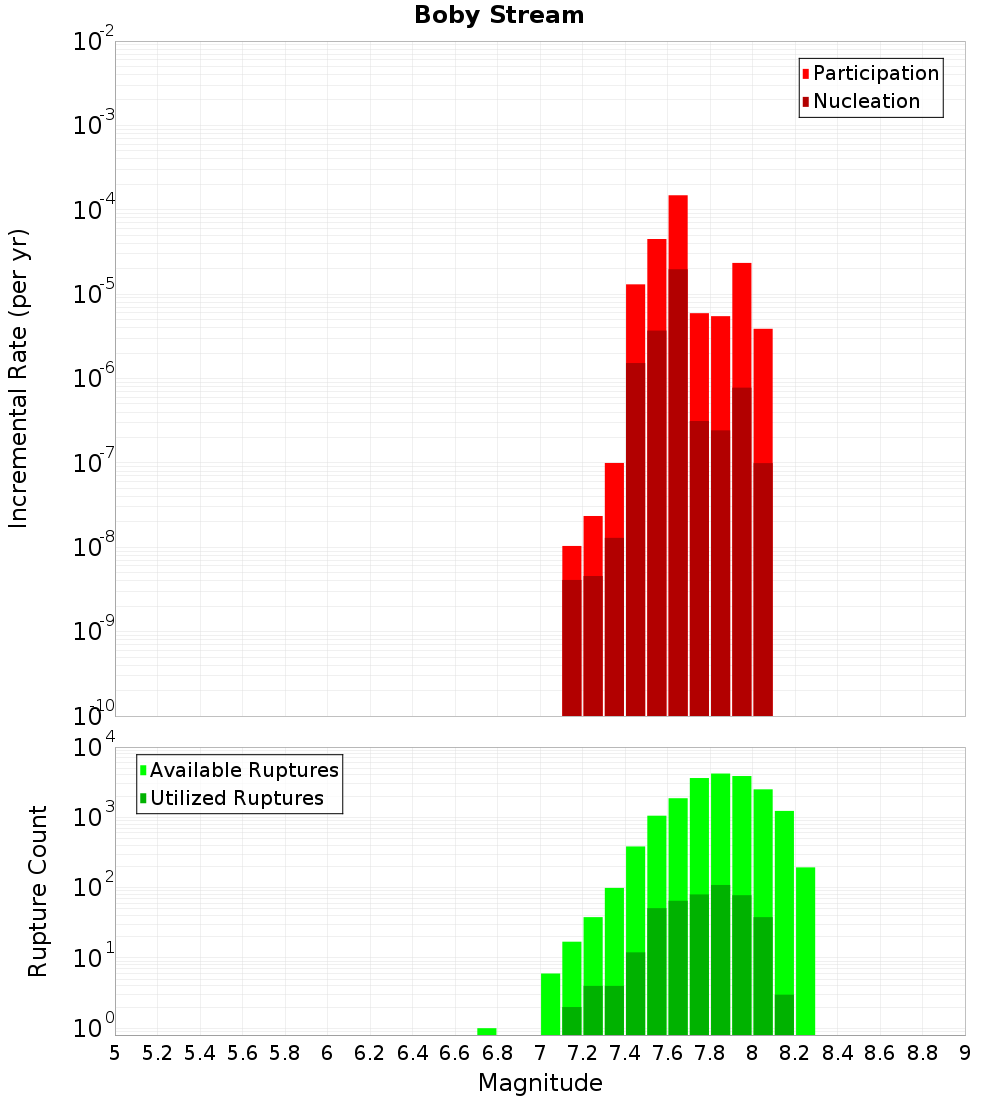

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

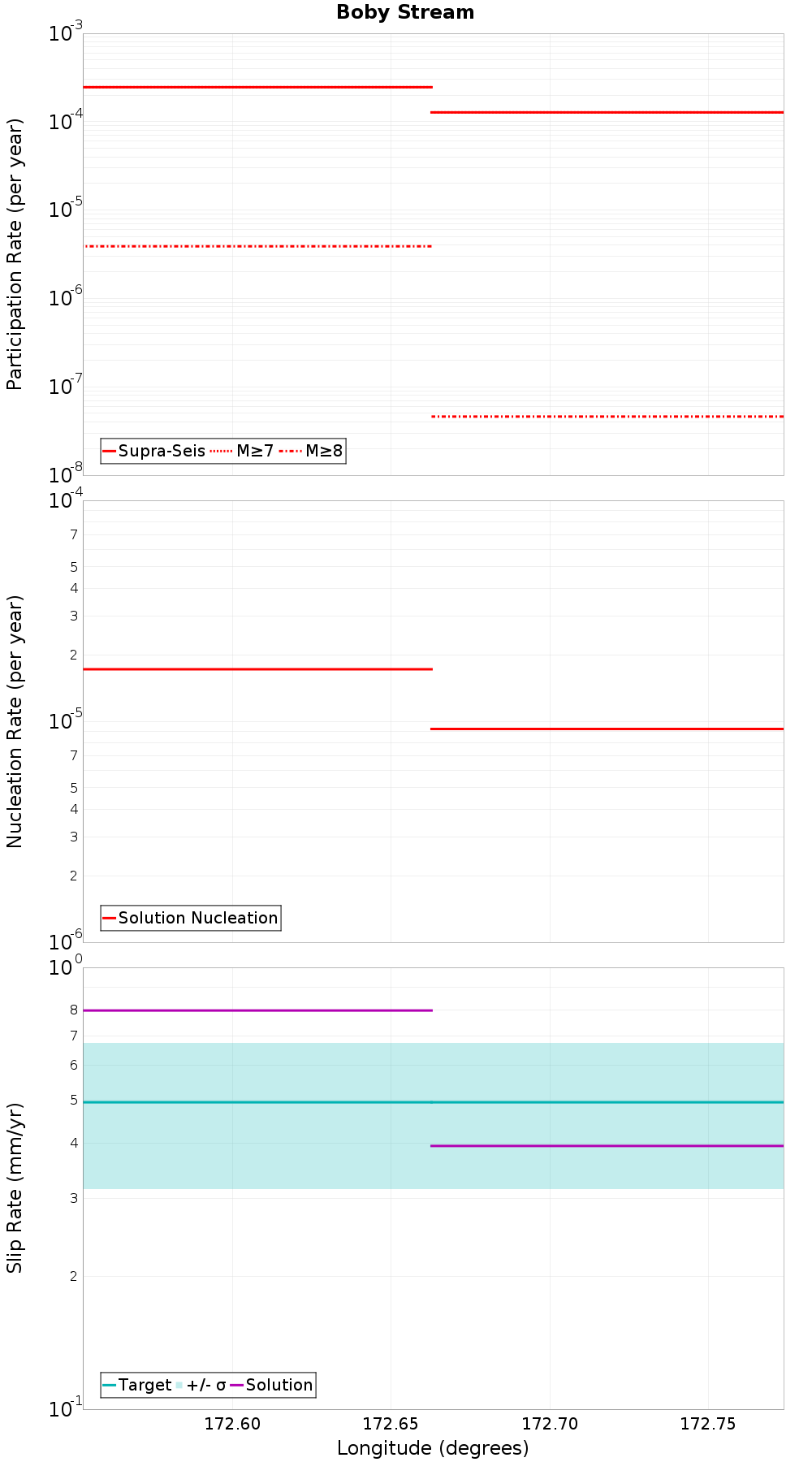

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Doctors, 0.13 km awayPancake, 9.69 km away
Starvation - Ashley, 0.62 km awayLees Valley, 10.27 km away
OmihiLwrHuru, 0.79 km awayLowry, 10.33 km away
AmberBlyth, 3.76 km awayAlexander, 10.71 km away
Mt Lawry, 4.87 km awayMotunau, 13.14 km away
Kaiwara South, 6.33 km awayKnowles Top, 13.88 km away
Mt Arden, 6.78 km awayNorth Canterbury Shelf 2, 14.97 km away
Springbank, 9.36 km awayLeithfield - NCVI - NCVII, 14.97 km away

Doctors, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMFgyNTcz
Connected?true
Directly Connected?true
Co-rupture Count14,486
Co-rupture Rate1.18164695E-4

Starvation - Ashley, 0.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMFgyNTcz
Connected?true
Directly Connected?true
Co-rupture Count18,318
Co-rupture Rate1.8679503E-4

OmihiLwrHuru, 0.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMFgyNTcz
Connected?true
Directly Connected?true
Co-rupture Count3,628
Co-rupture Rate1.27345E-4

AmberBlyth, 3.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMFgyNTcz
Connected?true
Directly Connected?true
Co-rupture Count1,556
Co-rupture Rate9.294899E-6

Mt Lawry, 4.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMFgyNTcz
Connected?true
Directly Connected?true
Co-rupture Count343
Co-rupture Rate5.867165E-5

Kaiwara South, 6.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMFgyNTcz
Connected?true
Directly Connected?false
Co-rupture Count1,147
Co-rupture Rate2.2336882E-5

Mt Arden, 6.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMFgyNTcz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Springbank, 9.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMFgyNTcz
Connected?true
Directly Connected?false
Co-rupture Count493
Co-rupture Rate1.9811823E-5

Pancake, 9.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMFgyNTcz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lees Valley, 10.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMFgyNTcz
Connected?true
Directly Connected?false
Co-rupture Count3,755
Co-rupture Rate3.8829432E-5

Lowry, 10.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMFgyNTcz
Connected?true
Directly Connected?false
Co-rupture Count8,731
Co-rupture Rate7.416338E-5

Alexander, 10.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMFgyNTcz
Connected?true
Directly Connected?false
Co-rupture Count740
Co-rupture Rate3.9482253E-5

Motunau, 13.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMFgyNTcz
Connected?true
Directly Connected?false
Co-rupture Count265
Co-rupture Rate1.0414968E-8

Knowles Top, 13.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMFgyNTcz
Connected?true
Directly Connected?false
Co-rupture Count47
Co-rupture Rate0.0

North Canterbury Shelf 2, 14.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMFgyNTcz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leithfield - NCVI - NCVII, 14.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMFgyNTcz
Connected?true
Directly Connected?false
Co-rupture Count55
Co-rupture Rate1.3109032E-15
