Straight Creek Details

Property	Value
Rupture Count	14,649
Ruptures Above Sect Min Mag	14,647
Ruptures w/ Nonzero Rates	9
Magnitude Range	[6.67, 8.34]
Length Range	[13, 733] km
Total Rate	8.847708E-5 /yr
Multi-Fault Rate	8.847708E-5 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	162

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

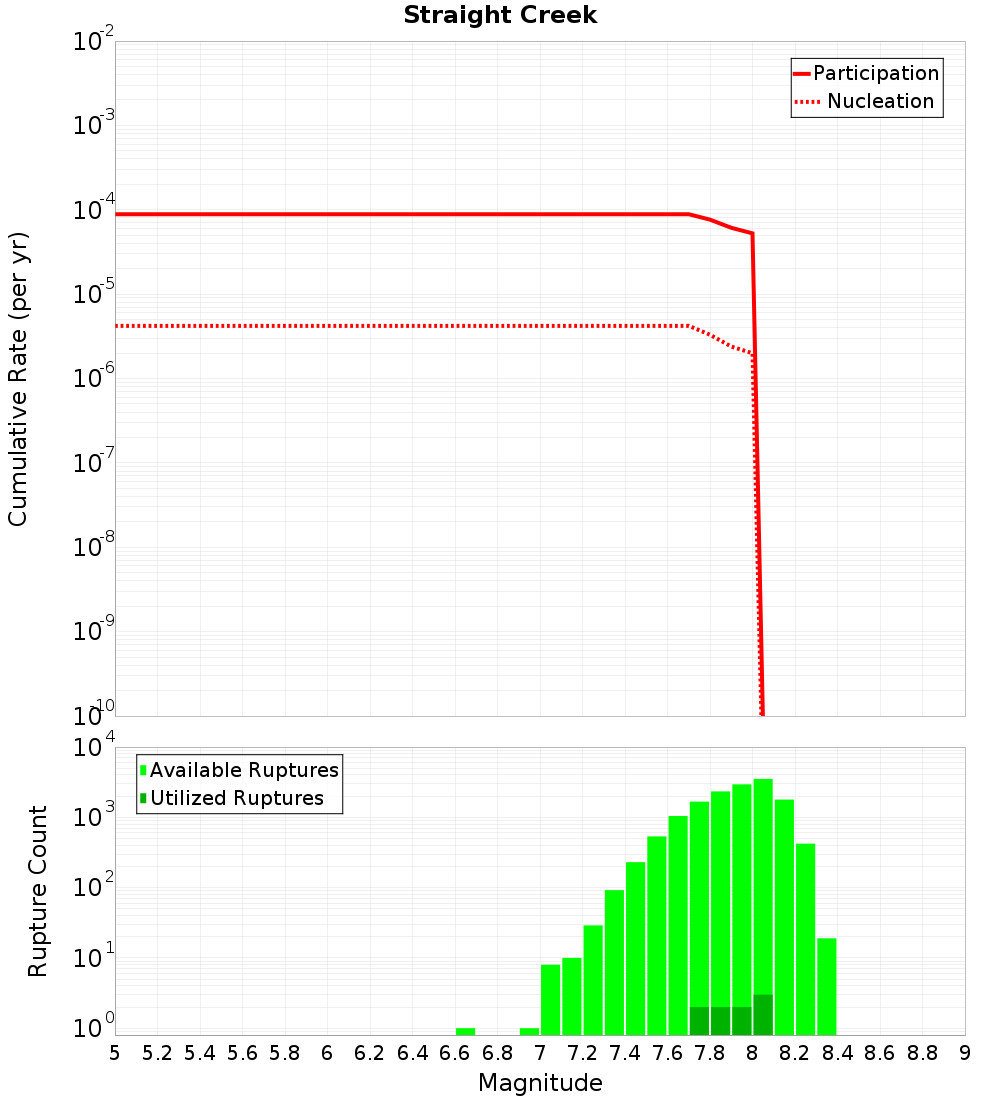

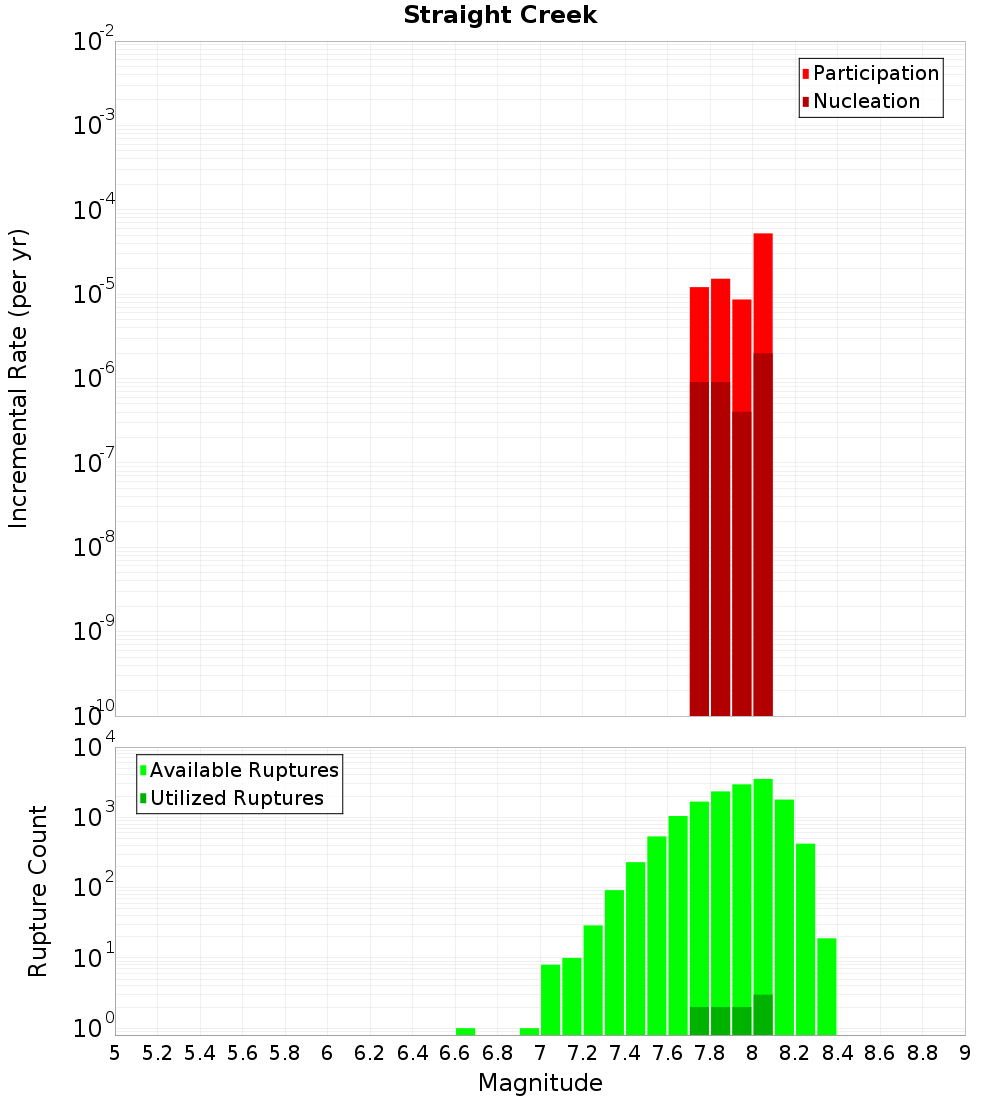

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Mt Roon, 0.12 km away
Black Blob - Haast Ridge, 0.22 km away
Murchison 1 - Ice Lake, 0.23 km away
Liebig North, 0.33 km away
McKerrow - Douglas Duplex, 1.75 km away
Alpine: Jacksons to Kaniere, 2.64 km away
Karangarua, 4.85 km away
Landsborough 2, 9.31 km away
Great Groove, 10.34 km away
Hohonu South, 10.89 km away
Macaulay 2, 13.4 km away
Lilybank, 14.07 km away

Mt Roon, 0.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMGRNcjJS
Connected?	true
Directly Connected?	false
Co-rupture Count	12
Co-rupture Rate	0.0

Black Blob - Haast Ridge, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMGRNcjJS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Murchison 1 - Ice Lake, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMGRNcjJS
Connected?	true
Directly Connected?	true
Co-rupture Count	12,324
Co-rupture Rate	6.687906E-5

Liebig North, 0.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMGRNcjJS
Connected?	true
Directly Connected?	true
Co-rupture Count	1,117
Co-rupture Rate	3.553056E-5

McKerrow - Douglas Duplex, 1.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMGRNcjJS
Connected?	true
Directly Connected?	true
Co-rupture Count	9,334
Co-rupture Rate	5.294652E-5

Alpine: Jacksons to Kaniere, 2.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMGRNcjJS
Connected?	true
Directly Connected?	true
Co-rupture Count	5,691
Co-rupture Rate	5.1388975E-5

Karangarua, 4.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMGRNcjJS
Connected?	true
Directly Connected?	true
Co-rupture Count	1,378
Co-rupture Rate	0.0

Landsborough 2, 9.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMGRNcjJS
Connected?	true
Directly Connected?	false
Co-rupture Count	2,795
Co-rupture Rate	1.3665101E-5

Great Groove, 10.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMGRNcjJS
Connected?	true
Directly Connected?	false
Co-rupture Count	3,021
Co-rupture Rate	0.0

Hohonu South, 10.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMGRNcjJS
Connected?	true
Directly Connected?	false
Co-rupture Count	7,242
Co-rupture Rate	8.191963E-6

Macaulay 2, 13.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMGRNcjJS
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0

Lilybank, 14.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMGRNcjJS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
