Wairarapa: 1 Details

PropertyValue
Rupture Count46,169
Ruptures Above Sect Min Mag46,165
Ruptures w/ Nonzero Rates444
Magnitude Range[6.91, 8.67]
Length Range[20, 1,083] km
Total Rate4.5183246E-4 /yr
Multi-Fault Rate4.5183246E-4 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults215

Table Of Contents

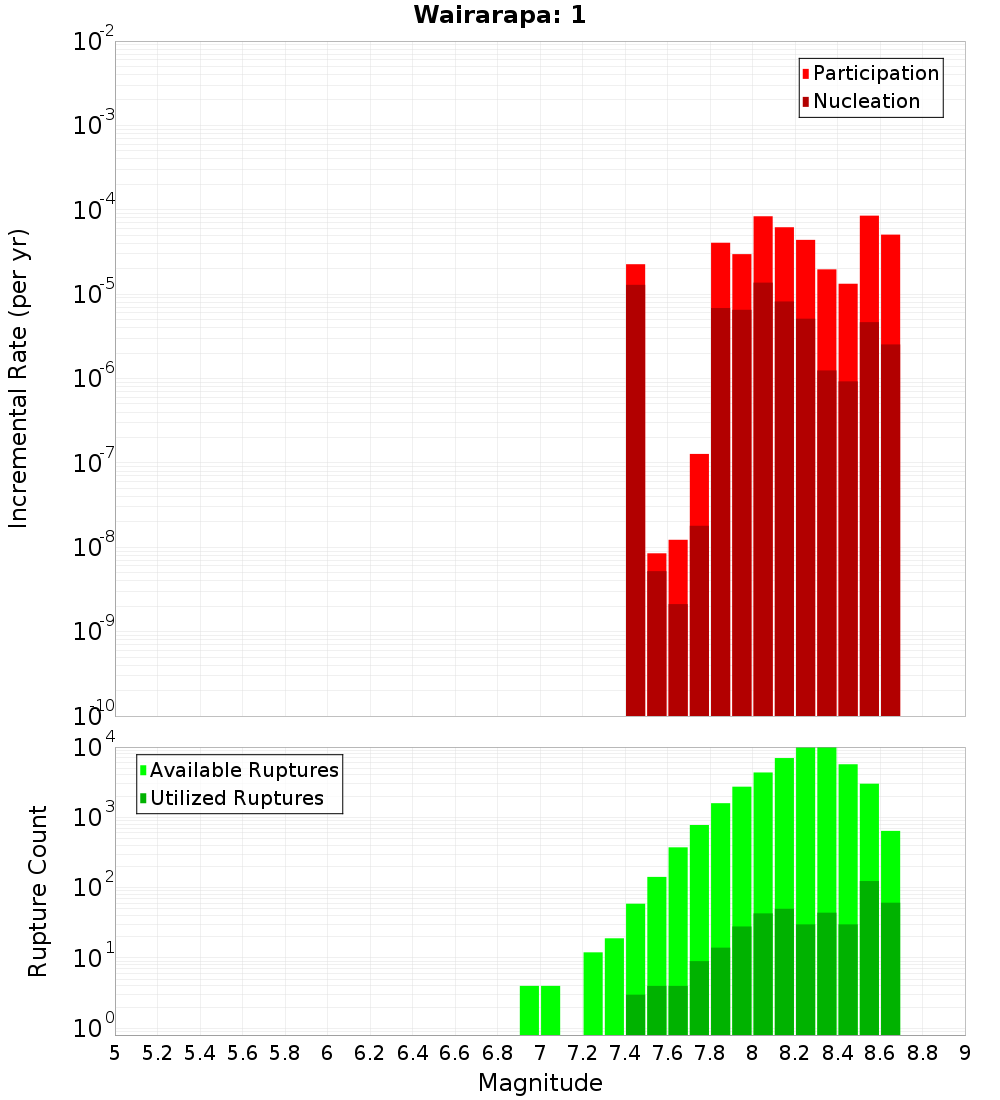

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

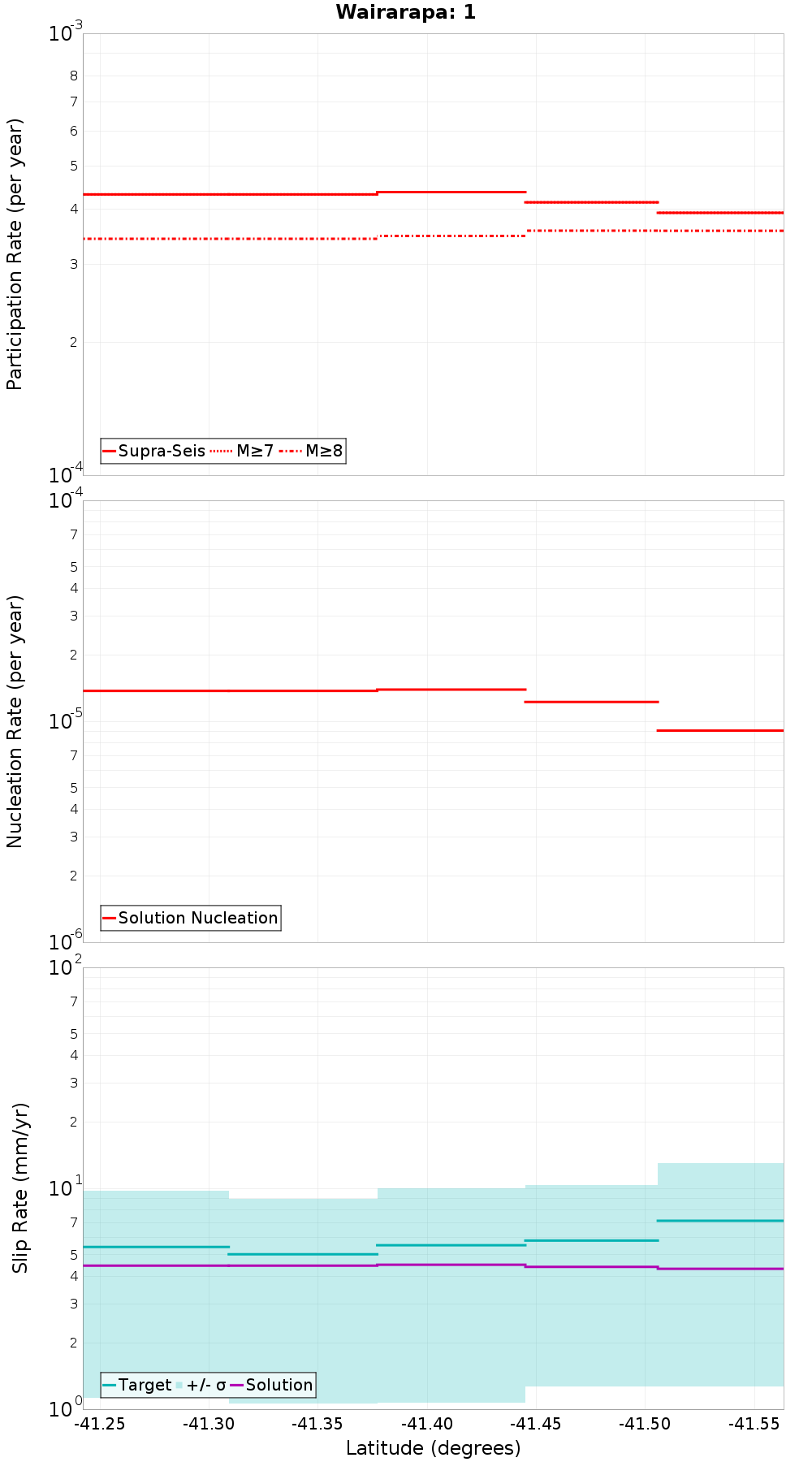

Along-Strike Values

(top)

Along-strike plot

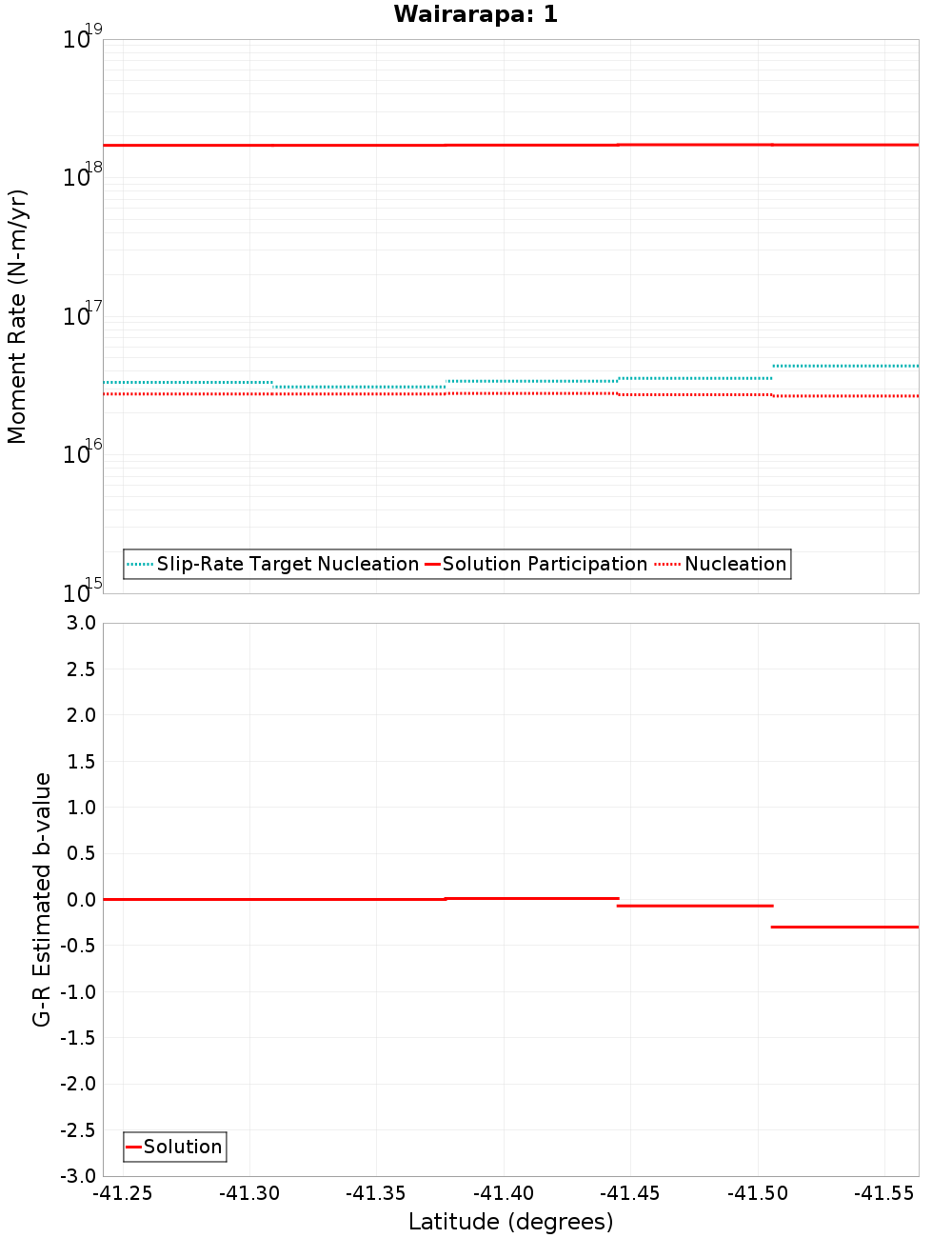

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Wairarapa: 2, 0 km away
Wairarapa: Needles, 0 km away
Wharekauhau, 0.2 km away
Wellington Hutt Valley: 5, 0.92 km away
Aotea - Evans Bay, 1.2 km away
Wellington Hutt Valley: 4, 2.73 km away
Whitemans Valley, 5.26 km away
Akatarawa, 12.67 km away
Wellington Hutt Valley: 2, 12.7 km away
Wellington Hutt Valley: 3, 12.73 km away
Moonshine, 13.22 km away
Ohariu, 14.45 km away
BooBoo, 14.77 km away

Wairarapa: 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMGRnNFE3
Connected?true
Directly Connected?true
Co-rupture Count26,038
Co-rupture Rate4.1402067E-4

Wairarapa: Needles, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMGRnNFE3
Connected?true
Directly Connected?true
Co-rupture Count36,768
Co-rupture Rate3.7247734E-4

Wharekauhau, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMGRnNFE3
Connected?true
Directly Connected?true
Co-rupture Count4,396
Co-rupture Rate1.9036432E-5

Wellington Hutt Valley: 5, 0.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMGRnNFE3
Connected?true
Directly Connected?true
Co-rupture Count15,398
Co-rupture Rate2.2633038E-5

Aotea - Evans Bay, 1.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMGRnNFE3
Connected?true
Directly Connected?true
Co-rupture Count597
Co-rupture Rate6.8214517E-6

Wellington Hutt Valley: 4, 2.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMGRnNFE3
Connected?true
Directly Connected?false
Co-rupture Count283
Co-rupture Rate1.7158422E-10

Whitemans Valley, 5.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMGRnNFE3
Connected?true
Directly Connected?true
Co-rupture Count810
Co-rupture Rate6.6685985E-8

Akatarawa, 12.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMGRnNFE3
Connected?true
Directly Connected?false
Co-rupture Count141
Co-rupture Rate1.7158422E-10

Wellington Hutt Valley: 2, 12.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMGRnNFE3
Connected?true
Directly Connected?true
Co-rupture Count724
Co-rupture Rate1.17271775E-5

Wellington Hutt Valley: 3, 12.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMGRnNFE3
Connected?true
Directly Connected?false
Co-rupture Count184
Co-rupture Rate1.8736824E-6

Moonshine, 13.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMGRnNFE3
Connected?true
Directly Connected?false
Co-rupture Count243
Co-rupture Rate1.7014405E-10

Ohariu, 14.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMGRnNFE3
Connected?true
Directly Connected?false
Co-rupture Count561
Co-rupture Rate1.667288E-5

BooBoo, 14.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMGRnNFE3
Connected?true
Directly Connected?false
Co-rupture Count696
Co-rupture Rate0.0
