Fidget Details

Property	Value
Rupture Count	45,890
Ruptures Above Sect Min Mag	45,887
Ruptures w/ Nonzero Rates	17
Magnitude Range	[6.86, 8.65]
Length Range	[17, 973] km
Total Rate	1.076049E-4 /yr
Multi-Fault Rate	1.076049E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	238

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

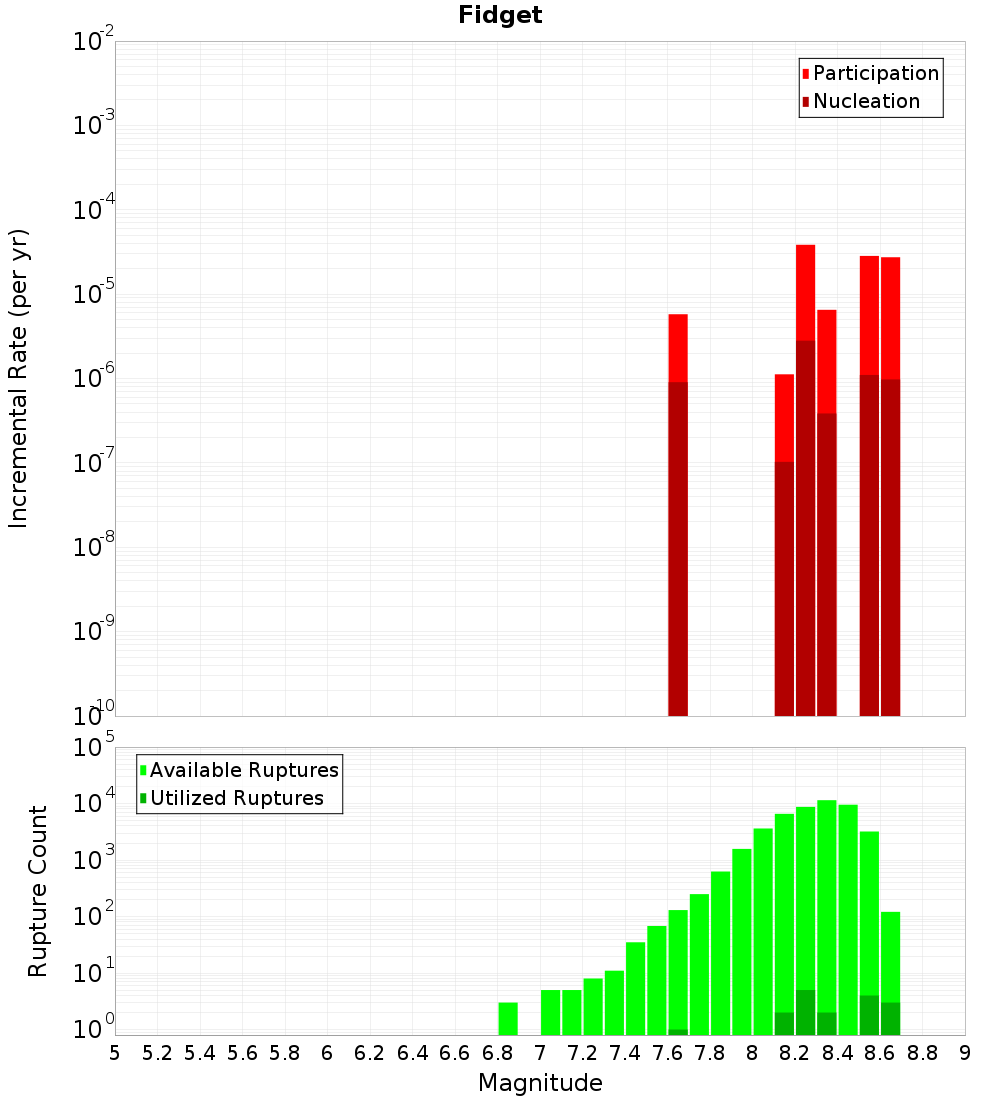

Magnitude-Frequency Distribution

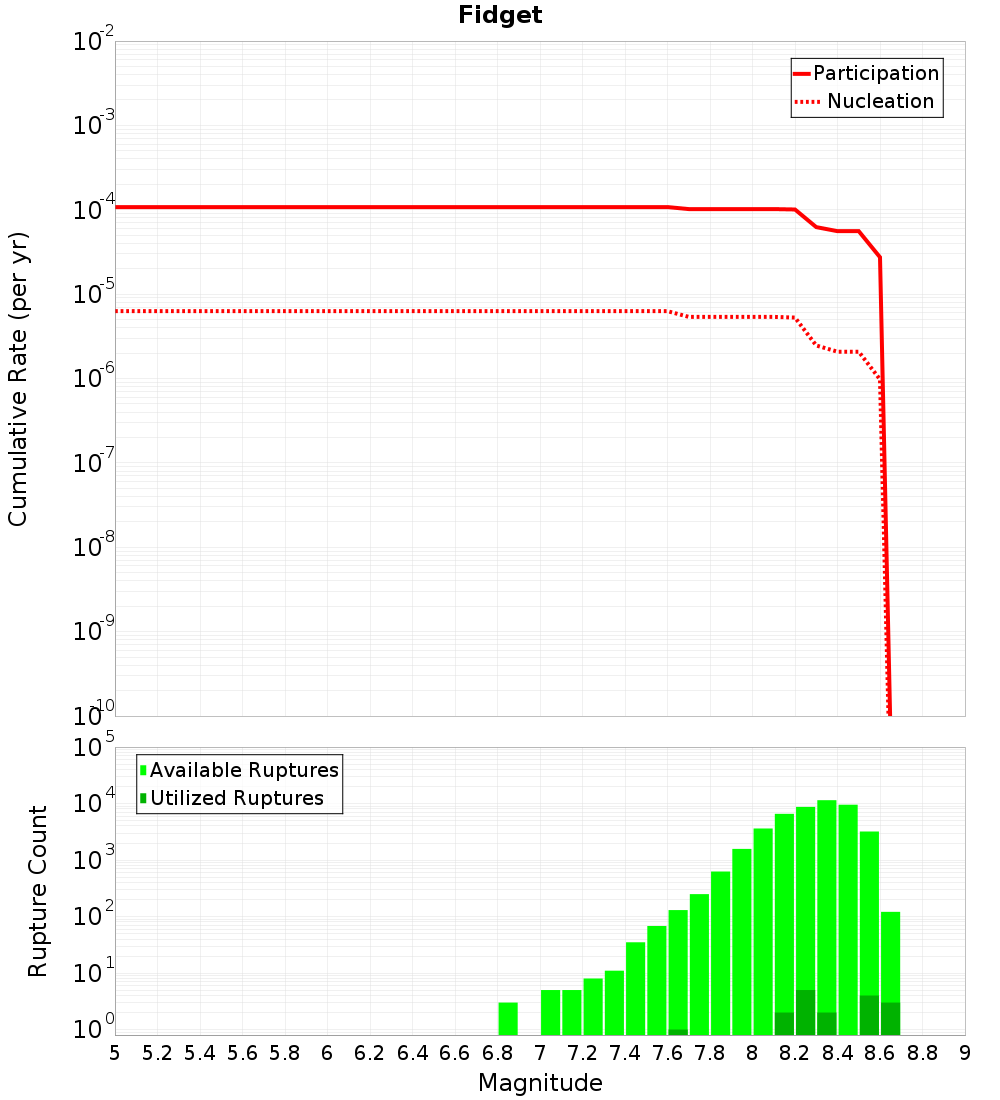

Incremental	Cumulative

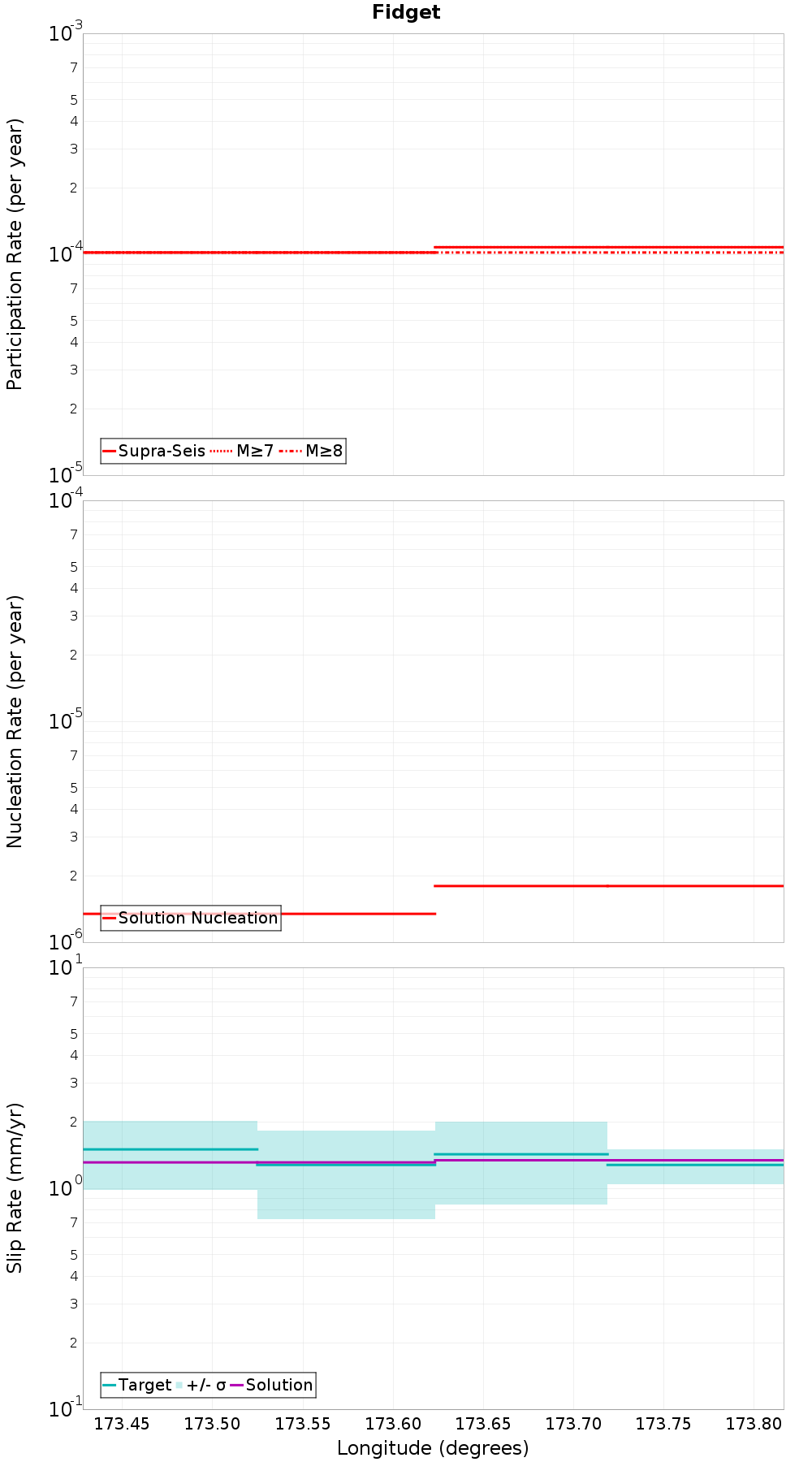

Along-Strike Values

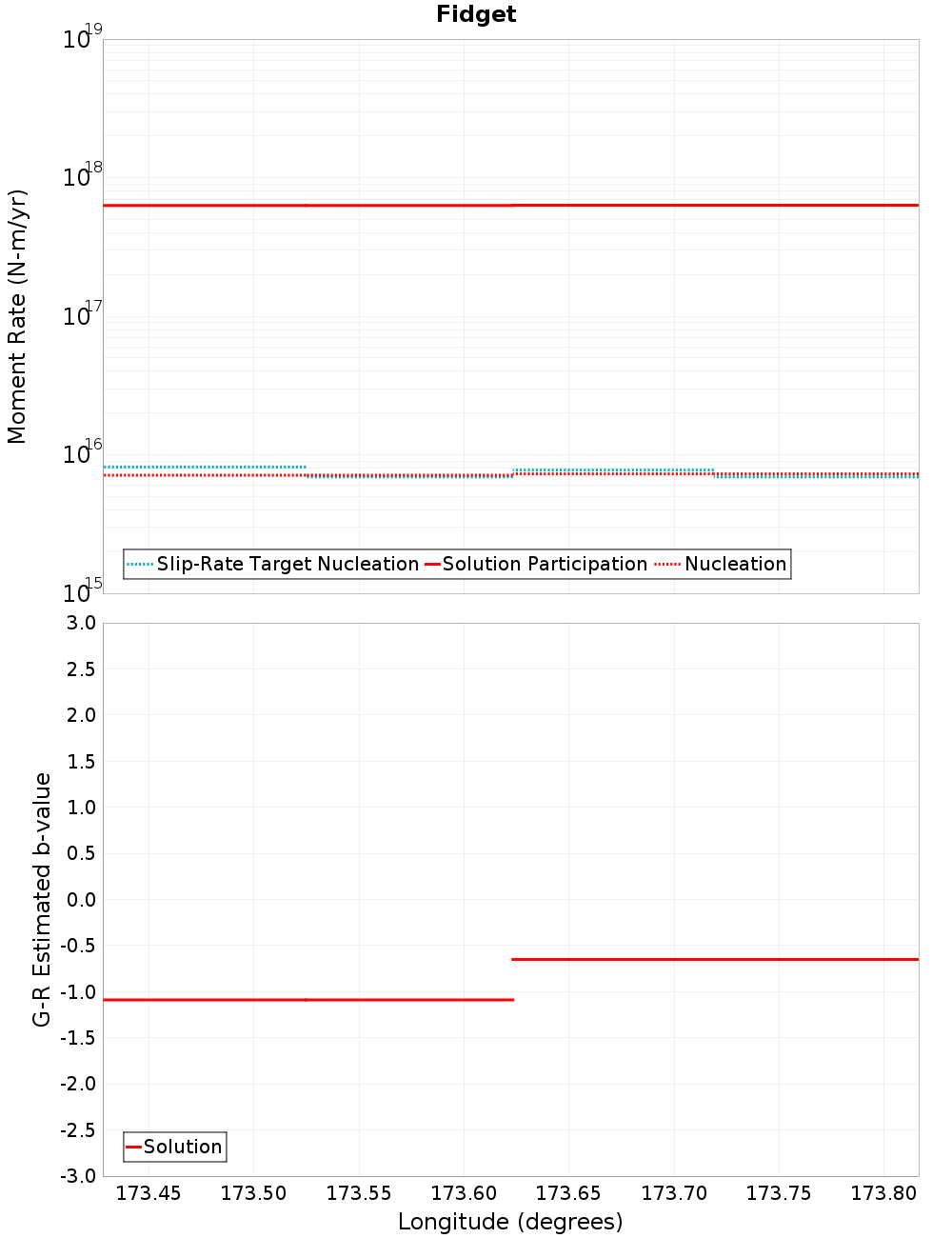

Moment-Rates and b-Values

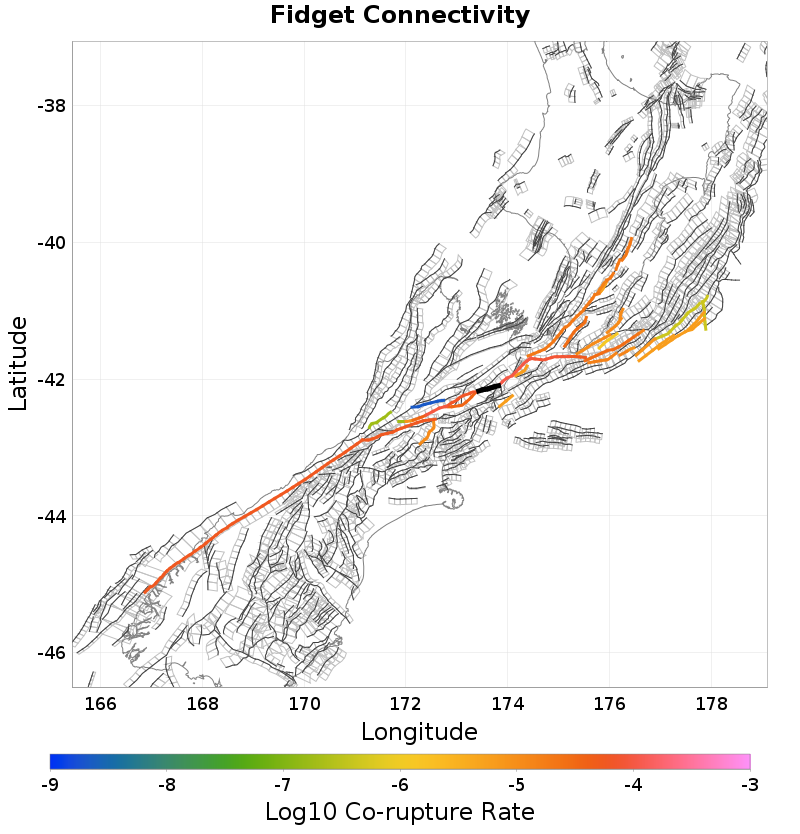

Connectivity

Nearby Sections

Fault Section
Papatea, 0 km away
Kekerengu 1, 0 km away
Jordan, 0 km away
Clarence: Northeast, 0.64 km away
Elliott, 3.22 km away
Clarence: Central, 3.22 km away
Offshore Splay Thrust, 4.12 km away
Upper Kowhai - Manakau, 8.84 km away
Kowhai, 13.39 km away
Hope: Seaward, 13.67 km away

Papatea, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMGhvRlp1
Connected?	true
Directly Connected?	false
Co-rupture Count	420
Co-rupture Rate	0.0

Kekerengu 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMGhvRlp1
Connected?	true
Directly Connected?	true
Co-rupture Count	43,590
Co-rupture Rate	1.076049E-4

Jordan, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMGhvRlp1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Clarence: Northeast, 0.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMGhvRlp1
Connected?	true
Directly Connected?	false
Co-rupture Count	394
Co-rupture Rate	0.0

Elliott, 3.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMGhvRlp1
Connected?	true
Directly Connected?	true
Co-rupture Count	11,412
Co-rupture Rate	3.5037407E-5

Clarence: Central, 3.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMGhvRlp1
Connected?	true
Directly Connected?	true
Co-rupture Count	28,932
Co-rupture Rate	6.679127E-5

Offshore Splay Thrust, 4.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMGhvRlp1
Connected?	true
Directly Connected?	true
Co-rupture Count	240
Co-rupture Rate	5.776224E-6

Upper Kowhai - Manakau, 8.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMGhvRlp1
Connected?	true
Directly Connected?	true
Co-rupture Count	711
Co-rupture Rate	0.0

Kowhai, 13.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMGhvRlp1
Connected?	true
Directly Connected?	true
Co-rupture Count	552
Co-rupture Rate	0.0

Hope: Seaward, 13.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4NzEuMGhvRlp1
Connected?	true
Directly Connected?	false
Co-rupture Count	396
Co-rupture Rate	0.0
