Awanui 1 Details
| Property | Value |
|---|---|
| Rupture Count | 798 |
| Ruptures Above Sect Min Mag | 788 |
| Ruptures w/ Nonzero Rates | 48 |
| Magnitude Range | [6.69, 8.22] |
| Length Range | [15, 314] km |
| Total Rate | 1.838771E-4 /yr |
| Multi-Fault Rate | 1.8379395E-4 /yr (99.95%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 10 |
Table Of Contents

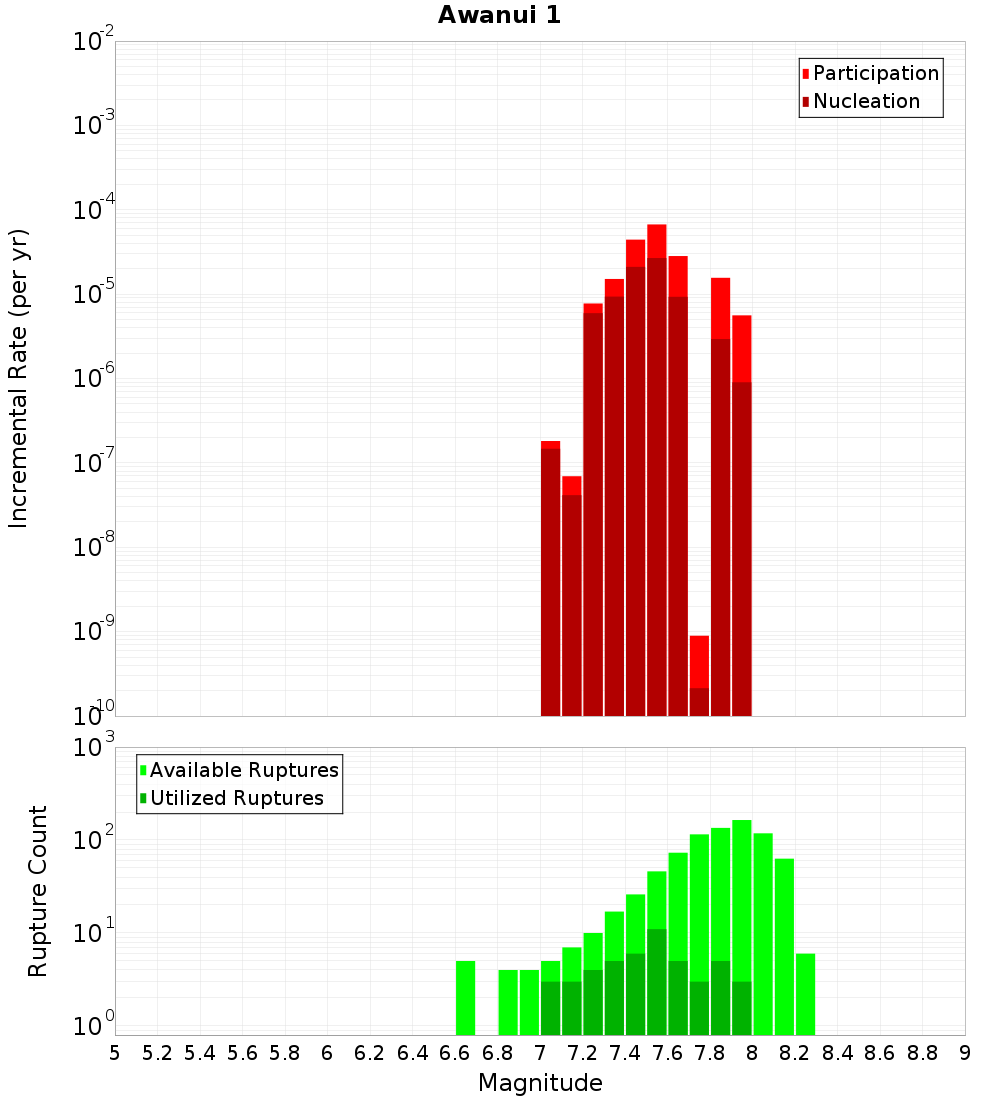

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Kermadec Trench slope1, 3.21 km away |
| Awanui 2, 4.86 km away |
| Ruatoria, 7.21 km away |
| East Cape Ridge 1, 8.3 km away |
| Kermadec Trench, 13.5 km away |
Kermadec Trench slope1, 3.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 278 |
| Co-rupture Rate | 1.7088622E-7 |
Awanui 2, 4.86 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 363 |
| Co-rupture Rate | 1.5882129E-4 |
Ruatoria, 7.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 484 |
| Co-rupture Rate | 5.6041017E-6 |
East Cape Ridge 1, 8.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 256 |
| Co-rupture Rate | 1.6747582E-4 |
Kermadec Trench, 13.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 297 |
| Co-rupture Rate | 2.0751276E-10 |
