BKSmt-North Details

Property	Value
Rupture Count	11,666
Ruptures Above Sect Min Mag	11,654
Ruptures w/ Nonzero Rates	194
Magnitude Range	[6.57, 8.47]
Length Range	[13, 639] km
Total Rate	1.07349355E-4 /yr
Multi-Fault Rate	1.0732098E-4 /yr (99.97%)
Directly-Connected Faults	4
All Co-Rupturing Faults	57

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

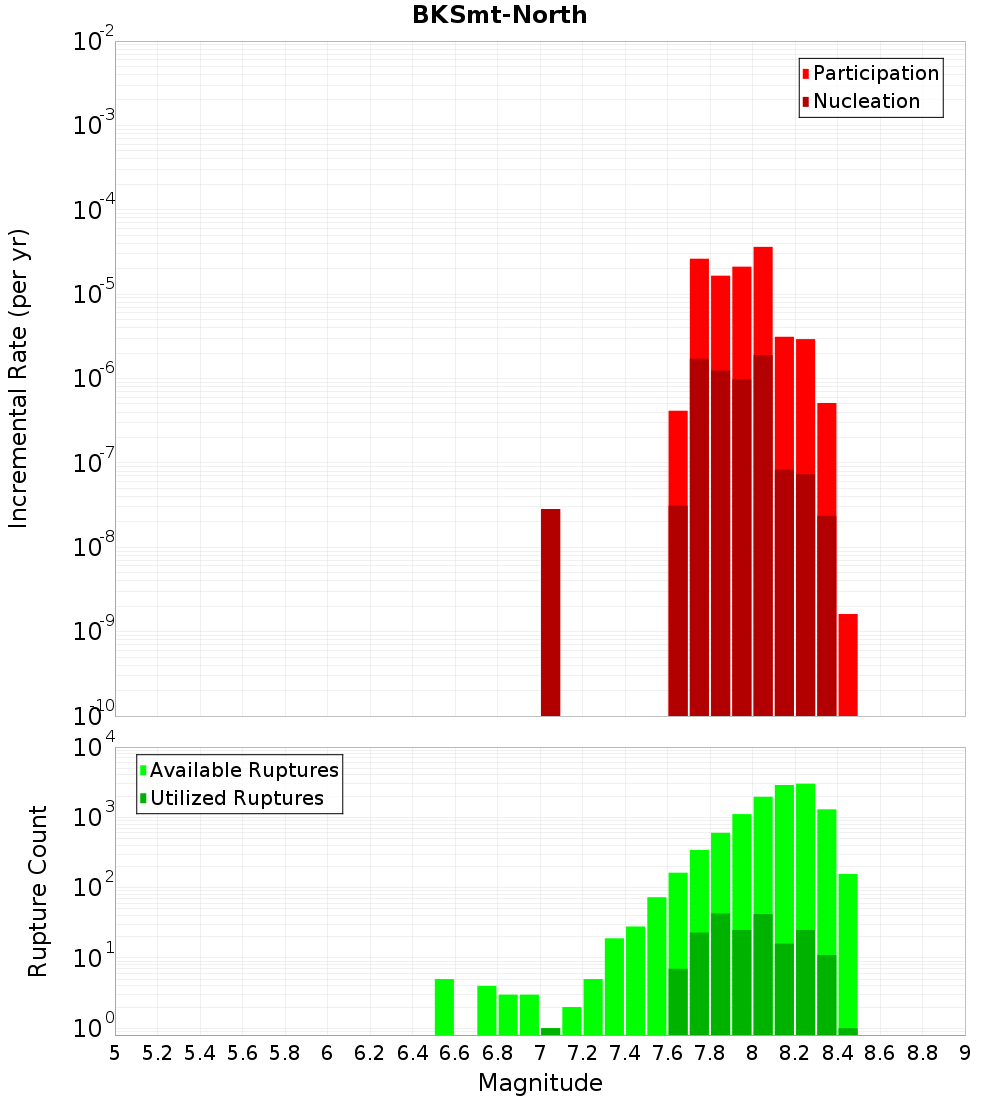

Magnitude-Frequency Distribution

Incremental	Cumulative

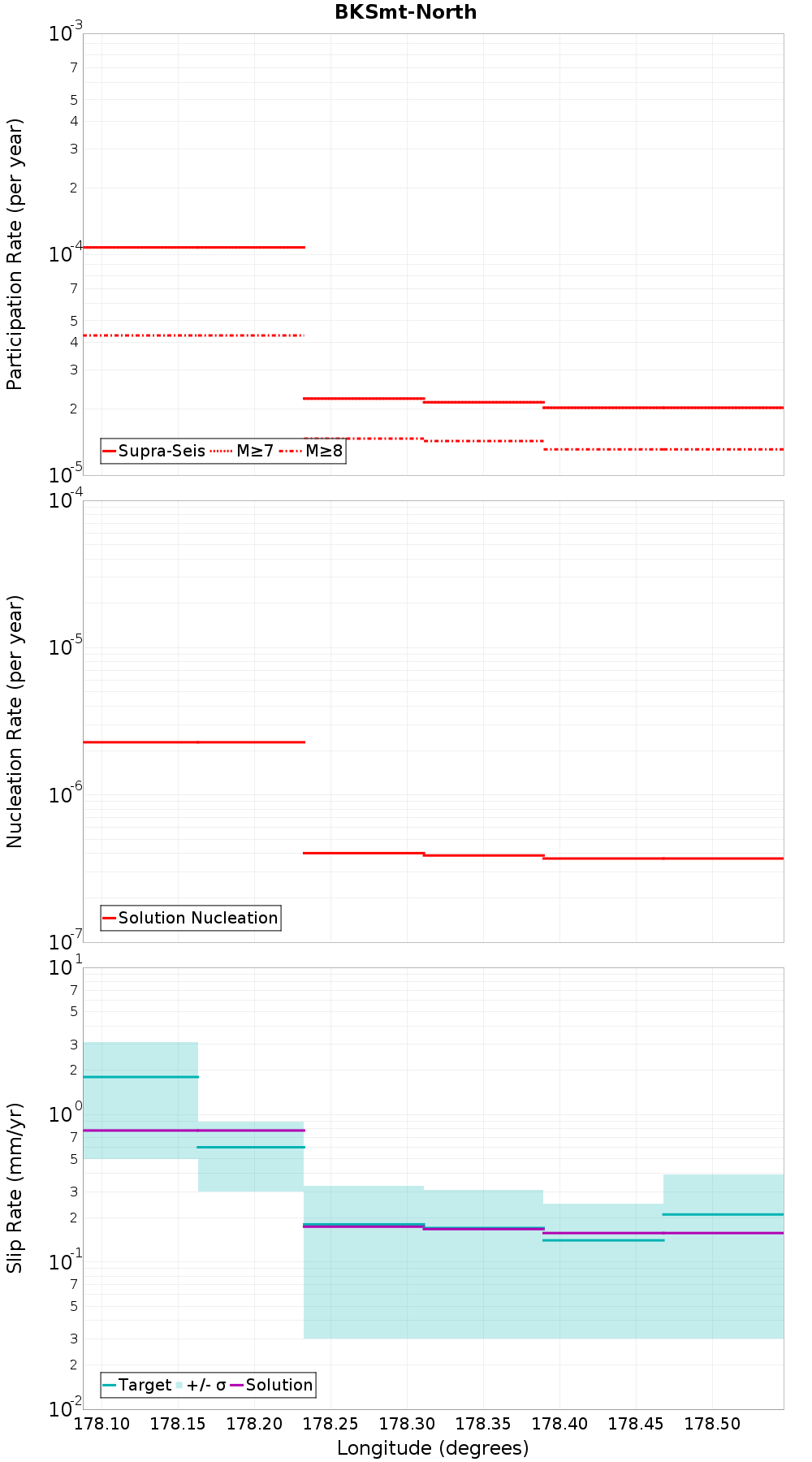

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
F16 - Central, 0.11 km away
Akitio Ridge, 0.41 km away
F16 - North, 0.66 km away
F14 - North, 3.57 km away
Bennett Knoll, 7.43 km away
Akitio Trough West, 11.87 km away

F16 - Central, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?	true
Directly Connected?	true
Co-rupture Count	7,843
Co-rupture Rate	5.6602E-5

Akitio Ridge, 0.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?	true
Directly Connected?	true
Co-rupture Count	9,993
Co-rupture Rate	7.9535515E-5

F16 - North, 0.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?	true
Directly Connected?	true
Co-rupture Count	2,152
Co-rupture Rate	7.9384685E-5

F14 - North, 3.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?	true
Directly Connected?	true
Co-rupture Count	5,153
Co-rupture Rate	4.967999E-6

Bennett Knoll, 7.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?	true
Directly Connected?	false
Co-rupture Count	101
Co-rupture Rate	3.2547118E-6

Akitio Trough West, 11.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
