F16 - South Details

Property	Value
Rupture Count	7,977
Ruptures Above Sect Min Mag	7,976
Ruptures w/ Nonzero Rates	104
Magnitude Range	[7.15, 8.47]
Length Range	[25, 592] km
Total Rate	5.5229117E-5 /yr
Multi-Fault Rate	5.5228913E-5 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	54

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

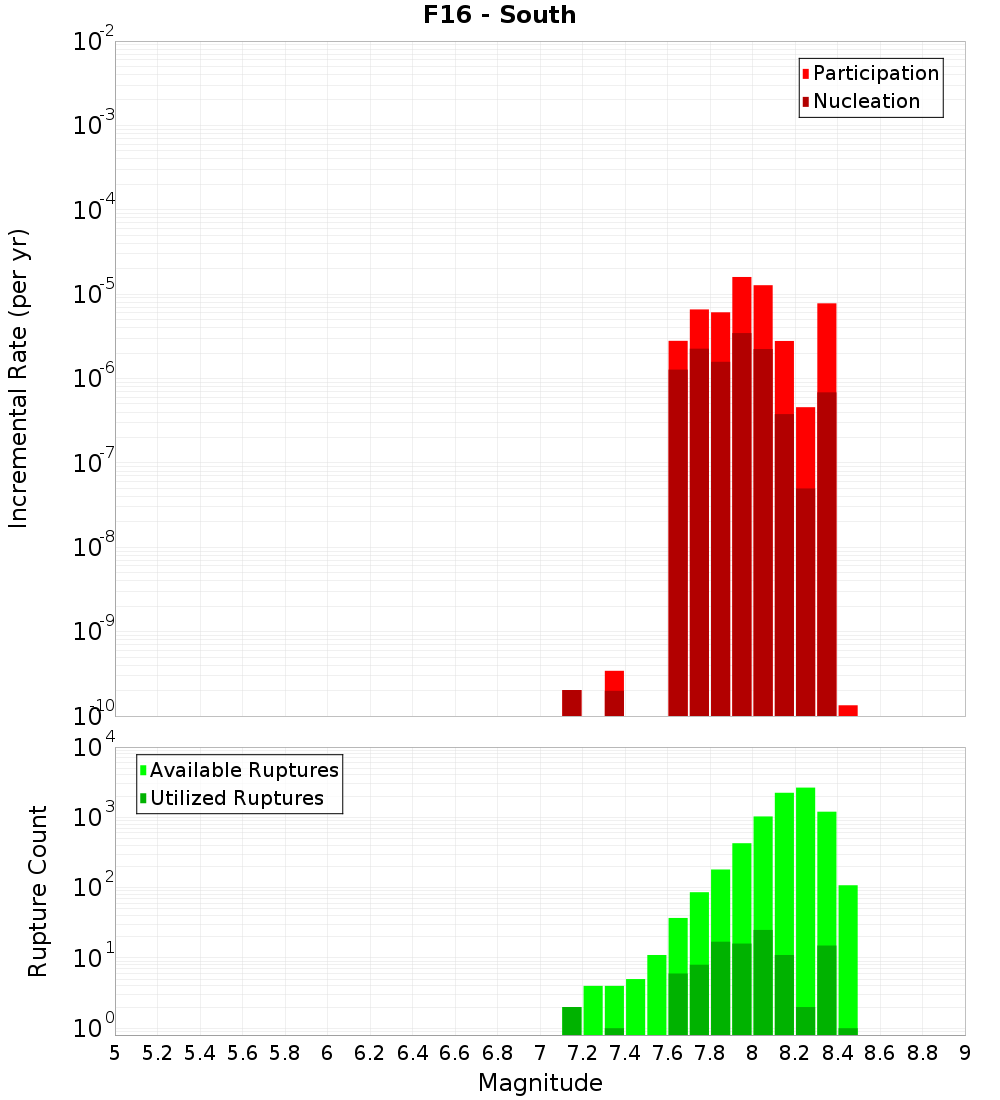

Magnitude-Frequency Distribution

Incremental	Cumulative

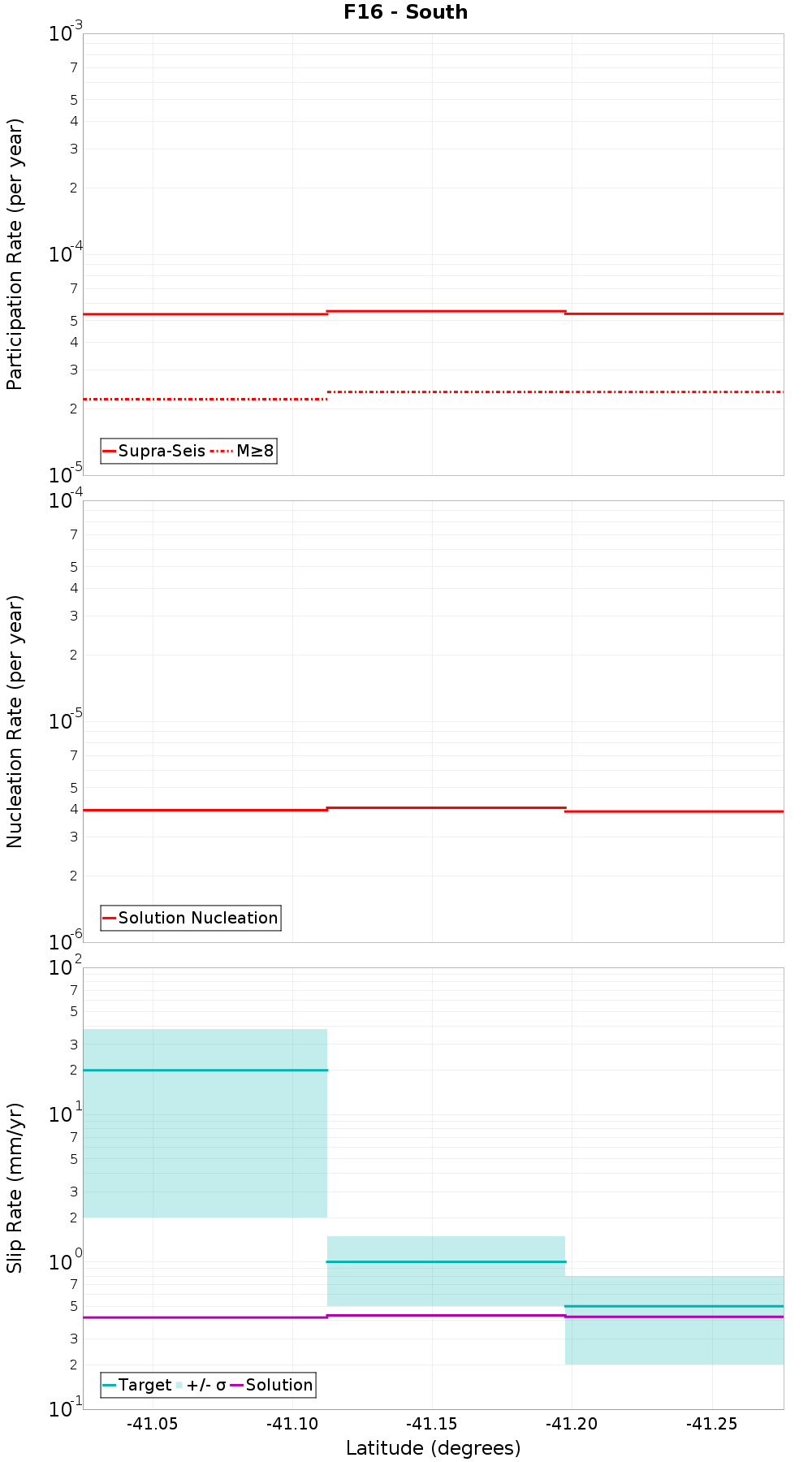

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
F17 - South, 0.02 km away
BKSmt-West, 0.87 km away
F16 - Central, 1.46 km away
Aorangi Ridge, 2.18 km away
F17 - Central, 2.38 km away
Aorangi Trough, 7.43 km away
Bennett Knoll, 8.18 km away
Akitio Ridge, 9.14 km away
Akitio Trough West, 12.01 km away
Pukeroro Ridge, 13.19 km away

F17 - South, 0.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?	true
Directly Connected?	true
Co-rupture Count	821
Co-rupture Rate	8.994644E-6

BKSmt-West, 0.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?	true
Directly Connected?	true
Co-rupture Count	3,131
Co-rupture Rate	1.9557487E-5

F16 - Central, 1.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?	true
Directly Connected?	true
Co-rupture Count	5,019
Co-rupture Rate	2.5694526E-5

Aorangi Ridge, 2.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?	true
Directly Connected?	true
Co-rupture Count	5,779
Co-rupture Rate	3.9559167E-5

F17 - Central, 2.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?	true
Directly Connected?	true
Co-rupture Count	1,323
Co-rupture Rate	1.9725356E-5

Aorangi Trough, 7.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?	true
Directly Connected?	false
Co-rupture Count	10
Co-rupture Rate	2.3786022E-6

Bennett Knoll, 8.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?	true
Directly Connected?	false
Co-rupture Count	155
Co-rupture Rate	9.134546E-6

Akitio Ridge, 9.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?	true
Directly Connected?	false
Co-rupture Count	6,248
Co-rupture Rate	2.6031765E-5

Akitio Trough West, 12.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?	true
Directly Connected?	false
Co-rupture Count	435
Co-rupture Rate	6.314437E-9

Pukeroro Ridge, 13.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
