F17 - Central Details

Property	Value
Rupture Count	4,925
Ruptures Above Sect Min Mag	4,925
Ruptures w/ Nonzero Rates	80
Magnitude Range	[7.01, 8.49]
Length Range	[18, 552] km
Total Rate	5.254068E-5 /yr
Multi-Fault Rate	5.254068E-5 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	46

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

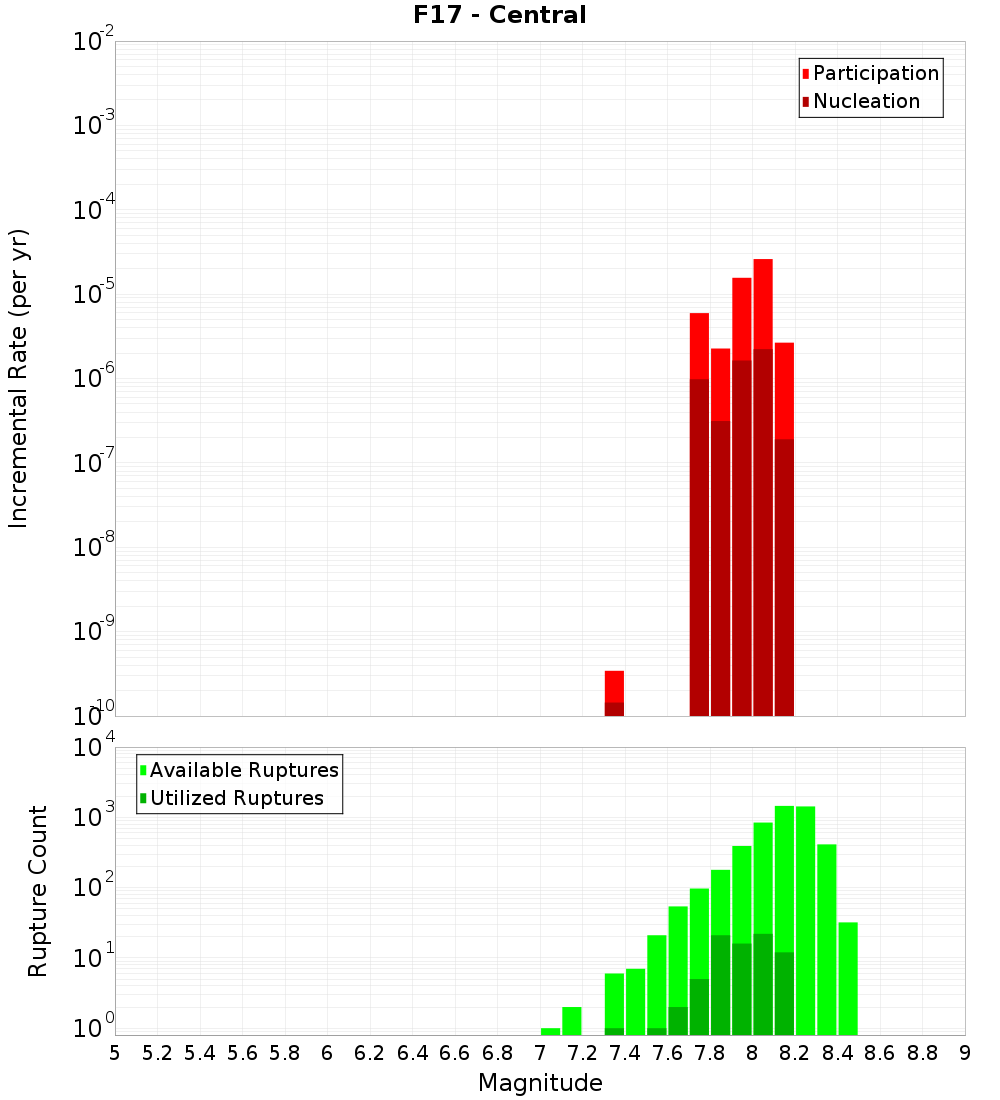

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

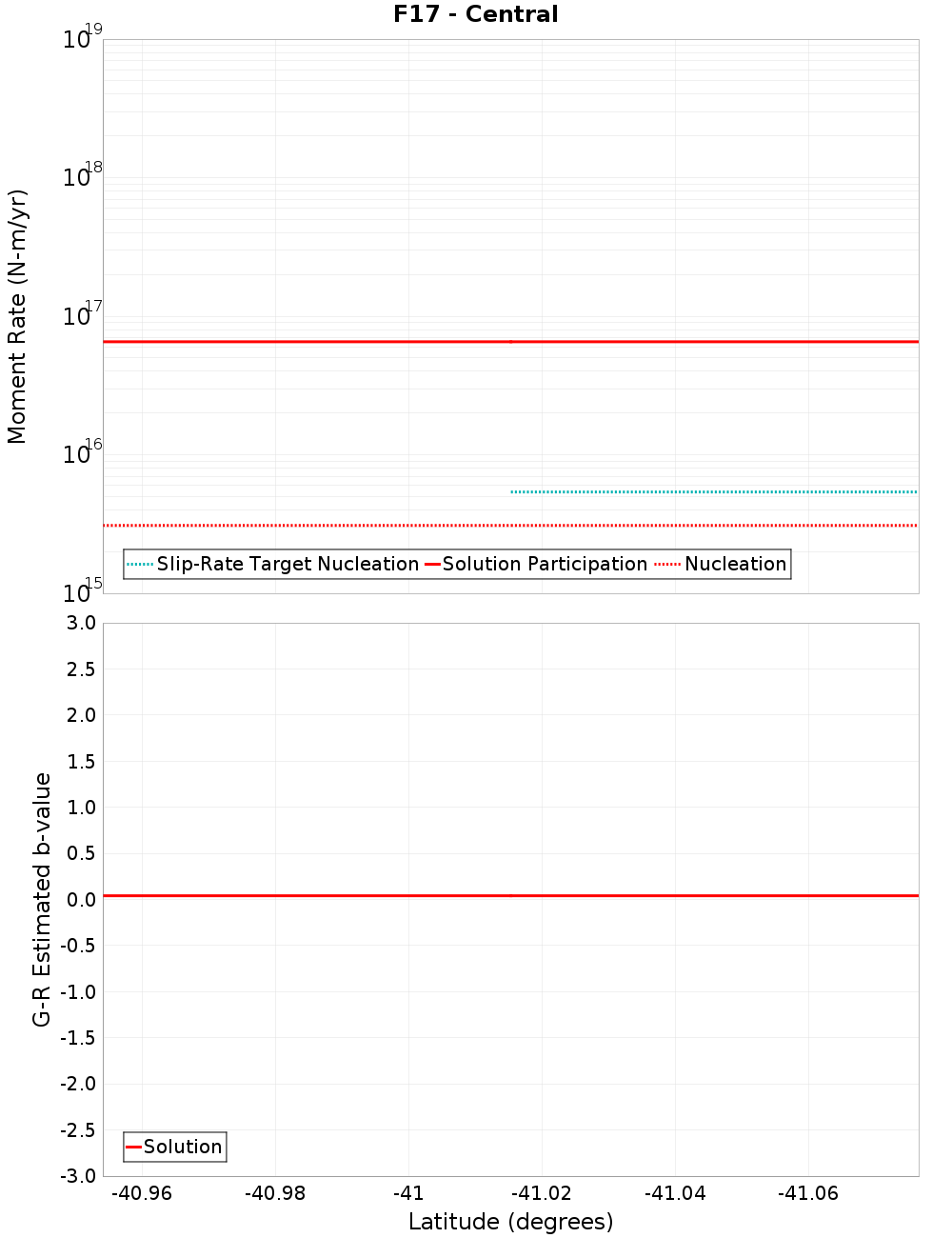

Moment-Rates and b-Values

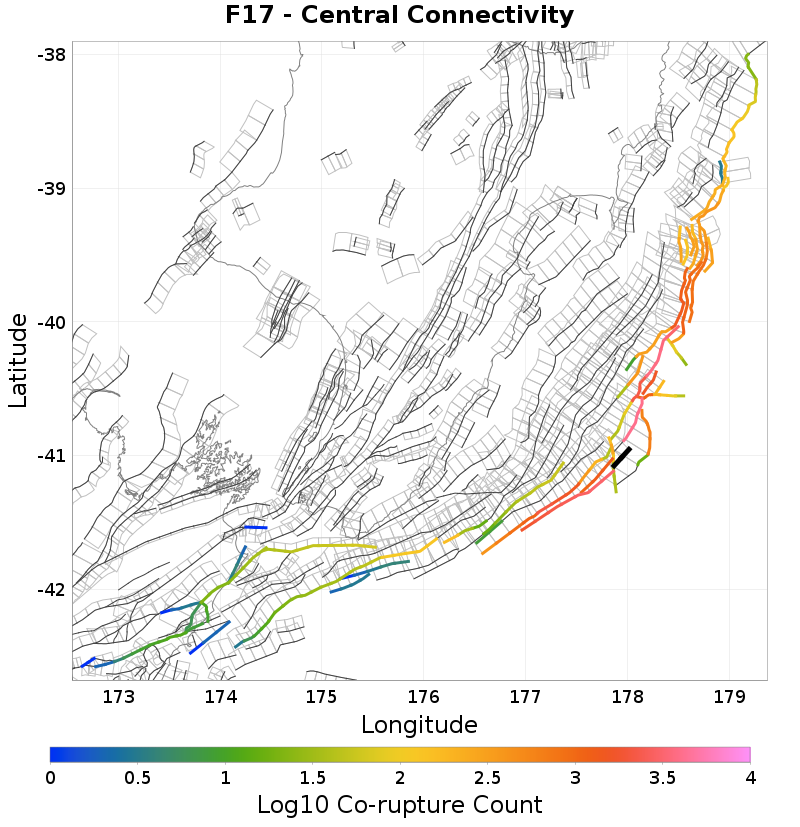

Connectivity

Nearby Sections

Fault Section
BKSmt-West, 0.12 km away
F17 - South, 1.64 km away
F16 - South, 2.38 km away
F16 - Central, 3.82 km away
Aorangi Ridge, 4.58 km away
Bennett Knoll, 6.66 km away
Akitio Ridge, 8.31 km away
Aorangi Trough, 9.87 km away

BKSmt-West, 0.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?	true
Directly Connected?	true
Co-rupture Count	267
Co-rupture Rate	8.821997E-7

F17 - South, 1.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?	true
Directly Connected?	true
Co-rupture Count	3,130
Co-rupture Rate	3.363815E-5

F16 - South, 2.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?	true
Directly Connected?	true
Co-rupture Count	1,323
Co-rupture Rate	1.9725356E-5

F16 - Central, 3.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?	true
Directly Connected?	true
Co-rupture Count	4,061
Co-rupture Rate	3.3566383E-5

Aorangi Ridge, 4.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?	true
Directly Connected?	true
Co-rupture Count	2,287
Co-rupture Rate	4.0861785E-5

Bennett Knoll, 6.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?	true
Directly Connected?	true
Co-rupture Count	660
Co-rupture Rate	1.8973953E-5

Akitio Ridge, 8.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?	true
Directly Connected?	false
Co-rupture Count	3,923
Co-rupture Rate	8.952471E-6

Aorangi Trough, 9.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?	true
Directly Connected?	false
Co-rupture Count	8
Co-rupture Rate	0.0
