Great Groove Details

PropertyValue
Rupture Count30,173
Ruptures Above Sect Min Mag30,173
Ruptures w/ Nonzero Rates93
Magnitude Range[7.18, 8.57]
Length Range[23, 783] km
Total Rate8.122755E-5 /yr
Multi-Fault Rate8.122755E-5 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults234

Table Of Contents

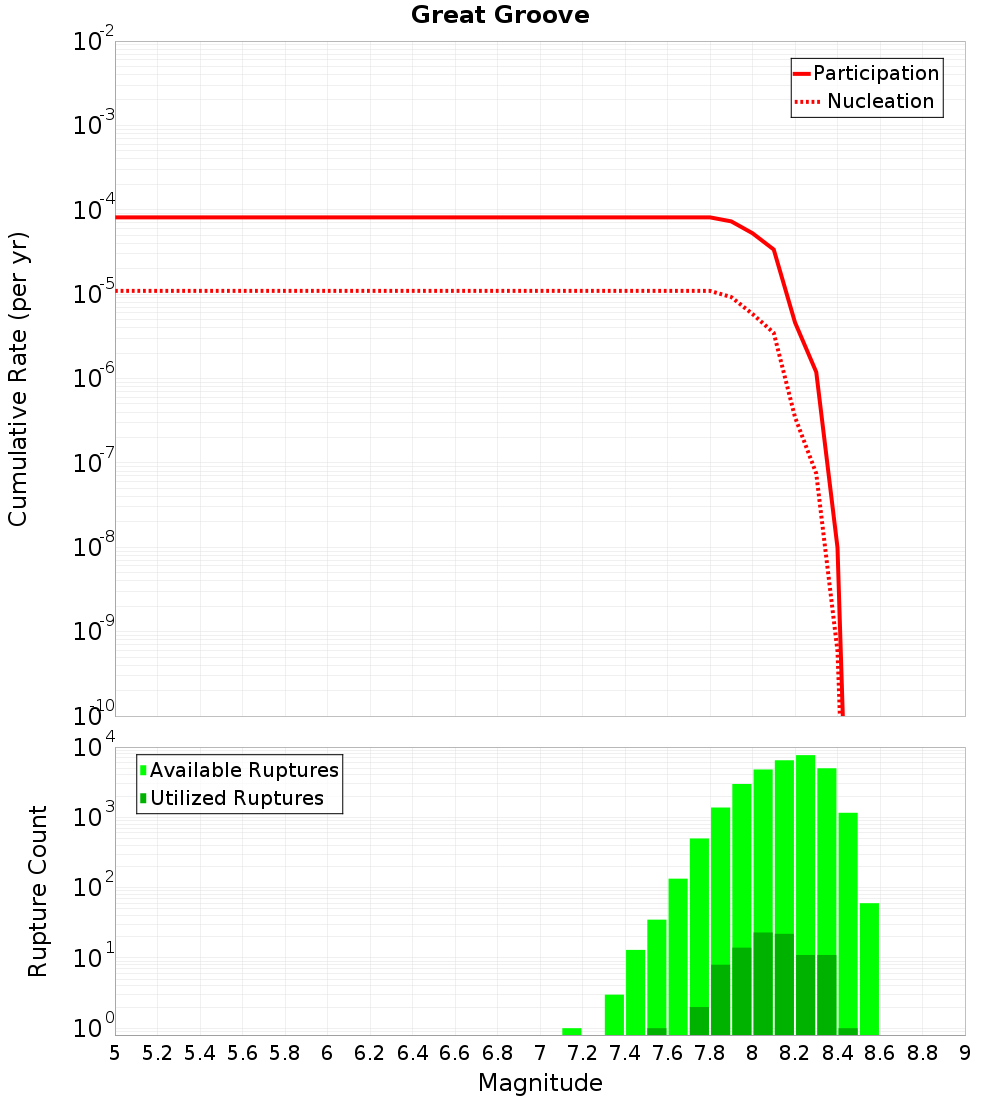

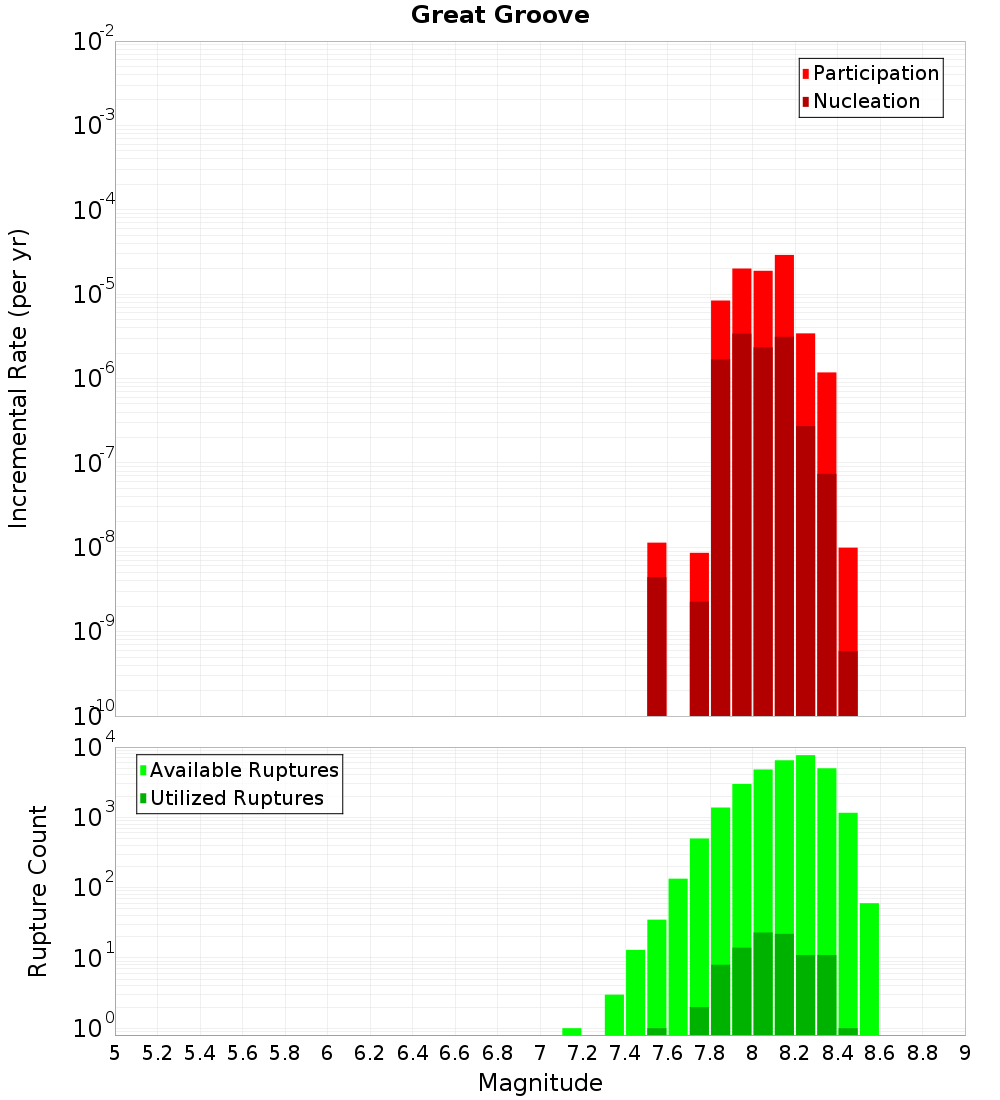

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

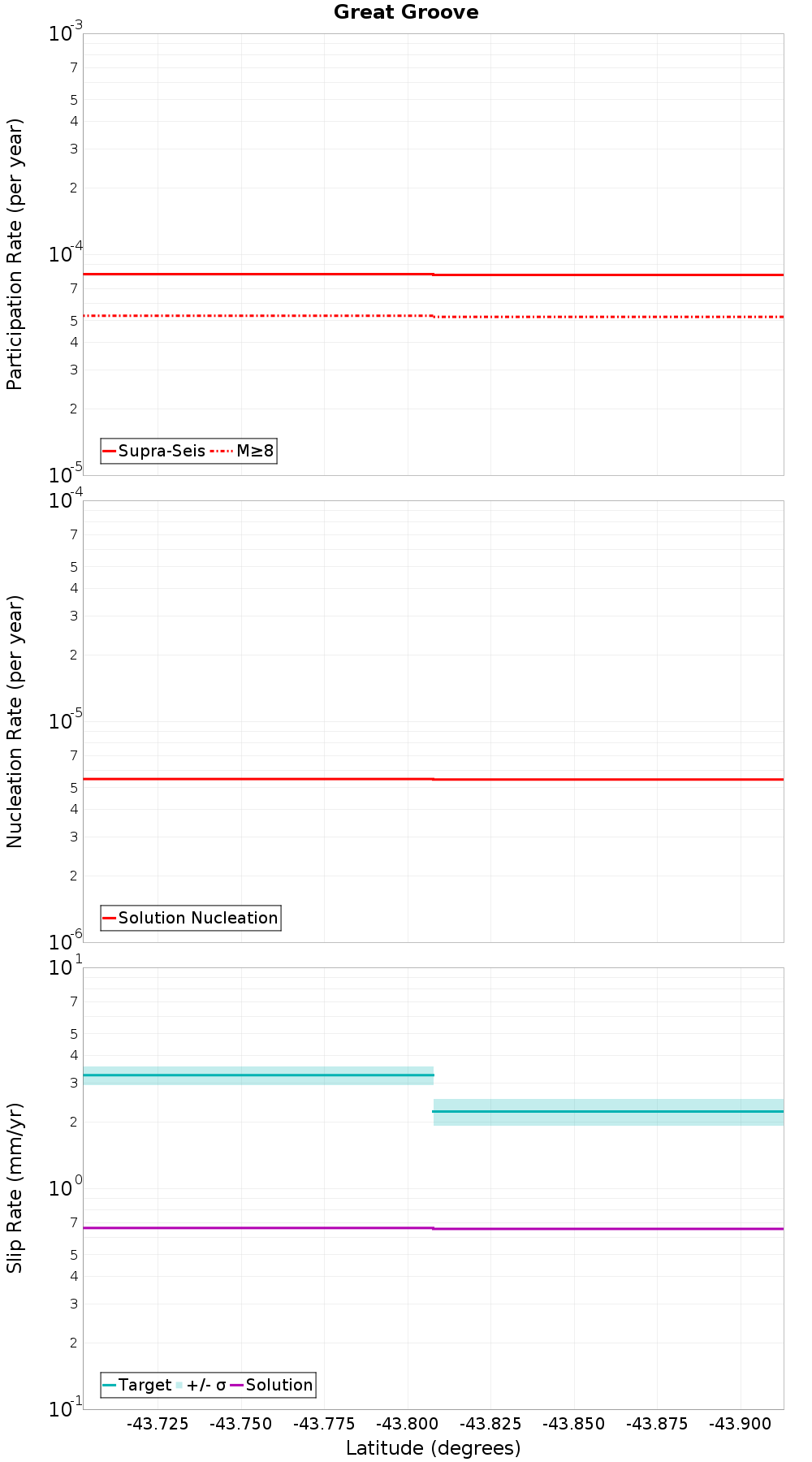

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

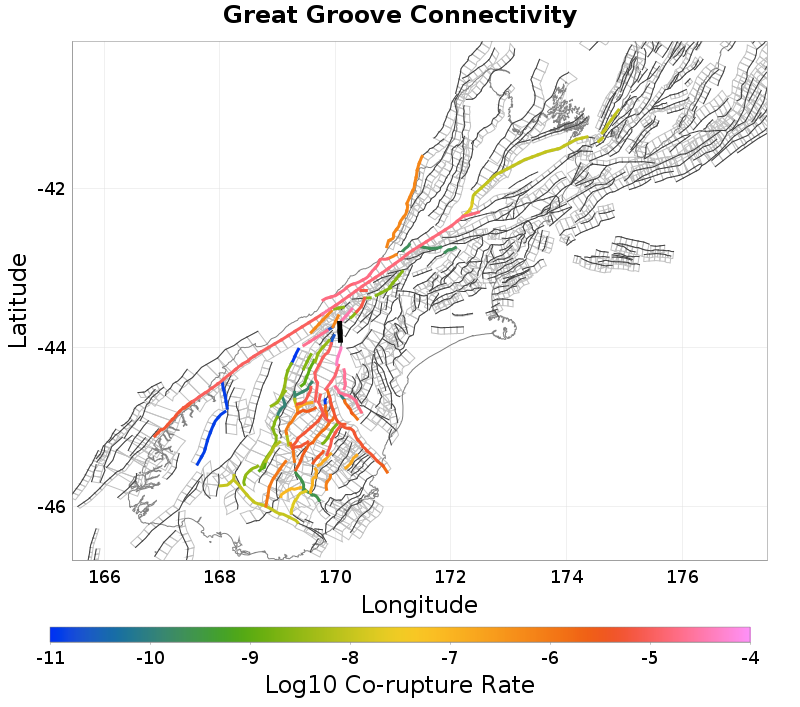

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Huxley, 0.17 km away
Hopkins, 0.18 km away
Barrier Range, 0.21 km away
Landsborough 2, 0.23 km away
Alpine: Jacksons to Kaniere, 0.58 km away
Ostler North, 0.81 km away
Black Blob - Haast Ridge, 0.9 km away
Karangarua, 3.57 km away
McKerrow - Douglas Duplex, 4.77 km away
Liebig North, 6.25 km away
Murchison 1 - Ice Lake, 6.66 km away
Straight Creek, 10.34 km away
Irishman Creek, 14.31 km away

Huxley, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?true
Directly Connected?false
Co-rupture Count446
Co-rupture Rate0.0

Hopkins, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?true
Directly Connected?true
Co-rupture Count6,102
Co-rupture Rate3.2111893E-9

Barrier Range, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?true
Directly Connected?true
Co-rupture Count12,963
Co-rupture Rate1.0165541E-5

Landsborough 2, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?true
Directly Connected?true
Co-rupture Count7,142
Co-rupture Rate2.1695076E-5

Alpine: Jacksons to Kaniere, 0.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?true
Directly Connected?true
Co-rupture Count4,606
Co-rupture Rate2.5864088E-5

Ostler North, 0.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?true
Directly Connected?true
Co-rupture Count2,348
Co-rupture Rate4.456952E-5

Black Blob - Haast Ridge, 0.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?true
Directly Connected?true
Co-rupture Count16,098
Co-rupture Rate3.2295364E-5

Karangarua, 3.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?true
Directly Connected?true
Co-rupture Count3,608
Co-rupture Rate6.193736E-7

McKerrow - Douglas Duplex, 4.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?true
Directly Connected?true
Co-rupture Count8,531
Co-rupture Rate6.3191885E-7

Liebig North, 6.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?true
Directly Connected?false
Co-rupture Count878
Co-rupture Rate0.0

Murchison 1 - Ice Lake, 6.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?true
Directly Connected?false
Co-rupture Count12,254
Co-rupture Rate7.485318E-6

Straight Creek, 10.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?true
Directly Connected?false
Co-rupture Count3,021
Co-rupture Rate2.5868867E-9

Irishman Creek, 14.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
