Kairakau South Details
| Property | Value |
|---|---|
| Rupture Count | 104 |
| Ruptures Above Sect Min Mag | 101 |
| Ruptures w/ Nonzero Rates | 31 |
| Magnitude Range | [6.81, 7.76] |
| Length Range | [17, 142] km |
| Total Rate | 1.7993561E-4 /yr |
| Multi-Fault Rate | 1.7993561E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 7 |
Table Of Contents

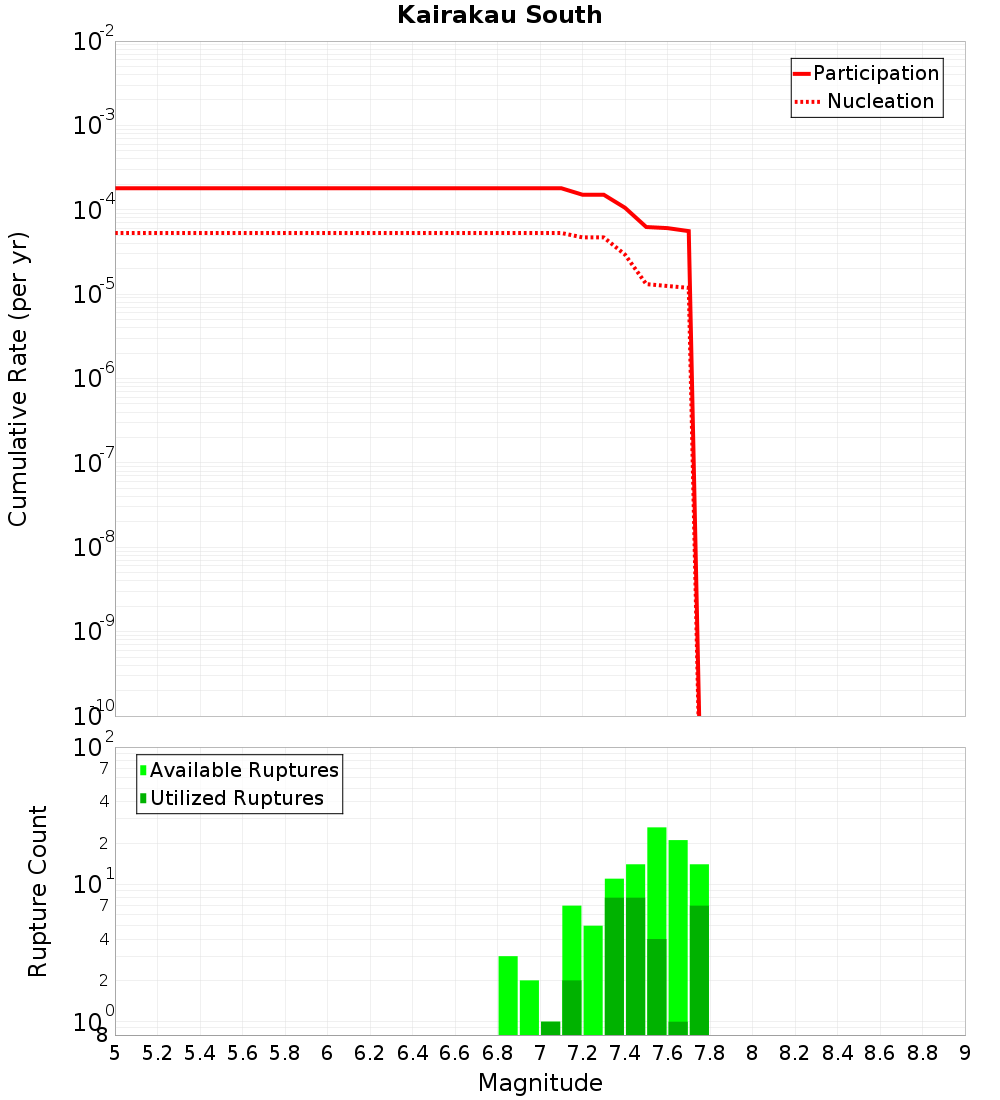

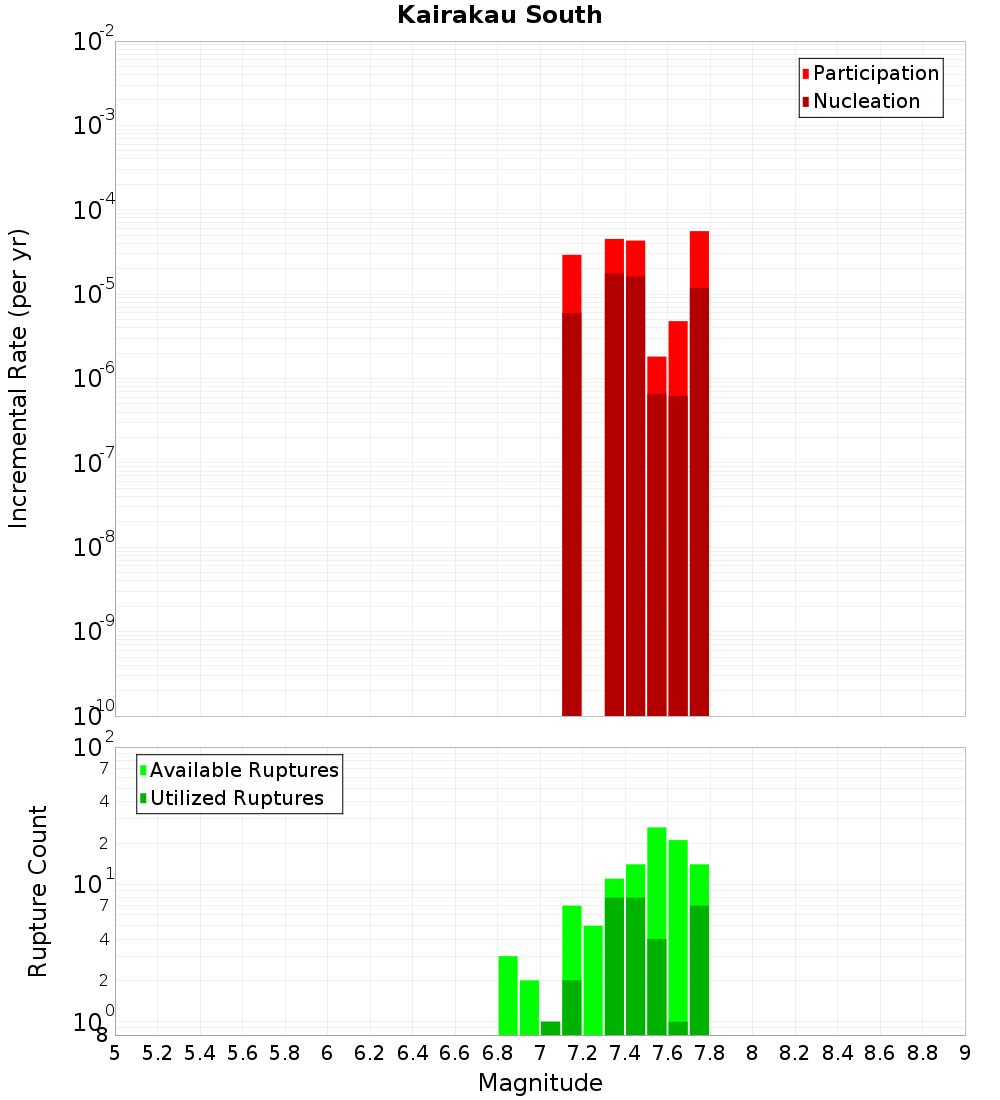

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

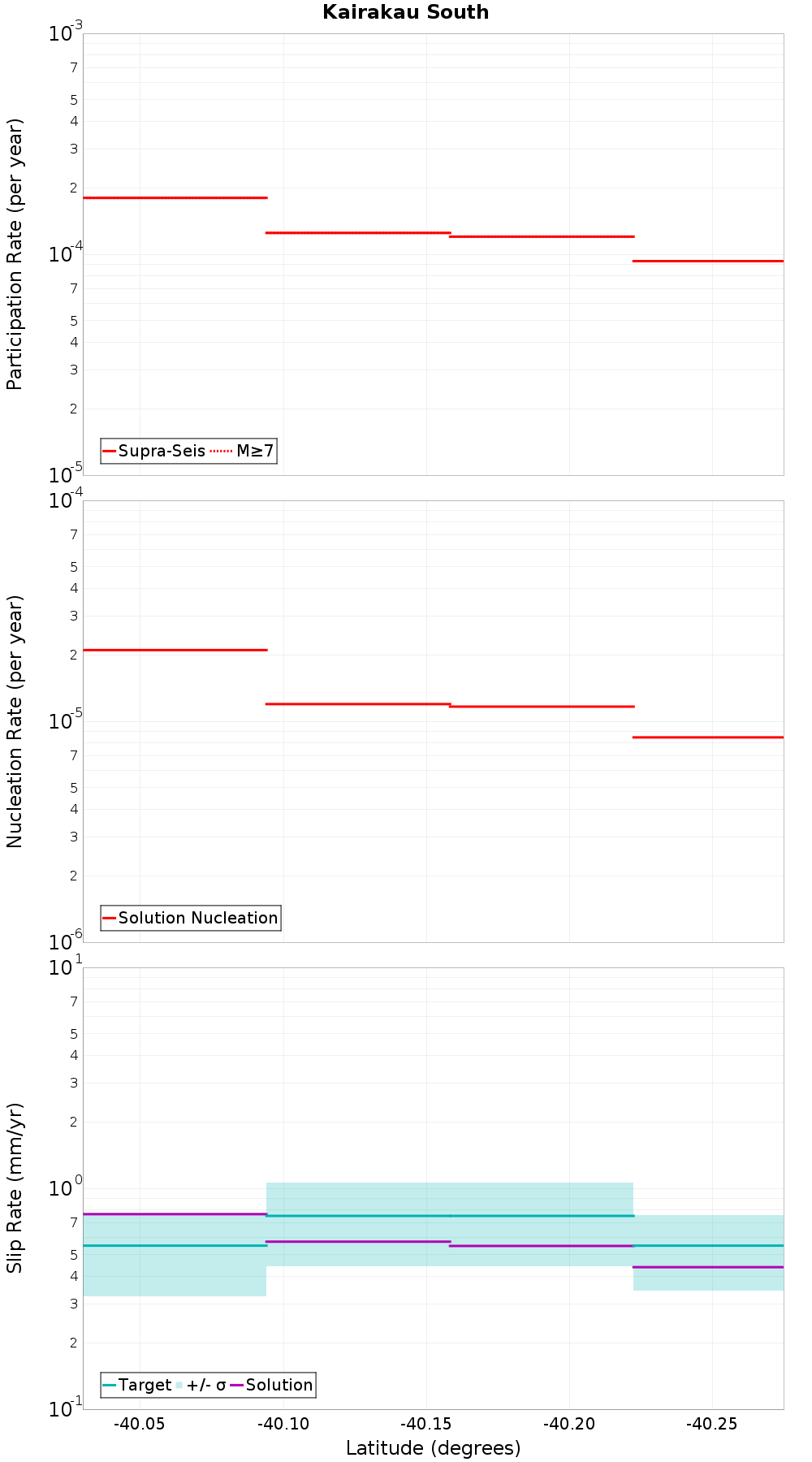

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Kairakau 2, 0 km away |
| Kairakau North, 1.29 km away |
| Waimarama 1 & 2, 8.9 km away |
Kairakau 2, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 53 |
| Co-rupture Rate | 1.2734658E-4 |
Kairakau North, 1.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 39 |
| Co-rupture Rate | 7.456677E-5 |
Waimarama 1 & 2, 8.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 29 |
| Co-rupture Rate | 6.217719E-5 |
