Kotare - Moutuhora Details

PropertyValue
Rupture Count42
Ruptures Above Sect Min Mag39
Ruptures w/ Nonzero Rates16
Magnitude Range[7.05, 7.94]
Length Range[22, 178] km
Total Rate1.5647517E-4 /yr
Multi-Fault Rate1.5647517E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults11

Table Of Contents

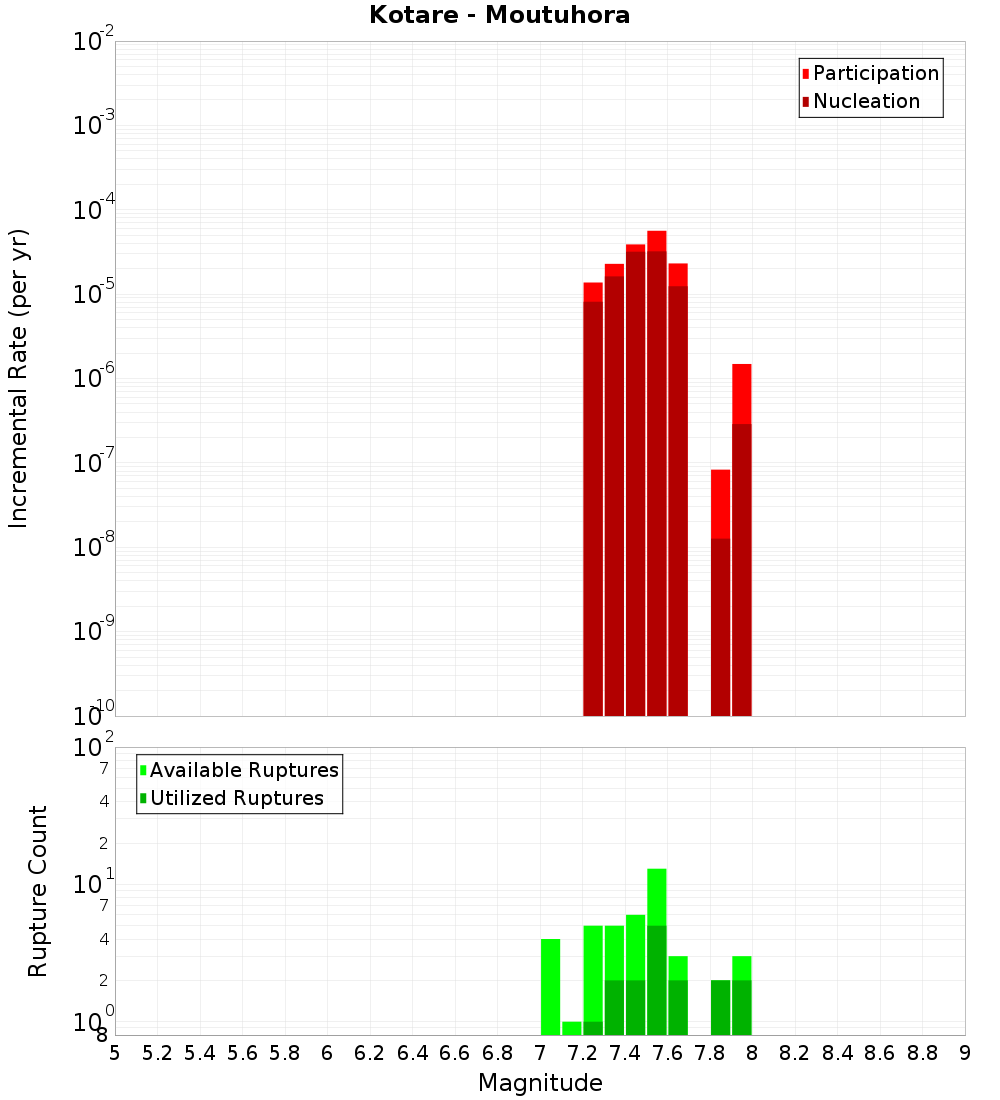

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

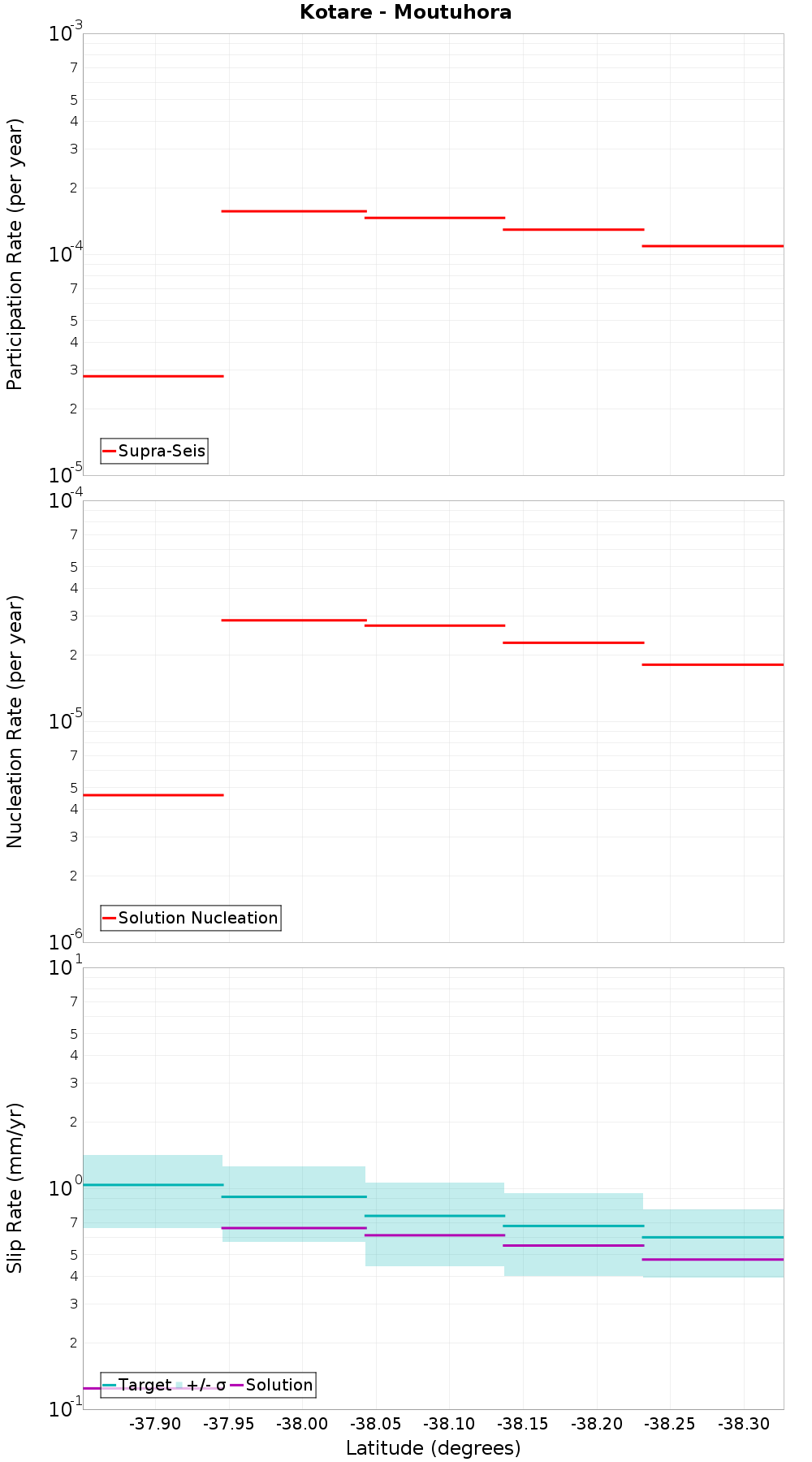

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

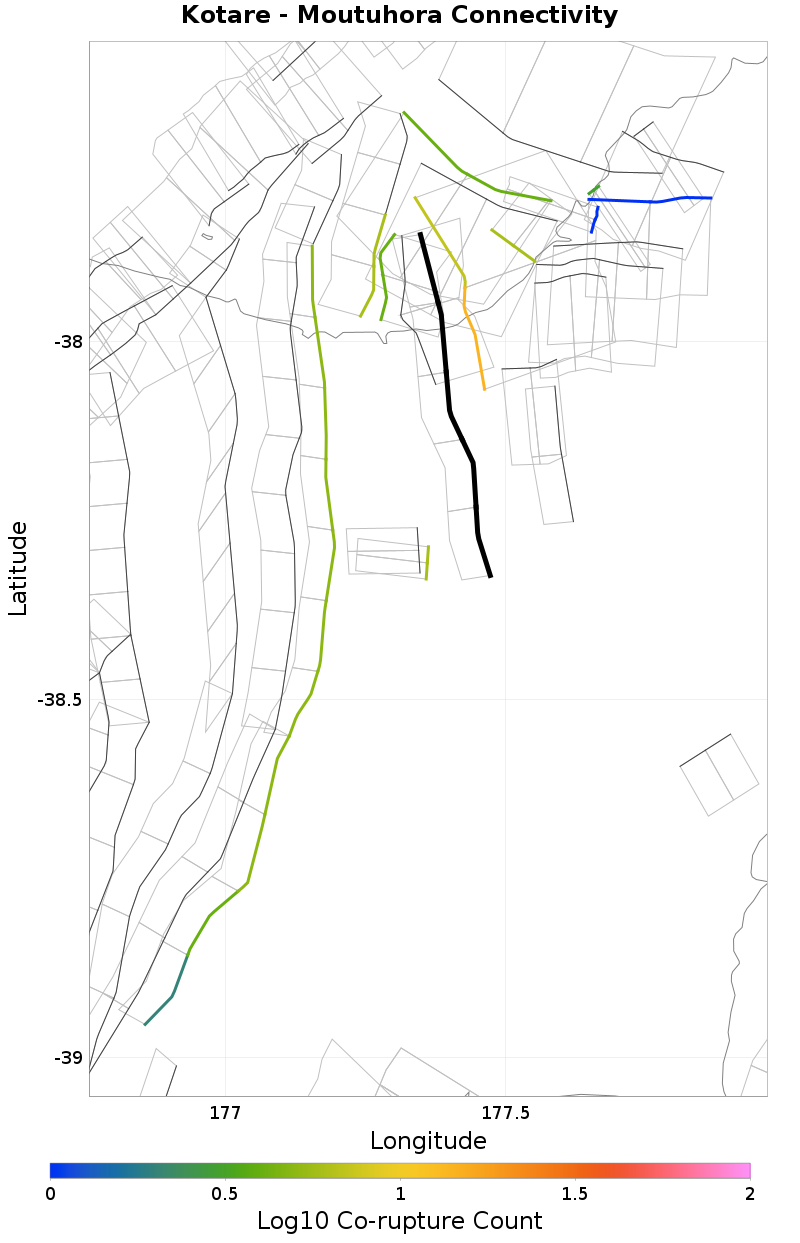

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Opotiki 2, 0.08 km away
Ohae 2, 0.13 km away
Ohae 1, 0.18 km away
Tirohanga, 0.36 km away
Opape 1, 2.38 km away
Opotiki 3, 6.08 km away
Raukumara 9, 7.8 km away
Raukumara 16, 8.71 km away
Wairata, 9.2 km away
Ohae 3, 10.99 km away
Motu, 13.58 km away
Waimanawa - Waikaremoana, 14.49 km away

Opotiki 2, 0.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate8.198697E-5

Ohae 2, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohae 1, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate3.4620254E-5

Tirohanga, 0.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opape 1, 2.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?true
Directly Connected?true
Co-rupture Count14
Co-rupture Rate1.9655556E-5

Opotiki 3, 6.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?true
Directly Connected?true
Co-rupture Count6
Co-rupture Rate1.5700956E-6

Raukumara 9, 7.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?true
Directly Connected?true
Co-rupture Count6
Co-rupture Rate6.317403E-5

Raukumara 16, 8.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairata, 9.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohae 3, 10.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate1.4254602E-5

Motu, 13.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimanawa - Waikaremoana, 14.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
