Lyell South Details

PropertyValue
Rupture Count7,077
Ruptures Above Sect Min Mag7,072
Ruptures w/ Nonzero Rates95
Magnitude Range[6.90, 8.57]
Length Range[19, 817] km
Total Rate8.822303E-5 /yr
Multi-Fault Rate8.8200846E-5 /yr (99.97%)
Directly-Connected Faults4
All Co-Rupturing Faults82

Table Of Contents

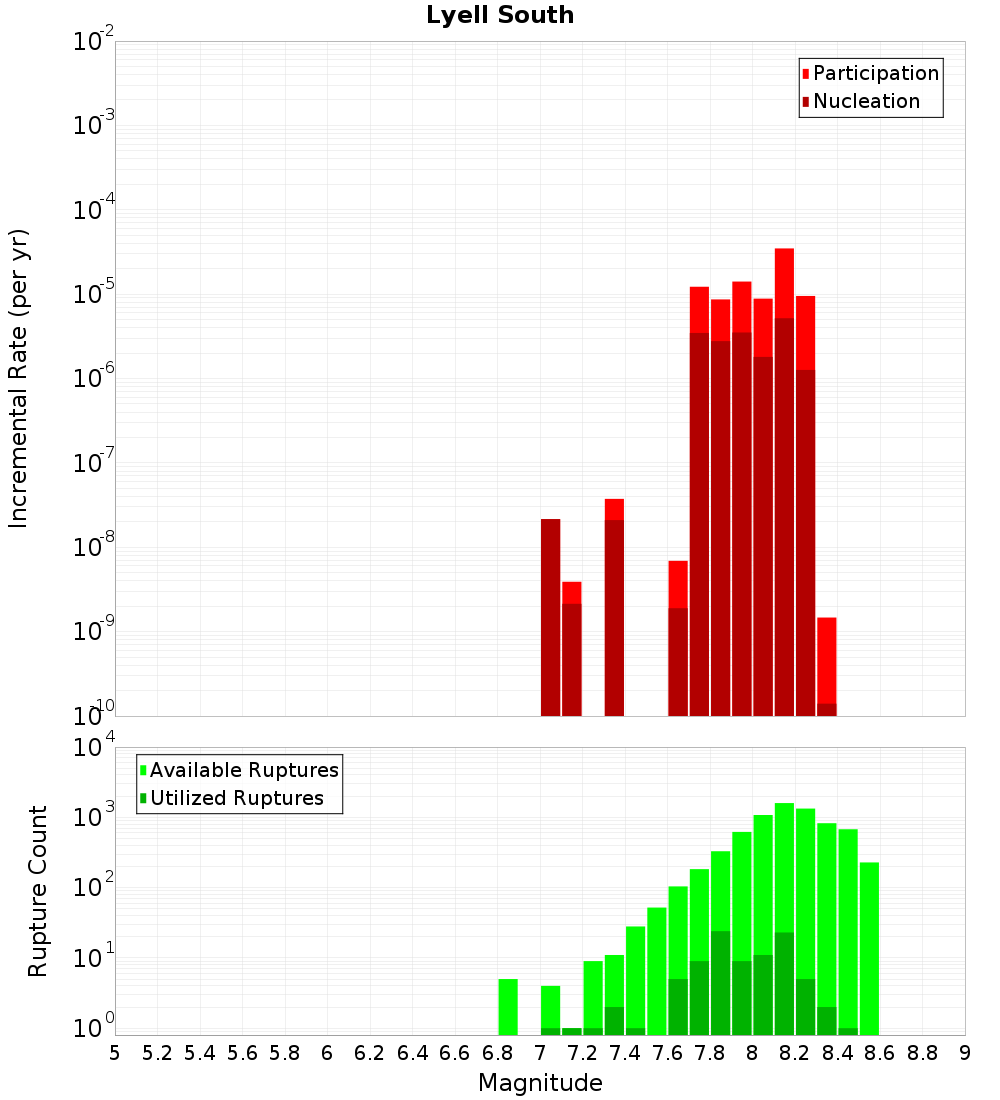

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

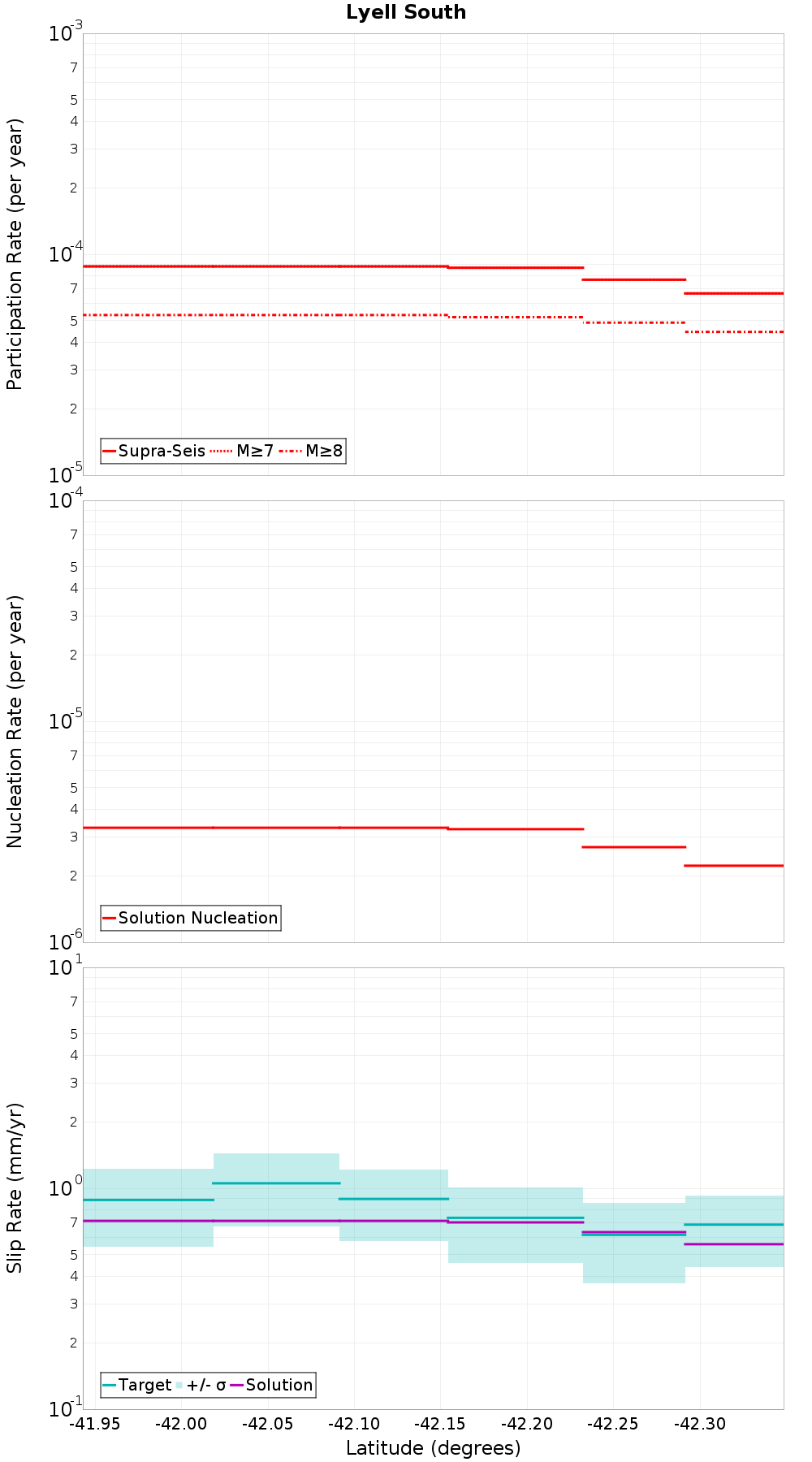

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

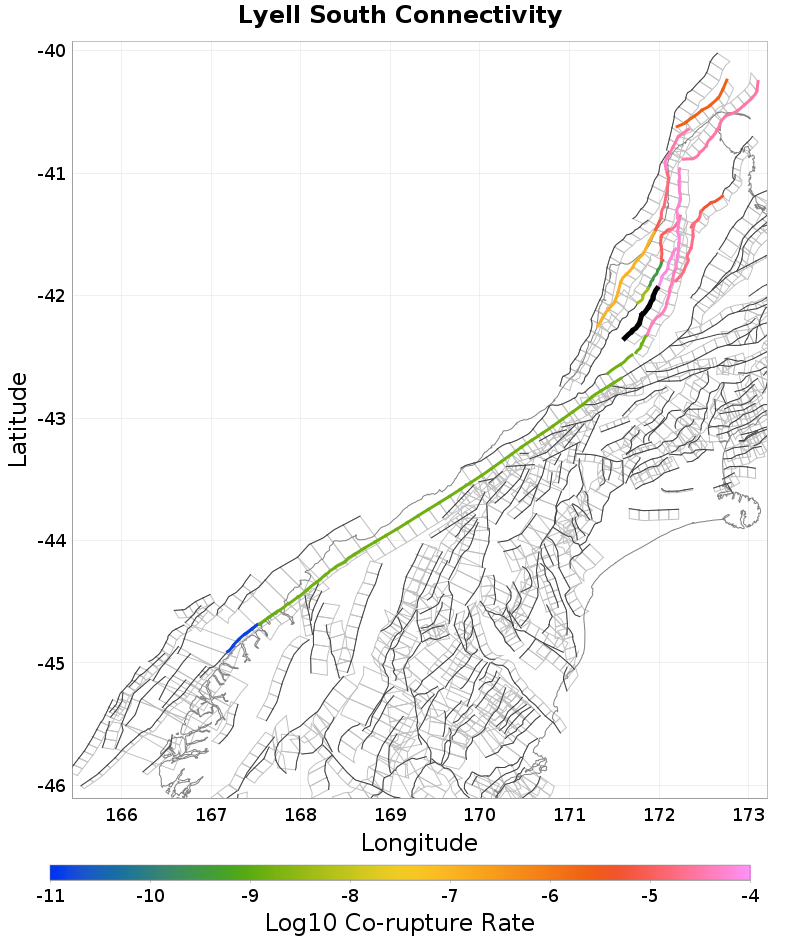

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Lyell, 1.51 km away
White Creek, 6.37 km away
Maimai: North, 7.01 km away
White Creek - buried, 7.38 km away
Inangahua, 9 km away
Maimai, 9.15 km away
Maimai: South, 11.15 km away
Matiri West, 13.9 km away

Lyell, 1.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?true
Directly Connected?true
Co-rupture Count4,884
Co-rupture Rate8.551266E-5

White Creek, 6.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?true
Directly Connected?true
Co-rupture Count6,518
Co-rupture Rate6.430059E-5

Maimai: North, 7.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?true
Directly Connected?true
Co-rupture Count267
Co-rupture Rate4.2421755E-9

White Creek - buried, 7.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?true
Directly Connected?false
Co-rupture Count5,726
Co-rupture Rate1.4825353E-9

Inangahua, 9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?true
Directly Connected?false
Co-rupture Count866
Co-rupture Rate2.872727E-10

Maimai, 9.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate0.0

Maimai: South, 11.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?true
Directly Connected?true
Co-rupture Count71
Co-rupture Rate0.0

Matiri West, 13.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?true
Directly Connected?false
Co-rupture Count1,069
Co-rupture Rate1.8677334E-5
