McKerrow - Douglas Duplex Details

PropertyValue
Rupture Count31,968
Ruptures Above Sect Min Mag31,968
Ruptures w/ Nonzero Rates61
Magnitude Range[6.97, 8.56]
Length Range[17, 773] km
Total Rate6.146347E-5 /yr
Multi-Fault Rate6.146347E-5 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults228

Table Of Contents

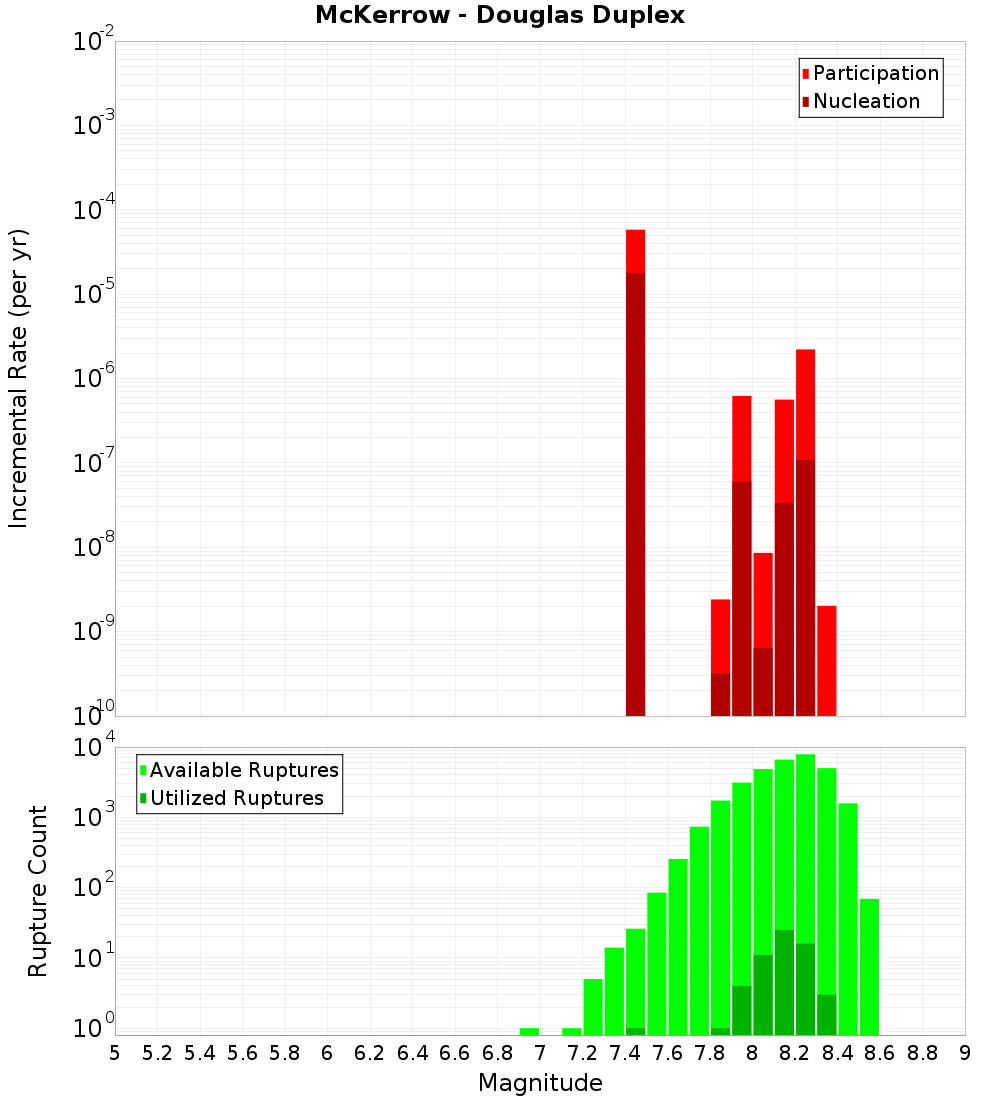

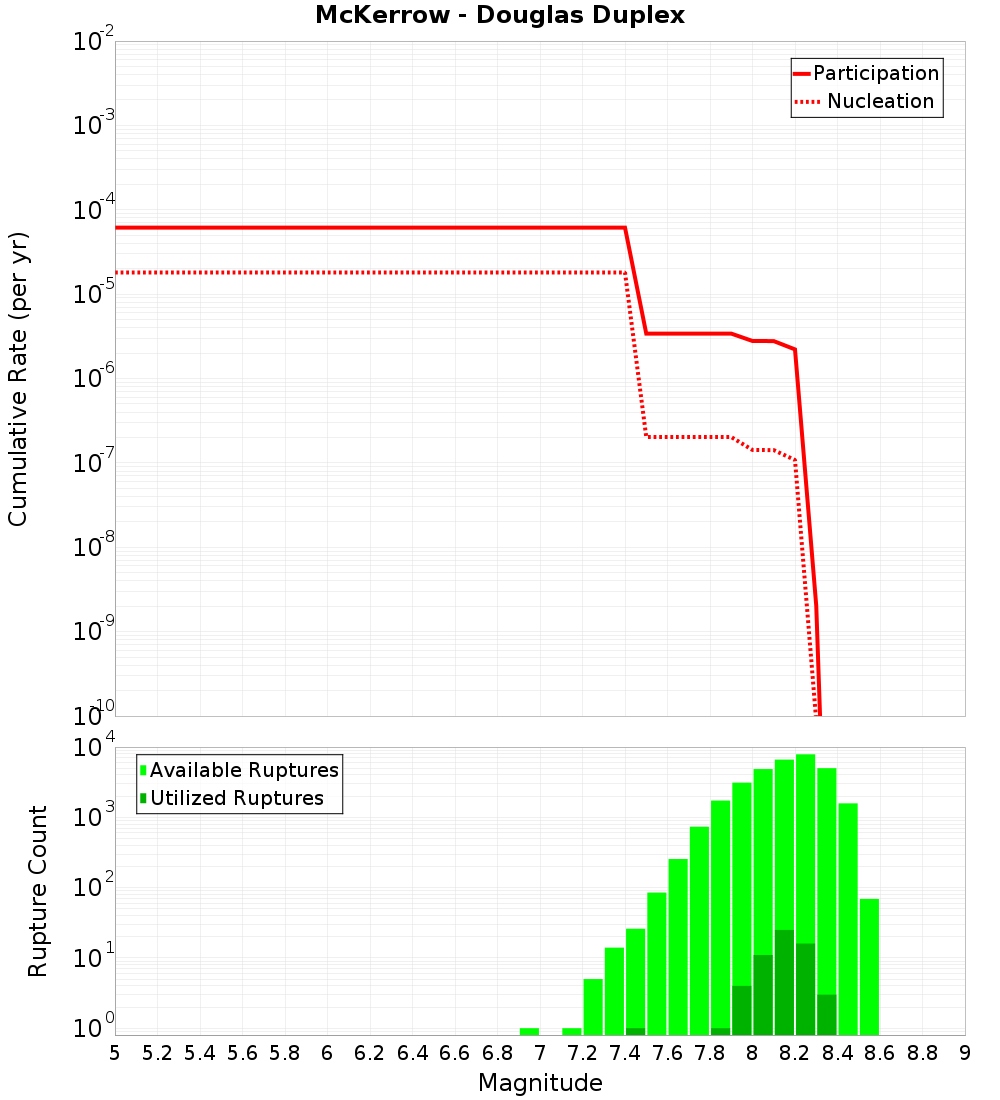

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

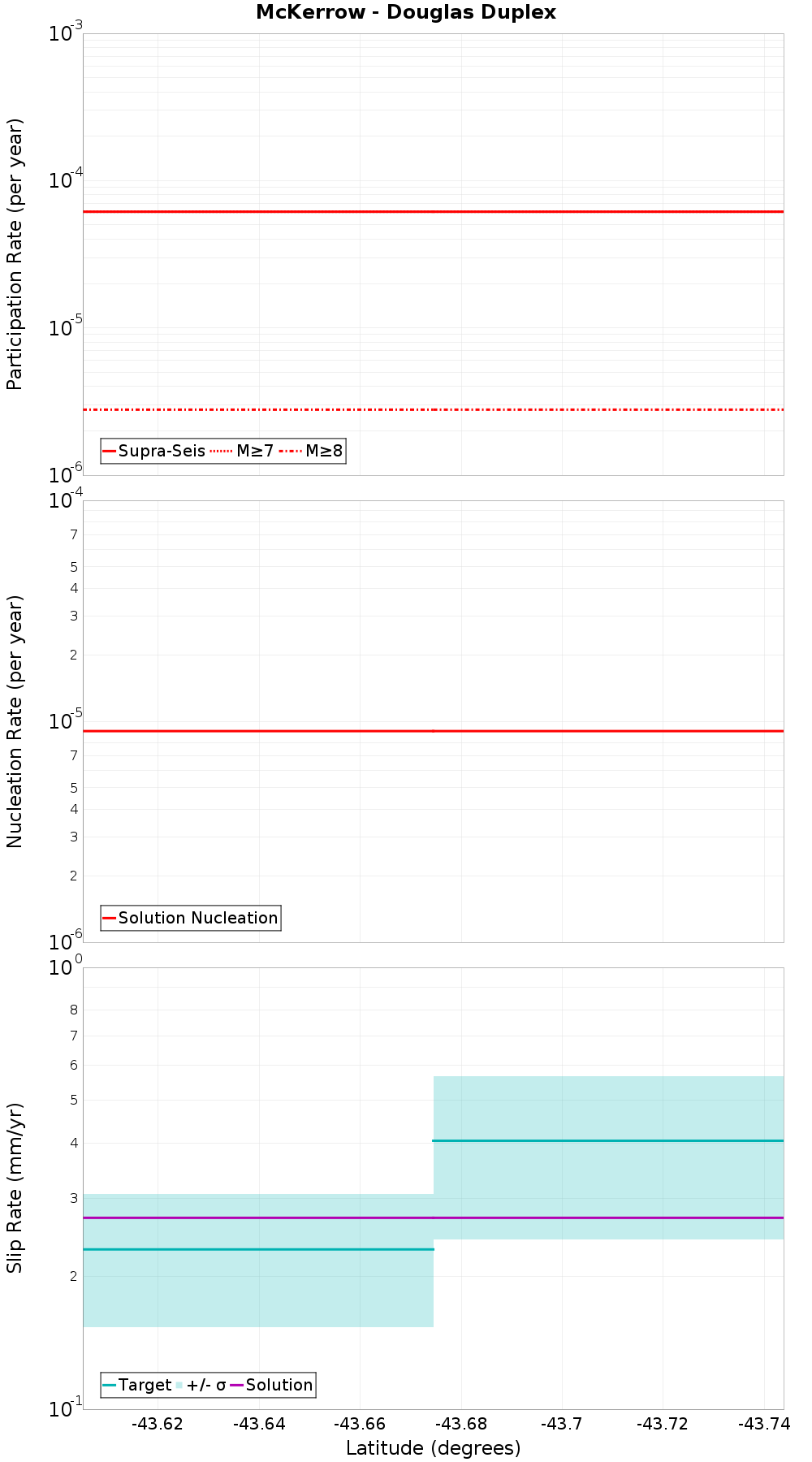

Along-Strike Values

(top)

Along-strike plot

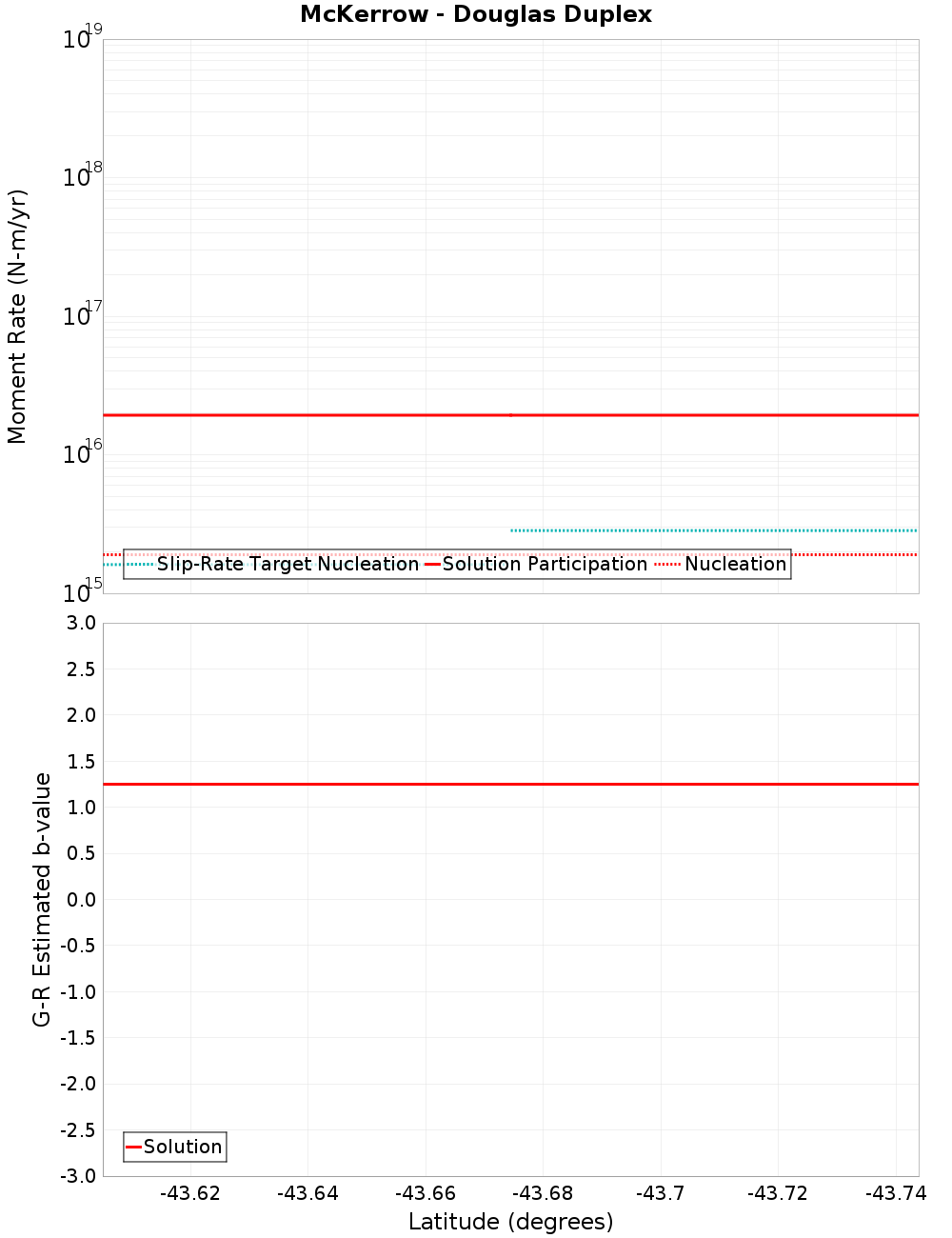

Moment-Rates and b-Values

(top)

Along-strike plot

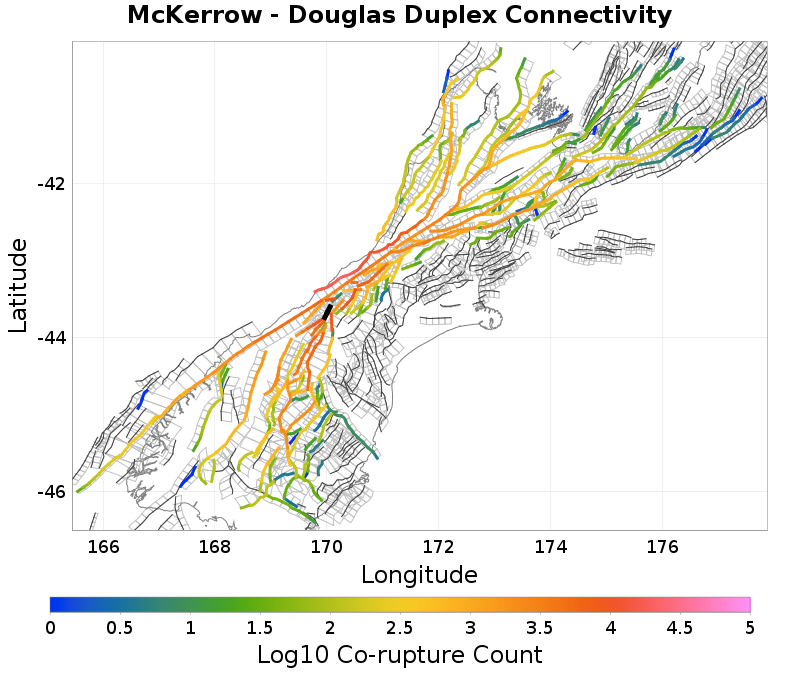

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Landsborough 2, 0 km away
Alpine: Jacksons to Kaniere, 0.1 km away
Karangarua, 0.24 km away
Straight Creek, 1.75 km away
Hohonu South, 2.56 km away
Great Groove, 4.77 km away
Black Blob - Haast Ridge, 4.95 km away
Huxley, 5.04 km away
Hopkins, 8.79 km away
Mt Roon, 8.92 km away
Murchison 1 - Ice Lake, 9.71 km away
Barrier Range, 11.94 km away

Landsborough 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?true
Directly Connected?true
Co-rupture Count9,759
Co-rupture Rate6.263337E-7

Alpine: Jacksons to Kaniere, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?true
Directly Connected?true
Co-rupture Count9,304
Co-rupture Rate2.7789406E-6

Karangarua, 0.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?true
Directly Connected?true
Co-rupture Count1,419
Co-rupture Rate6.2377603E-7

Straight Creek, 1.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?true
Directly Connected?true
Co-rupture Count9,334
Co-rupture Rate6.0826696E-5

Hohonu South, 2.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?true
Directly Connected?true
Co-rupture Count25,535
Co-rupture Rate3.6662133E-8

Great Groove, 4.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?true
Directly Connected?true
Co-rupture Count8,531
Co-rupture Rate6.3191885E-7

Black Blob - Haast Ridge, 4.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?true
Directly Connected?true
Co-rupture Count1,869
Co-rupture Rate0.0

Huxley, 5.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?true
Directly Connected?true
Co-rupture Count6,676
Co-rupture Rate5.8056077E-5

Hopkins, 8.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?true
Directly Connected?false
Co-rupture Count6,371
Co-rupture Rate5.8641403E-10

Mt Roon, 8.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate0.0

Murchison 1 - Ice Lake, 9.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?true
Directly Connected?false
Co-rupture Count10,052
Co-rupture Rate2.7514252E-6

Barrier Range, 11.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?true
Directly Connected?false
Co-rupture Count6,035
Co-rupture Rate1.4553945E-11
