Pahaua SE1 Details

Property	Value
Rupture Count	8,104
Ruptures Above Sect Min Mag	8,102
Ruptures w/ Nonzero Rates	39
Magnitude Range	[7.04, 8.53]
Length Range	[23, 651] km
Total Rate	9.680175E-6 /yr
Multi-Fault Rate	9.680175E-6 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	86

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

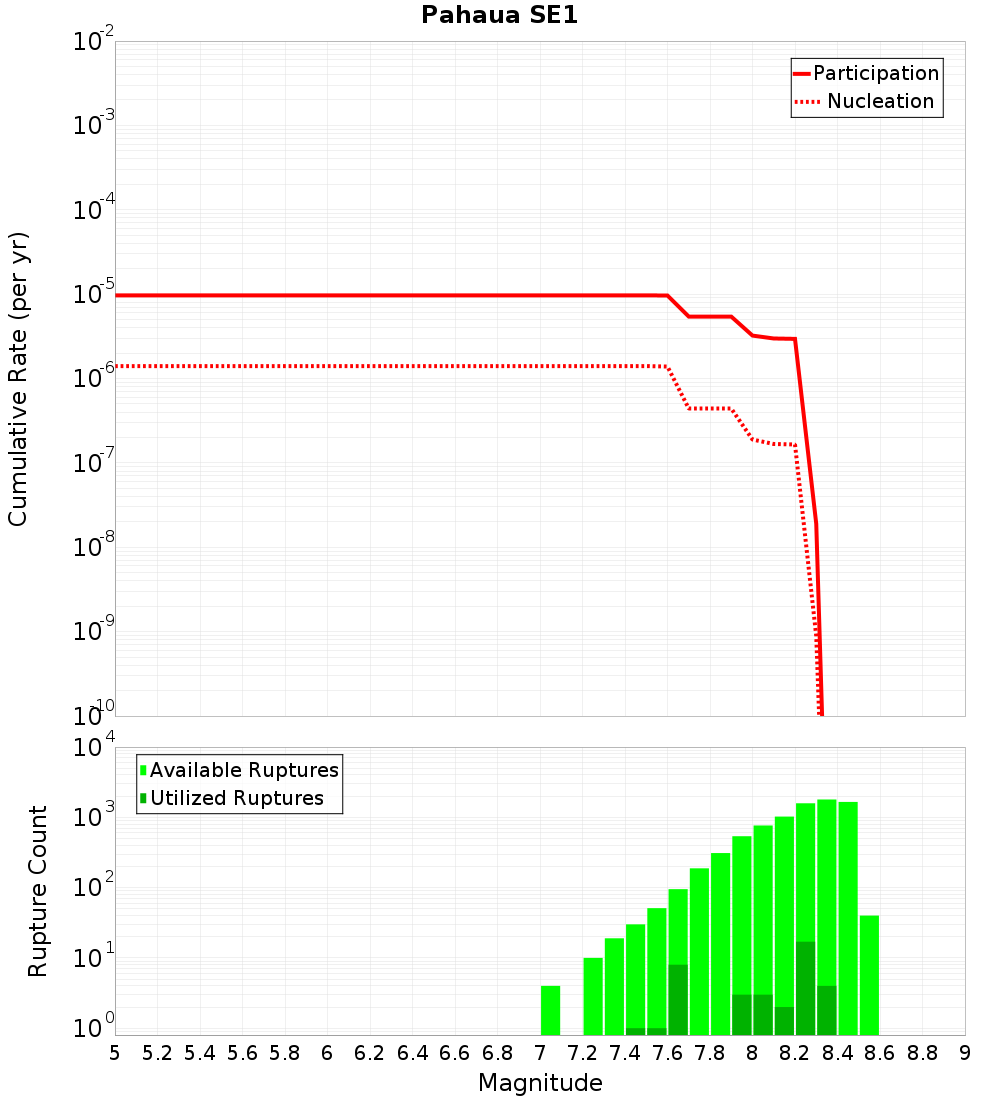

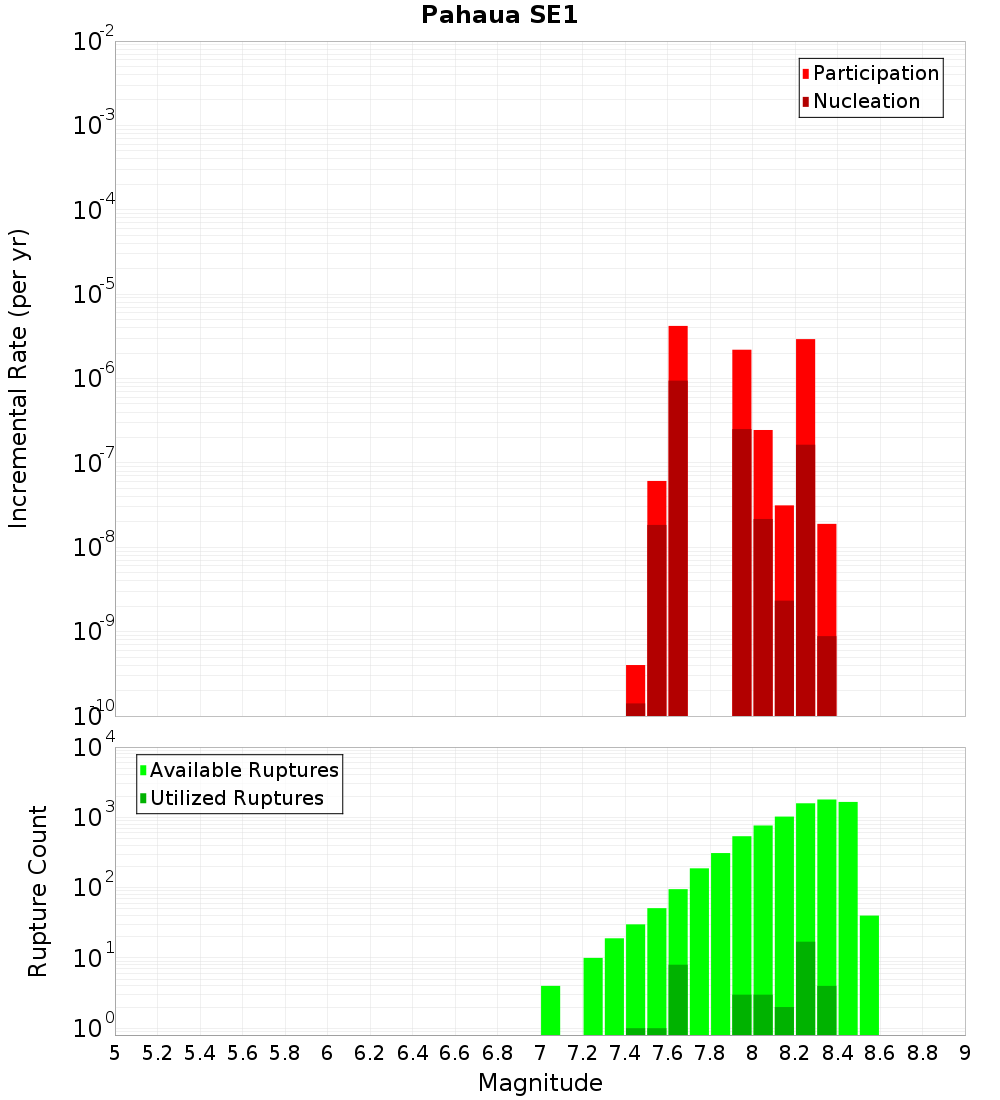

Magnitude-Frequency Distribution

Incremental	Cumulative

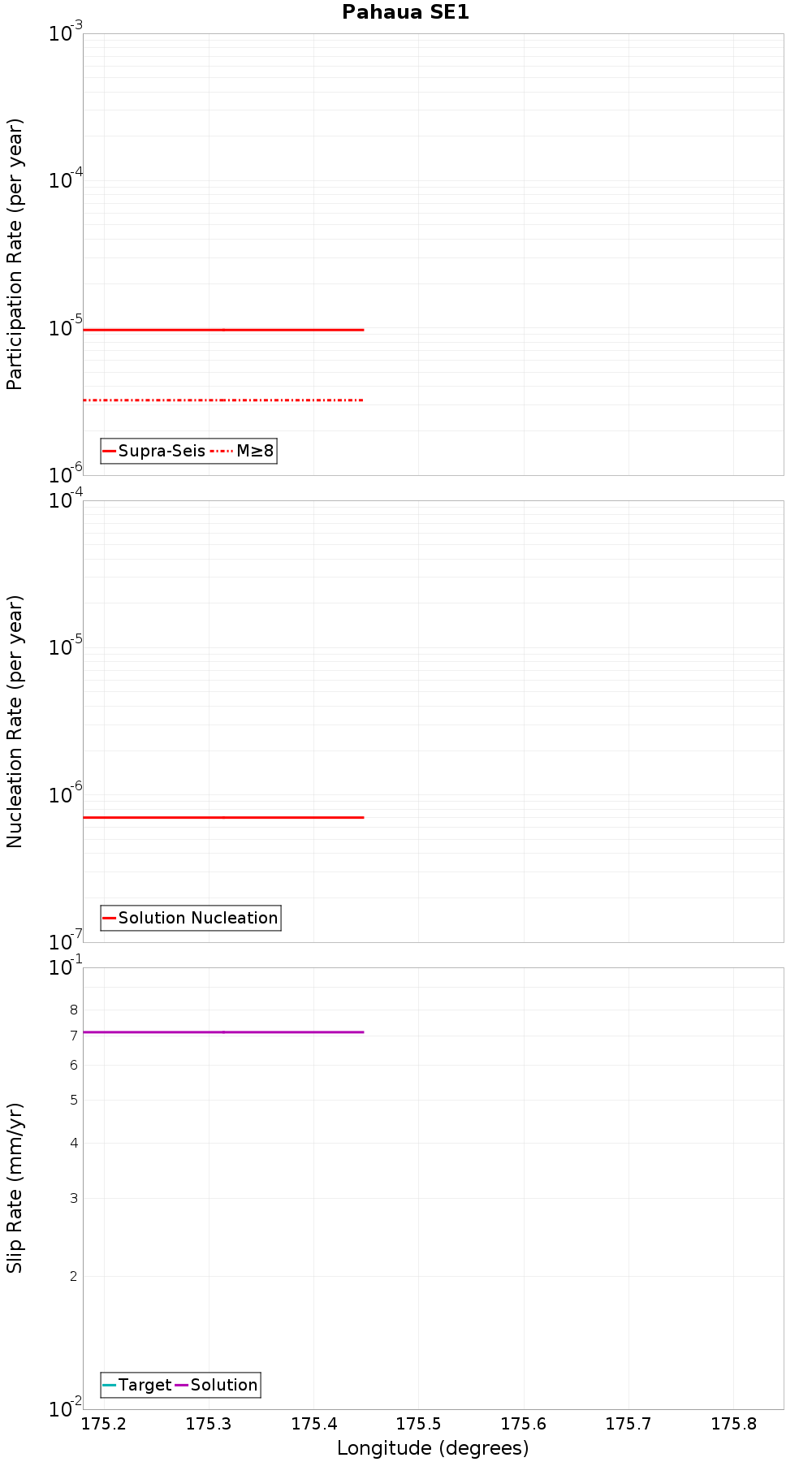

Along-Strike Values

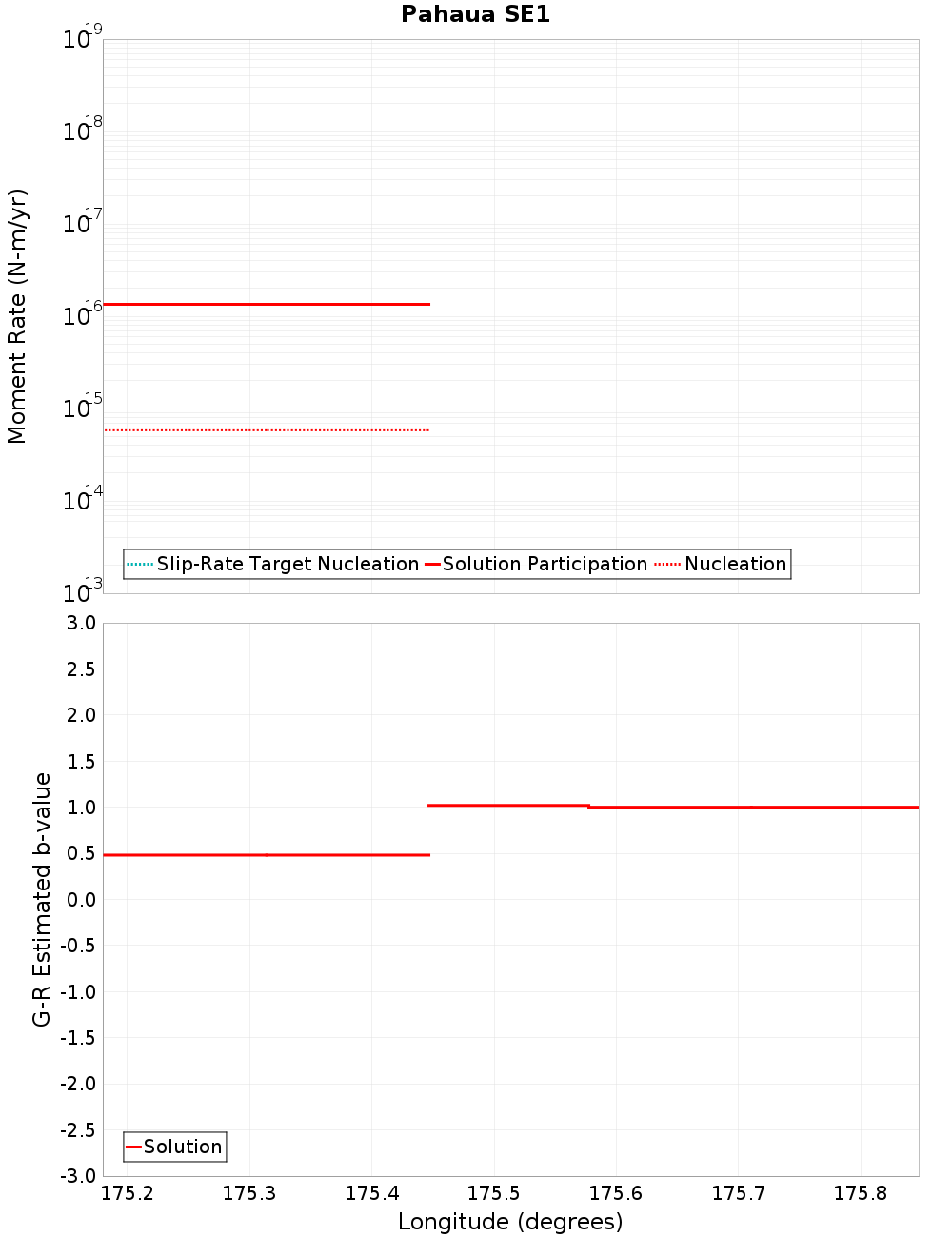

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Kekerengu Bank, 0 km away
Pahaua, 0 km away
BooBoo, 0.69 km away
Pahaua SE2, 1.37 km away
Glendhu Ridge, 3.64 km away
Opouawe - Uruti, 3.87 km away
Honeycomb Ridge, 7.26 km away
Te Rapa 2, 11.33 km away
Ngapotiki, 11.9 km away
Palliser - Kaiwhata, 13.31 km away
Honeycomb, 13.51 km away

Kekerengu Bank, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?	true
Directly Connected?	true
Co-rupture Count	5,054
Co-rupture Rate	5.3248395E-6

Pahaua, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?	true
Directly Connected?	true
Co-rupture Count	1,305
Co-rupture Rate	0.0

BooBoo, 0.69 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?	true
Directly Connected?	true
Co-rupture Count	224
Co-rupture Rate	4.0184175E-10

Pahaua SE2, 1.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?	true
Directly Connected?	true
Co-rupture Count	532
Co-rupture Rate	2.097191E-6

Glendhu Ridge, 3.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?	true
Directly Connected?	true
Co-rupture Count	6,489
Co-rupture Rate	9.679773E-6

Opouawe - Uruti, 3.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?	true
Directly Connected?	true
Co-rupture Count	406
Co-rupture Rate	0.0

Honeycomb Ridge, 7.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?	true
Directly Connected?	false
Co-rupture Count	2,969
Co-rupture Rate	5.7724224E-6

Te Rapa 2, 11.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?	true
Directly Connected?	false
Co-rupture Count	24
Co-rupture Rate	0.0

Ngapotiki, 11.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Palliser - Kaiwhata, 13.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Honeycomb, 13.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMENSWTJR
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
