Alpine: George to Jacksons Details

PropertyValue
Rupture Count118,125
Ruptures Above Sect Min Mag118,106
Ruptures w/ Nonzero Rates2,793
Magnitude Range[6.76, 8.48]
Length Range[21, 1,083] km
Total Rate0.0023857807 /yr
Multi-Fault Rate0.0019859502 /yr (83.24%)
Directly-Connected Faults7
All Co-Rupturing Faults211

Table Of Contents

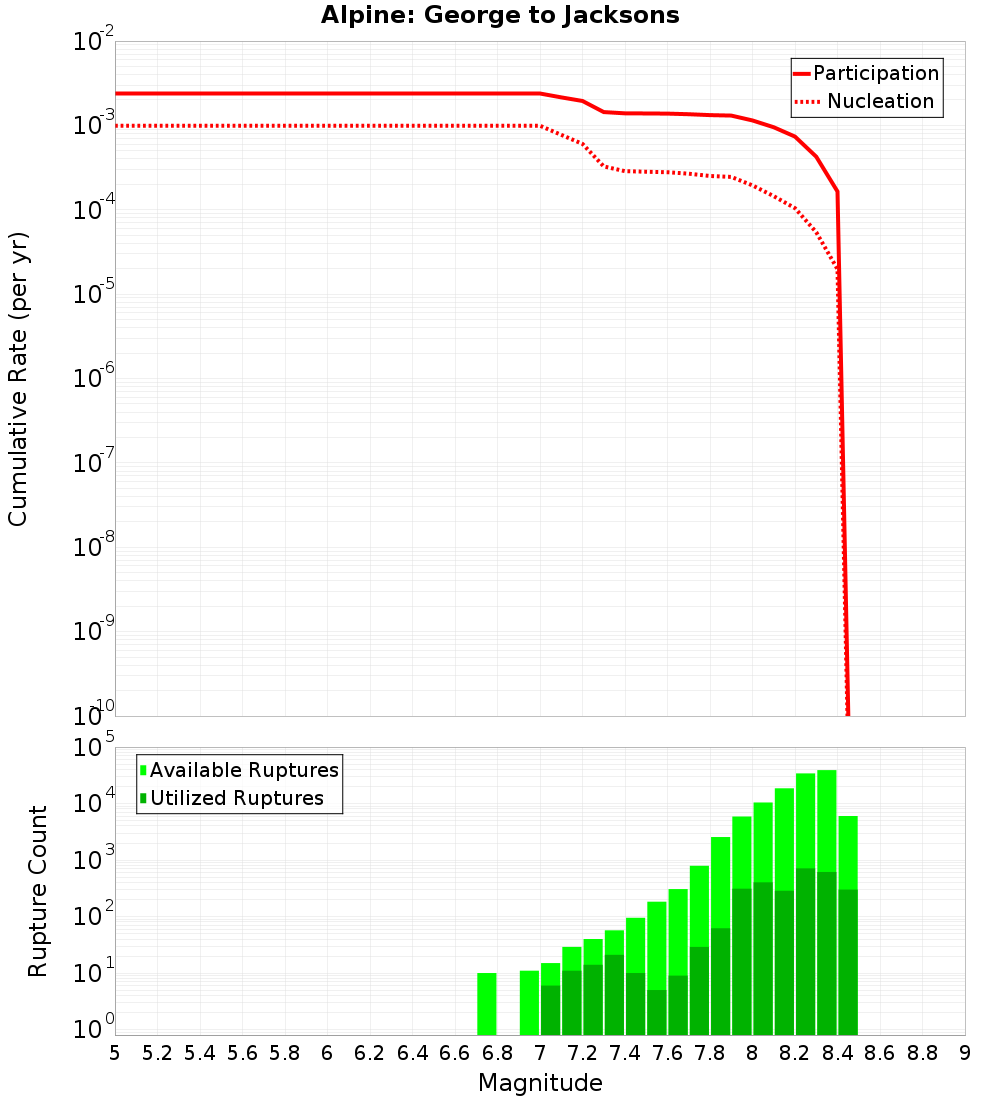

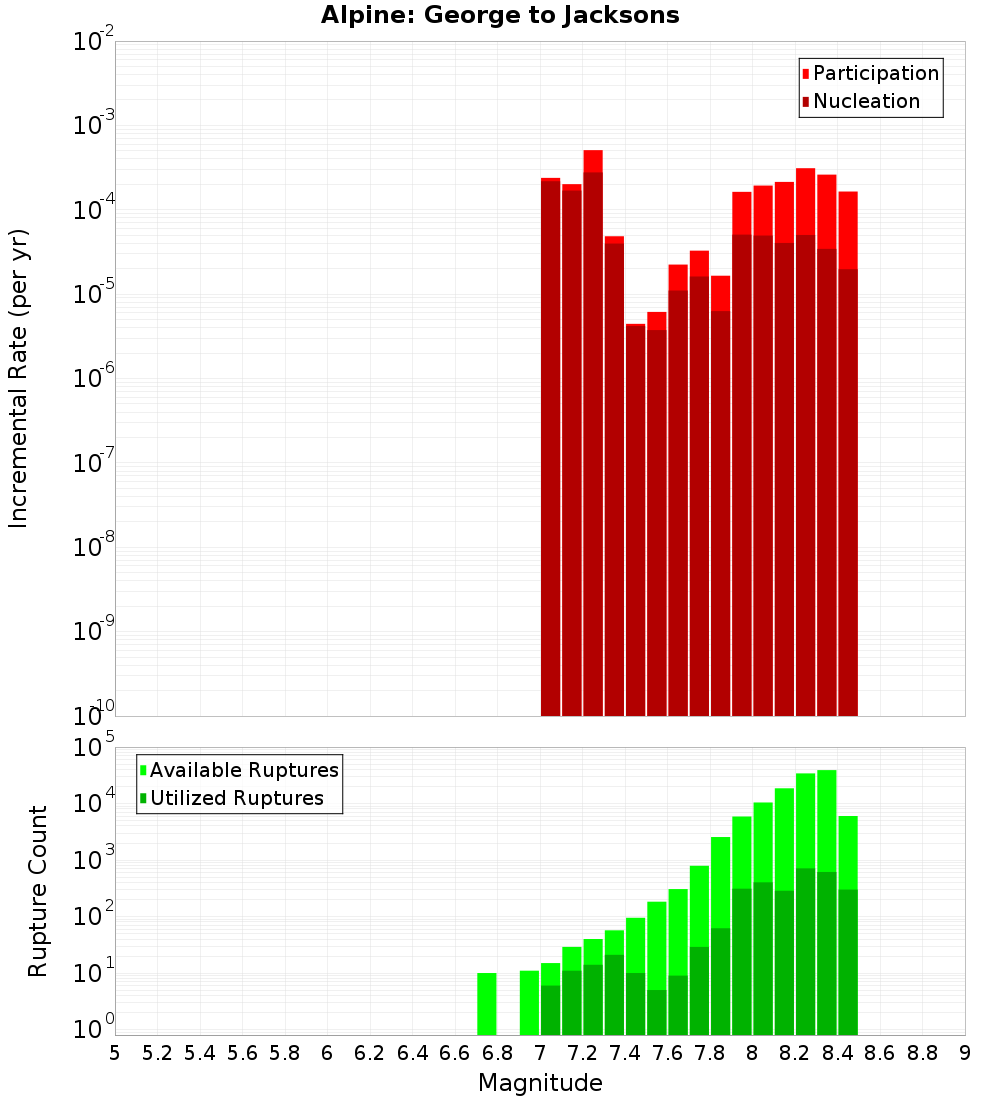

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

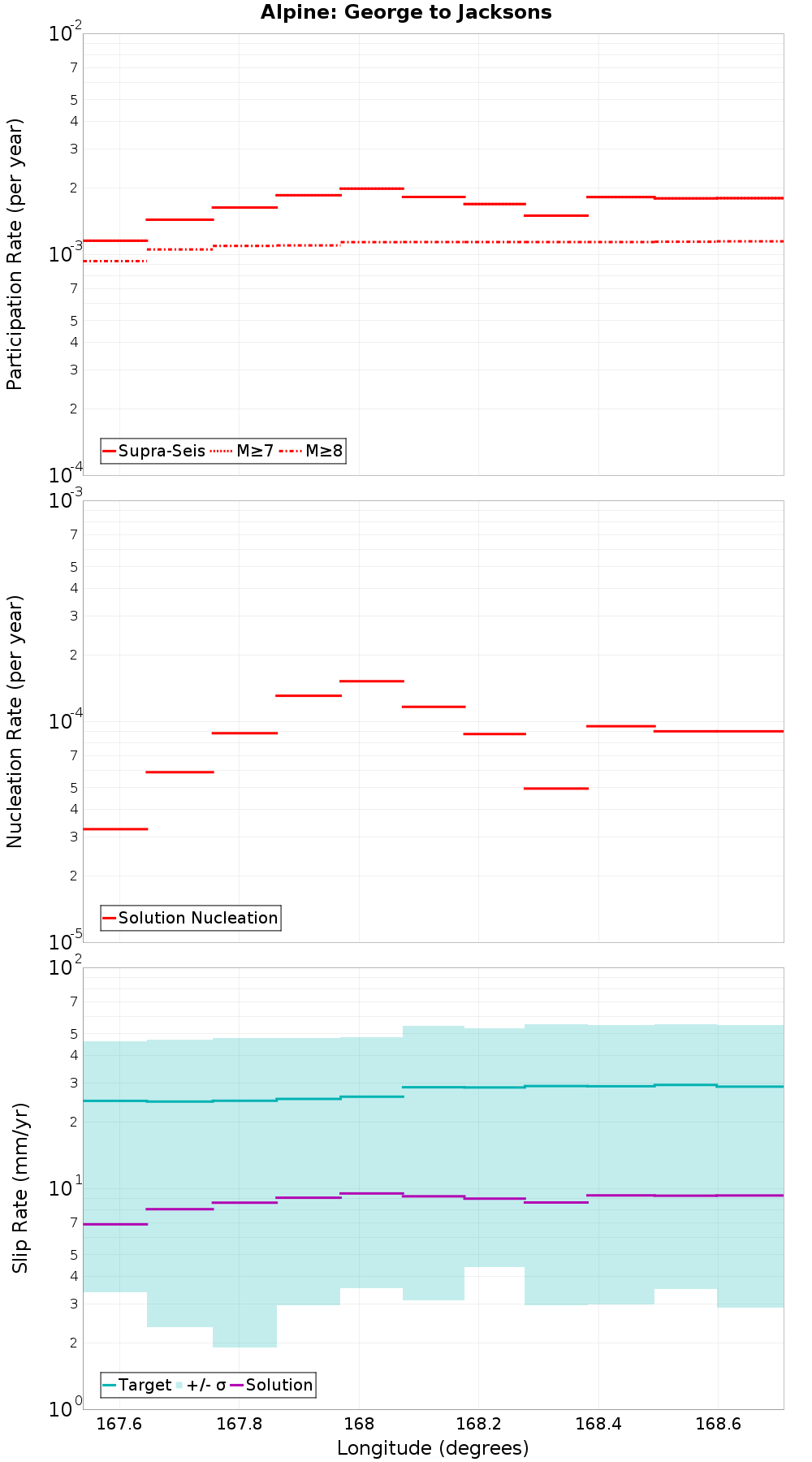

Along-Strike Values

(top)

Along-strike plot

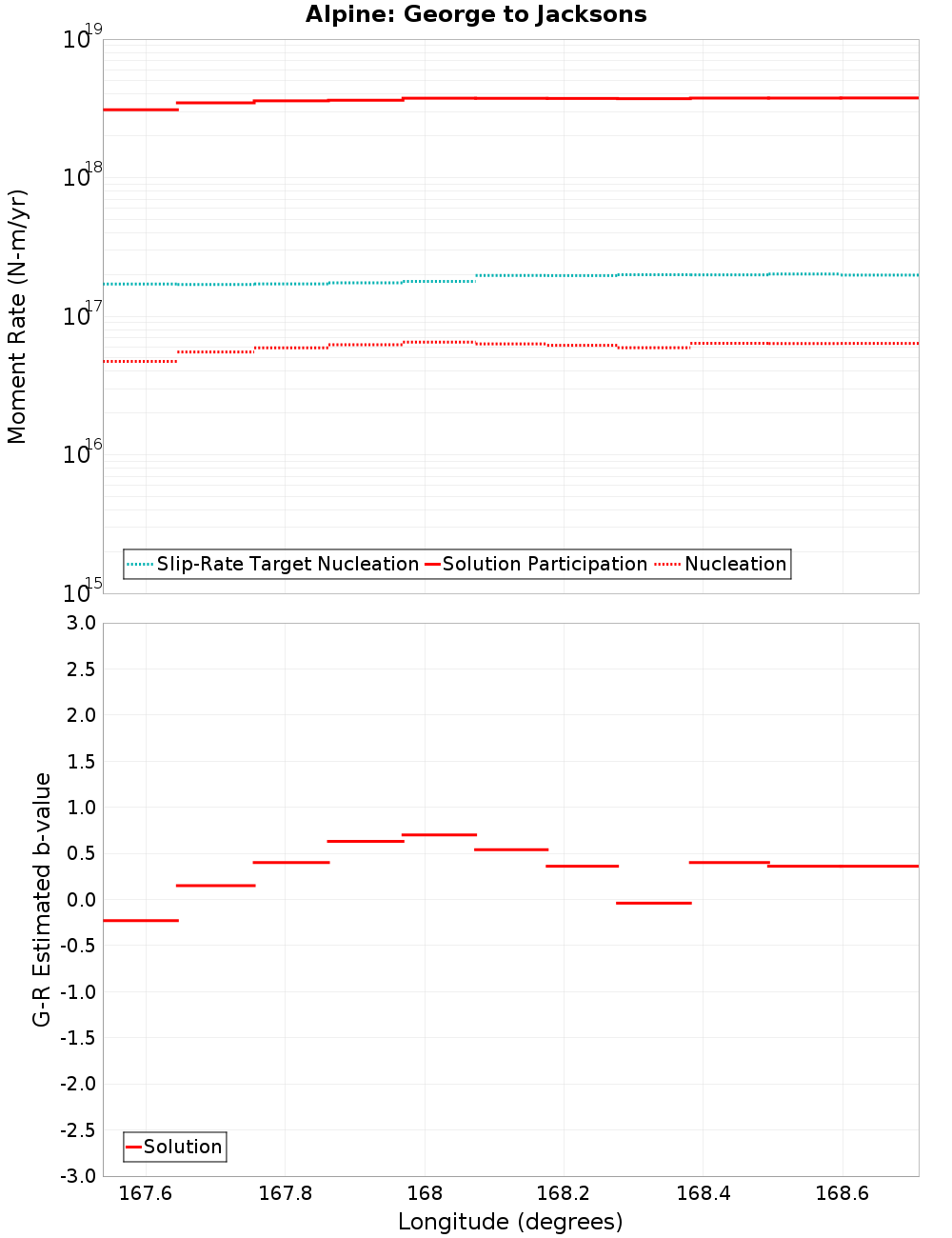

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: George seaward, 0 km away
Alpine: Jacksons to Kaniere, 0 km away
Alpine: George landward, 0 km away
Hollyford, 0.11 km away
Skippers, 0.12 km away
Madagascar, 0.19 km away
Darran, 0.27 km away
Barn, 0.78 km away
Moonlight North, 9.42 km away

Alpine: George seaward, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?true
Co-rupture Count40,145
Co-rupture Rate4.224309E-4

Alpine: Jacksons to Kaniere, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?true
Co-rupture Count115,597
Co-rupture Rate0.0017461549

Alpine: George landward, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?true
Co-rupture Count41,451
Co-rupture Rate6.2049663E-4

Hollyford, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?true
Co-rupture Count1,257
Co-rupture Rate7.943405E-5

Skippers, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?true
Co-rupture Count1,683
Co-rupture Rate1.6368142E-9

Madagascar, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?false
Co-rupture Count236
Co-rupture Rate0.0

Darran, 0.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?true
Co-rupture Count9,073
Co-rupture Rate1.2218143E-4

Barn, 0.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?true
Co-rupture Count687
Co-rupture Rate3.8539885E-5

Moonlight North, 9.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
