Beacon Hill Details

Property	Value
Rupture Count	3,953
Ruptures Above Sect Min Mag	3,952
Ruptures w/ Nonzero Rates	90
Magnitude Range	[6.89, 8.28]
Length Range	[20, 534] km
Total Rate	6.349353E-5 /yr
Multi-Fault Rate	6.349353E-5 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	81

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

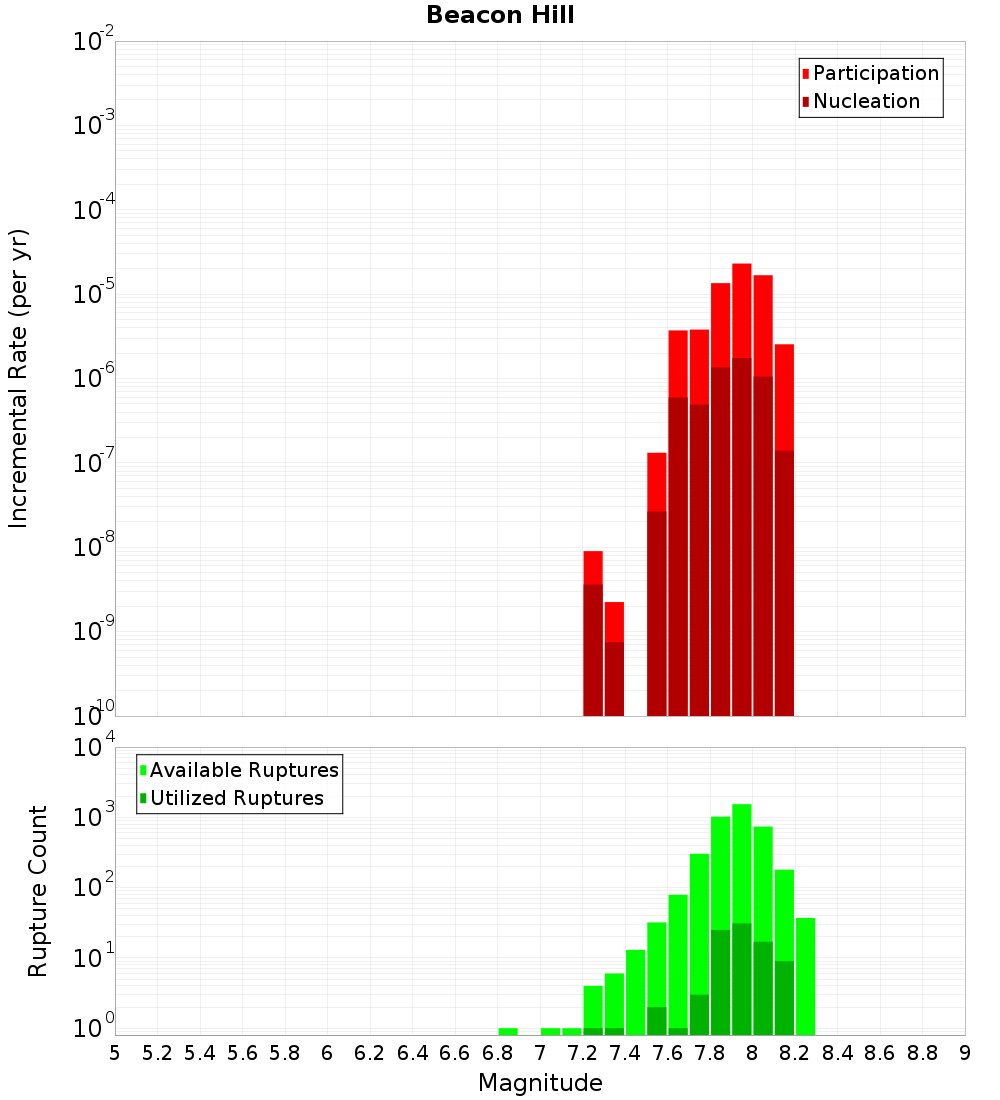

Magnitude-Frequency Distribution

Incremental	Cumulative

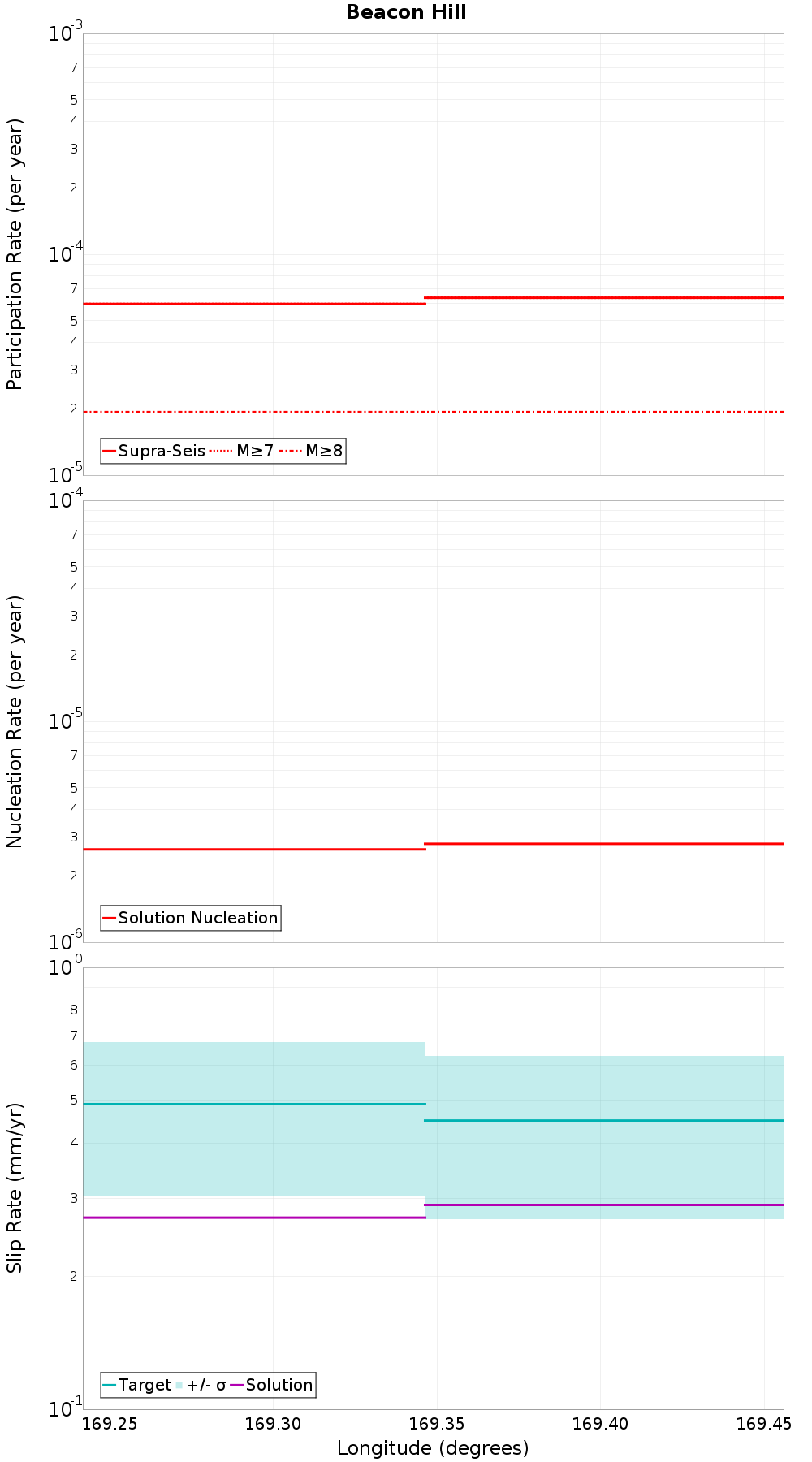

Along-Strike Values

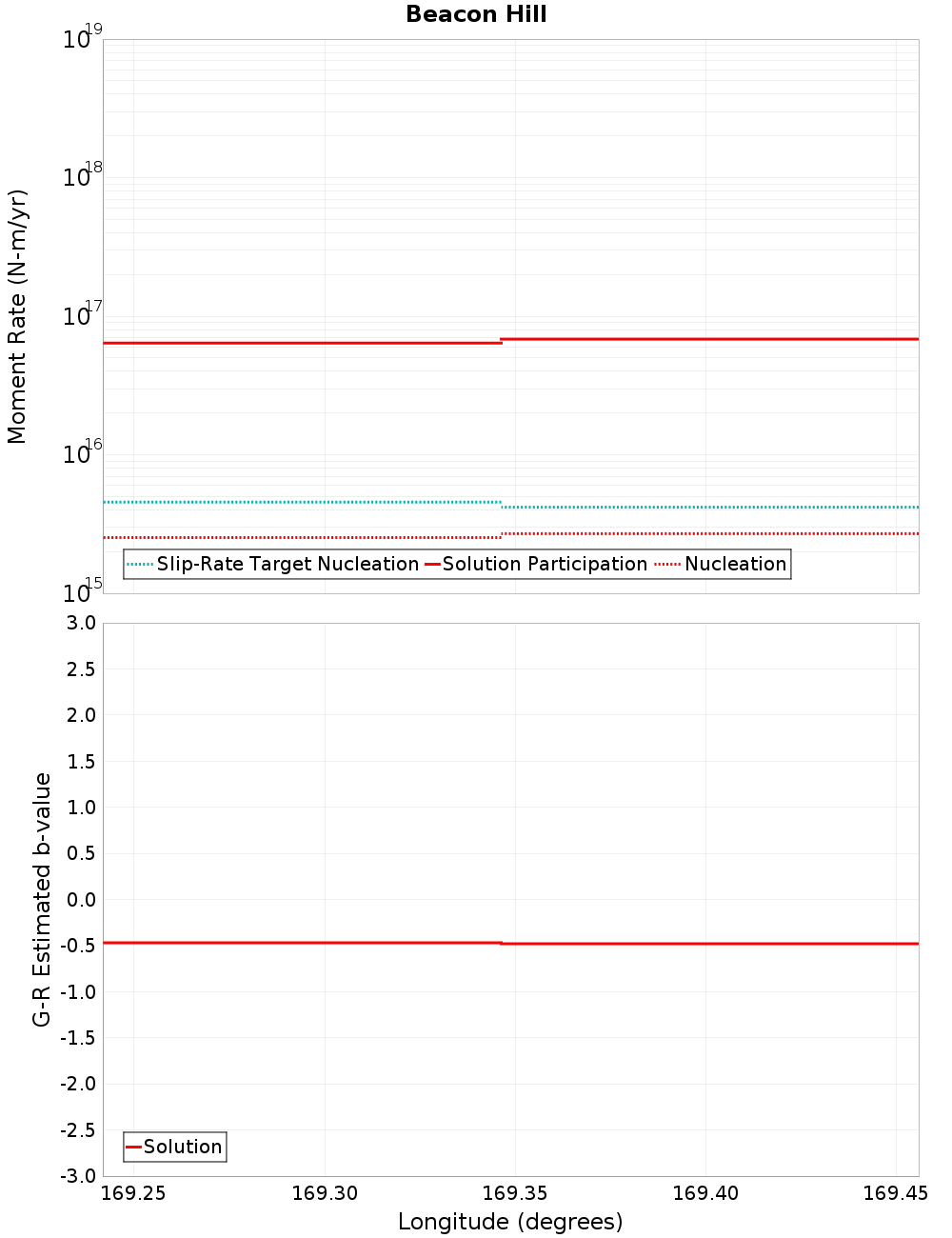

Moment-Rates and b-Values

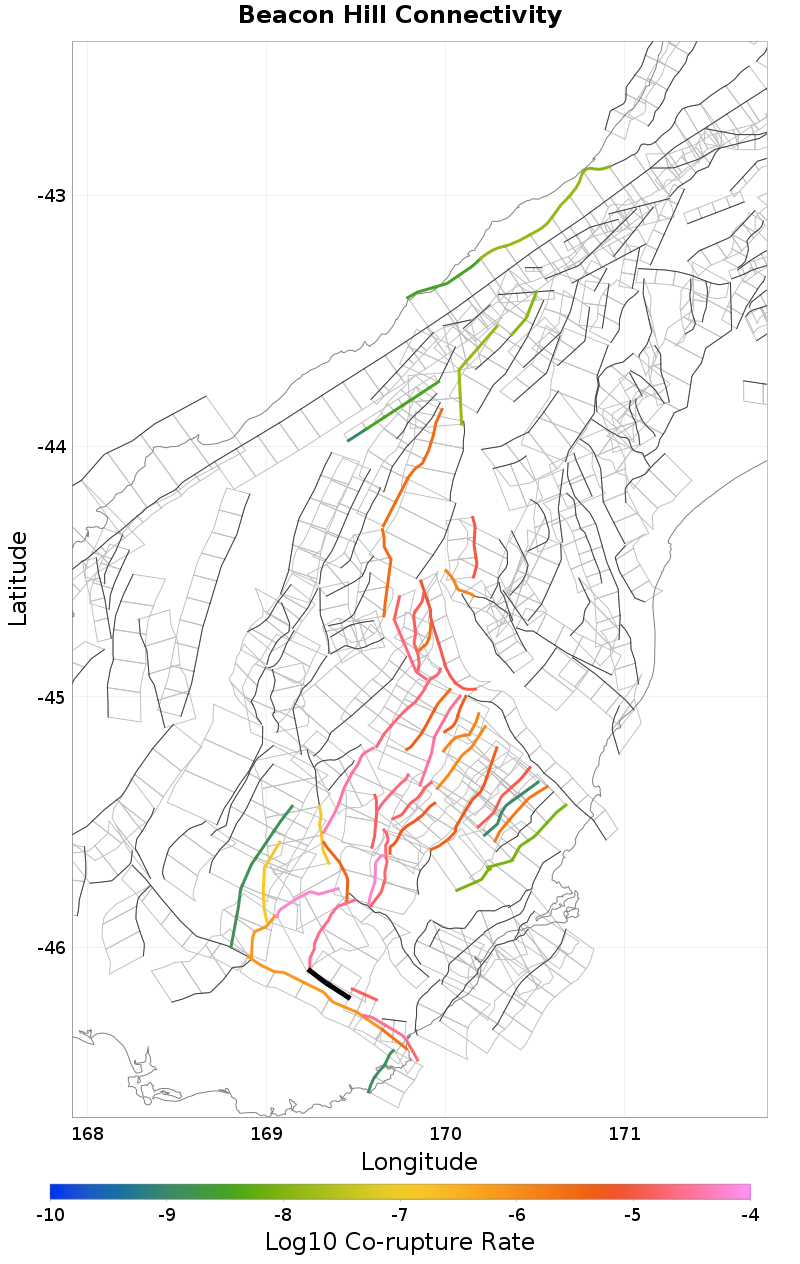

Connectivity

Nearby Sections

Fault Section
Clifton, 0.16 km away
Spylaw, 0.19 km away
Blue Mountain, 0.19 km away
Hillfoot, 4.04 km away
Little Hillfoot, 10.39 km away
Wendon Valley, 11.5 km away
Teviot, 14.74 km away
Tuapeka, 14.85 km away

Clifton, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?	true
Directly Connected?	true
Co-rupture Count	557
Co-rupture Rate	1.4273577E-5

Spylaw, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?	true
Directly Connected?	true
Co-rupture Count	2,900
Co-rupture Rate	5.8494497E-5

Blue Mountain, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?	true
Directly Connected?	true
Co-rupture Count	1,402
Co-rupture Rate	2.4249823E-5

Hillfoot, 4.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?	true
Directly Connected?	true
Co-rupture Count	1,644
Co-rupture Rate	2.294528E-6

Little Hillfoot, 10.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?	true
Directly Connected?	true
Co-rupture Count	587
Co-rupture Rate	2.783858E-5

Wendon Valley, 11.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?	true
Directly Connected?	true
Co-rupture Count	226
Co-rupture Rate	1.3433026E-7

Teviot, 14.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?	true
Directly Connected?	false
Co-rupture Count	707
Co-rupture Rate	3.7282812E-6

Tuapeka, 14.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
