Billys Ridge Details

PropertyValue
Rupture Count349
Ruptures Above Sect Min Mag347
Ruptures w/ Nonzero Rates26
Magnitude Range[6.89, 8.06]
Length Range[23, 289] km
Total Rate4.3458476E-5 /yr
Multi-Fault Rate4.3458476E-5 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults31

Table Of Contents

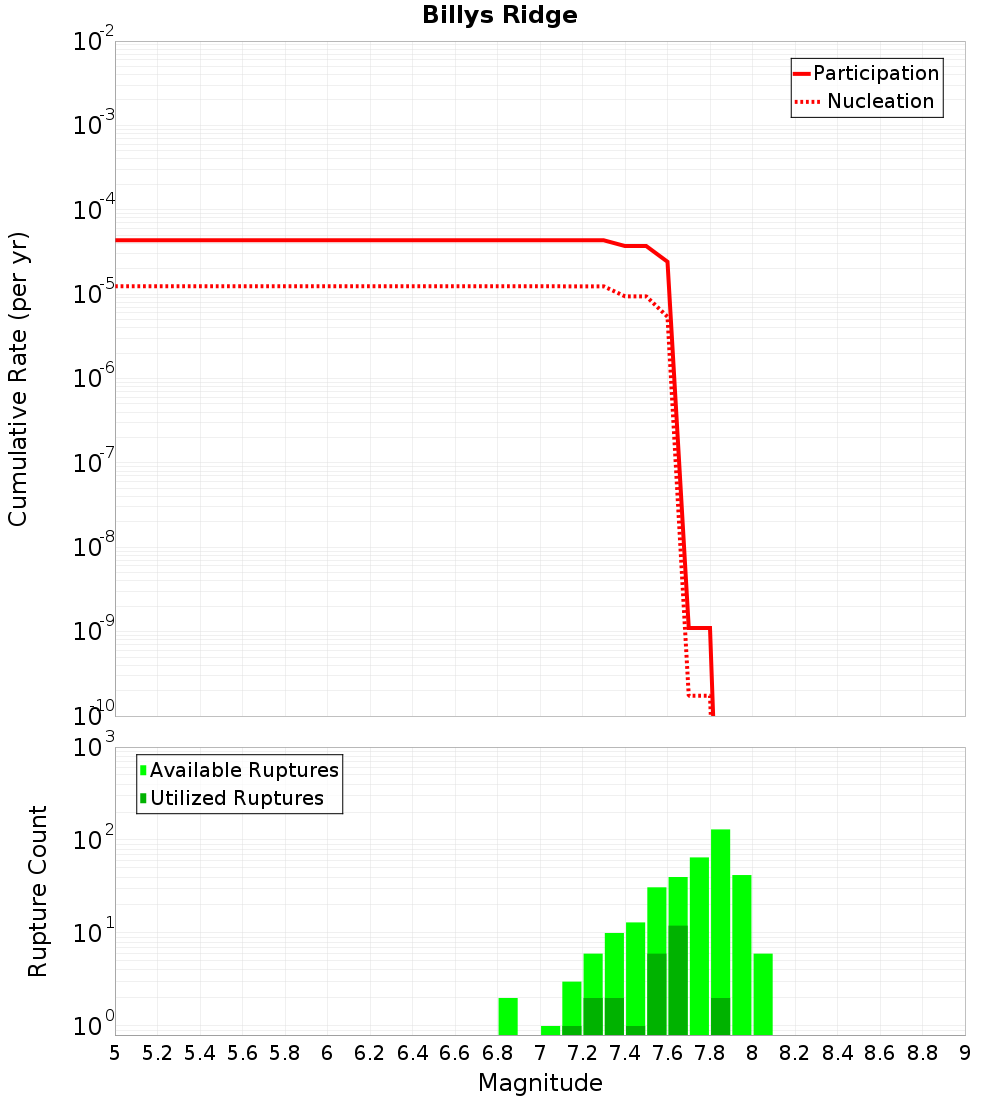

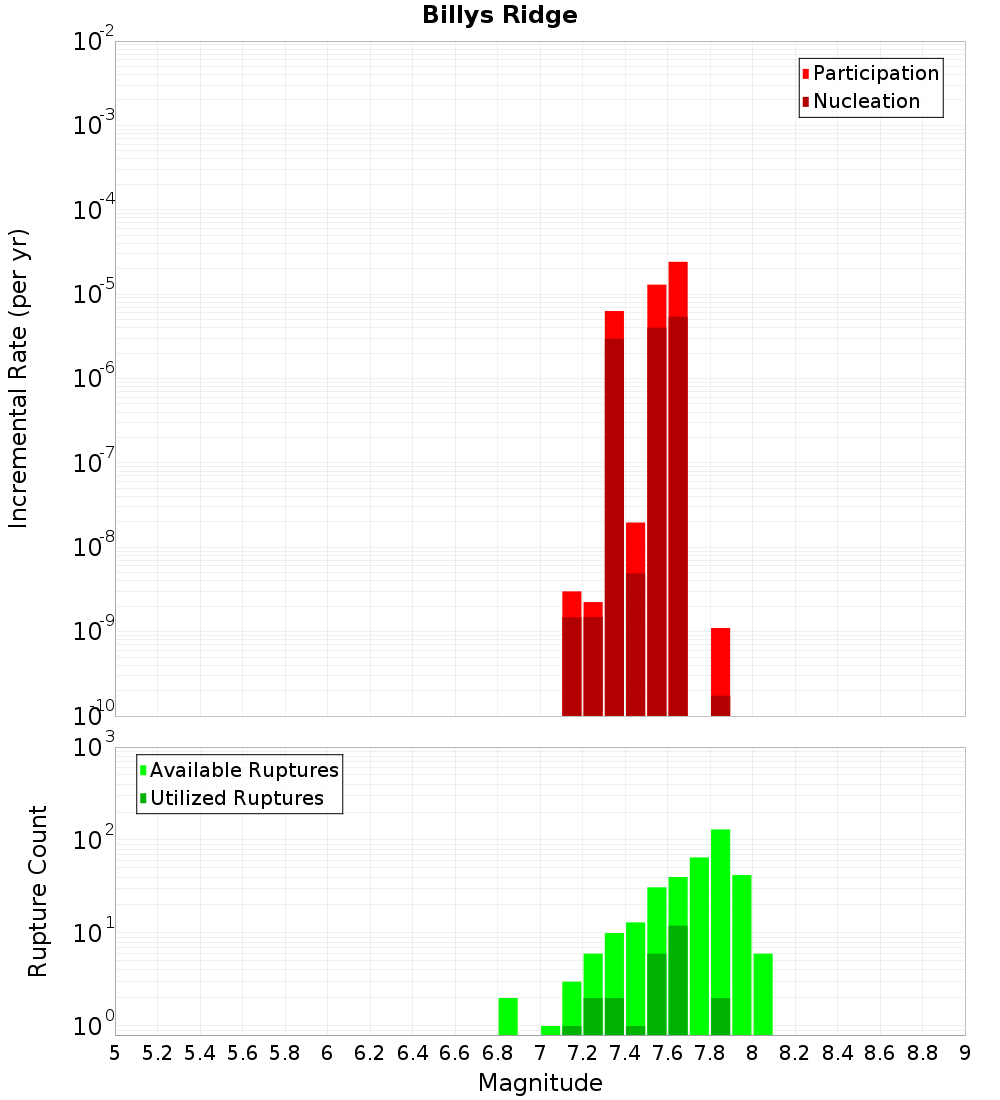

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

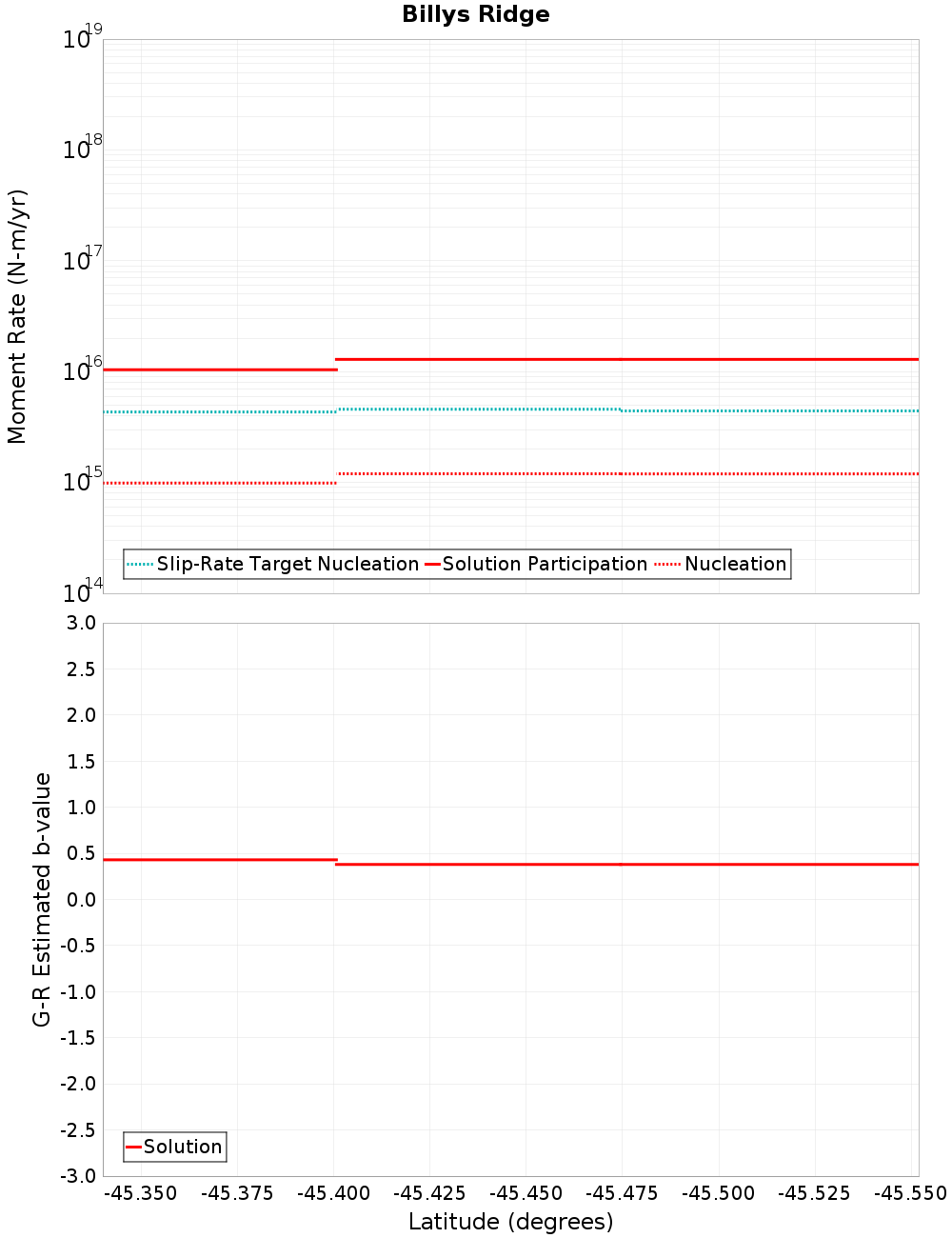

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Ranfurly, 0.11 km away
Waipiata, 0.2 km away
Murphys Creek, 2.04 km away
Horse Flat, 2.27 km away
Pylap, 2.54 km away
Logan Burn, 4.28 km away
Waihemo, 4.71 km away
Dunback Hill, 5.54 km away
Hyde North, 9.06 km away
Flat Stream - Glenpark, 9.9 km away
Nichols Rock, 10.01 km away
Long Valley, 11.26 km away
Cross Eden, 12.78 km away

Ranfurly, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?true
Co-rupture Count66
Co-rupture Rate5.301679E-6

Waipiata, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?true
Co-rupture Count41
Co-rupture Rate1.8291491E-6

Murphys Creek, 2.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Horse Flat, 2.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?true
Co-rupture Count11
Co-rupture Rate3.0011575E-9

Pylap, 2.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?true
Co-rupture Count145
Co-rupture Rate3.2029352E-6

Logan Burn, 4.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?true
Co-rupture Count183
Co-rupture Rate4.023229E-5

Waihemo, 4.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate1.1884248E-9

Dunback Hill, 5.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hyde North, 9.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?false
Co-rupture Count13
Co-rupture Rate3.611997E-10

Flat Stream - Glenpark, 9.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Nichols Rock, 10.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Long Valley, 11.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

Cross Eden, 12.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?true
Co-rupture Count42
Co-rupture Rate3.6323454E-5
