Hawkswood Details

PropertyValue
Rupture Count9,438
Ruptures Above Sect Min Mag9,430
Ruptures w/ Nonzero Rates273
Magnitude Range[6.71, 8.14]
Length Range[20, 530] km
Total Rate1.4942278E-4 /yr
Multi-Fault Rate1.4942278E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults77

Table Of Contents

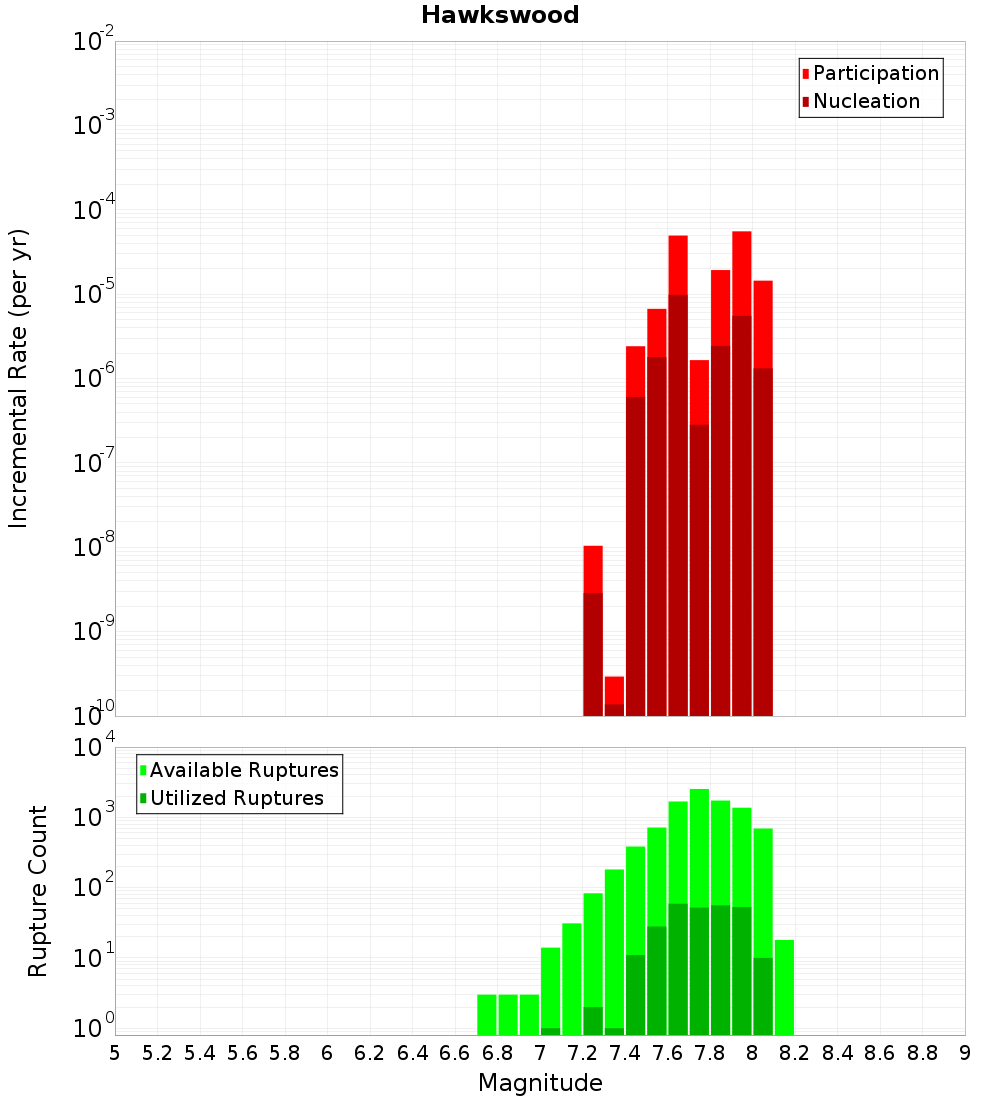

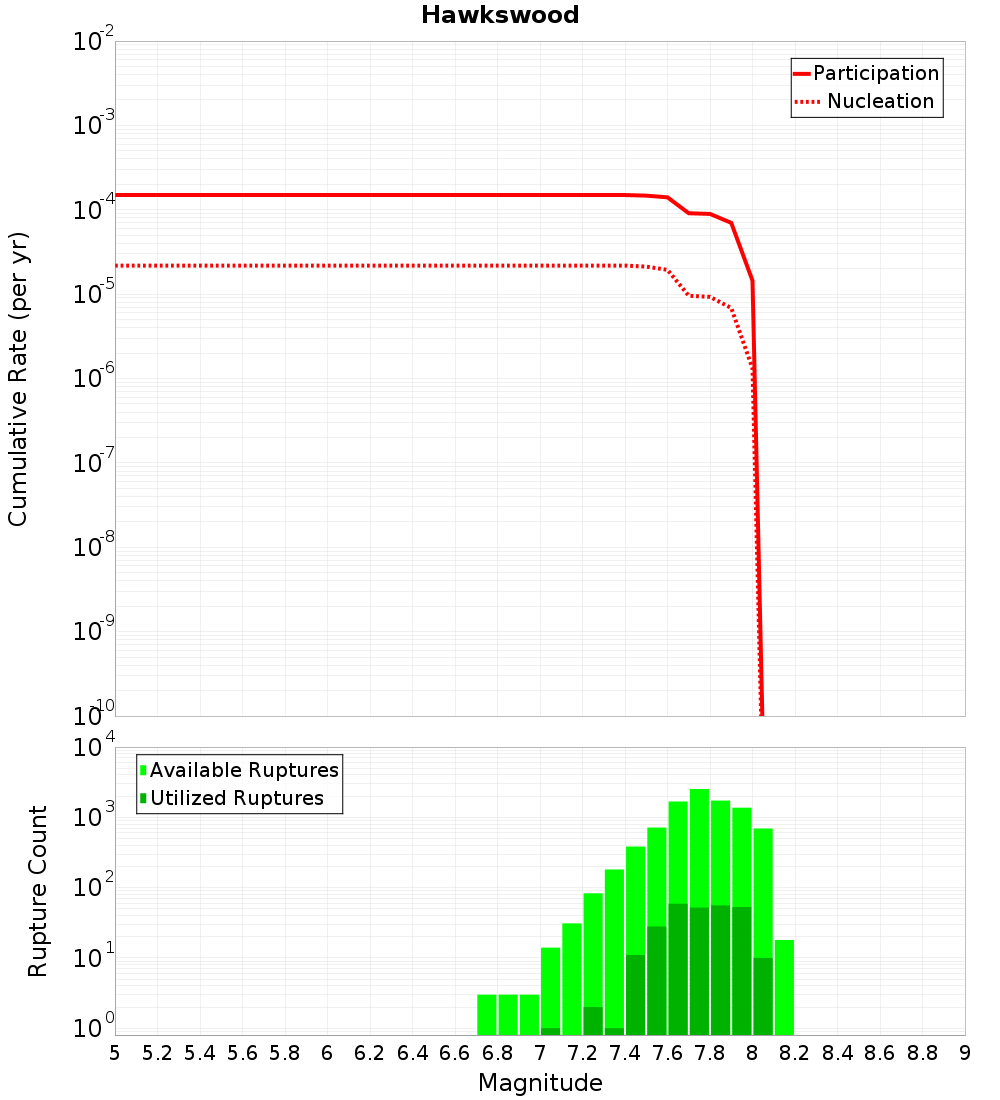

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

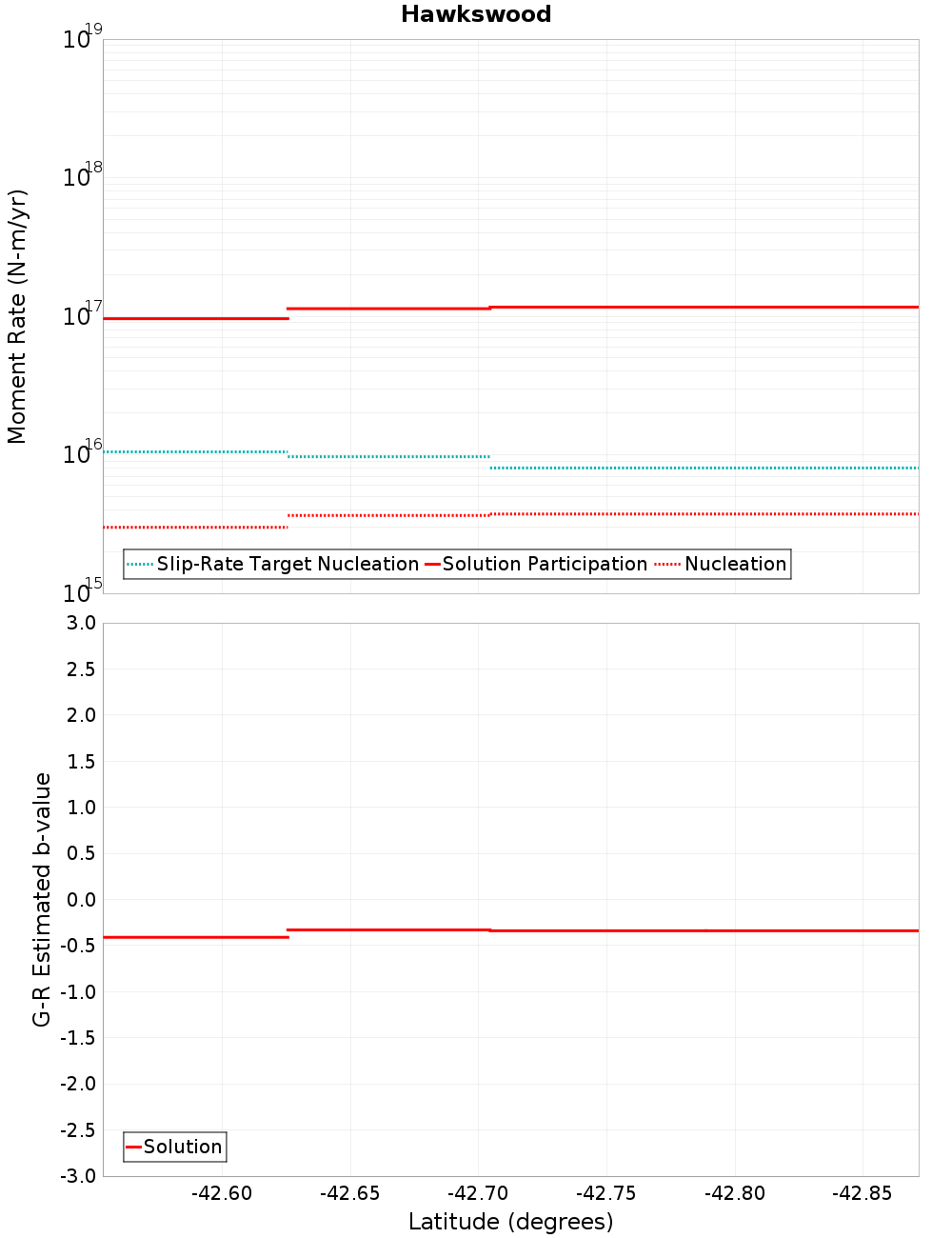

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hundalee, 0.87 km away
StoneJug, 2.25 km away
OmihiLwrHuru, 3.06 km away
AmberBlyth, 3.12 km away
Conway Trough West, 4.07 km away
Kaiwara North, 9.21 km away
Leader: Central, 10.66 km away
Leader: South, 10.66 km away
Conway Trough East, 10.94 km away
The Humps, 11.31 km away
Point Gibson, 11.77 km away

Hundalee, 0.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?true
Co-rupture Count5,014
Co-rupture Rate6.795263E-5

StoneJug, 2.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?true
Co-rupture Count3,896
Co-rupture Rate5.669959E-5

OmihiLwrHuru, 3.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?true
Co-rupture Count4,282
Co-rupture Rate8.639878E-5

AmberBlyth, 3.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?true
Co-rupture Count4,028
Co-rupture Rate6.303147E-5

Conway Trough West, 4.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?true
Co-rupture Count53
Co-rupture Rate1.8108067E-9

Kaiwara North, 9.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leader: Central, 10.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?false
Co-rupture Count705
Co-rupture Rate4.597036E-6

Leader: South, 10.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Conway Trough East, 10.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

The Humps, 11.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?true
Directly Connected?false
Co-rupture Count554
Co-rupture Rate4.8875577E-11

Point Gibson, 11.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
