Hillfoot Details

Property	Value
Rupture Count	13,932
Ruptures Above Sect Min Mag	13,929
Ruptures w/ Nonzero Rates	30
Magnitude Range	[7.00, 8.51]
Length Range	[27, 1,002] km
Total Rate	5.8722486E-5 /yr
Multi-Fault Rate	5.8722486E-5 /yr (100.00%)
Directly-Connected Faults	10
All Co-Rupturing Faults	153

Table Of Contents

Magnitude-Frequency Distribution

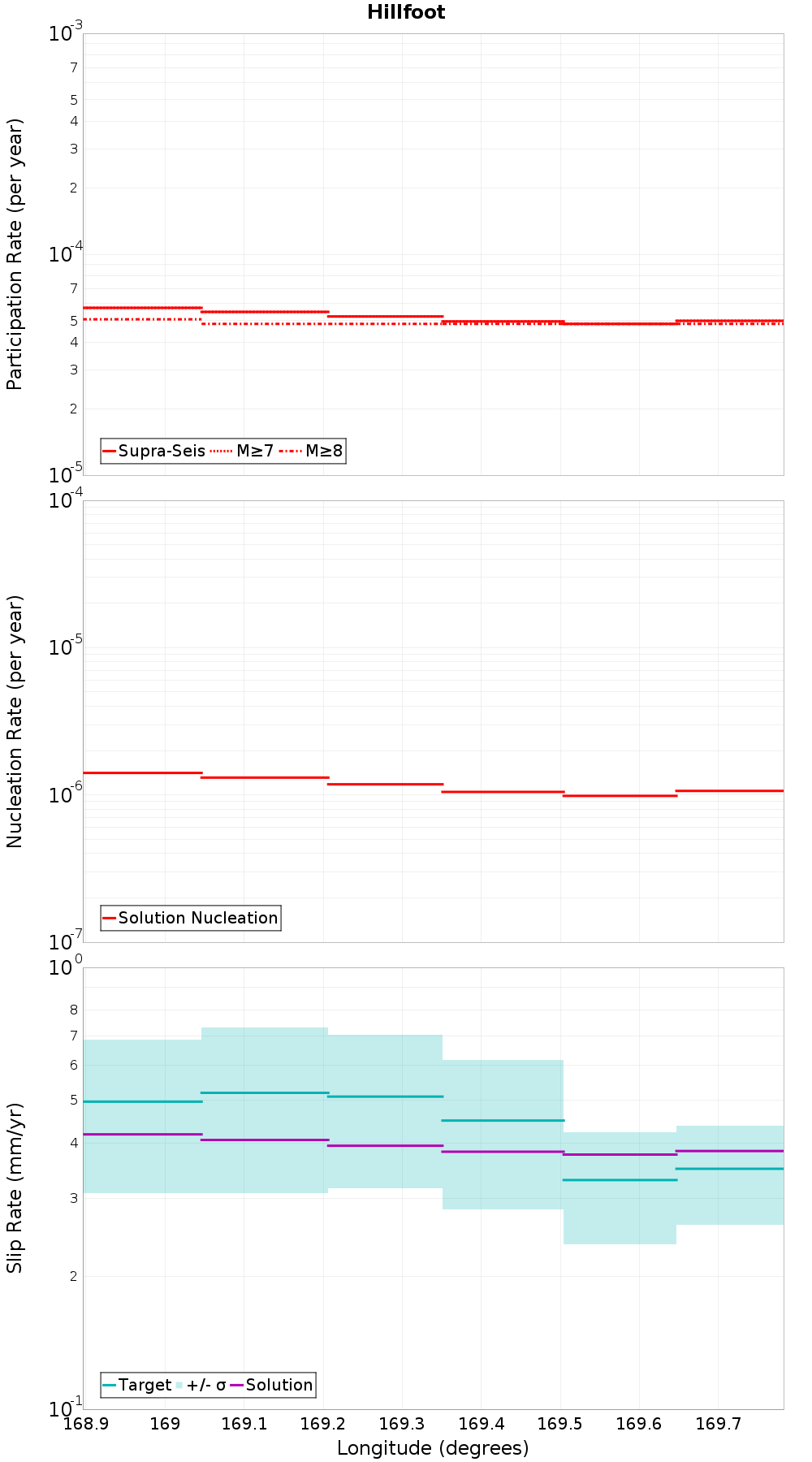

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

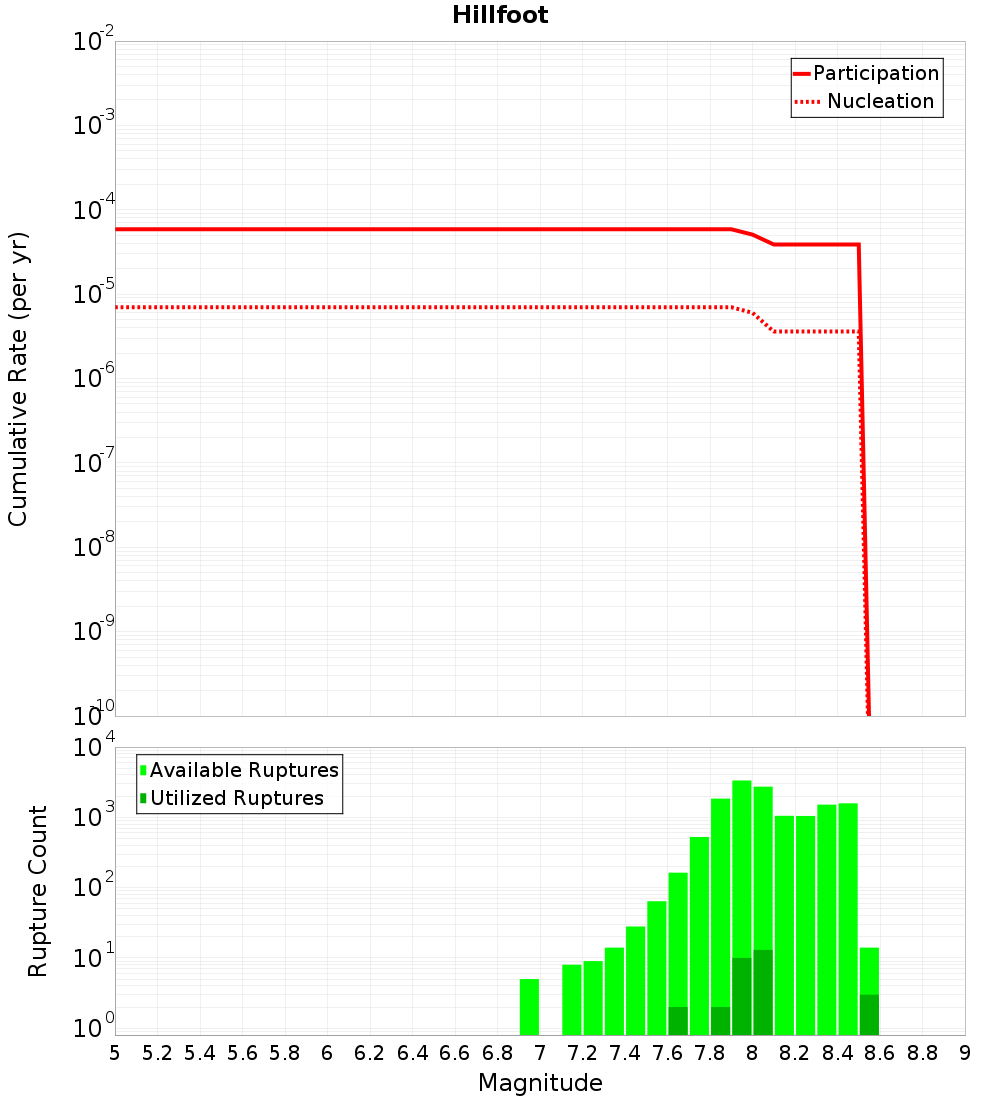

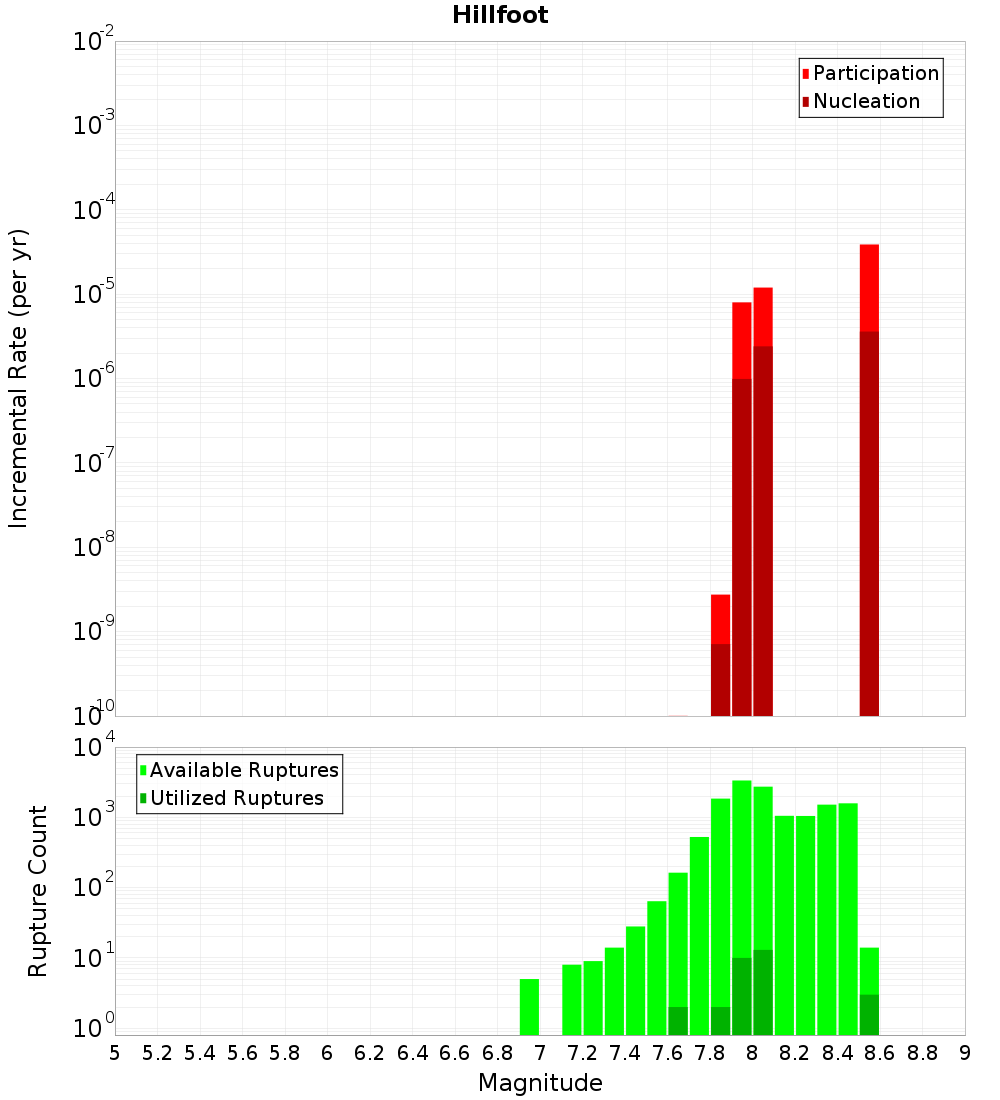

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

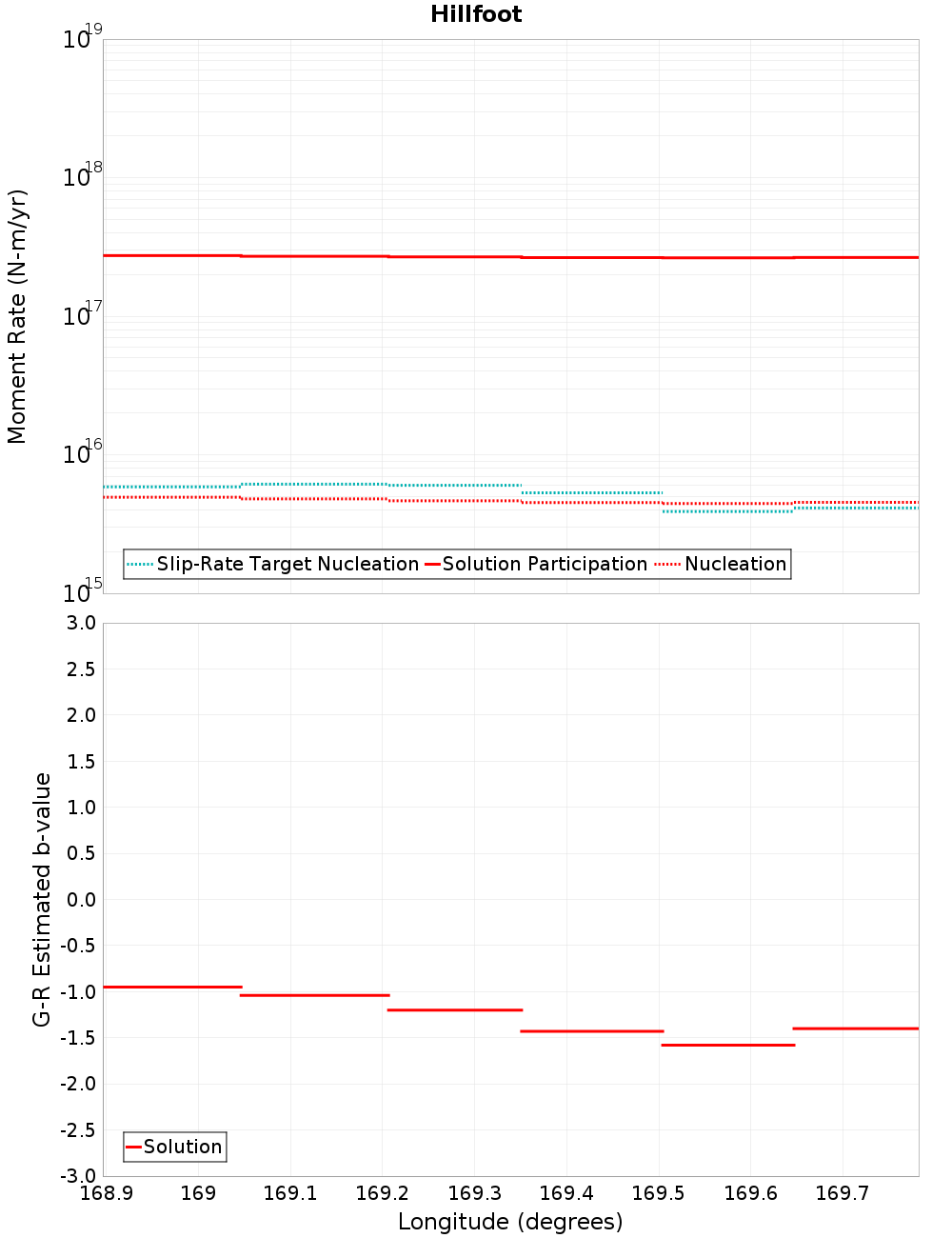

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Hokonui, 0 km away
Hedgehope, 0.31 km away
Little Hillfoot, 0.55 km away
Waikaka, 0.9 km away
Settlement, 2.1 km away
Otanomomo, 2.61 km away
Beacon Hill, 4.04 km away
Waikaia, 4.34 km away
Clifton, 5.72 km away
Blue Mountain, 6.17 km away
Titri South, 7.63 km away
Spylaw, 11.54 km away

Hokonui, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?	true
Directly Connected?	true
Co-rupture Count	5,036
Co-rupture Rate	4.1100408E-5

Hedgehope, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?	true
Directly Connected?	true
Co-rupture Count	565
Co-rupture Rate	0.0

Little Hillfoot, 0.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?	true
Directly Connected?	true
Co-rupture Count	297
Co-rupture Rate	8.842804E-6

Waikaka, 0.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?	true
Directly Connected?	true
Co-rupture Count	2,052
Co-rupture Rate	1.1155034E-5

Settlement, 2.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?	true
Directly Connected?	true
Co-rupture Count	3,133
Co-rupture Rate	4.1107764E-5

Otanomomo, 2.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?	true
Directly Connected?	true
Co-rupture Count	70
Co-rupture Rate	0.0

Beacon Hill, 4.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?	true
Directly Connected?	true
Co-rupture Count	1,644
Co-rupture Rate	2.294528E-6

Waikaia, 4.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?	true
Directly Connected?	true
Co-rupture Count	4,731
Co-rupture Rate	7.2476796E-6

Clifton, 5.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?	true
Directly Connected?	true
Co-rupture Count	503
Co-rupture Rate	1.5485563E-6

Blue Mountain, 6.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?	true
Directly Connected?	true
Co-rupture Count	2,291
Co-rupture Rate	1.3768101E-9

Titri South, 7.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Spylaw, 11.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr
Connected?	true
Directly Connected?	false
Co-rupture Count	1,248
Co-rupture Rate	2.293095E-6
