Hollyford Details
| Property | Value |
|---|---|
| Rupture Count | 1,287 |
| Ruptures Above Sect Min Mag | 1,285 |
| Ruptures w/ Nonzero Rates | 13 |
| Magnitude Range | [6.79, 8.35] |
| Length Range | [19, 814] km |
| Total Rate | 8.148185E-5 /yr |
| Multi-Fault Rate | 8.148185E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 126 |
Table Of Contents

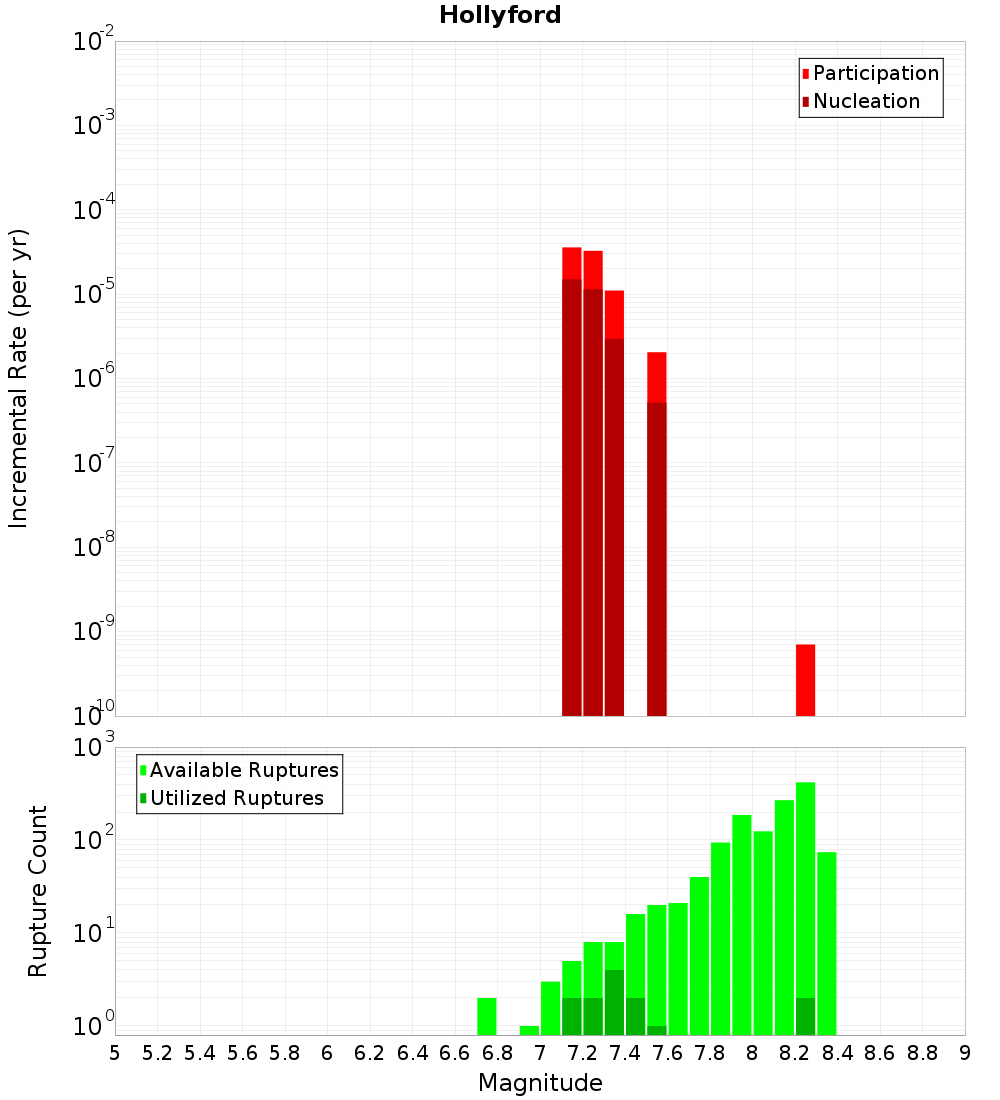

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Madagascar, 0.08 km away |
| Alpine: George to Jacksons, 0.11 km away |
| Darran, 0.22 km away |
| Livingstone, 3.63 km away |
| Skippers, 3.74 km away |
| Barn, 5.41 km away |
| West Wakatipu, 13.88 km away |
Madagascar, 0.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Alpine: George to Jacksons, 0.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,257 |
| Co-rupture Rate | 7.943405E-5 |
Darran, 0.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 12 |
| Co-rupture Rate | 0.0 |
Livingstone, 3.63 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 17 |
| Co-rupture Rate | 2.0477999E-6 |
Skippers, 3.74 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Barn, 5.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
West Wakatipu, 13.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4ODEuMFNndHFr | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3 |
| Co-rupture Rate | 2.0477999E-6 |
